cable tray on a roll
As a professional cold roll forming machine manufacturer, we specialize in advanced and innovative cable tray on a roll production solutions for customers worldwide. Our cable tray on a roll system is designed to produce continuous cable tray profiles in coil form, offering higher efficiency, easier transportation, and flexible installation compared with traditional fixed-length cable trays.
| aw Material Specifications | Material Type | Galvanized / Cold-Rolled / Stainless Steel |
| Material Thickness | 0.8–2.5 mm (Customizable) | |
| Material Width | Customized according to tray size | |
| Yield Strength | G220-G250 | |
| Roll Forming System | Forming Stations | 18–24 stations |
| Roller Material | GCr15, heat treated | |
| Shaft Material | 45# steel, heat treate | |
| Shaft Diameter | Φ70–90 mm | |
| Drive System | Chain drive | |
| Punching System | Punching Type | Hydraulic Punching |
| Punching Position | Before forming | |
| Hole Type | Round / Slotted / Customized | |
| Punching Accuracy | ±0.5 mm | |
| Control System | Operation Interface | Touch Screen (CN / EN) |
| Inverter | Famous brand | |
| Electrical Components | Siemens or Schnedier | |
| Data Memory | Parameter memory | |
| Motor & Hydraulic System | Main Motor Power | 11 kW *3 sets |
| Hydraulic Power | 7.5 kW | |
| Power Supply | 380V / 50Hz / 3Ph (Custom) | |
| Hydraulic Oil | 46# Anti-wear Hydraulic Oi | |
| Production size | Line Length | 35 meters |
| Machine Width | 2.5 meters | |
| Machine Weight | 25ton |
The cable tray on a roll manufacturing concept is widely used in modern electrical installations, data centers, commercial buildings, and industrial projects where fast installation and reduced labor costs are required. By producing cable trays in roll form, the cable tray on a roll system allows installers to cut lengths on-site according to actual project needs, minimizing material waste and improving installation flexibility.

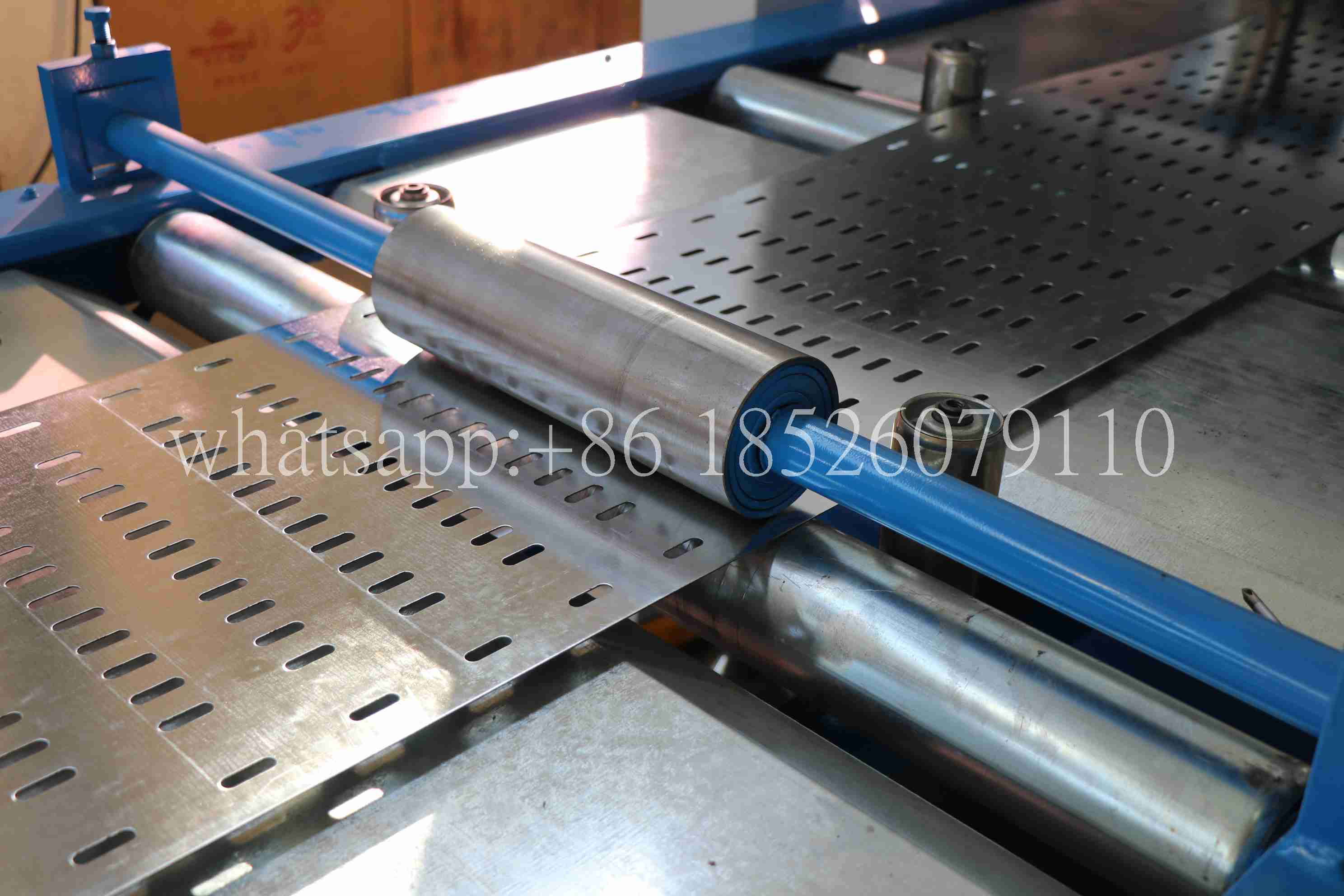

Our cable tray on a roll machine integrates decoiling, feeding, precision roll forming, optional punching, edge forming, and recoiling into a fully automatic production line. The continuous roll forming process ensures stable profile accuracy, smooth edges, and consistent quality throughout the entire coil length. This makes the cable tray on a roll solution ideal for high-volume and long-distance cable routing applications.
The cable tray on a roll machine is built with a heavy-duty steel frame and high-quality forming rollers made from premium alloy steel. All rollers are CNC-machined and heat-treated to ensure durability and long service life. The machine is capable of processing galvanized steel, stainless steel, and other metal materials with customized thickness ranges, commonly from 0.6 mm to 1.5 mm, depending on customer requirements.
Customization is a key advantage of our cable tray on a roll system. Feeding width, tray profile design, roll forming thickness, punching patterns, and recoiling tension can all be customized. Electrical components, voltage, frequency, and control systems are also configurable to meet different international standards. This flexibility allows the cable tray on a roll machine to adapt to various project specifications and regional market demands.
For easy operation and reliable performance, the cable tray on a roll machine is equipped with an intelligent PLC control system and a user-friendly touchscreen interface. Operators can easily adjust production parameters, monitor machine status, and store multiple product programs. If any machine issues occur, our experienced engineers provide real-time video technical support, ensuring fast troubleshooting and reduced downtime without the need for on-site service.
Each cable tray on a roll machine undergoes strict testing before delivery to ensure stable operation and compliance with international quality standards. Combined with comprehensive after-sales service, including installation guidance, training, spare parts supply, and long-term technical support, our cable tray on a roll solution delivers reliable performance and excellent return on investment.
