Model:HOPEX- 41*21/41*41mm/41*52mm/41*62mm
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
Warranty :2 years for machinery warranty
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com

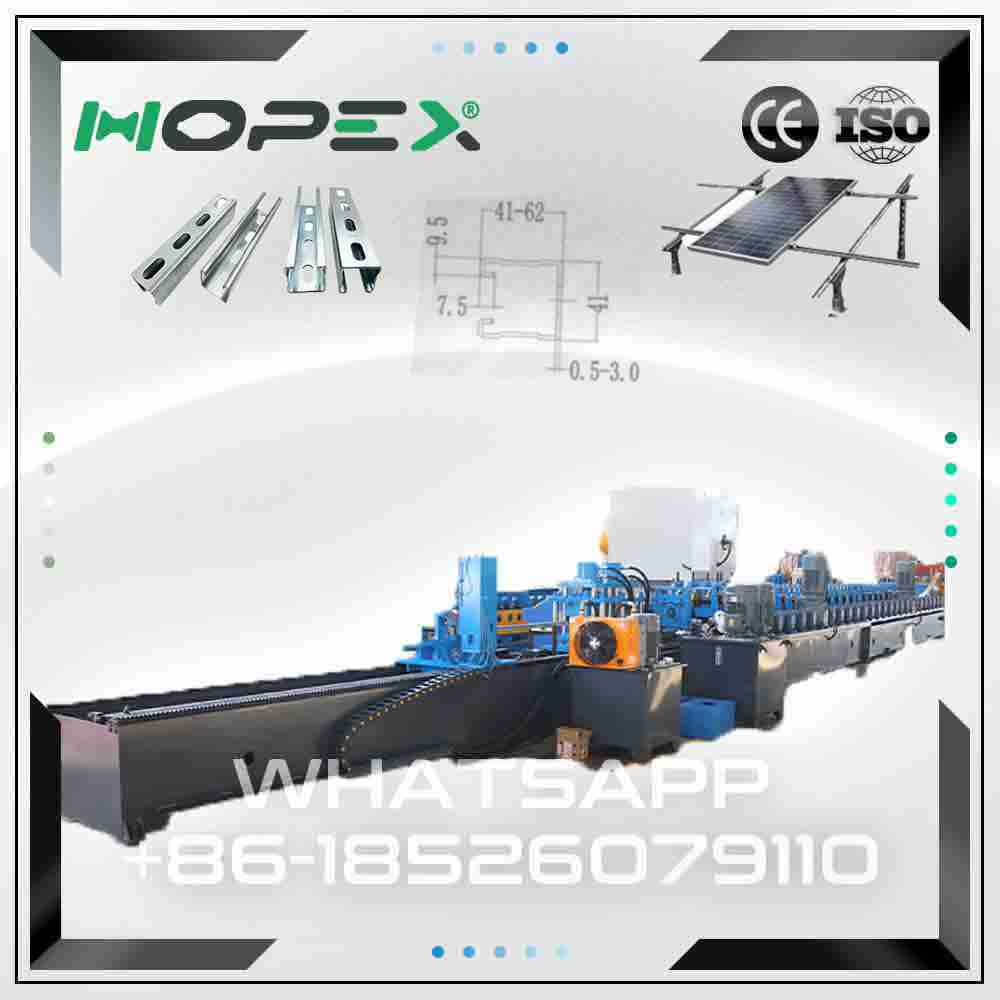

roll forming machine for solar structure
As a professional cold roll forming machine manufacturer, we are dedicated to supplying high-performance equipment for the renewable energy industry. One of our key solutions is the roll forming machine for solar structure, specially designed to produce structural profiles used in photovoltaic mounting systems. With the rapid expansion of solar power projects worldwide, the demand for a reliable roll forming machine for solar structure continues to grow.
Punch press process flow:
Punching process: Unloading — feeding — forming — punching — cutting — discharging

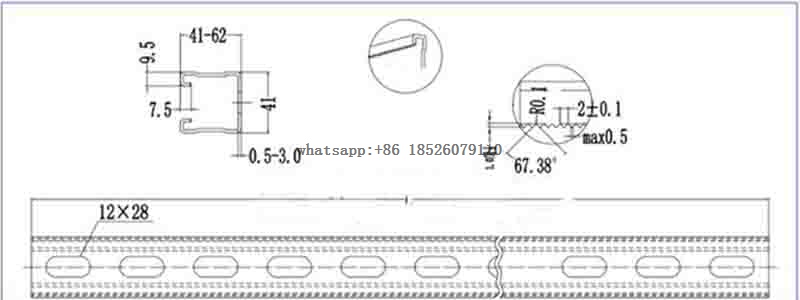

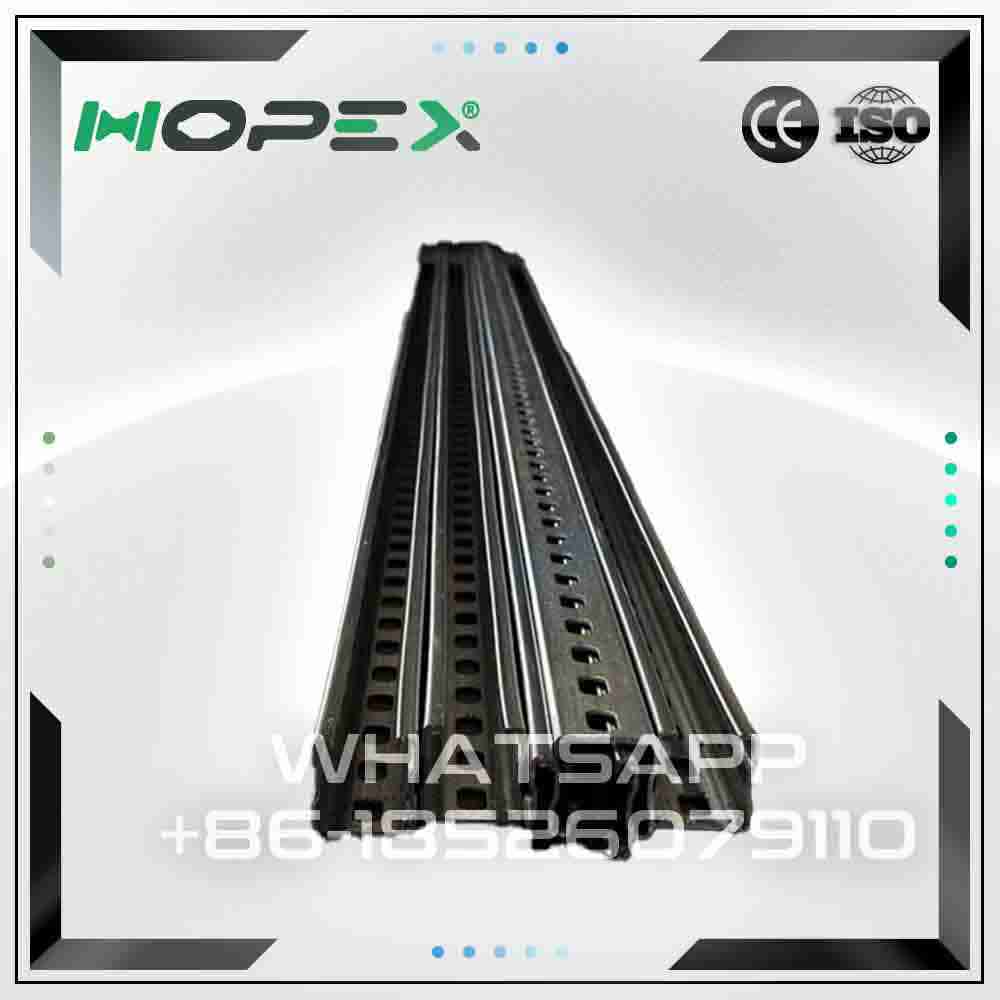

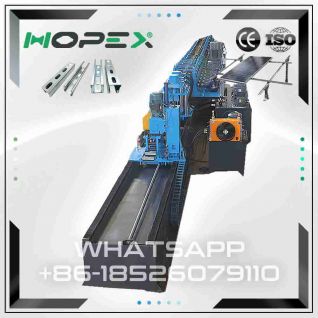

This strut channel roll forming machine line can roll steel products with a maximum thickness of 2.0mm, and can produce steel products with size 41*21/41*41mm/41*52mm,thickness range 1.5(±0.03)~2.5(±0.03) mm
| Photovoltaic bracket roll forming machine main parameters | |

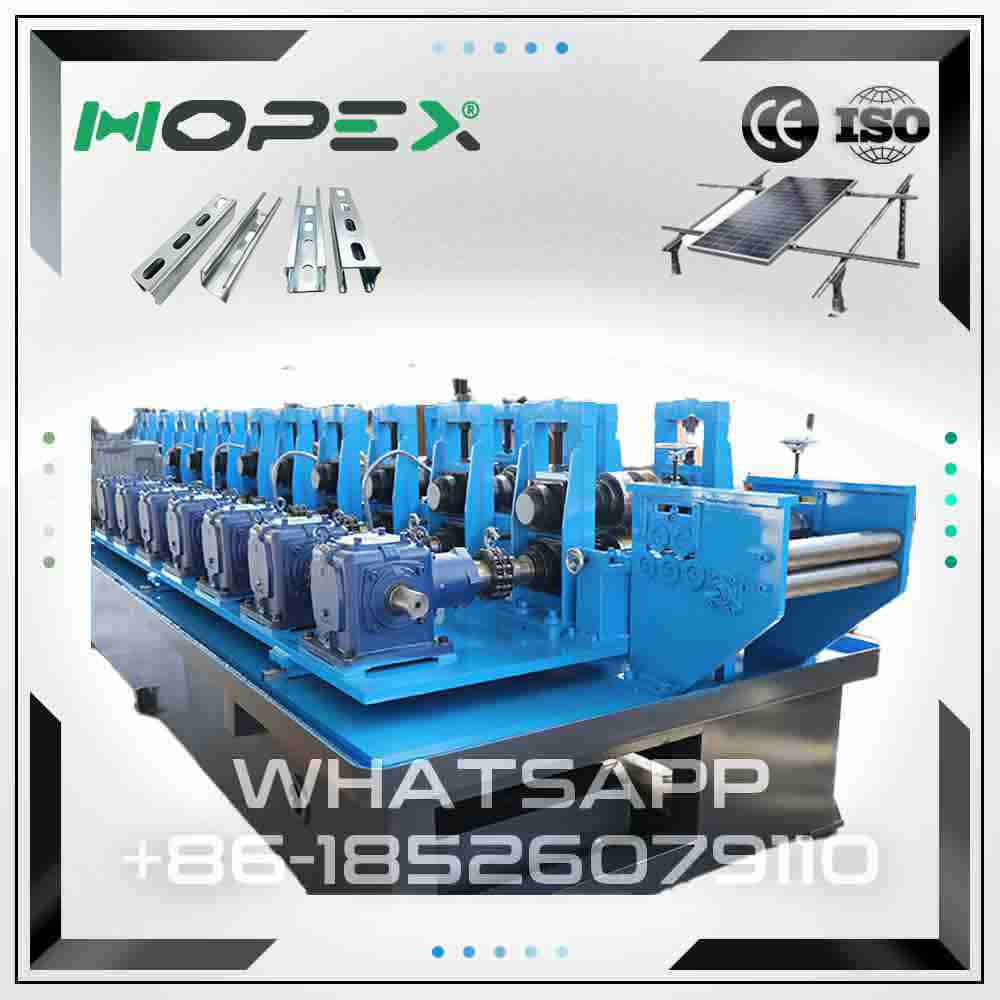

| Forming Rollers | 26rollers |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 |
| Main Shaft Diameter | Finished diameter Ø80 mm |
| Main Shaft Material | 45# steel with quenching and tempering treatment |
| Motor Power | 18.5 kW *2 motors, K97 series hard-tooth gearbox |
| Transmission | Gearbox drive, coupled with universal couplings |
| Machine Frame | Cast iron archway 48 |
| Servo Punching | Non-stop servo punching,dual-module reverse punching |
| Cutting Method | Flying tracking saw cutting (with scrap) |
| Discharge Table | 3 m × 2 Pieces, roller-type support |
| Forming Thickness | 1.5-2.5mm |
| Forming Speed | 10-15m/min |
| Inverter | INVT brand |
| LCD Screen | Display Control Electric |
| Low-Voltage Electrical Components | Delixi or Chint |
| Hydraulic System | 11 kW × 2 pump station (for punching |
| 4 kW pump station (for cutting) | |
| 3 kW pump station (for pressing) | |
| Bearings | Harbin Bearings |
| Reducer | Ruibofeng Reducer Co., Ltd. |
Our roll forming machine for solar structure is engineered for precision, stability, and long-term operation. The machine adopts a heavy-duty steel frame, high-accuracy forming rollers, and an advanced PLC control system to ensure consistent profile dimensions and smooth surface quality. By using this professional roll forming machine for solar structure, manufacturers can achieve continuous high-speed production while maintaining strict quality standards required for solar installations.
Customization is a major advantage of our roll forming machine for solar structure. Different solar projects require different structural designs, thicknesses, and material specifications. We offer flexible customization options, including feeding width, roll forming thickness, forming profile design, punching configuration, and voltage standards. Whether producing C channels, U channels, or other customized solar support structures, our roll forming machine for solar structure can be tailored to meet exact project requirements.
Technical support is an essential part of our service philosophy. When any issue occurs during operation, our experienced engineers provide real-time remote video guidance. This ensures quick troubleshooting and minimizes production downtime without waiting for on-site service. Reliable after-sales support greatly increases the practical value of every roll forming machine for solar structure, helping customers maintain stable production schedules.
Durability and efficiency are also key features of our equipment. The roll forming machine for solar structure is built with premium components, ensuring low maintenance frequency and long service life. Stable transmission systems, precise forming tools, and user-friendly operation interfaces make the machine suitable for both experienced operators and new production teams. These advantages help reduce overall manufacturing costs and improve return on investment.
Choosing the right roll forming machine for solar structure is a critical decision for manufacturers involved in solar energy projects. As an experienced supplier, we focus on delivering machines that combine performance, customization capability, and professional support. Our goal is to provide every customer with a reliable roll forming machine for solar structure that supports efficient production and long-term growth in the solar energy industry.
| Carport Canopies | ual-purpose structures that provide shade for vehicles while generating electricity. They require robust channels to span large areas and support significant loads |
| Building-Integrated Photovoltaics (BIPV) | Systems where the mounting structure is an integral part of the building envelope, such as facades or skylights. |
| Agricultural Applications (AgriVoltaics) | Mounting structures are elevated to allow farming activities to continue underneath the panels. |
| Floating PV Systems | Specialized structures designed to support panels on bodies of water, such as reservoirs and lakes. They are highly corrosion-resistant |
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
