unistrut roll forming machine
As a professional cold roll forming machine manufacturer, we focus on developing high-quality and reliable unistrut roll forming machine solutions for customers worldwide. Our unistrut roll forming machine is specially designed for producing standard Unistrut channels used in electrical support systems, solar mounting structures, HVAC installations, and industrial construction projects.
Multi-Profile Versatility : A single machine is configured to produce multiple channel sizes (41×21, 41×41, 41×51, etc.) with quick and straightforward adjustments. This flexibility allows manufacturers to meet diverse project specifications without investing in multiple dedicated lines.
Here is a professional English introduction and description for a solar channel roll forming machine capable of producing 41×21, 41×41, 41×52, 41×62, and 41×72 profiles.

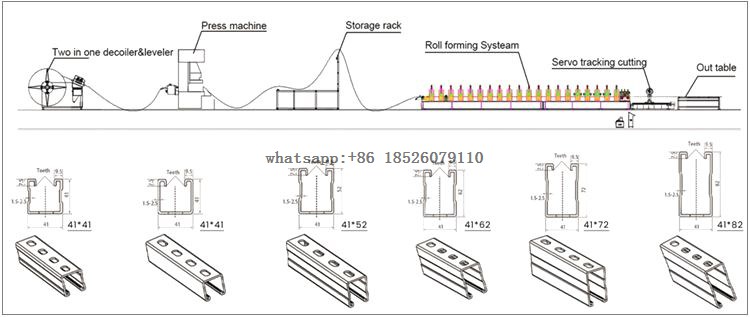

Punch press process flow:
Steel Coil Decoiler –> Straightening Machine –> Punching Machine –> Roll Forming Machine –> Hydraulic Cut Off –> Run Out Table –> Finished product–> PLC Control
A. Decoiling: The raw material coil is loaded onto an automatic decoiler.
B. Leveling & Guiding: The metal strip is straightened and guided into the machine.
C. Pre-Punching (Optional): Holes and slots are punched flat before forming.
D. Roll Forming: The strip passes through the series of forming rolls, gradually shaping into the final C/U-channel.
E. In-Line Punching (Optional): Additional features can be punched post-forming.
F. Flying Cut: The continuously formed profile is cut to exact lengths.
| Photovoltaic bracket roll forming machine main parameters | |
| Forming Rollers | 26rollers |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 |
| Main Shaft Diameter | Finished diameter Ø80 mm |
| Main Shaft Material | 45# steel with quenching and tempering treatment |
| Motor Power | 18.5 kW *2 motors, K97 series hard-tooth gearbox |
| Transmission | Gearbox drive, coupled with universal couplings |
| Machine Frame | Cast iron archway 48 |
| Servo Punching | Non-stop servo punching,dual-module reverse punching |
| Cutting Method | Flying tracking saw cutting (with scrap) |
| Discharge Table | 3 m × 2 Pieces, roller-type support |
| Forming Thickness | 1.5-2.5mm |
| Forming Speed | 10-15m/min |
| Inverter | INVT brand |
| LCD Screen | Display Control Electric |
| Low-Voltage Electrical Components | Delixi or Chint |
| Hydraulic System | 11 kW × 2 pump station (for punching） |
| 4 kW pump station (for cutting) | |
| 3 kW pump station (for pressing) | |
| Bearings | Harbin Bearings |
| Reducer | Ruibofeng Reducer Co., Ltd. |
| Decoiler | Motorized decoiler with hydraulic expanding mandrel, load capacity 5 tons Inner diameter: 480–520 mm Max. outer diameter: 1600 mm |
| Leveling Section |
1.5 rollers |
| 2. Leveling shaft diameter 70 mm | |
| 3. Material 40Cr high frequency quenching | |

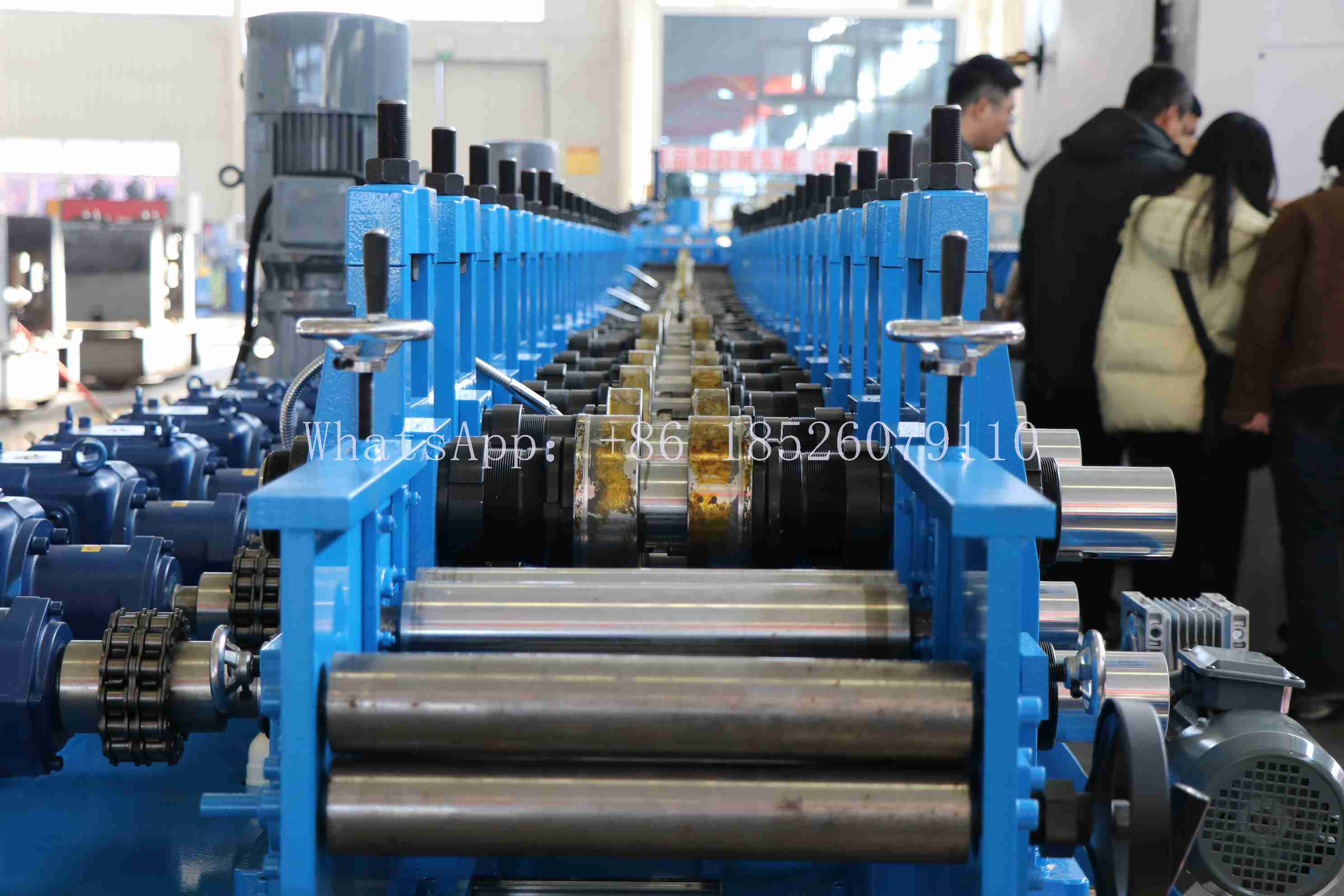

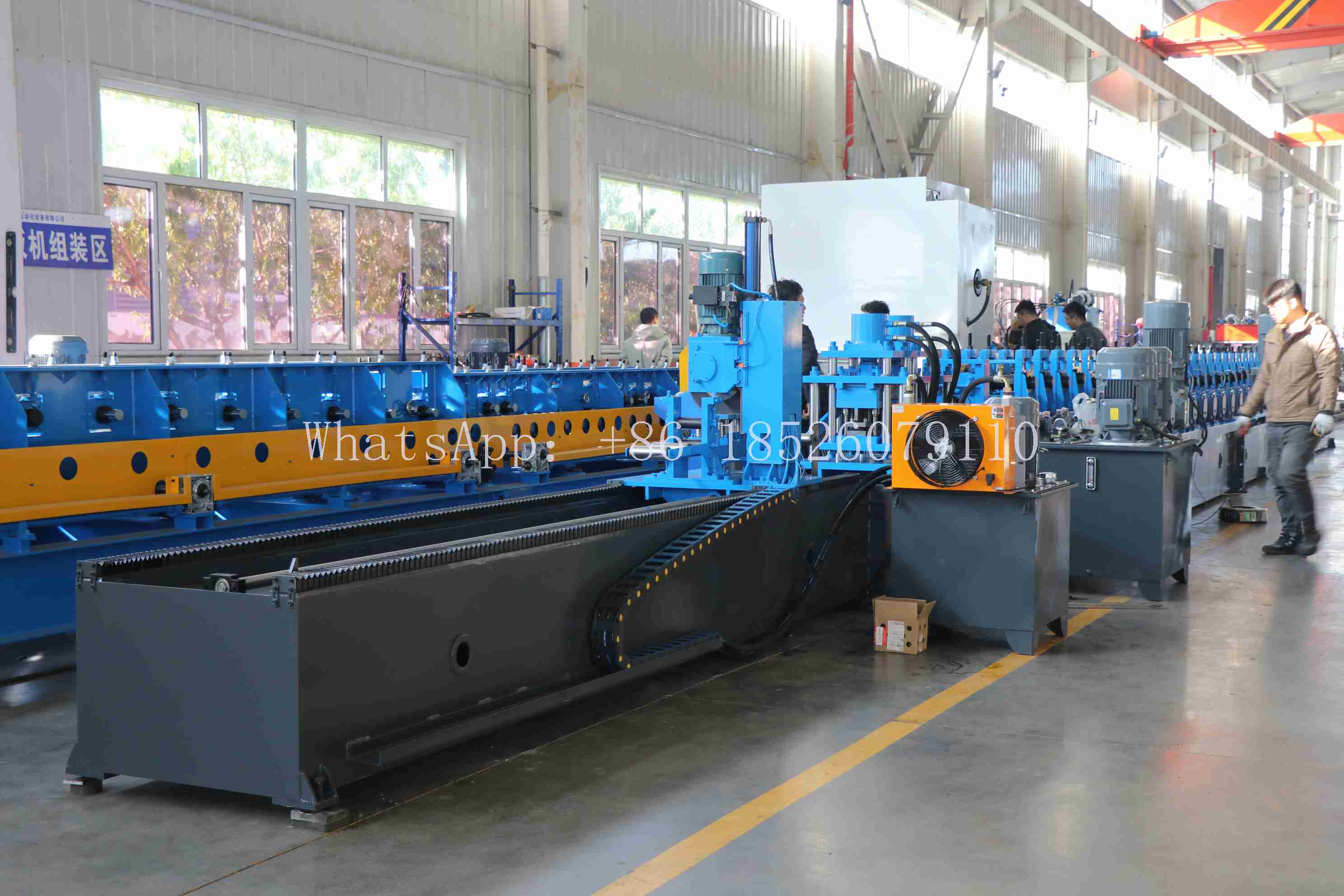

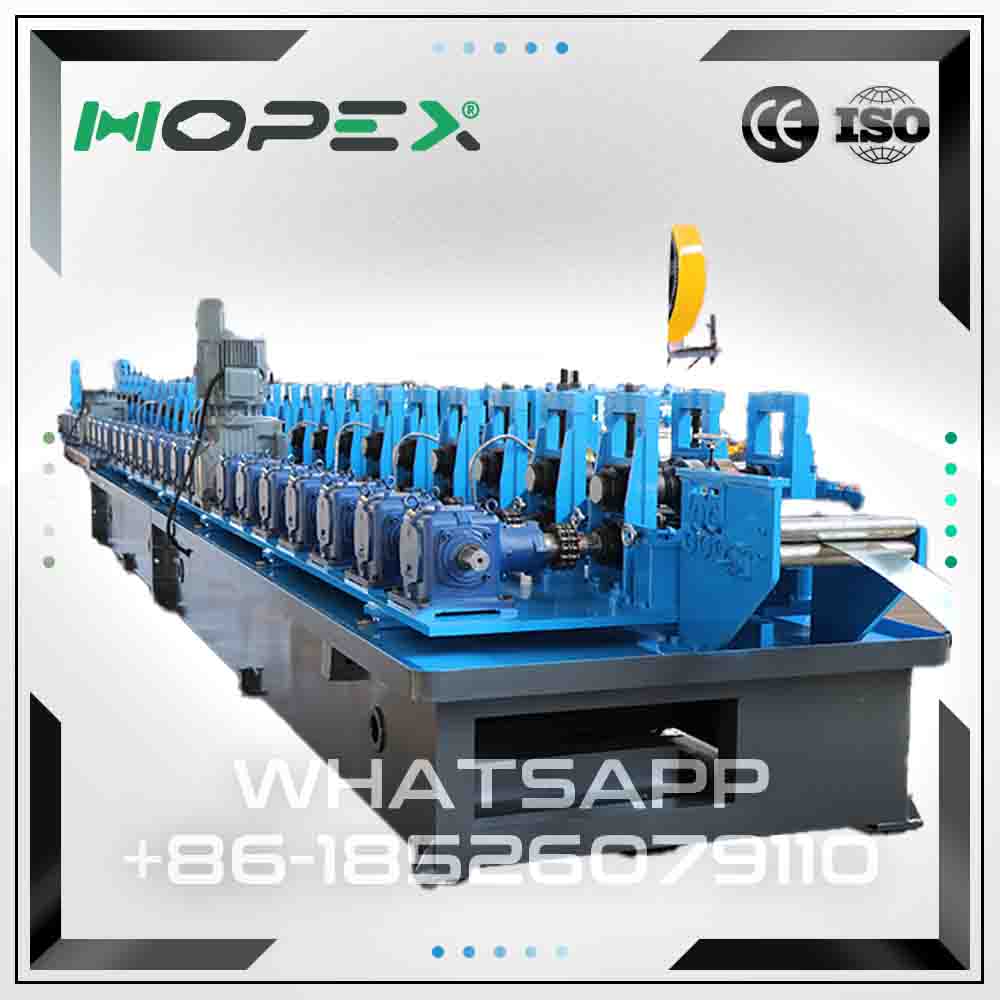

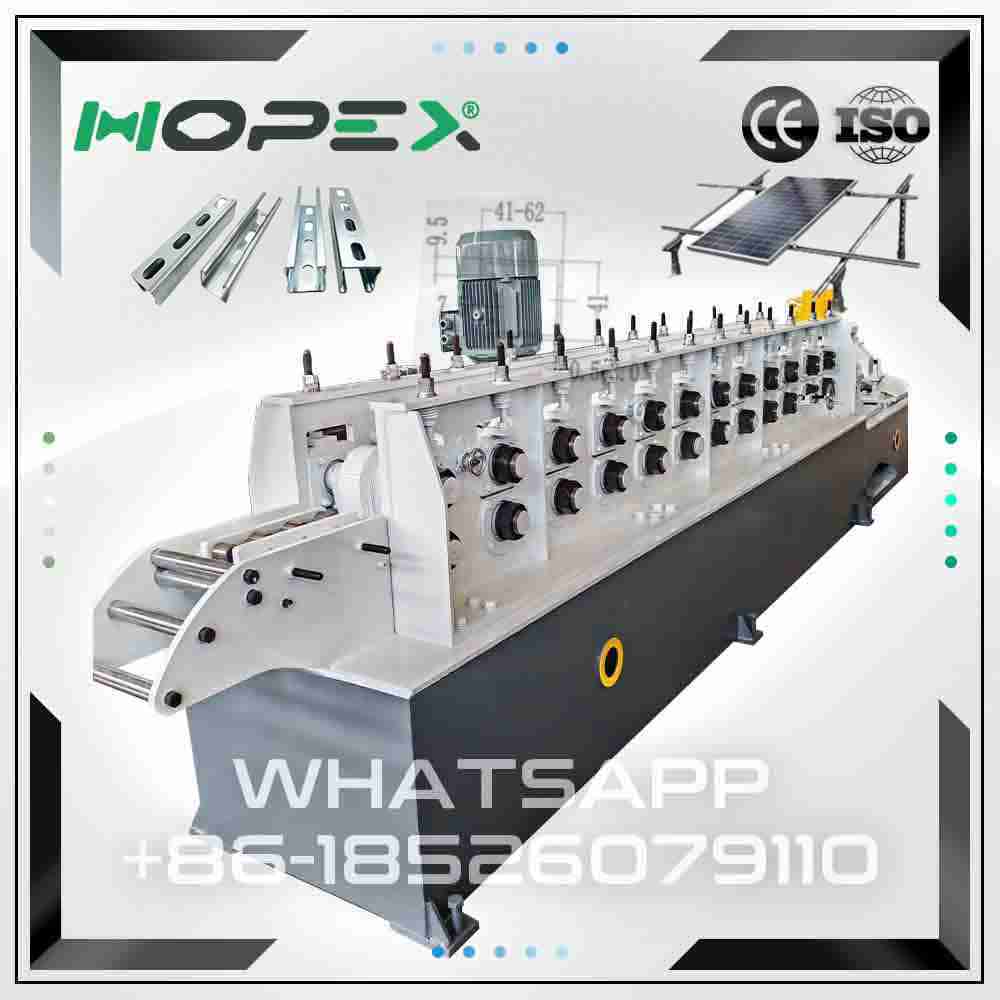

Unistrut roll forming machine solar photovoltaic bracket more photos showing
The unistrut roll forming machine adopts a fully automatic production process, including decoiling, material feeding, precision roll forming, hydraulic punching (optional), hydraulic cutting, and finished product collection. This integrated production line ensures high efficiency, stable operation, and consistent product dimensions, making the unistrut roll forming machine ideal for mass production environments.
Our unistrut roll forming machine is manufactured with high-precision forming rollers made from premium alloy steel. All rollers are CNC-machined and heat-treated to ensure excellent wear resistance and long service life. The heavy-duty machine frame provides strong structural stability, reducing vibration and guaranteeing accurate profile shaping even during continuous high-speed production.
One of the key advantages of our unistrut roll forming machine is flexible customization. Feeding width, roll forming thickness, forming speed, punching hole pattern, and cutting length can all be customized according to customer drawings or technical requirements. The machine supports a wide range of materials, such as galvanized steel, stainless steel, and carbon steel, typically with thicknesses from 1.5 mm to 3.0 mm. Voltage, frequency, and electrical standards can also be customized to suit different countries and regions.
To improve user experience and operational reliability, the unistrut roll forming machine is equipped with an advanced PLC control system and a user-friendly touchscreen interface. Operators can easily adjust parameters, monitor production status, and store multiple product programs. In case of machine issues, our experienced engineers provide real-time video technical guidance, allowing customers to quickly troubleshoot and resume production without delay.
Each unistrut roll forming machine is strictly tested before delivery to ensure stable performance and compliance with international quality standards. In addition to machine manufacturing, we also provide comprehensive after-sales services, including installation guidance, operator training, spare parts supply, and long-term technical support.
With high efficiency, durable structure, precise forming accuracy, and reliable remote support, our unistrut roll forming machine is the ideal choice for manufacturers looking to produce high-quality Unistrut channels with lower production costs and higher productivity.
