Develivery time:45-50 days
Model:HOPEX- 41*21/41*41mm/41*52mm/41*62mm
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
Warranty :2 years for machinery warranty
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com

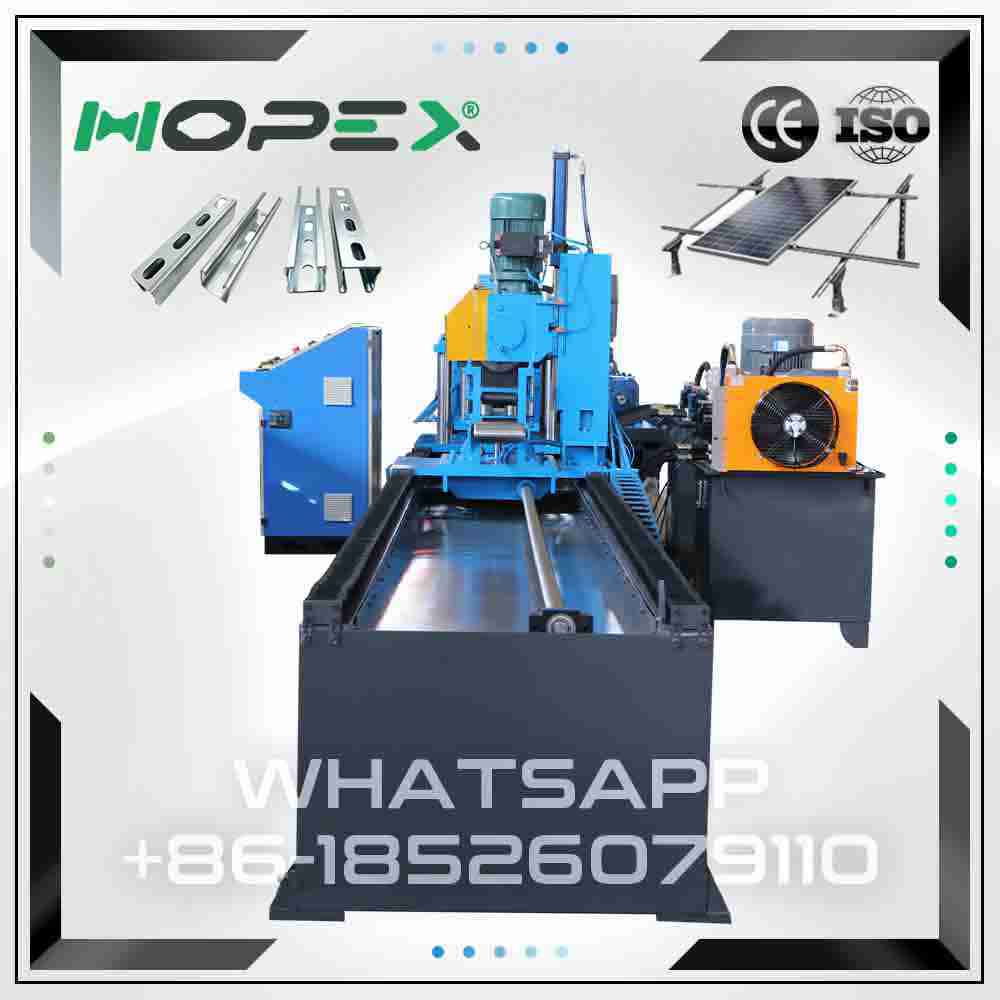

strut channel machines
As a professional manufacturer of cold roll forming machinery, our company specializes in producing high-quality strut channel machines designed for a wide range of industrial applications. A strut channel machine is an essential piece of equipment for creating metal channels that are widely used in construction, electrical installations, and industrial shelving systems. These machines provide precise forming of metal strips into channels with consistent dimensions and superior structural integrity.

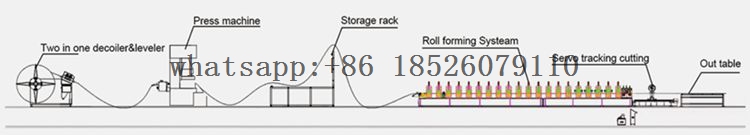

Punch press process flow:
Steel Coil –> Straightening Machine –> Punching Machine –> Roll Forming Machine –> Hydraulic Cut Off –> Run Out Table –> Finished product–> PLC Control
One of the most significant advantages of our strut channel machine is its customizable features. Clients can choose the feed width, roll forming thickness, and voltage specifications according to their production requirements. This level of customization ensures that the machine can handle different types of metal sheets and meet the unique demands of various industries. Additionally, our strut channel machine is equipped with advanced control systems that allow operators to adjust parameters easily, making the production process more efficient and reliable.
| Photovoltaic bracket roll forming machine main parameters | |
| Forming Rollers | 26rollers |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 |
| Main Shaft Diameter | Finished diameter Ø80 mm |
| Main Shaft Material | 45# steel with quenching and tempering treatment |
| Motor Power | 18.5 kW *2 motors, K97 series hard-tooth gearbox |
| Transmission | Gearbox drive, coupled with universal couplings |
| Machine Frame | Cast iron archway 48 |
| Servo Punching | Non-stop servo punching,dual-module reverse punching |
| Cutting Method | Flying tracking saw cutting (with scrap) |
| Discharge Table | 3 m × 2 Pieces, roller-type support |
| Forming Thickness | 1.5-2.5mm |
| Forming Speed | 10-15m/min |
| Inverter | INVT brand |
| LCD Screen | Display Control Electric |
| Low-Voltage Electrical Components | Delixi or Chint |
| Hydraulic System | 11 kW × 2 pump station (for punching） |
| 4 kW pump station (for cutting) | |
| 3 kW pump station (for pressing) | |
| Bearings | Harbin Bearings |
| Reducer | Ruibofeng Reducer Co., Ltd. |
| Decoiler | Motorized decoiler with hydraulic expanding mandrel, load capacity 5 tons Inner diameter: 480–520 mm Max. outer diameter: 1600 mm |
| Leveling Section | 1.5 rollers |
| 2. Leveling shaft diameter 70 mm | |
|
3. Material 40Cr high frequency quenching |
|

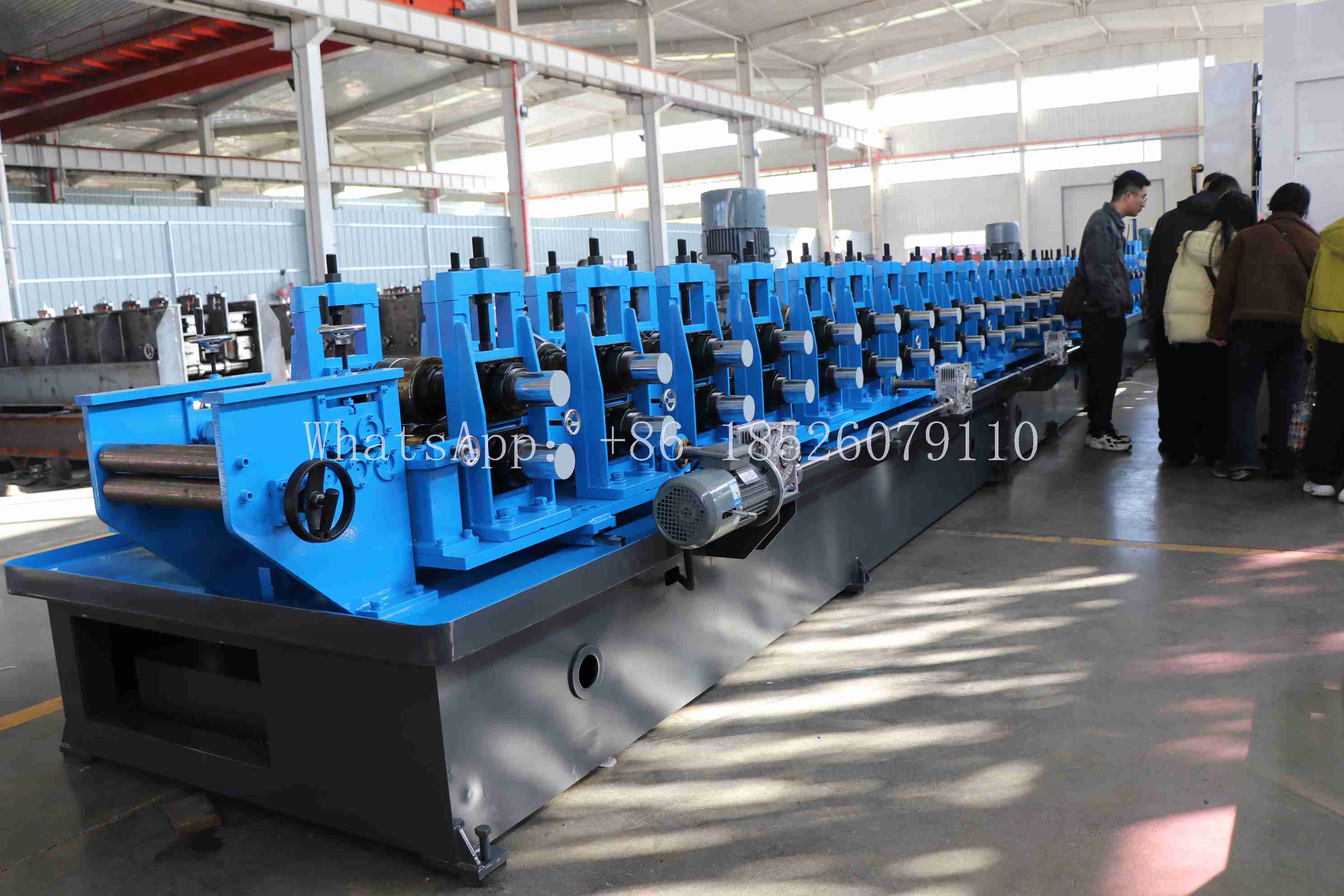

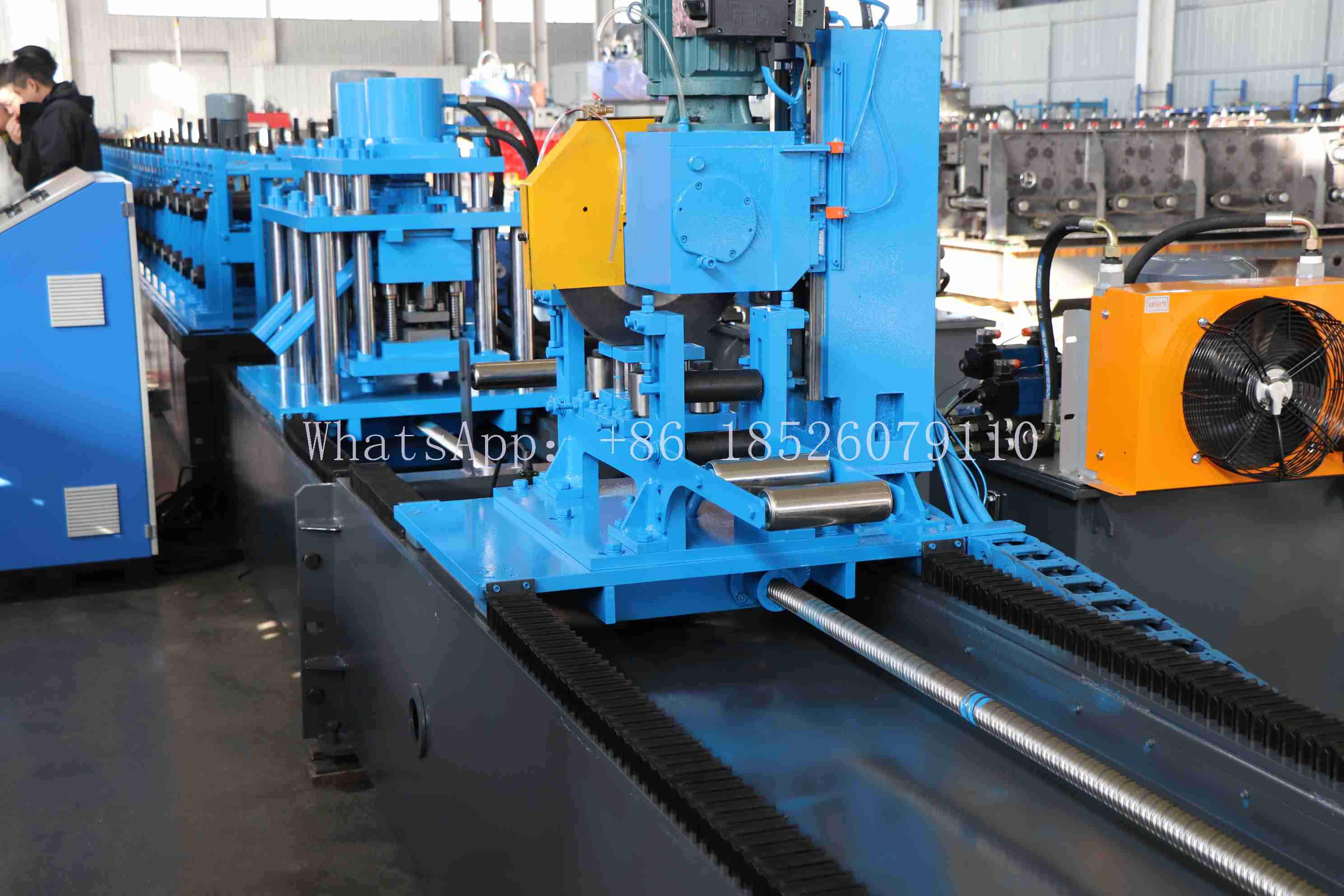

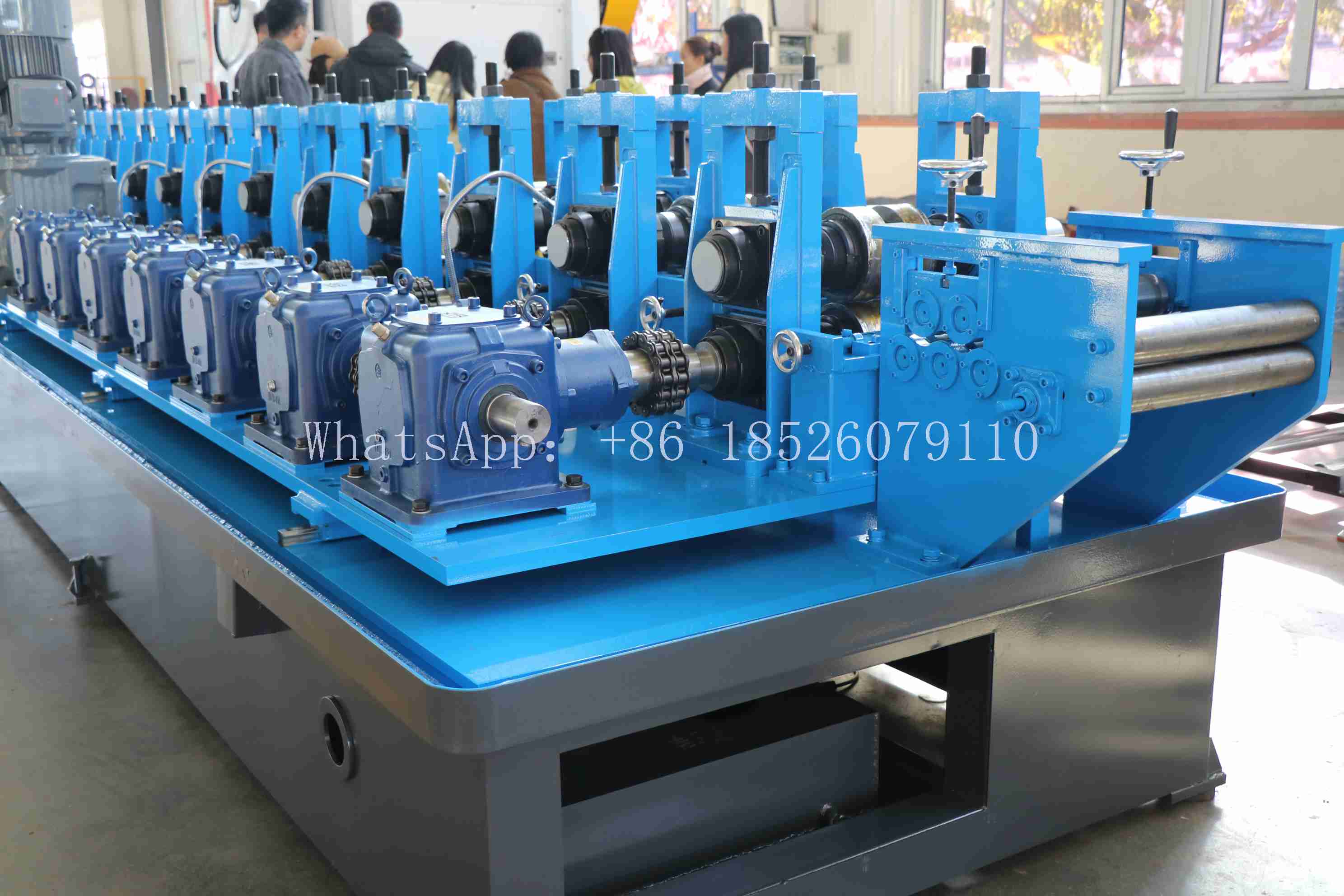

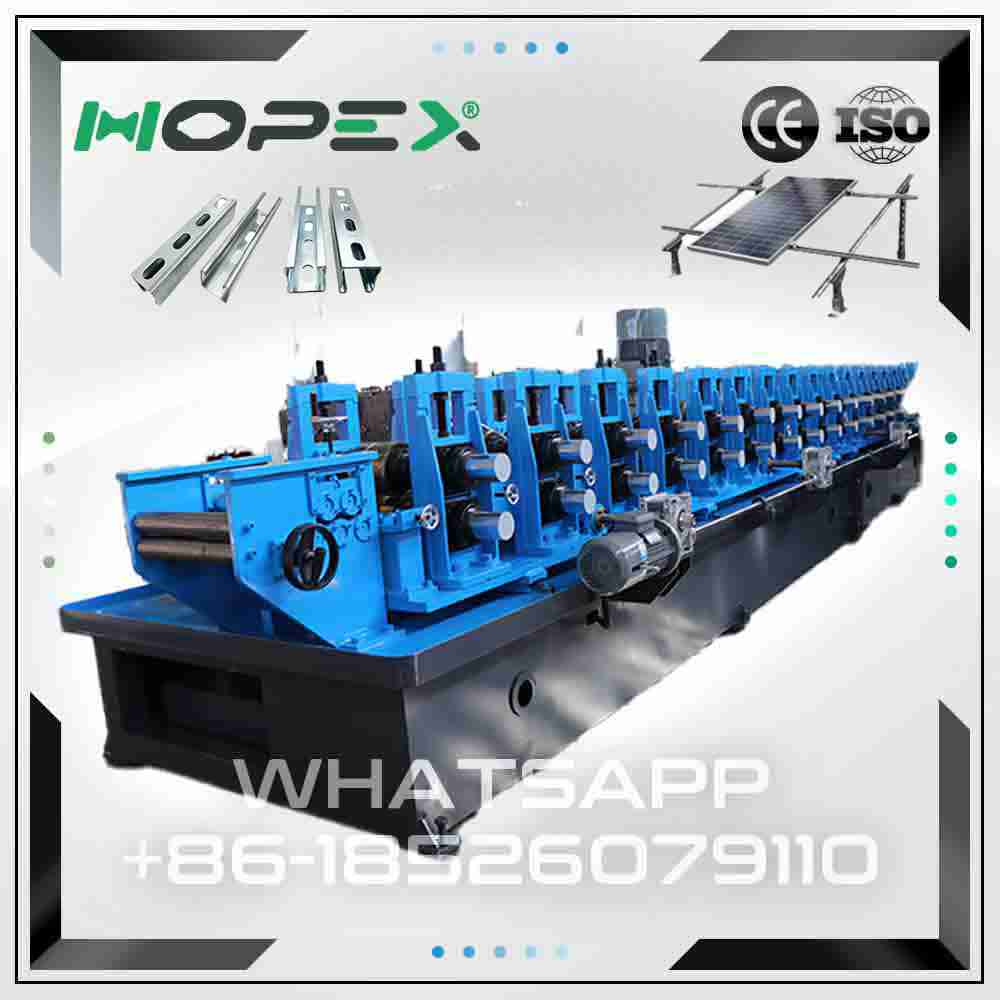

Strut channel machine photos and application showing
Solar mounting roll forming machine loading and shipment
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper. |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
In addition to its technical capabilities, our company provides outstanding after-sales support. If customers encounter any issues while using the strut channel machine, our experienced engineers are available for real-time online guidance. This remote assistance can help troubleshoot problems, optimize machine settings, and reduce downtime, ensuring that production continues smoothly. Our commitment to customer support has made our strut channel machine a trusted choice for businesses seeking reliability and high performance.
Furthermore, the design of our strut channel machine emphasizes durability and energy efficiency. High-quality components are used in the rollers, motors, and frame to ensure long-lasting performance under continuous operation. The machine’s robust construction minimizes maintenance requirements, and its energy-efficient design reduces operational costs, making it an economical investment for manufacturing facilities.
In summary, our strut channel machine represents the perfect combination of precision, flexibility, and support. Its customizable options, reliable performance, and professional technical guidance make it an ideal solution for companies that need consistent, high-quality metal channels. By choosing our strut channel machine, customers gain a durable, efficient, and technologically advanced piece of equipment that enhances productivity and supports long-term success in various industrial applications.
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com
Our photos with our customers
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
