Model:HOPEX- 41*21/41*41mm/41*52mm/41*62mm
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
Warranty :2 years for machinery warranty
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com

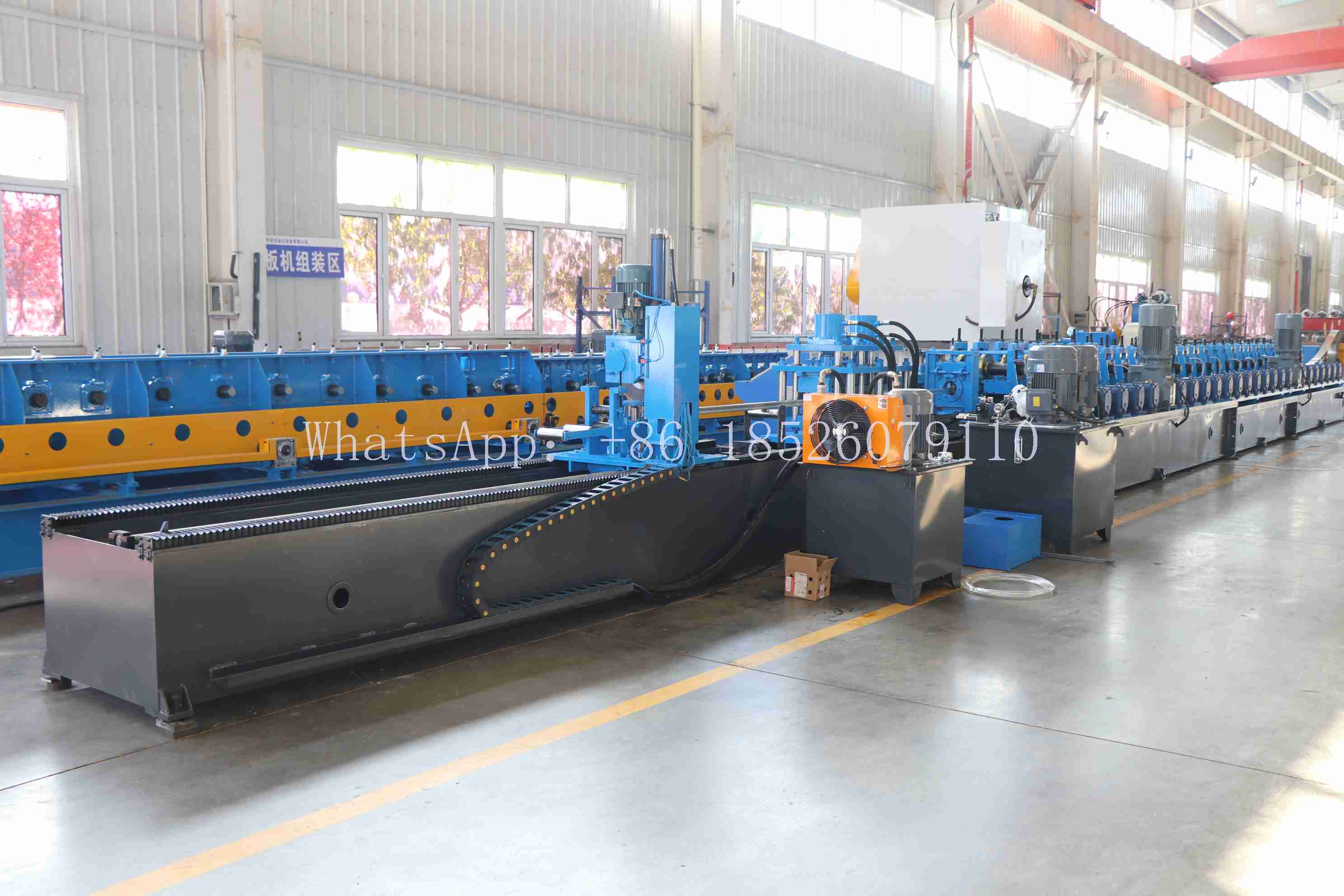

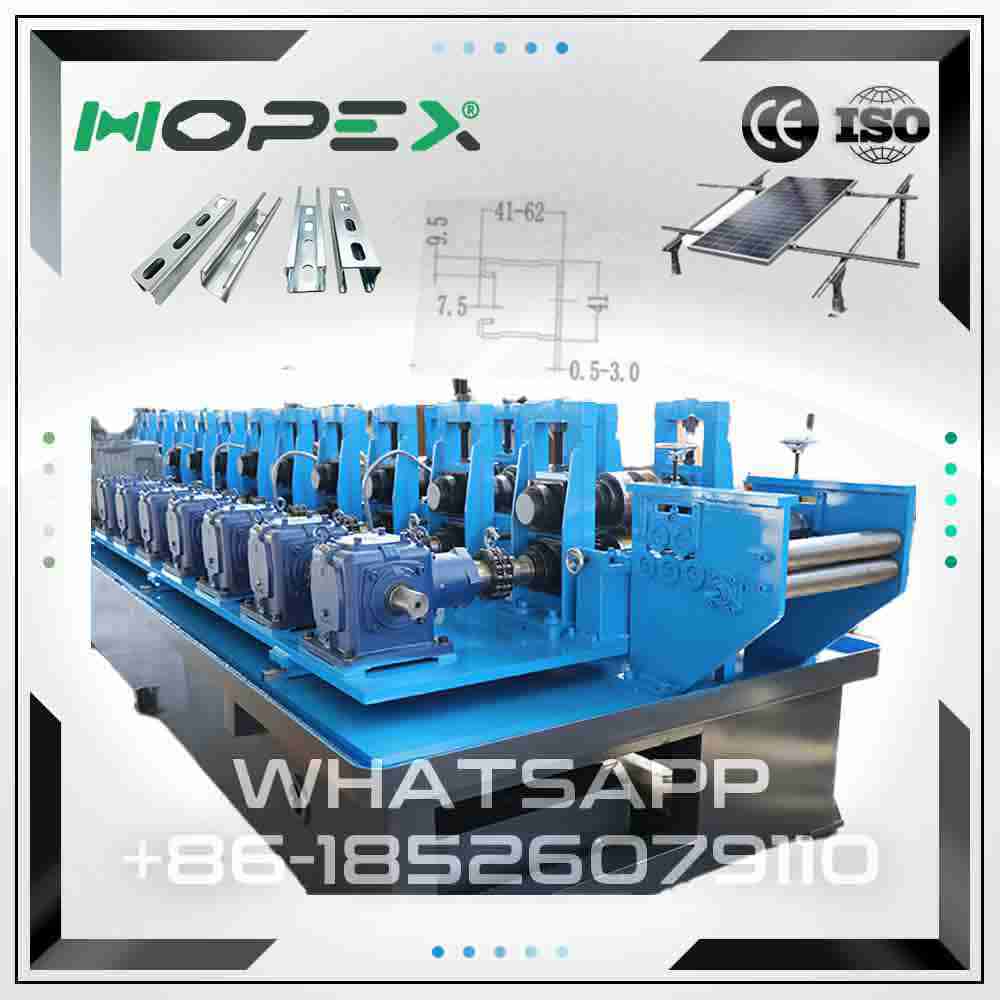

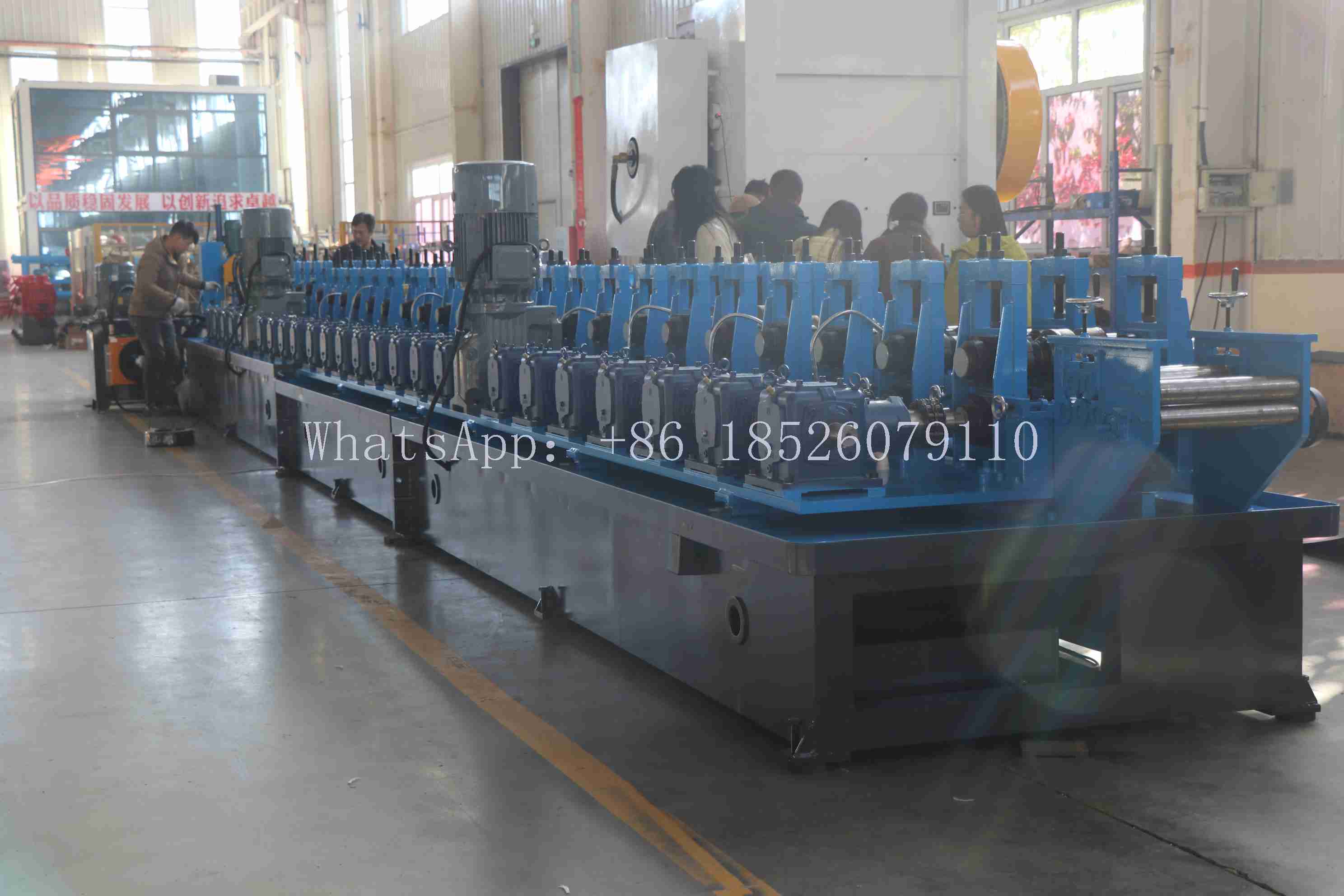

solar structure machine price
As a professional manufacturer of cold roll forming machinery, our company focuses on providing reliable solutions with competitive solar structure machine price for global customers. A solar structure machine is widely used to produce metal mounting structures for solar panel systems, including ground-mounted and rooftop solar installations. When evaluating a solar structure machine price, customers usually consider machine quality, customization capability, after-sales service, and long-term production efficiency.
Solar structure machine price economical and affordable .About unistrut C-channel roll forming is a highly efficient, continuous manufacturing process used to produce the metal framing components that form the backbone of modern solar mounting systems. These galvanized steel or aluminum channels are characterized by their consistent C-shaped cross-section, precise slotted holes, and exceptional strength-to-weight ratio.
Solar structure machine capable of producing 41×21, 41×41, 41×52, 41×62, 41×72 and 41×82 profiles or according to customer’s need :
| Photovoltaic bracket roll forming machine main parameters | |
| Forming Rollers | 26rollers |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 |
| Main Shaft Diameter | Finished diameter Ø80 mm |
| Main Shaft Material | 45# steel with quenching and tempering treatment |
| Motor Power | 18.5 kW *2 motors, K97 series hard-tooth gearbox |
| Transmission | Gearbox drive, coupled with universal couplings |
| Machine Frame | Cast iron archway 48 |
| Servo Punching | Non-stop servo punching,dual-module reverse punching |
| Cutting Method | Flying tracking saw cutting (with scrap) |
| Discharge Table | 3 m × 2 Pieces, roller-type support |
| Forming Thickness | 1.5-2.5mm |
| Forming Speed | 10-15m/min |
| Inverter | INVT brand |
| LCD Screen | Display Control Electric |
| Low-Voltage Electrical Components | Delixi or Chint |
| Hydraulic System | 11 kW × 2 pump station (for punching） |
| 4 kW pump station (for cutting) | |
| 3 kW pump station (for pressing) | |
| Bearings | Harbin Bearings |
| Reducer | Ruibofeng Reducer Co., Ltd. |
| Decoiler | Motorized decoiler with hydraulic expanding mandrel, load capacity 5 tons Inner diameter: 480–520 mm Max. outer diameter: 1600 mm |
| Leveling Section | 1.5 rollers |
| 2. Leveling shaft diameter 70 mm | |
| 3. Material 40Cr high frequency quenching | |
One of the key advantages of our equipment is that our solar structure machine price is highly cost-effective without compromising performance or durability. We design each solar structure machine using high-quality steel frames, precision rollers, and advanced control systems to ensure stable operation and accurate forming. This allows customers to achieve consistent output while maintaining a reasonable solar structure machine price suitable for both small factories and large-scale production lines.
Customization is another important factor influencing solar structure machine price. Our solar structure machines can be customized according to different production requirements, including feeding width, roll forming thickness, and voltage standards. Whether customers require machines for thin-gauge or thick-gauge steel profiles, we can provide flexible solutions while keeping the solar structure machine price competitive. This customization capability helps customers avoid unnecessary costs and invest only in what they truly need.
In addition to machine configuration, after-sales support plays a crucial role in the overall solar structure machine price value. If any issues occur during operation, our experienced engineers can provide real-time online video guidance. This remote technical support helps customers quickly solve problems, reduce downtime, and protect their investment. With professional online assistance included, the solar structure machine price becomes more attractive and reliable over the long term.
Moreover, our solar structure machines are designed for energy efficiency and low maintenance. Durable components and optimized roll forming processes reduce wear and operating costs. As a result, customers benefit from a stable production process and a favorable solar structure machine price throughout the machine’s service life.
In conclusion, choosing the right solar structure machine price means finding the best balance between quality, customization, and service. As an experienced cold roll forming machine manufacturer, we provide competitive pricing, flexible configurations, and strong technical support. Our solar structure machine price offers excellent value for customers looking to improve productivity and succeed in the fast-growing solar energy industry.
| Carport Canopies | ual-purpose structures that provide shade for vehicles while generating electricity. They require robust channels to span large areas and support significant loads |
| Building-Integrated Photovoltaics (BIPV) | Systems where the mounting structure is an integral part of the building envelope, such as facades or skylights |
| Agricultural Applications (AgriVoltaics) | Mounting structures are elevated to allow farming activities to continue underneath the panels |
| Floating PV Systems | Specialized structures designed to support panels on bodies of water, such as reservoirs and lakes. They are highly corrosion-resistant |
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com
Our photos with our customers
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
