unistrut machines
As a professional manufacturer of cold roll forming machinery, our company specializes in producing high-quality unistrut machines for a wide range of industrial applications. A unistrut machine is an essential piece of equipment used to manufacture metal channels that are widely employed in construction, electrical installations, and industrial support systems. These machines ensure precise forming of metal strips into channels, providing consistent dimensions and excellent structural integrity.

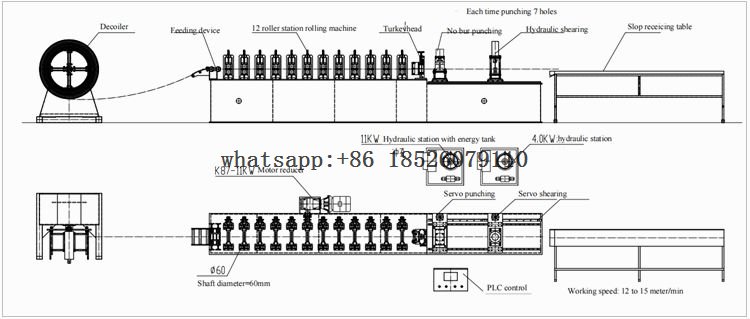

Unistrut machine solar strut channel roll forming working flow
Uncoiling → Leveling → Roll forming → Punching → Flying saw non-stop cutting → Products receiving table
| Photovoltaic bracket roll forming machine main parameters | |
| Forming Rollers | 26rollers |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 |
| Main Shaft Diameter | Finished diameter Ø80 mm |
| Main Shaft Material | 45# steel with quenching and tempering treatment |
| Motor Power | 18.5 kW *2 motors, K97 series hard-tooth gearbox |
| Transmission | Gearbox drive, coupled with universal couplings |
| Machine Frame | Cast iron archway 48 |
| Servo Punching | Non-stop servo punching,dual-module reverse punching |
| Cutting Method | Flying tracking saw cutting (with scrap) |
| Discharge Table | 3 m × 2 Pieces, roller-type support |
| Forming Thickness | 1.5-2.5mm |
| Forming Speed | 10-15m/min |
| Inverter | INVT brand |
| LCD Screen | Display Control Electric |
| Low-Voltage Electrical Components | Delixi or Chint |
| Hydraulic System | 11 kW × 2 pump station (for punching） |
| 4 kW pump station (for cutting) | |
| 3 kW pump station (for pressing) | |
| Bearings | Harbin Bearings |
| Reducer | Ruibofeng Reducer Co., Ltd. |
| Decoiler | Motorized decoiler with hydraulic expanding mandrel, load capacity 5 tons Inner diameter: 480–520 mm Max. outer diameter: 1600 mm |
| Leveling Section | 1.5 rollers |
| 2. Leveling shaft diameter 70 mm | |
| 3. Material 40Cr high frequency quenching | |
One of the major advantages of our unistrut machine is its customizable features. Customers can select the feed width, roll forming thickness, and voltage specifications according to their production needs. This flexibility allows the unistrut machine to handle different types of metal sheets and meet the unique demands of various industries. With advanced control systems, operators can easily adjust machine parameters, ensuring efficient, reliable, and high-quality production every time.

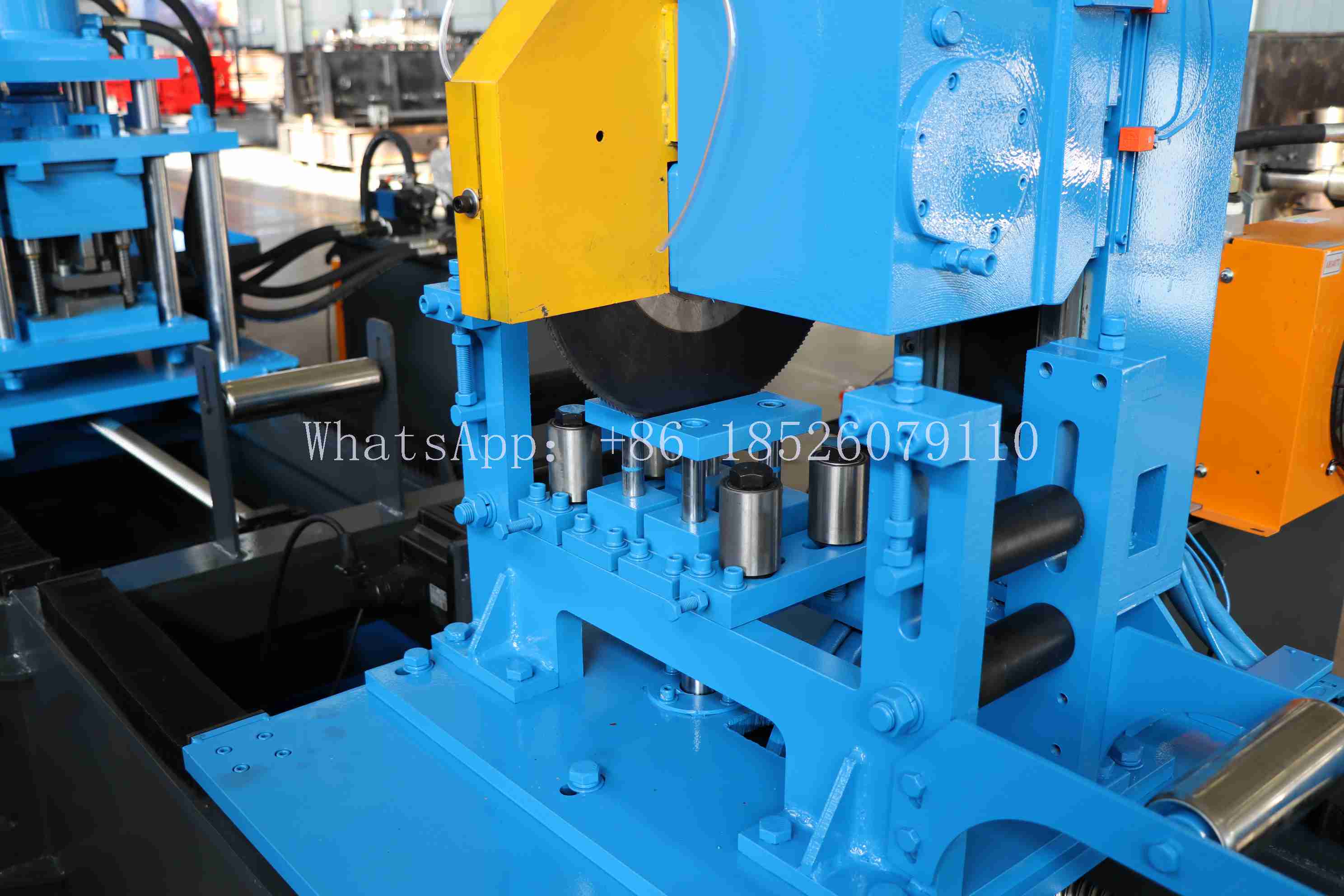

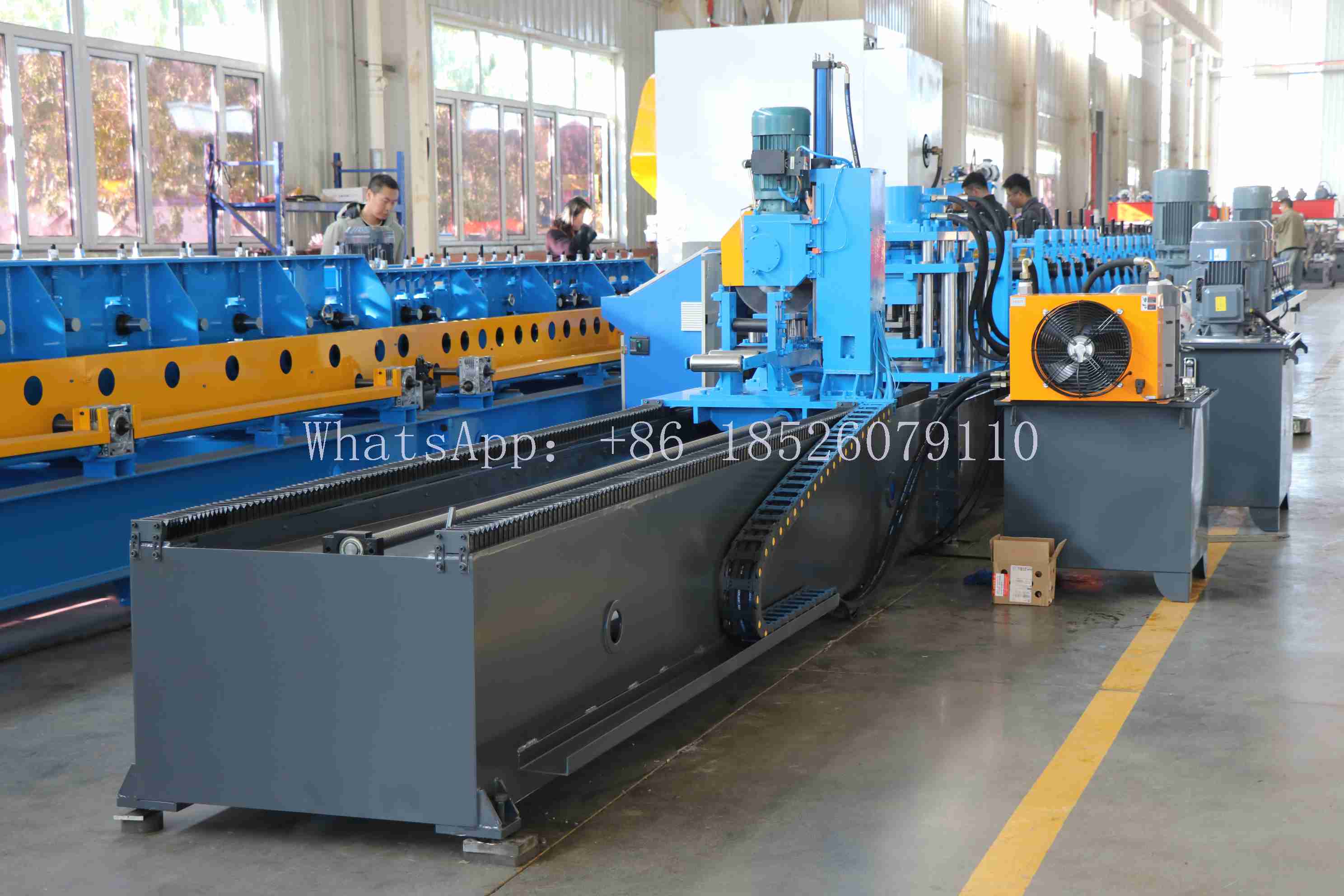

Solar strut roll forming machine photos showing
Moreover, our unistrut machine comes with excellent after-sales support. If clients encounter any issues while operating the machine, our experienced engineers are available for real-time online guidance. This remote support helps troubleshoot problems quickly, optimize machine settings, and reduce downtime, ensuring that production continues smoothly. Many of our customers choose our unistrut machine because of the combination of performance, flexibility, and professional technical support.
The design of our unistrut machine also focuses on durability and energy efficiency. High-quality components are used in the rollers, motors, and frames, ensuring long-lasting performance under continuous operation. The robust construction minimizes maintenance requirements, while the energy-efficient design helps reduce operating costs. This makes the unistrut machine a cost-effective and reliable investment for manufacturing facilities.
In summary, our unistrut machine represents a perfect balance of precision, flexibility, and support. Its customizable options, reliable performance, and online engineer assistance make it an ideal solution for companies that require consistent, high-quality metal channels. By choosing our unistrut machine, customers gain a durable, efficient, and technologically advanced piece of equipment that enhances productivity and ensures long-term success in various industrial applications.
Specialized & Emerging Applications For Solar Mounting Structures
| Carport Canopies | ual-purpose structures that provide shade for vehicles while generating electricity. They require robust channels to span large areas and support significant loads |
| Building-Integrated Photovoltaics (BIPV) | Systems where the mounting structure is an integral part of the building envelope, such as facades or skylights |
| Agricultural Applications (AgriVoltaics) | Mounting structures are elevated to allow farming activities to continue underneath the panels |
| Floating PV Systems | Specialized structures designed to support panels on bodies of water, such as reservoirs and lakes. They are highly corrosion-resistant |
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com
Our photos with our customers

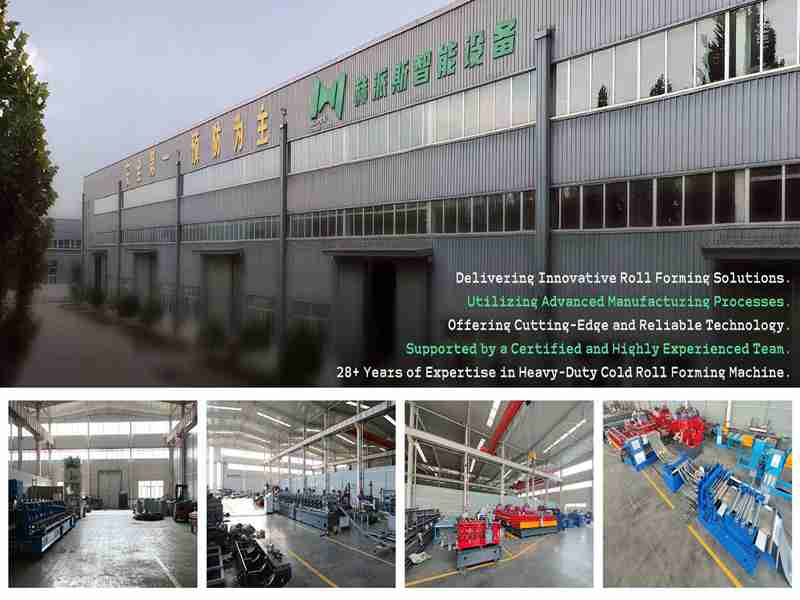

HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
