Model:HOPEX- 41*21/41*41mm/41*52mm/41*62mm
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
Warranty :2 years for machinery warranty
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com

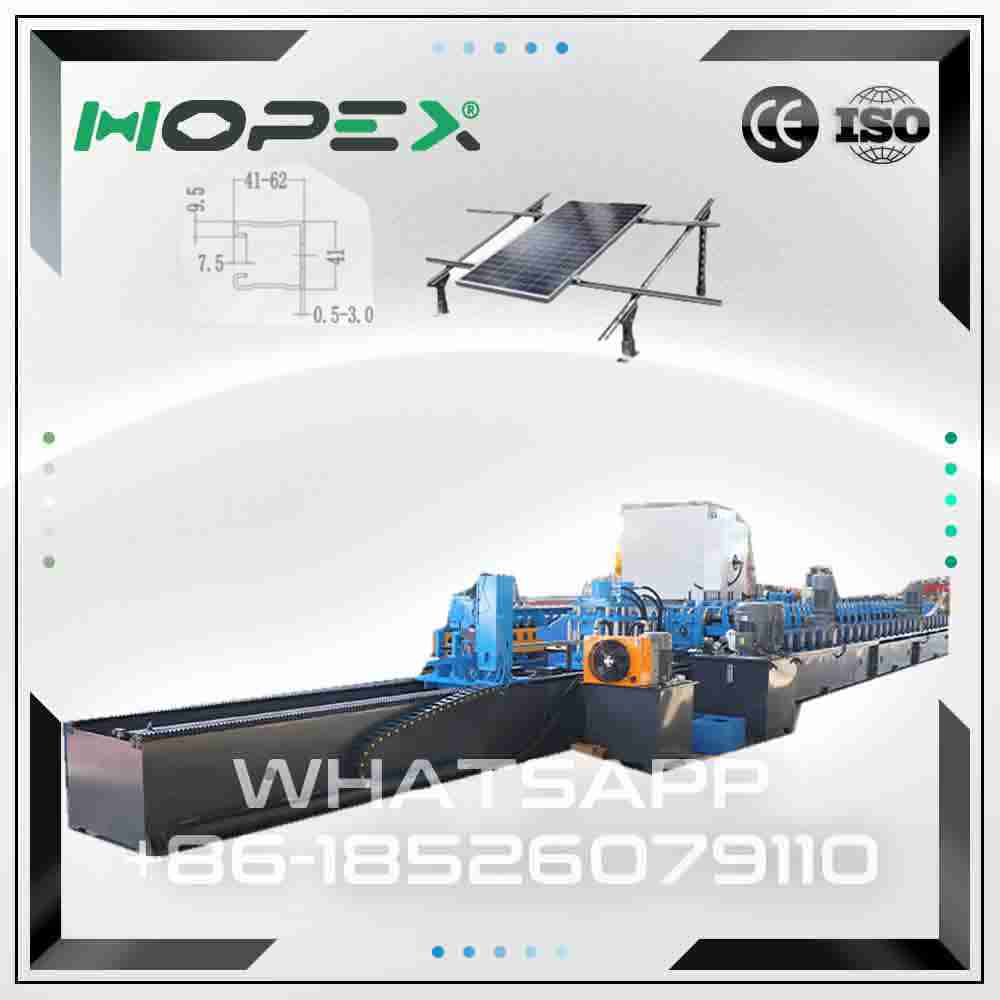

unistrut channel roll forming machines

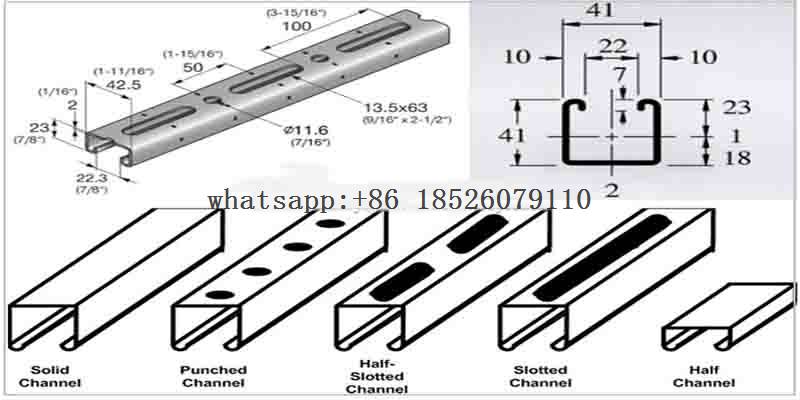

As a professional cold roll forming machine manufacturer, our company specializes in the design and production of high-quality unistrut channel roll forming machines for global customers. A unistrut channel roll forming machine is widely used to manufacture metal channels that serve as structural supports in construction, electrical systems, solar mounting projects, and industrial installations. These channels require high precision, consistent dimensions, and strong load-bearing capacity, which makes a reliable unistrut channel roll forming machine essential for efficient production.
Punch press process flow:
Punching process: Unloading — feeding — forming — punching — cutting — discharging
| Photovoltaic bracket roll forming machine main parameters | |
| Forming Rollers | 26rollers |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 |
| Main Shaft Diameter | Finished diameter Ø80 mm |
| Main Shaft Material | 45# steel with quenching and tempering treatment |
| Motor Power | 18.5 kW *2 motors, K97 series hard-tooth gearbox |
| Transmission | Gearbox drive, coupled with universal couplings |
| Machine Frame | Cast iron archway 48 |

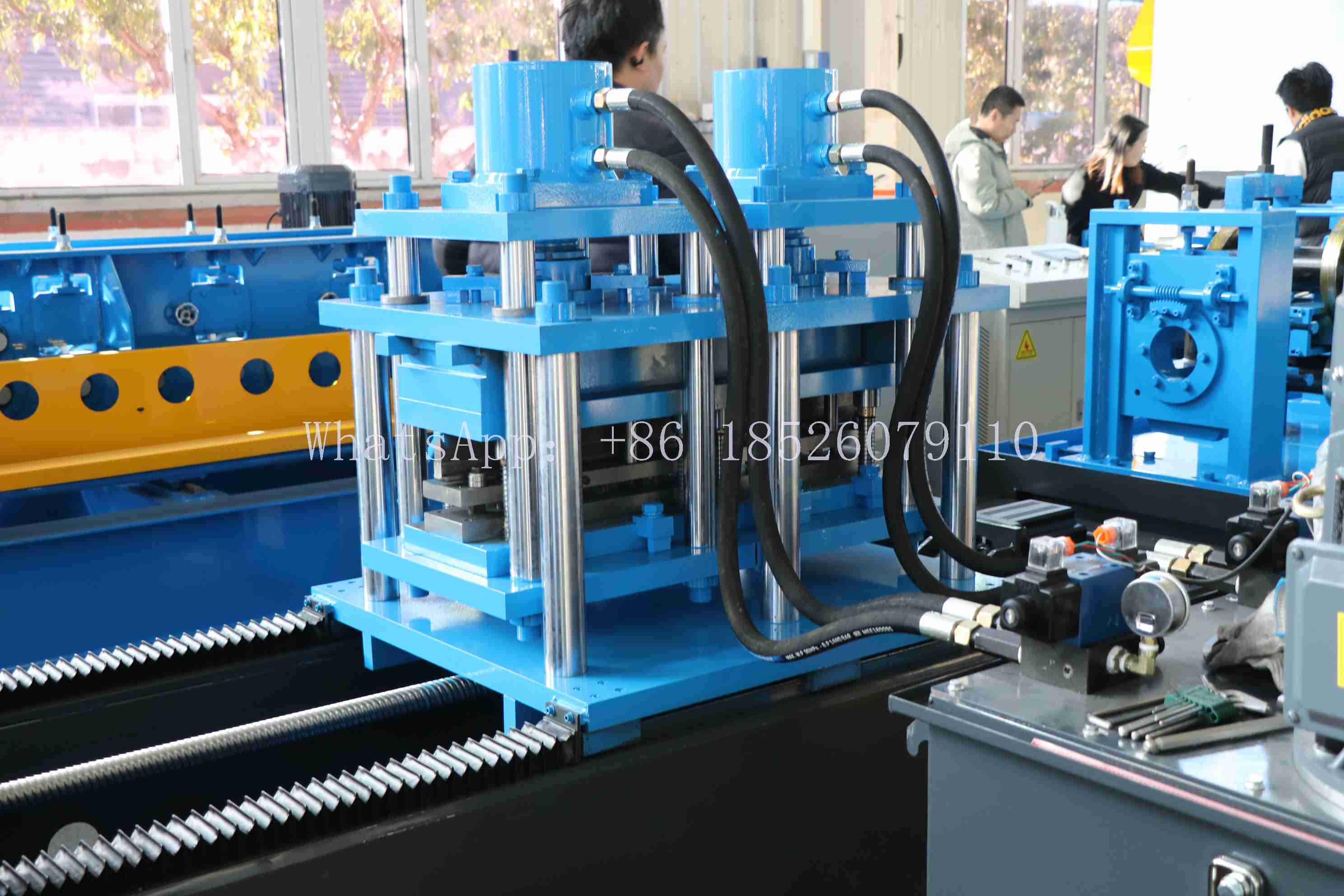

| Servo Punching | Non-stop servo punching,dual-module reverse punching |
| Cutting Method | Flying tracking saw cutting (with scrap) |
| Discharge Table | 3 m × 2 Pieces, roller-type support |
| Forming Thickness | 1.5-2.5mm |
| Forming Speed | 10-15m/min |
| Inverter | INVT brand |
| LCD Screen | Display Control Electric |
| Low-Voltage Electrical Components | Delixi or Chint |
| Hydraulic System | 11 kW × 2 pump station (for punching） |
| 4 kW pump station (for cutting) | |
| 3 kW pump station (for pressing) | |
| Bearings | Harbin Bearings |
| Reducer | Ruibofeng Reducer Co., Ltd. |
| Decoiler | Motorized decoiler with hydraulic expanding mandrel, load capacity 5 tons Inner diameter: 480–520 mm Max. outer diameter: 1600 mm |
| Leveling Section | 1.5 rollers |
| 2. Leveling shaft diameter 70 mm | |
| 3. Material 40Cr high frequency quenching | |
One of the key advantages of our unistrut channel roll forming machine is its strong customization capability. Customers can customize the feeding width, roll forming thickness, and voltage according to their specific production requirements. Whether producing standard unistrut channels or special profile designs, our unistrut channel roll forming machine can be configured to meet different material standards and application needs. Advanced control systems ensure stable operation, accurate forming, and high production efficiency.
In addition to machine performance, we place great emphasis on after-sales service. If customers encounter any issues while operating the unistrut channel roll forming machine, our experienced engineers are available to provide real-time online video guidance. This remote technical support allows customers to quickly diagnose problems, adjust machine parameters, and minimize downtime. With professional online assistance, customers can operate the unistrut channel roll forming machine smoothly and confidently, even in overseas projects.
The structural design of our unistrut channel roll forming machine focuses on durability and long-term stability. High-quality rollers, reinforced machine frames, and reliable motors ensure consistent forming accuracy during continuous operation. The optimized roll forming process reduces material waste and improves product consistency, helping manufacturers lower production costs while maintaining high-quality output. As a result, the unistrut channel roll forming machine becomes a cost-effective solution for both medium and large-scale production lines.
Energy efficiency and low maintenance are also important features of our unistrut channel roll forming machine. Carefully selected components and precise manufacturing standards reduce wear and maintenance frequency. This ensures a longer service life and stable performance, making the unistrut channel roll forming machine a valuable investment for manufacturers seeking reliable and efficient roll forming solutions.
In summary, our unistrut channel roll forming machine combines precision, flexibility, and professional technical support into one complete solution. With customizable feeding width, roll forming thickness, voltage options, and online engineer video guidance, it meets the diverse needs of modern industrial projects. Choosing our unistrut channel roll forming machine means choosing a durable, efficient, and dependable roll forming machine that supports long-term business success.
| Carport Canopies | ual-purpose structures that provide shade for vehicles while generating electricity. They require robust channels to span large areas and support significant loads |
| Building-Integrated Photovoltaics (BIPV) | Systems where the mounting structure is an integral part of the building envelope, such as facades or skylights |
| Agricultural Applications (AgriVoltaics) | Mounting structures are elevated to allow farming activities to continue underneath the panels |
| Floating PV Systems | Specialized structures designed to support panels on bodies of water, such as reservoirs and lakes. They are highly corrosion-resistant |
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com
Our photos with our customers

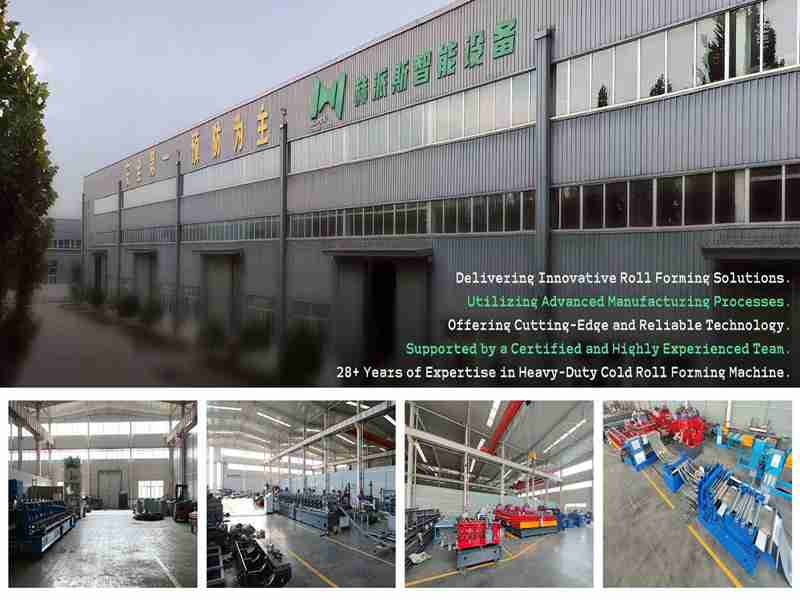

HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
