Model:HOPEX- 41*21/41*41mm/41*52mm/41*62mm
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
Warranty :2 years for machinery warranty
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com

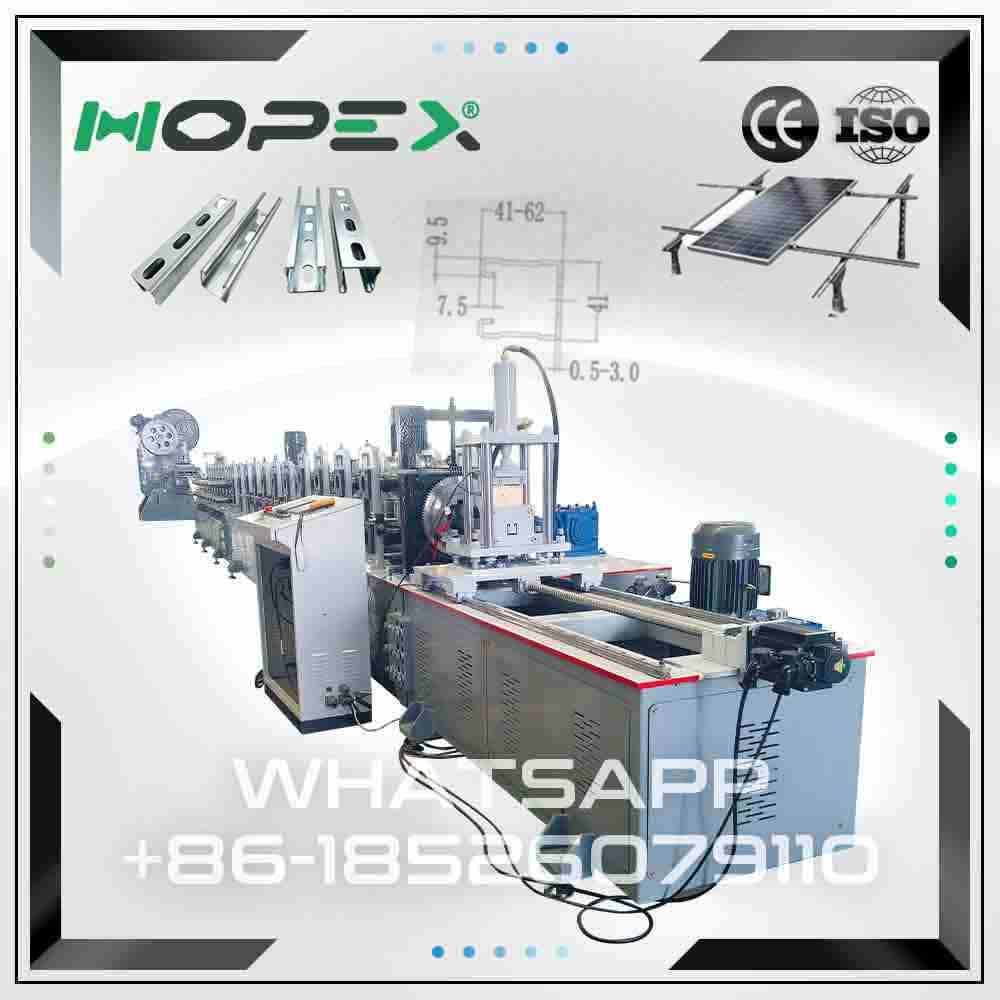

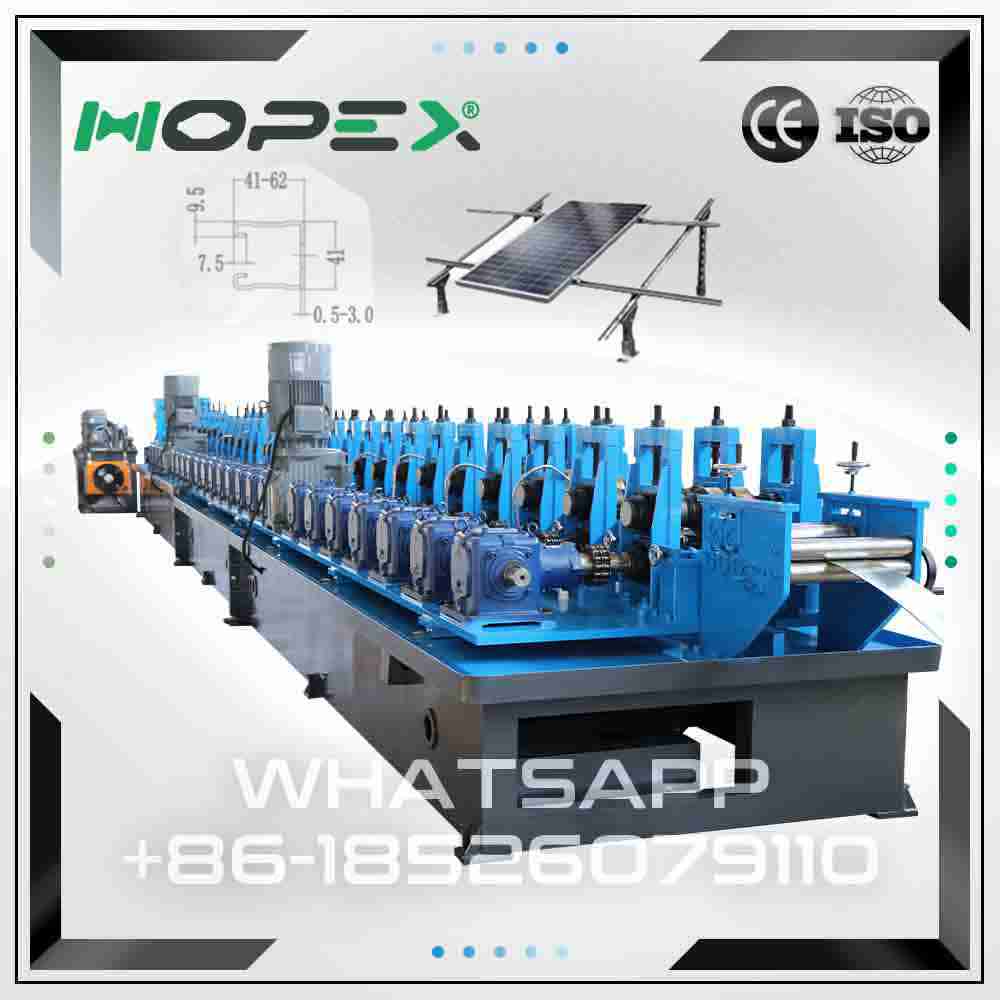

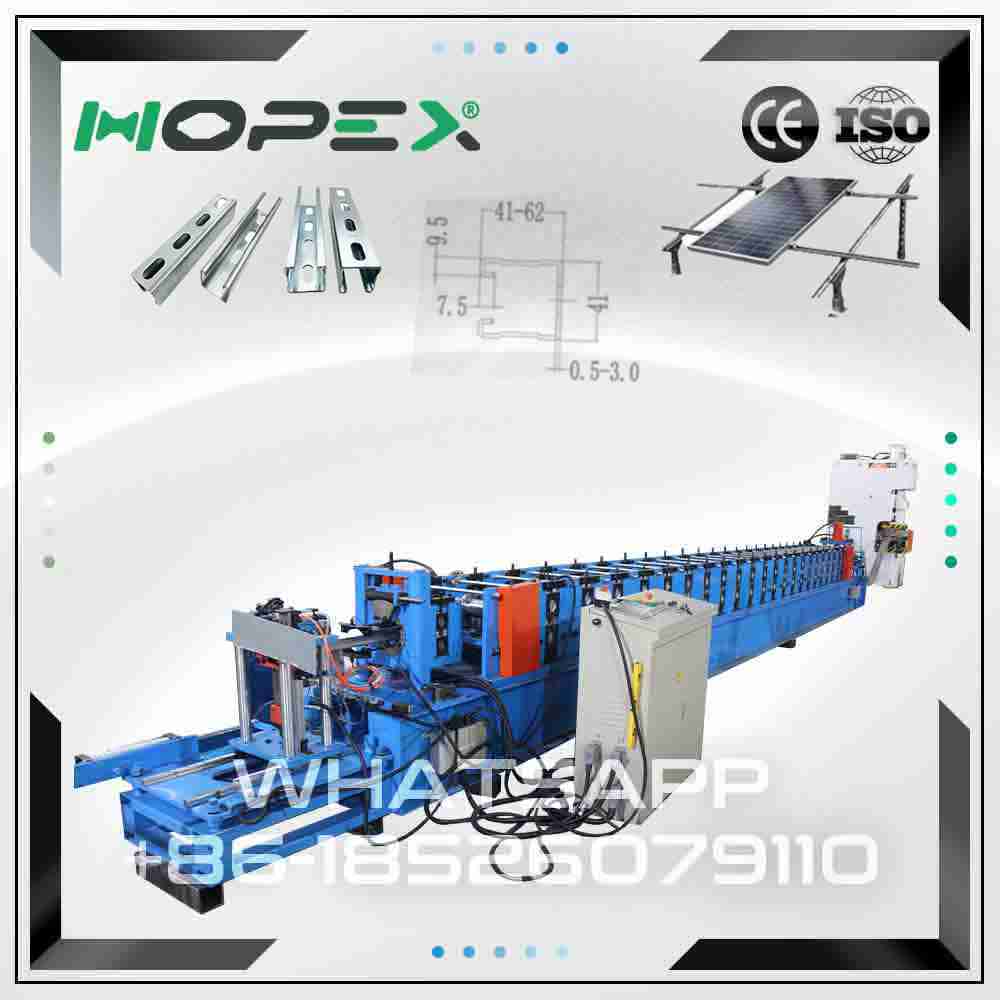

solar structure machine
As a professional manufacturer of cold roll forming machinery, our company specializes in producing high-quality solar structure machines for a variety of solar energy applications. A solar structure machine is essential for fabricating durable and precise mounting structures for solar panels. These machines allow manufacturers to create metal frames and supports that are widely used in solar farms, rooftop installations, and industrial solar projects. With the increasing demand for renewable energy, a reliable solar structure machine ensures that solar mounting systems are both accurate and long-lasting.
| Photovoltaic bracket roll forming machine main parameters | |
| Forming Rollers | 26rollers |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 |
| Main Shaft Diameter | Finished diameter Ø80 mm |
| Main Shaft Material | 45# steel with quenching and tempering treatment |
| Motor Power | 18.5 kW *2 motors, K97 series hard-tooth gearbox |
| Transmission | Gearbox drive, coupled with universal couplings |
| Machine Frame | Cast iron archway 48 |
| Servo Punching | Non-stop servo punching,dual-module reverse punching |

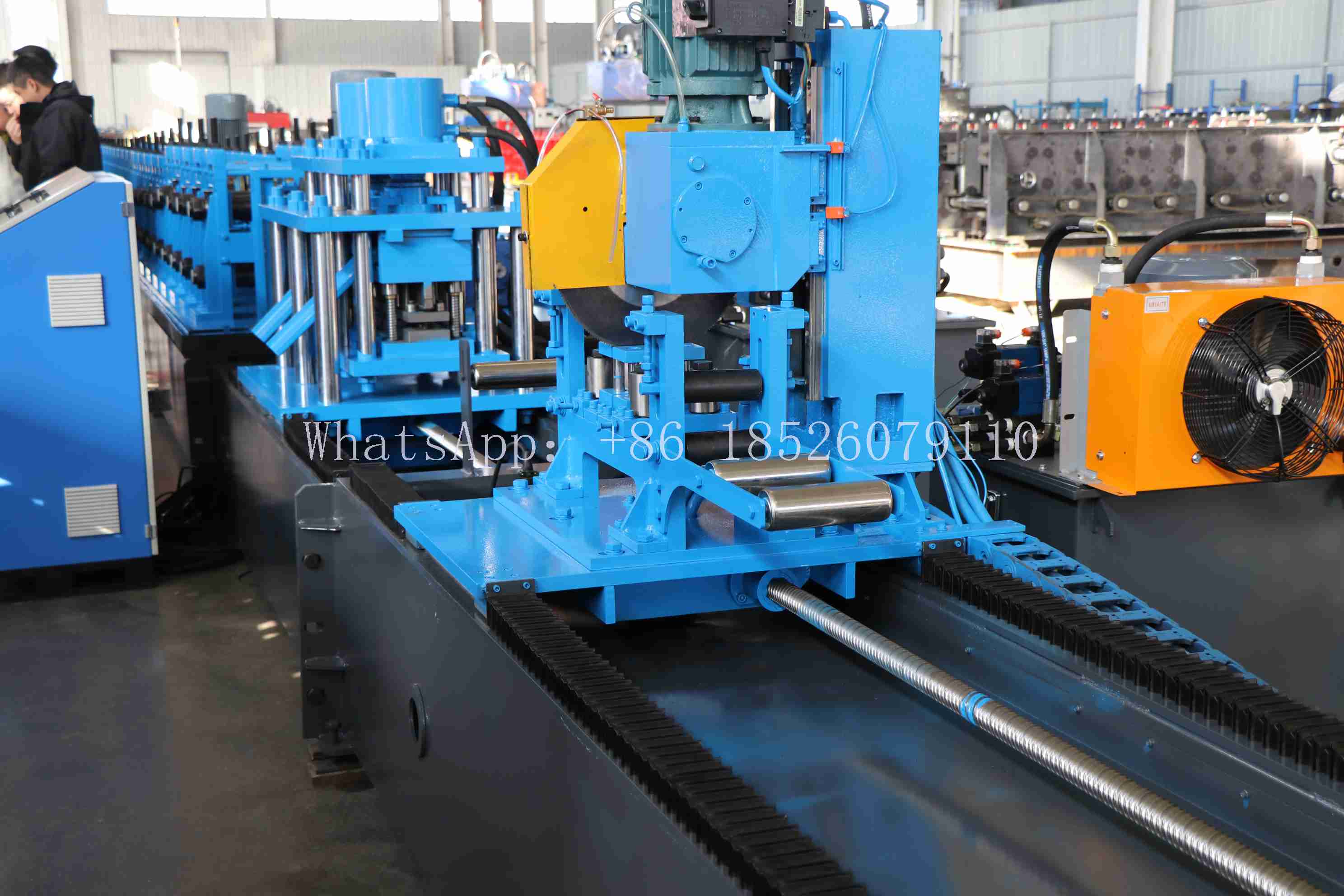

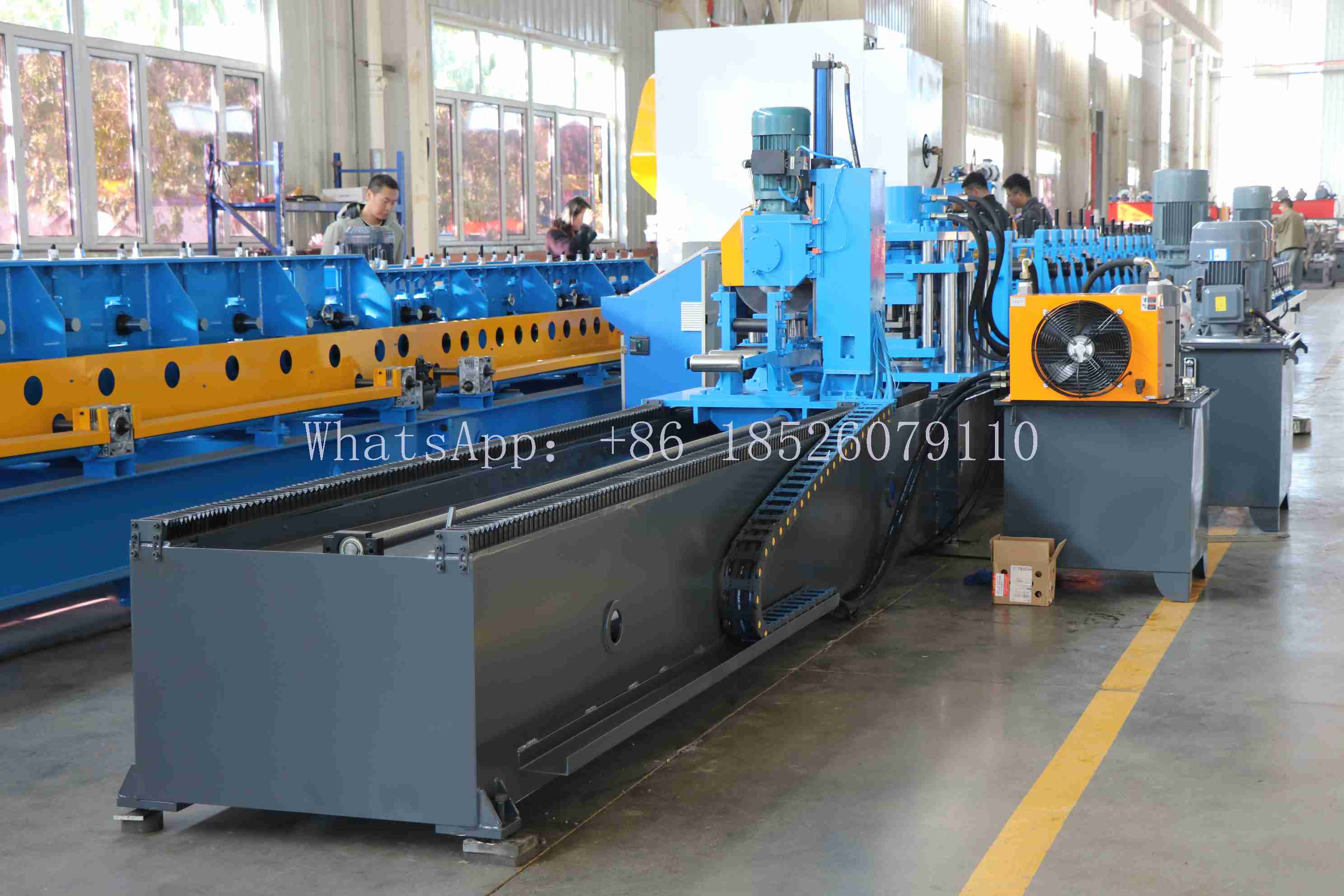

| Cutting Method | Flying tracking saw cutting (with scrap) |
| Discharge Table | 3 m × 2 Pieces, roller-type support |
| Forming Thickness | 1.5-2.5mm |
| Forming Speed | 10-15m/min |
| Inverter | INVT brand |
| LCD Screen | Display Control Electric |
| Low-Voltage Electrical Components | Delixi or Chint |
| Hydraulic System | 11 kW × 2 pump station (for punching） |
| 4 kW pump station (for cutting) | |
| 3 kW pump station (for pressing) | |
| Bearings | Harbin Bearings |
| Reducer | Ruibofeng Reducer Co., Ltd |
| Decoiler | Motorized decoiler with hydraulic expanding mandrel, load capacity 5 tons Inner diameter: 480–520 mm Max. outer diameter: 1600 mm |
| Leveling Section | 1.5 rollers |
| 2. Leveling shaft diameter 70 mm | |
| 3. Material 40Cr high frequency quenching | |
One of the major advantages of our solar structure machine is its customizable features. Customers can select the feed width, roll forming thickness, and voltage specifications according to their production requirements. This flexibility allows the solar structure machine to handle different types of metal sheets and meet the unique demands of various solar installation projects. Advanced control systems make it easy for operators to adjust the machine parameters, ensuring high efficiency, precision, and consistent quality with every production run.
In addition to its technical capabilities, our company provides excellent after-sales support. If clients encounter any problems while operating the solar structure machine, experienced engineers are available for real-time online guidance. This remote assistance can help troubleshoot issues, optimize machine settings, and reduce downtime, ensuring smooth and uninterrupted production. Many of our customers choose our solar structure machine because of the combination of performance, reliability, and professional technical support.
The design of our solar structure machine emphasizes durability and energy efficiency. High-quality components are used in the rollers, motors, and frames, ensuring long-lasting performance under continuous operation. Its robust construction reduces maintenance requirements, while the energy-efficient design lowers operational costs. These features make the solar structure machine a cost-effective investment for manufacturing facilities involved in solar panel structure production.
In summary, our solar structure machine represents the perfect combination of precision, flexibility, and support. With customizable options, reliable performance, and online engineer assistance, it is the ideal solution for companies producing high-quality solar panel mounting structures. Choosing our solar structure machine allows customers to gain a durable, efficient, and technologically advanced machine that improves productivity and ensures long-term success in the renewable energy industry.
Specialized & Emerging Applications For Solar Mounting Structures
| Carport Canopies | ual-purpose structures that provide shade for vehicles while generating electricity. They require robust channels to span large areas and support significant loads |
| Building-Integrated Photovoltaics (BIPV) | Systems where the mounting structure is an integral part of the building envelope, such as facades or skylights |
| Agricultural Applications (AgriVoltaics) | Mounting structures are elevated to allow farming activities to continue underneath the panels |
| Floating PV Systems | Specialized structures designed to support panels on bodies of water, such as reservoirs and lakes. They are highly corrosion-resistant |
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com
Our photos with our customers
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
