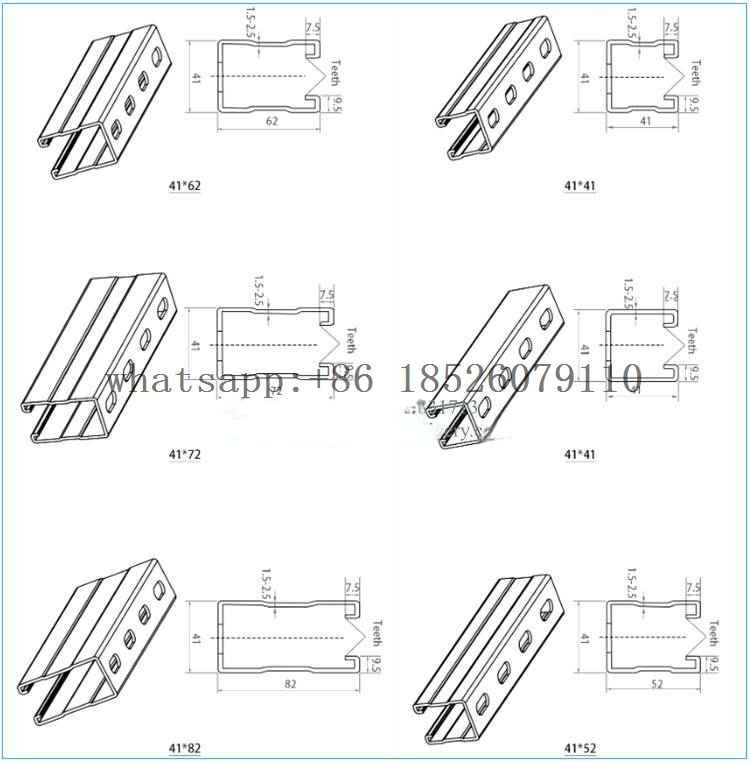

Model:HOPEX- 41*21/41*41mm/41*52mm/41*62mm
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
Warranty :2 years for machinery warranty
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com

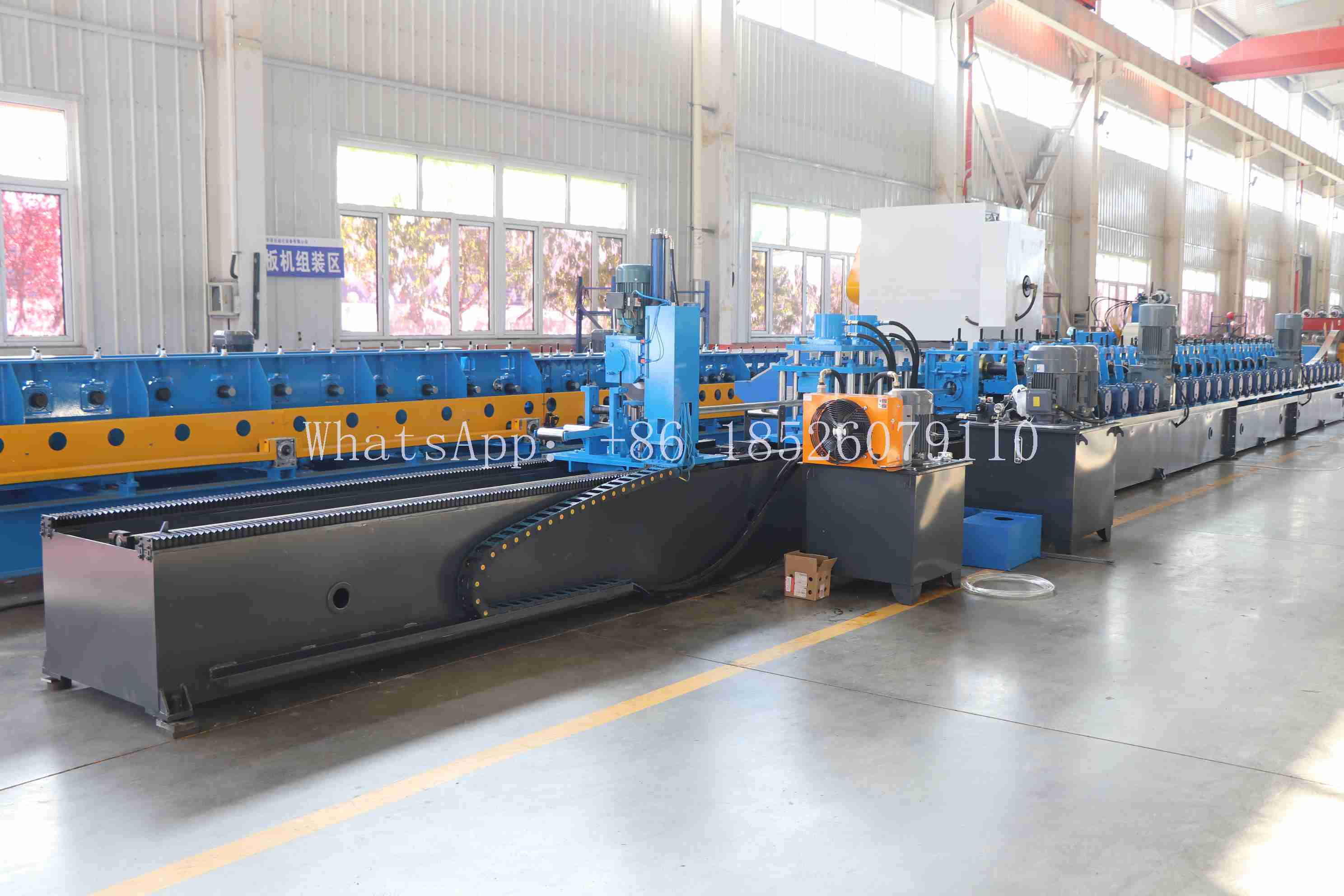

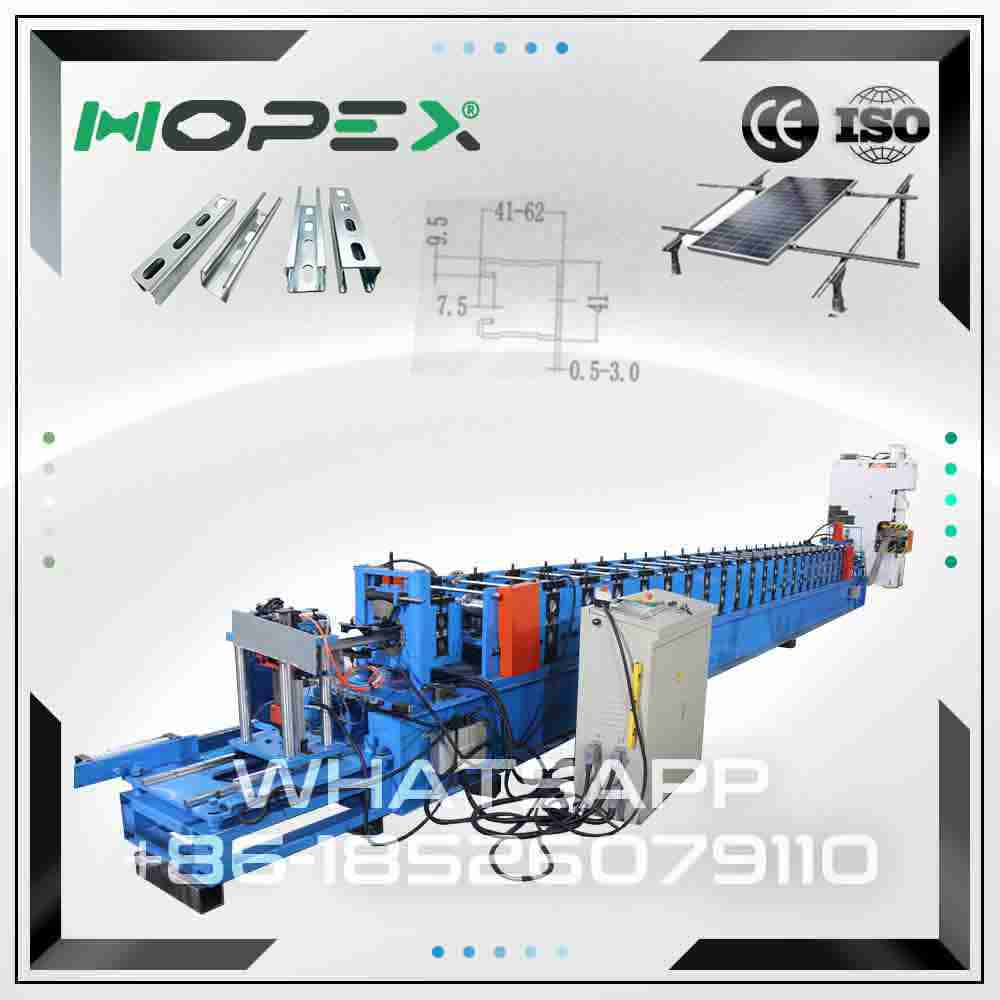

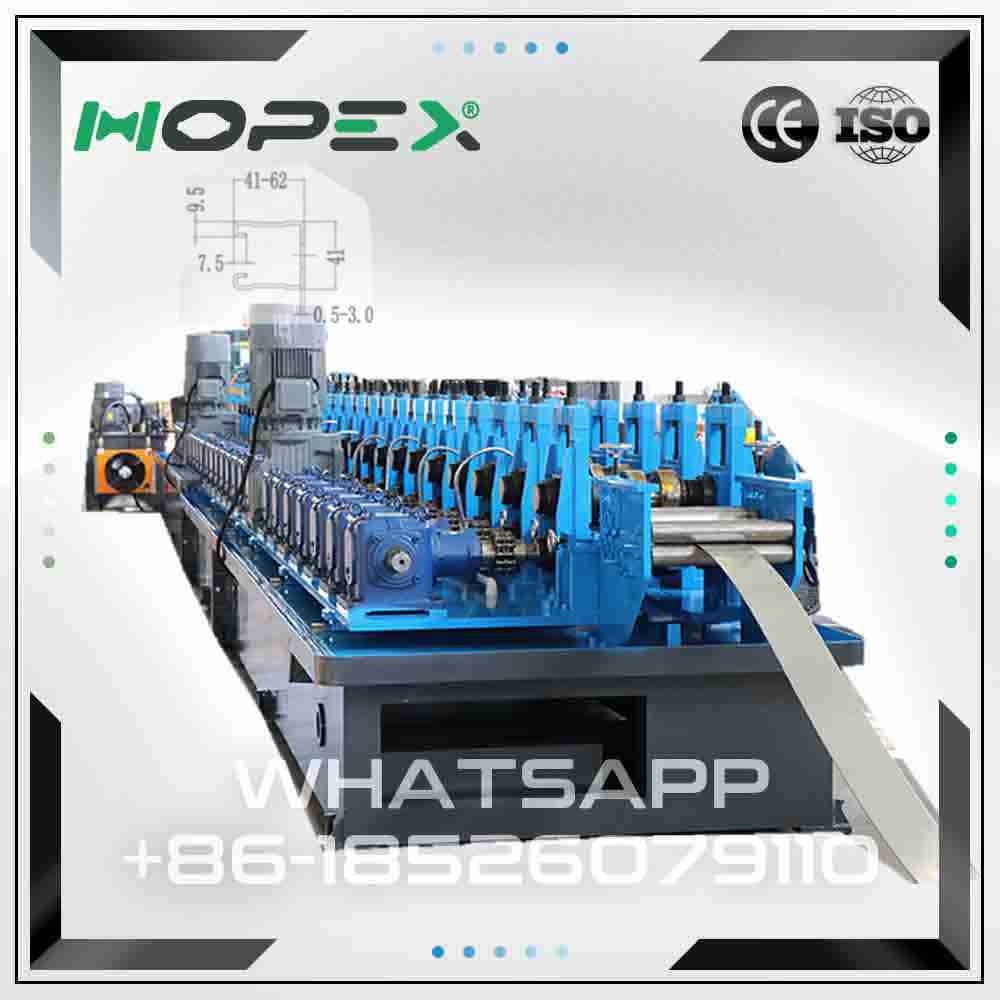

photovoltaic bracket roll forming machine
As a professional cold roll forming machine manufacturer, we are committed to supplying advanced equipment for the rapidly expanding solar energy industry. One of our core products is the photovoltaic bracket roll forming machine, designed to manufacture high-strength mounting brackets used in photovoltaic support systems. With the global transition toward renewable energy, demand for a reliable photovoltaic bracket roll forming machine continues to increase among manufacturers seeking efficient and scalable production solutions.
| Photovoltaic bracket roll forming machine main parameters | |
| Forming Rollers | 26rollers |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 |
| Main Shaft Diameter | Finished diameter Ø80 mm |
| Main Shaft Material | 45# steel with quenching and tempering treatment |
| Motor Power | 18.5 kW *2 motors, K97 series hard-tooth gearbox |
| Transmission | Gearbox drive, coupled with universal couplings |
| Machine Frame | Cast iron archway 48 |

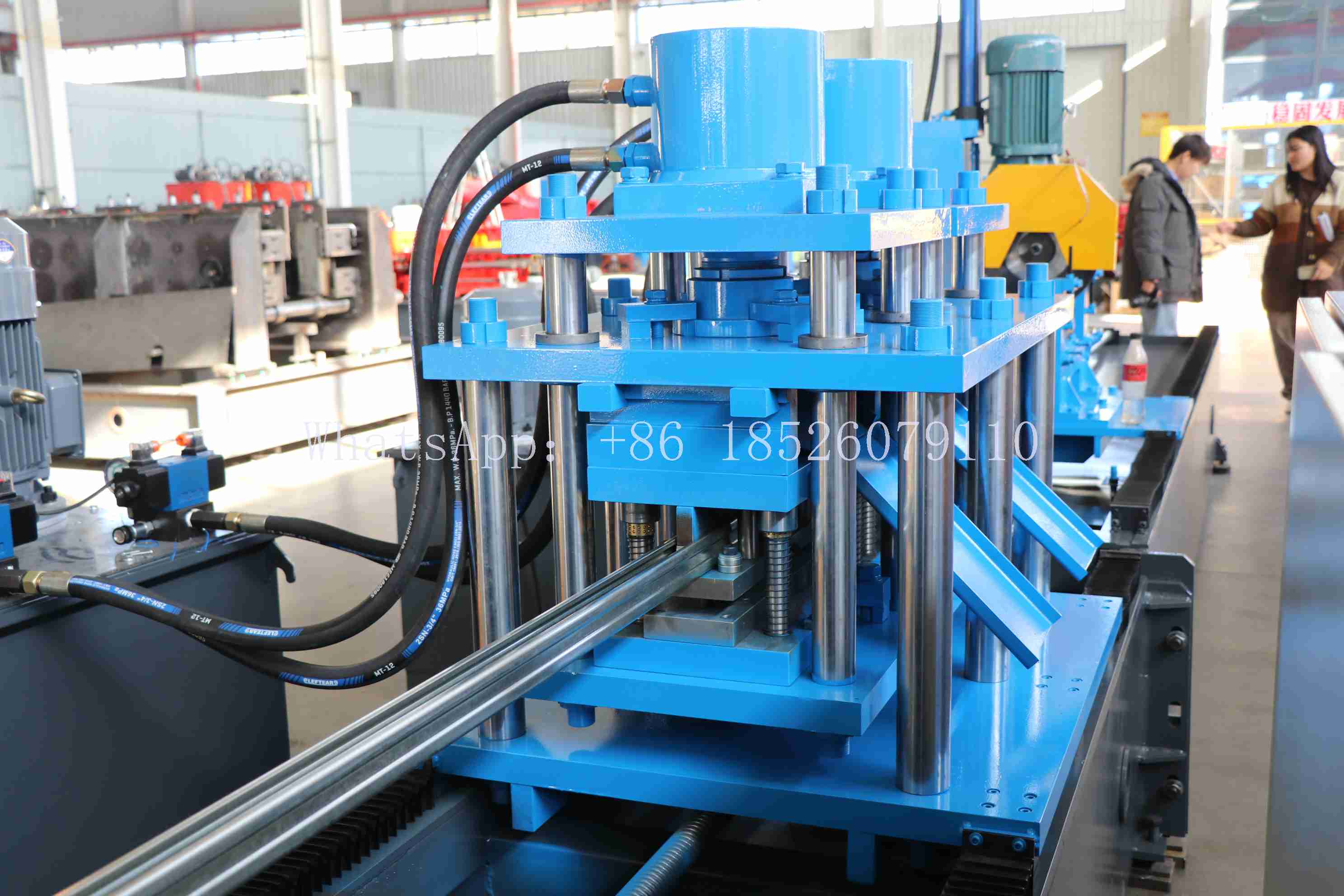

| Servo Punching | Non-stop servo punching,dual-module reverse punching |

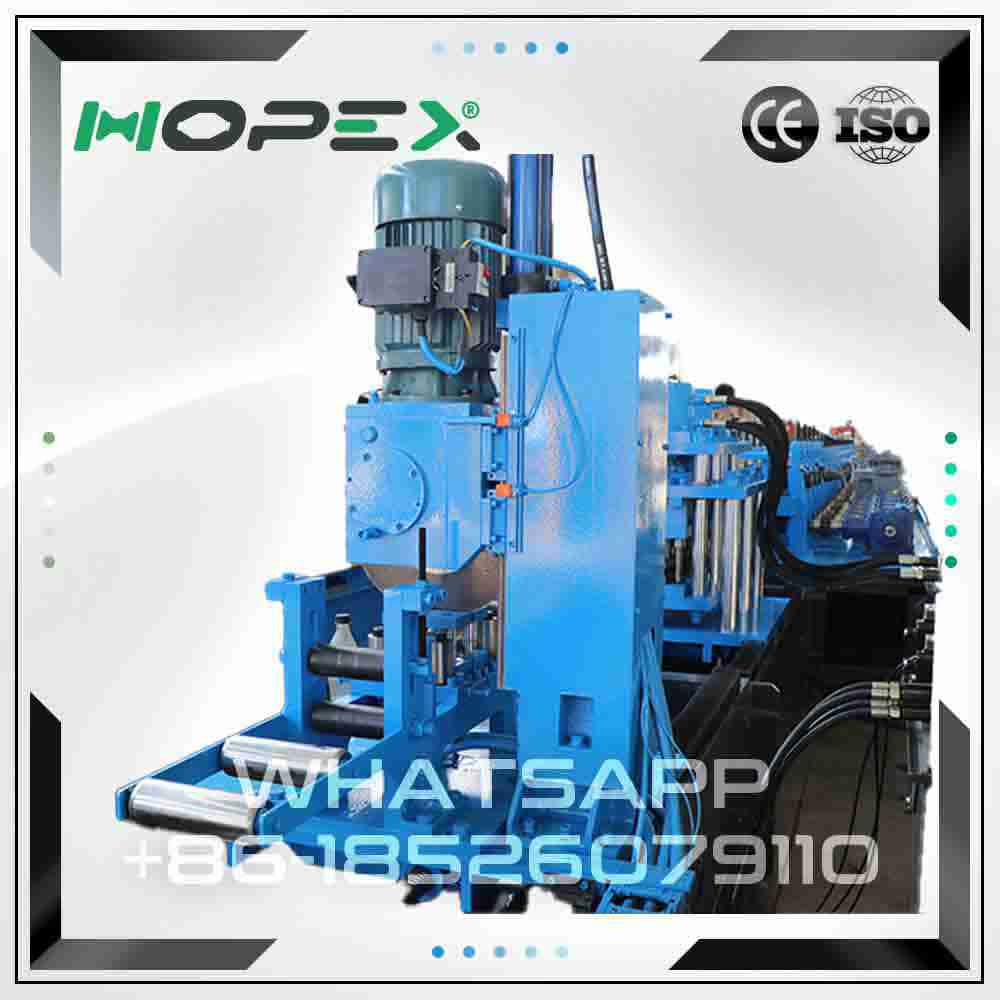

| Cutting Method | Flying tracking saw cutting (with scrap) |
| Discharge Table | 3 m × 2 Pieces, roller-type support |
| Forming Thickness | 1.5-2.5mm |
| Forming Speed | 10-15m/min |
| Inverter | INVT brand |
| LCD Screen | Display Control Electric |
| Low-Voltage Electrical Components | Delixi or Chint |
| Hydraulic System | 11 kW × 2 pump station (for punching） |
| 4 kW pump station (for cutting) | |
| 3 kW pump station (for pressing) | |
| Bearings | Harbin Bearings |
| Reducer | Ruibofeng Reducer Co., Ltd. |
Our photovoltaic bracket roll forming machine is engineered to provide precision forming, stable operation, and long service life. The machine adopts a heavy-duty frame structure combined with precision roll tooling and an intelligent PLC control system. This ensures continuous high-speed production with consistent profile accuracy and smooth surface quality. By investing in a high-performance photovoltaic bracket roll forming machine, manufacturers can significantly increase productivity while reducing labor costs and material waste.
Customization flexibility is one of the key strengths of our photovoltaic bracket roll forming machine. Different photovoltaic projects require various bracket sizes, thicknesses, and structural profiles. We offer full customization options, including feeding width, roll forming thickness, punching configuration, profile design, and voltage standards. Whether customers are producing standard solar brackets or specialized project components, our photovoltaic bracket roll forming machine can be configured to meet precise production needs.
Reliable after-sales service adds long-term value to every photovoltaic bracket roll forming machine. When any operational issue occurs, our engineers provide real-time remote video technical guidance to help customers quickly restore production. This efficient support reduces downtime and eliminates delays caused by international travel. Customers benefit from stable operations and confidence in their investment.
The machine is built using premium components to guarantee durability and low maintenance requirements. Strong transmission systems, precision rollers, and user-friendly control interfaces allow the photovoltaic bracket roll forming machine to operate efficiently under demanding production conditions. The long equipment lifespan improves return on investment and lowers total operating costs.
Choosing the right photovoltaic bracket roll forming machine is essential for manufacturers entering or expanding in the solar energy sector. As an experienced supplier, we focus on delivering equipment that combines performance, customization, and professional support. Our goal is to provide every customer with a dependable photovoltaic bracket roll forming machine that drives productivity and supports long-term growth in renewable energy manufacturing.
| Carport Canopies | ual-purpose structures that provide shade for vehicles while generating electricity. They require robust channels to span large areas and support significant loads |
| Building-Integrated Photovoltaics (BIPV) | Systems where the mounting structure is an integral part of the building envelope, such as facades or skylights |
| Agricultural Applications (AgriVoltaics) | Mounting structures are elevated to allow farming activities to continue underneath the panels. |
| Floating PV Systems | Specialized structures designed to support panels on bodies of water, such as reservoirs and lakes. They are highly corrosion-resistant |
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com
Our photos with our customers
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
