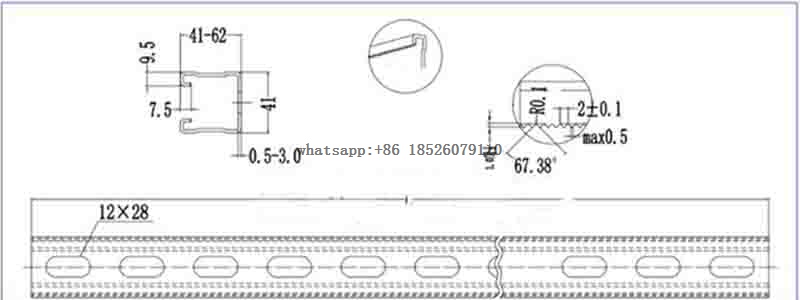

Model:HOPEX- 41*21/41*41mm/41*52mm/41*62mm
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
Warranty :2 years for machinery warranty
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com

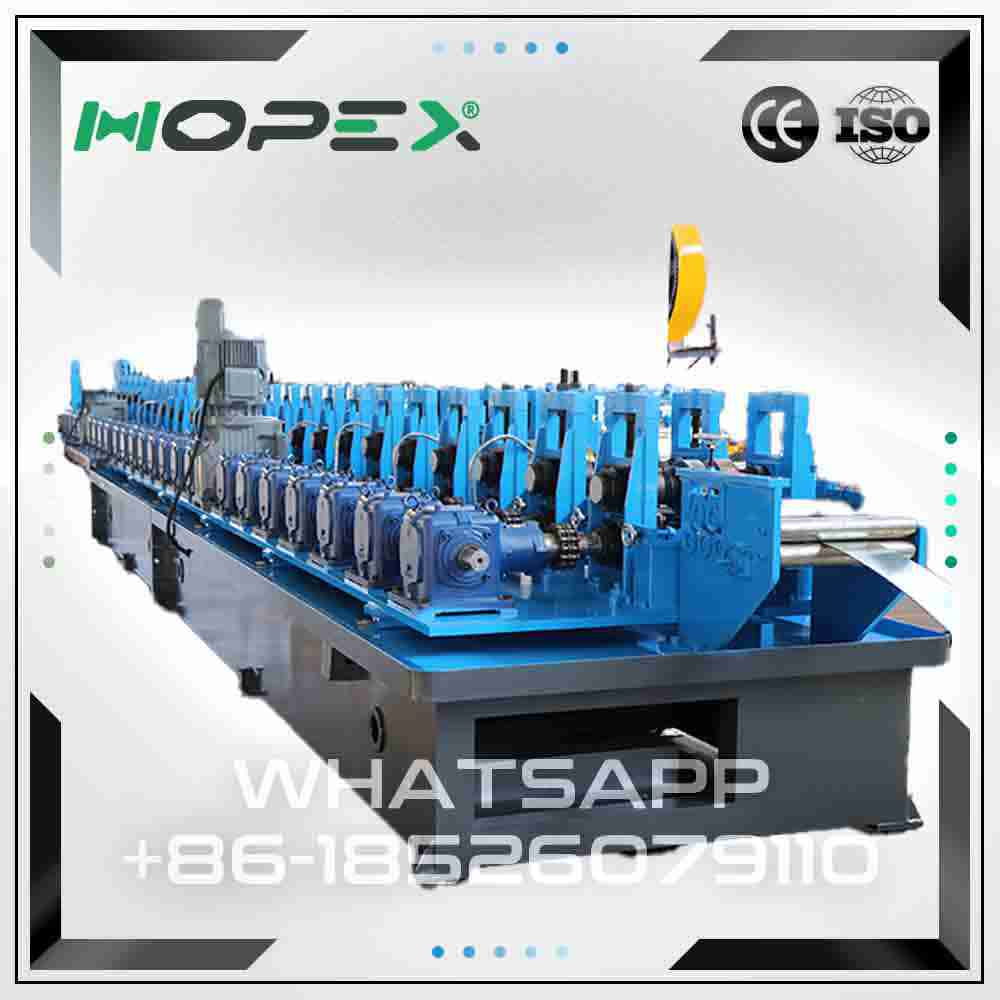

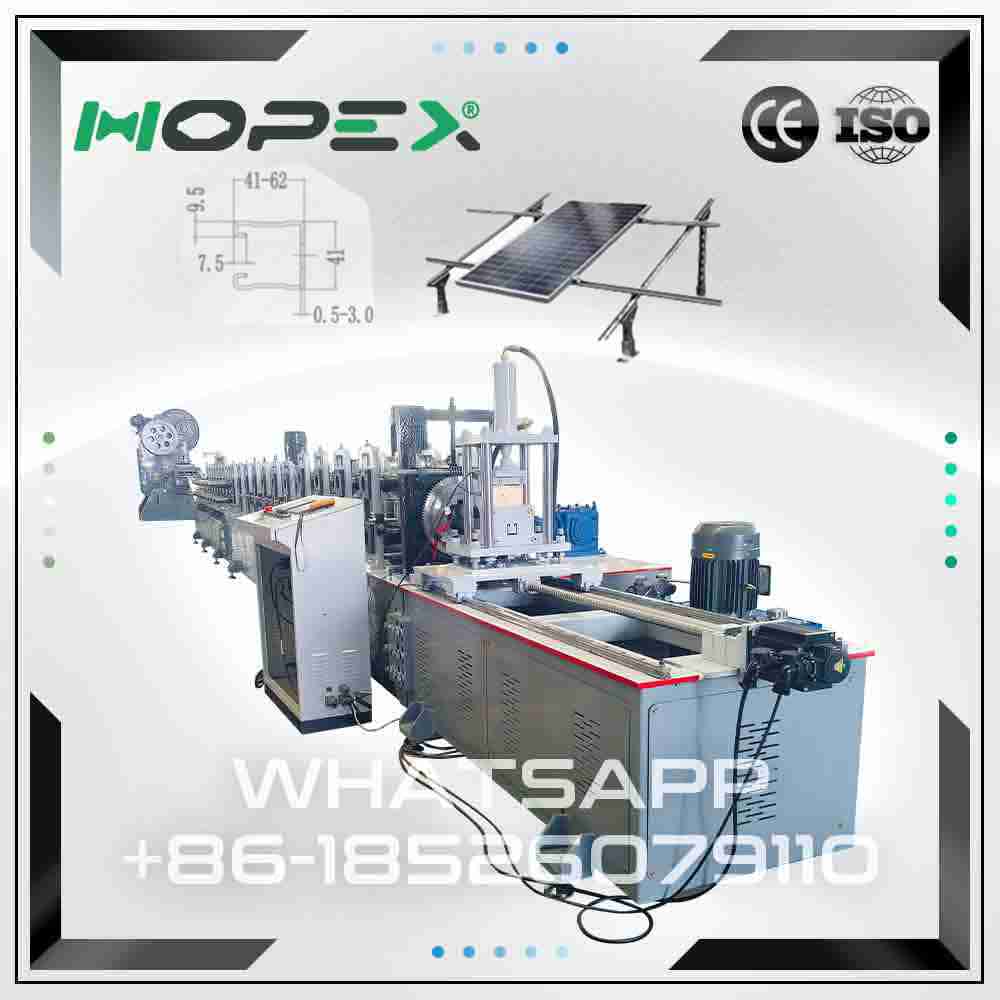

solar channel roll forming machine
As a professional cold roll forming machine manufacturer, we focus on delivering advanced production equipment for the fast-growing solar energy industry. One of our core solutions is the solar channel roll forming machine, designed to manufacture high-strength solar mounting channels used in photovoltaic support systems. With the increasing demand for renewable energy infrastructure, investing in a reliable solar channel roll forming machine has become essential for manufacturers seeking stable, large-scale production.

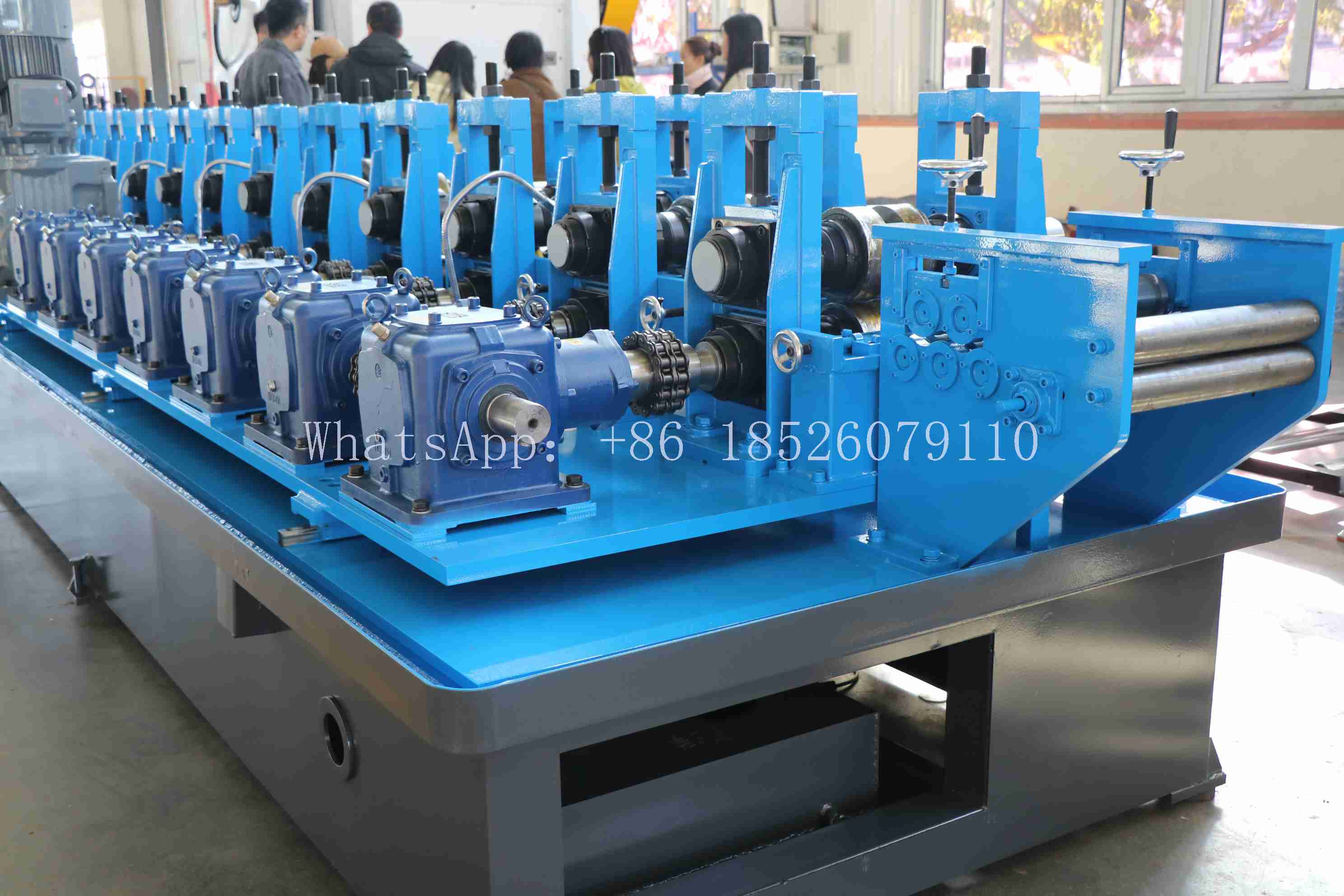

| Photovoltaic bracket roll forming machine main parameters | |
| Forming Rollers | 26rollers |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 |
| Main Shaft Diameter | Finished diameter Ø80 mm |
| Main Shaft Material | 45# steel with quenching and tempering treatment |
| Motor Power | 18.5 kW *2 motors, K97 series hard-tooth gearbox |
| Transmission | Gearbox drive, coupled with universal couplings |
| Machine Frame | Cast iron archway 48 |
| Servo Punching | Non-stop servo punching,dual-module reverse punching |

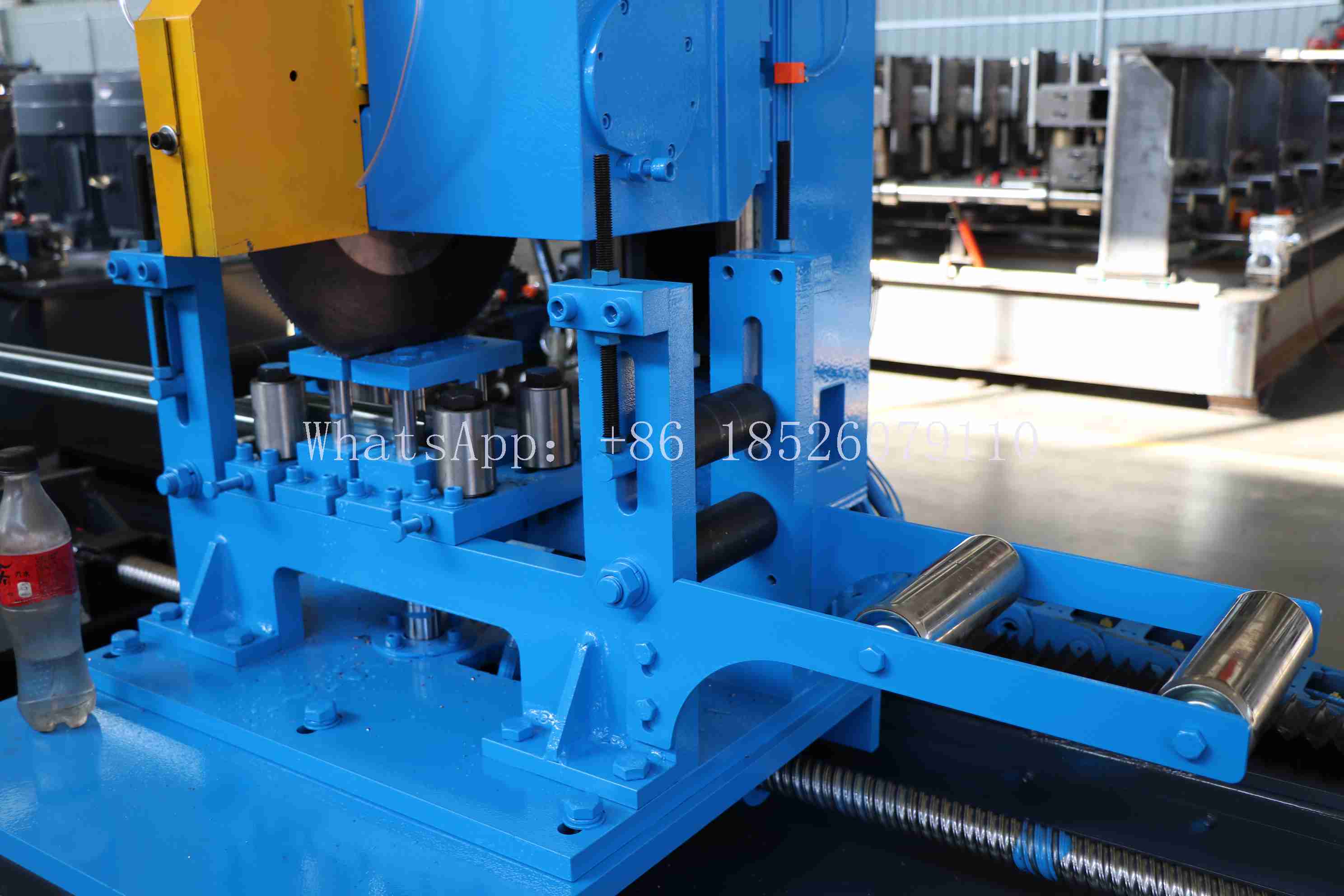

| Cutting Method | Flying tracking saw cutting (with scrap) |
| Discharge Table | 3 m × 2 Pieces, roller-type support |
| Forming Thickness | 1.5-2.5mm |
| Forming Speed | 10-15m/min |
| Inverter | INVT brand |
| LCD Screen | Display Control Electric |
| Low-Voltage Electrical Components | Delixi or Chint |
| Hydraulic System | 11 kW × 2 pump station (for punching |
| 4 kW pump station (for cutting) | |
| 3 kW pump station (for pressing) | |
| Bearings | Harbin Bearings |
| Reducer | Ruibofeng Reducer Co., Ltd. |
Our solar channel roll forming machine is engineered to ensure precision forming, smooth surface finishing, and consistent dimensional accuracy. The machine adopts a heavy-duty frame structure combined with precision roll tooling and an intelligent PLC control system. This configuration allows continuous high-speed production while maintaining excellent forming quality. By using a high-performance solar channel roll forming machine, manufacturers can increase output, reduce manual labor, and minimize raw material waste, improving overall production efficiency.
Customization flexibility is a key advantage of our solar channel roll forming machine. Different solar projects require different channel dimensions and structural specifications. We provide full customization options including feeding width, forming thickness, hole punching configuration, and voltage standards. Whether customers are producing standard solar channels or project-specific profiles, the solar channel roll forming machine can be configured to meet precise requirements. This adaptability helps manufacturers stay competitive in global solar markets.
Technical support is equally important in protecting long-term production stability. When the machine encounters any operational issue, our engineers provide real-time remote video guidance to assist customers. This remote service eliminates delays and ensures fast troubleshooting, allowing production to resume quickly. Reliable after-sales support adds significant value to every solar channel roll forming machine investment.
The machine is constructed using premium-grade components to guarantee durability and low maintenance needs. Strong transmission systems, precision rollers, and user-friendly controls allow the solar channel roll forming machine to operate efficiently under demanding production schedules. The long service life of the equipment improves return on investment and reduces total operating cost.
Choosing the right solar channel roll forming machine means selecting a dependable production partner. As an experienced manufacturer, we are committed to delivering machines that combine performance, customization, and professional service. Our goal is to provide every customer with a high-quality solar channel roll forming machine that supports sustainable growth in the renewable energy manufacturing sector.
| Carport Canopies | ual-purpose structures that provide shade for vehicles while generating electricity. They require robust channels to span large areas and support significant loads |
| Building-Integrated Photovoltaics (BIPV) | Systems where the mounting structure is an integral part of the building envelope, such as facades or skylights. |
| Agricultural Applications (AgriVoltaics) | Mounting structures are elevated to allow farming activities to continue underneath the panels. |
| Floating PV Systems | Specialized structures designed to support panels on bodies of water, such as reservoirs and lakes. They are highly corrosion-resistant |
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
