Model:HOPEX- 41*21/41*41mm/41*52mm/41*62mm
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
Warranty :2 years for machinery warranty
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com

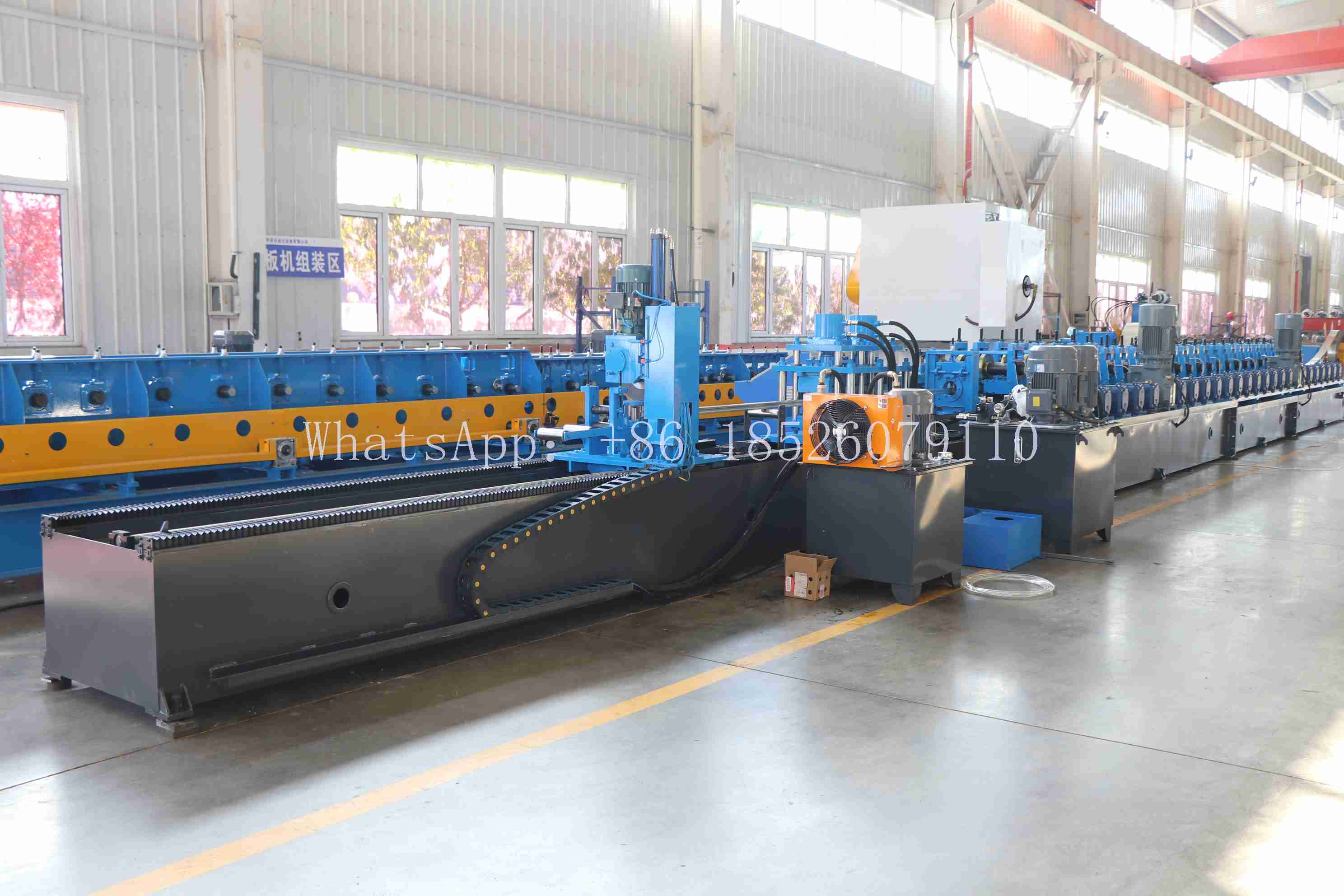

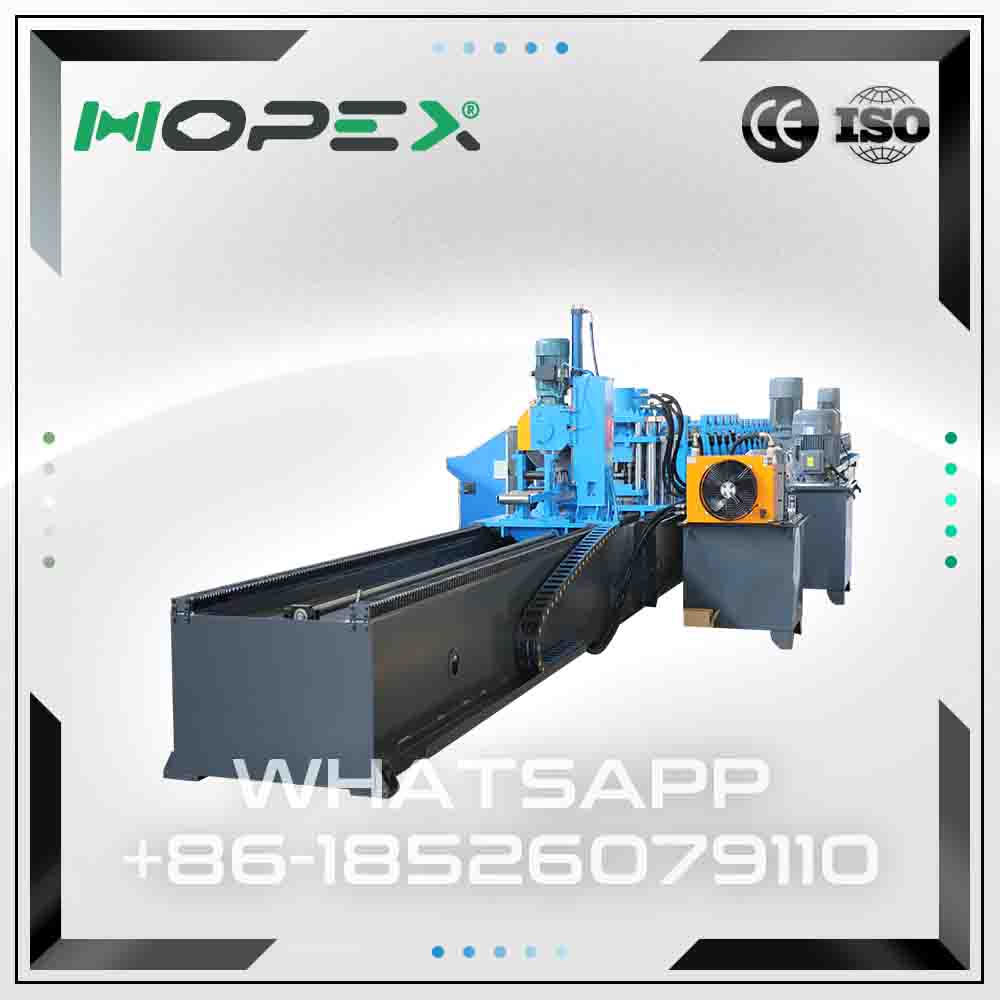

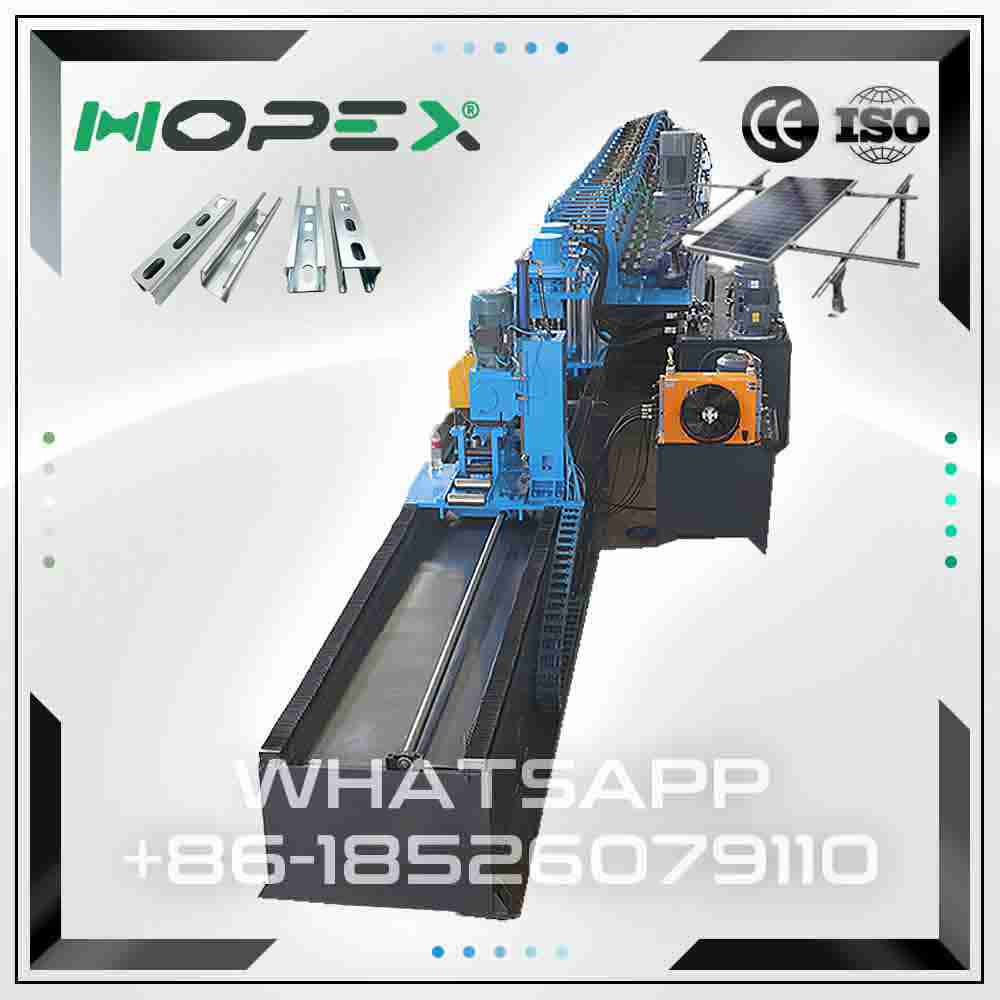

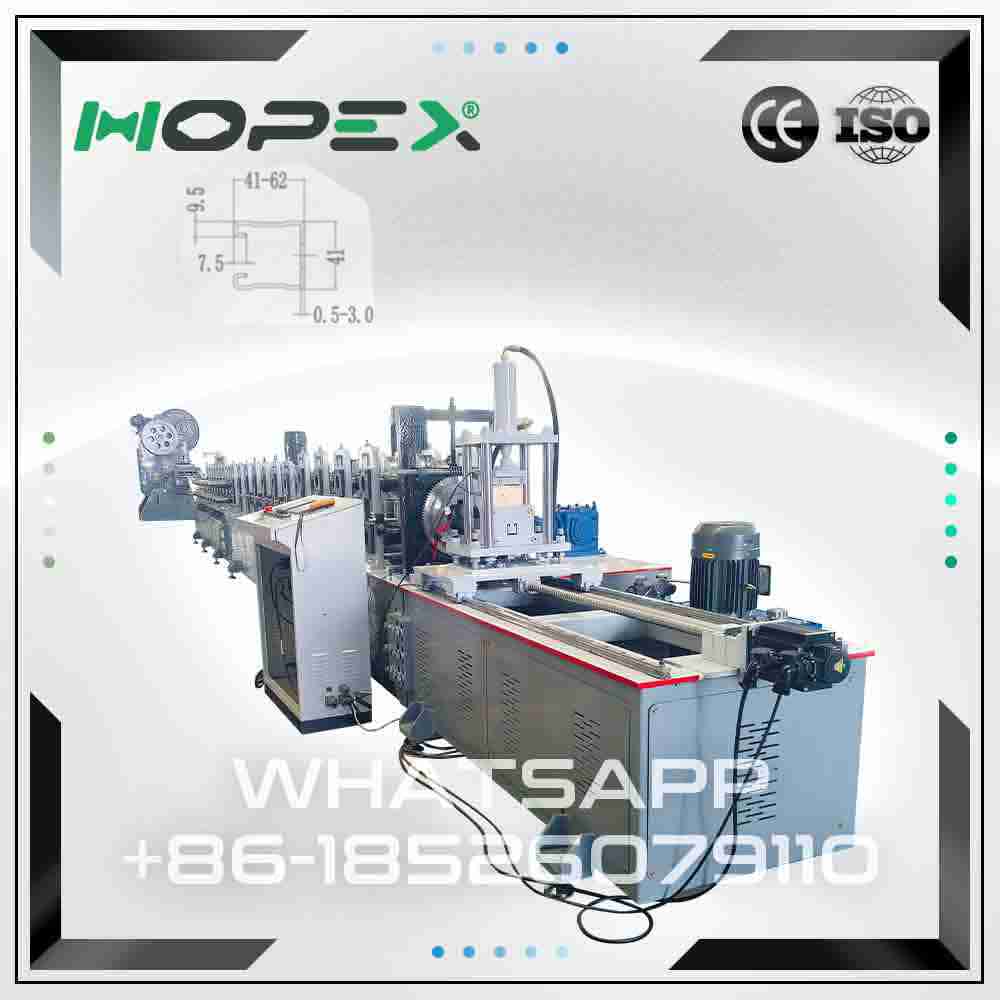

strut channel roll forming machine
As a professional cold roll forming machine manufacturer, we specialize in the design and production of advanced strut channel roll forming machine systems for global customers. Our strut channel roll forming machine is widely used to manufacture C-channel, U-channel, and strut profiles for electrical support systems, solar mounting structures, cable management, and industrial construction projects.

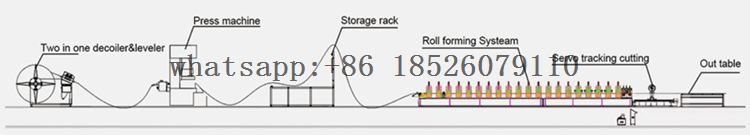

Punch press process flow:
Punching process: Unloading — feeding — forming — punching — cutting — discharging

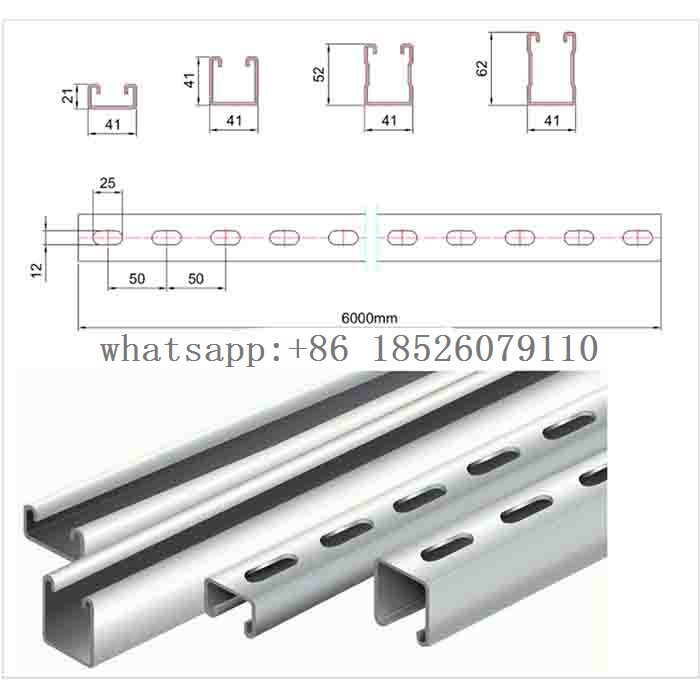

This strut channel roll forming machine line can roll steel products with a maximum thickness of 2.0mm, and can produce steel products with size 41*21/41*41mm/41*52mm,thickness range 1.5(±0.03)~2.5(±0.03) mm
| Photovoltaic bracket roll forming machine main parameters | |
| Forming Rollers | 26rollers |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 |
| Main Shaft Diameter | Finished diameter Ø80 mm |
| Main Shaft Material | 45# steel with quenching and tempering treatment |
| Motor Power | 18.5 kW *2 motors, K97 series hard-tooth gearbox |
| Transmission | Gearbox drive, coupled with universal couplings |
| Machine Frame | Cast iron archway 48 |
| Servo Punching | Non-stop servo punching,dual-module reverse punching |

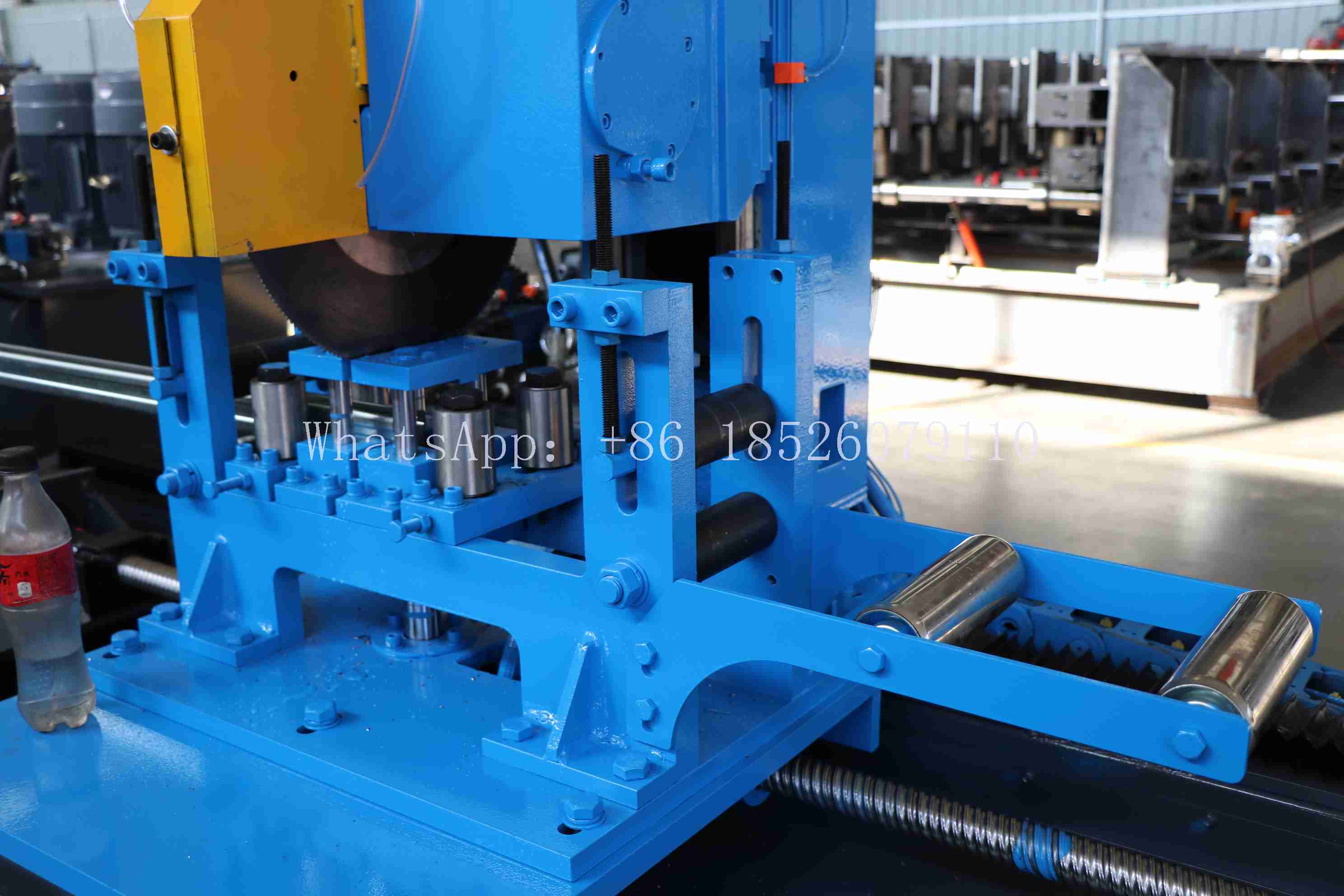

| Cutting Method | Flying tracking saw cutting (with scrap) |
| Discharge Table | 1.5-2.5mm |
| Forming Speed | 10-15m/min |
| Inverter | INVT brand |
| LCD Screen | Display Control Electric |
| Low-Voltage Electrical Components | Delixi or Chint |
| Hydraulic System | 11 kW × 2 pump station (for punching） |
| 4 kW pump station (for cutting) | |
| 3 kW pump station (for pressing) | |
| Bearings | Harbin Bearings |
| Reducer | Ruibofeng Reducer Co., Ltd. |
The strut channel roll forming machine adopts a fully automatic production line, integrating decoiling, feeding, precision roll forming, hydraulic punching (optional), hydraulic cutting, and finished product receiving. This continuous process ensures high efficiency, stable forming accuracy, and excellent surface quality. Compared with traditional forming methods, the strut channel roll forming machine significantly reduces labor costs and material waste while improving production consistency.
Our strut channel roll forming machine is designed with high-strength rollers made from premium alloy steel and processed through CNC machining and heat treatment. This guarantees long service life and stable performance even under high-speed operation. The machine frame is heavy-duty welded steel, ensuring minimal vibration and precise profile dimensions throughout long-term production.
Customization is one of the key advantages of our strut channel roll forming machine. Feeding width, material thickness, forming speed, punching pattern, and cutting length can all be customized according to customer drawings or samples. The machine supports various materials such as galvanized steel, stainless steel, and black steel, with thickness ranges typically from 1.5 mm to 3.0 mm. Voltage and electrical standards can also be customized to match different countries and regions.
To ensure reliable operation, our strut channel roll forming machine is equipped with an intelligent PLC control system and user-friendly touchscreen interface. Operators can easily adjust parameters, monitor production status, and store multiple product recipes. When machine issues occur, our experienced engineers provide real-time video technical support, helping customers quickly solve problems without waiting for on-site service.
In addition, we offer complete after-sales service, including installation guidance, operation training, spare parts supply, and long-term technical consultation. Each strut channel roll forming machine is tested before delivery to guarantee stable performance and compliance with international quality standards.
With high efficiency, flexible customization, and professional remote support, our strut channel roll forming machine is an ideal solution for manufacturers seeking reliable and cost-effective strut channel production equipment.
| Carport Canopies | ual-purpose structures that provide shade for vehicles while generating electricity. They require robust channels to span large areas and support significant loads |
| Building-Integrated Photovoltaics (BIPV) | Systems where the mounting structure is an integral part of the building envelope, such as facades or skylights |
| Agricultural Applications (AgriVoltaics) | Mounting structures are elevated to allow farming activities to continue underneath the panels. |
| Floating PV Systems | Specialized structures designed to support panels on bodies of water, such as reservoirs and lakes. They are highly corrosion-resistant |
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com

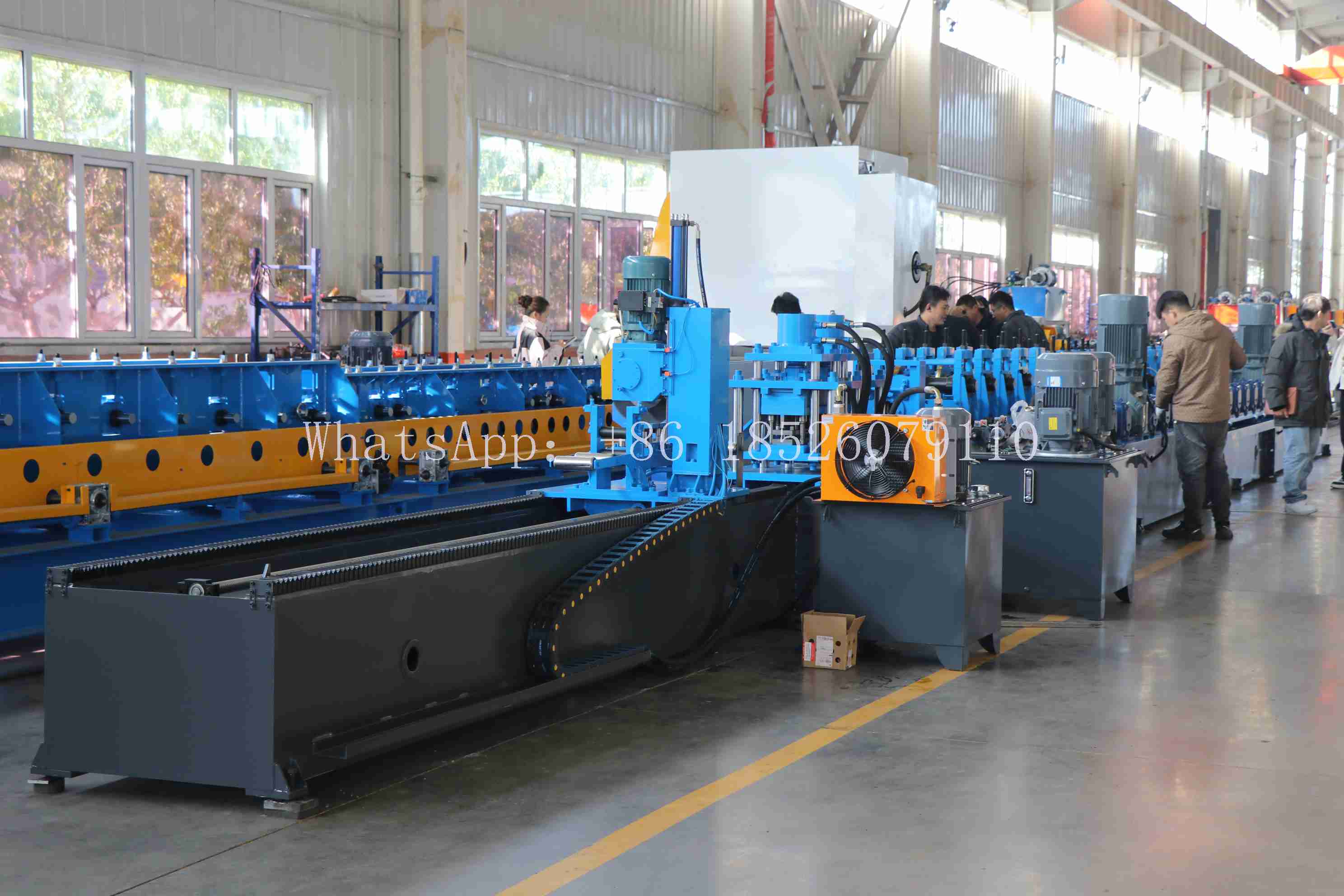

Our photos with our customers
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
