Model:HOPEX- 41*21/41*41mm/41*52mm/41*62mm
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
Warranty :2 years for machinery warranty
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com

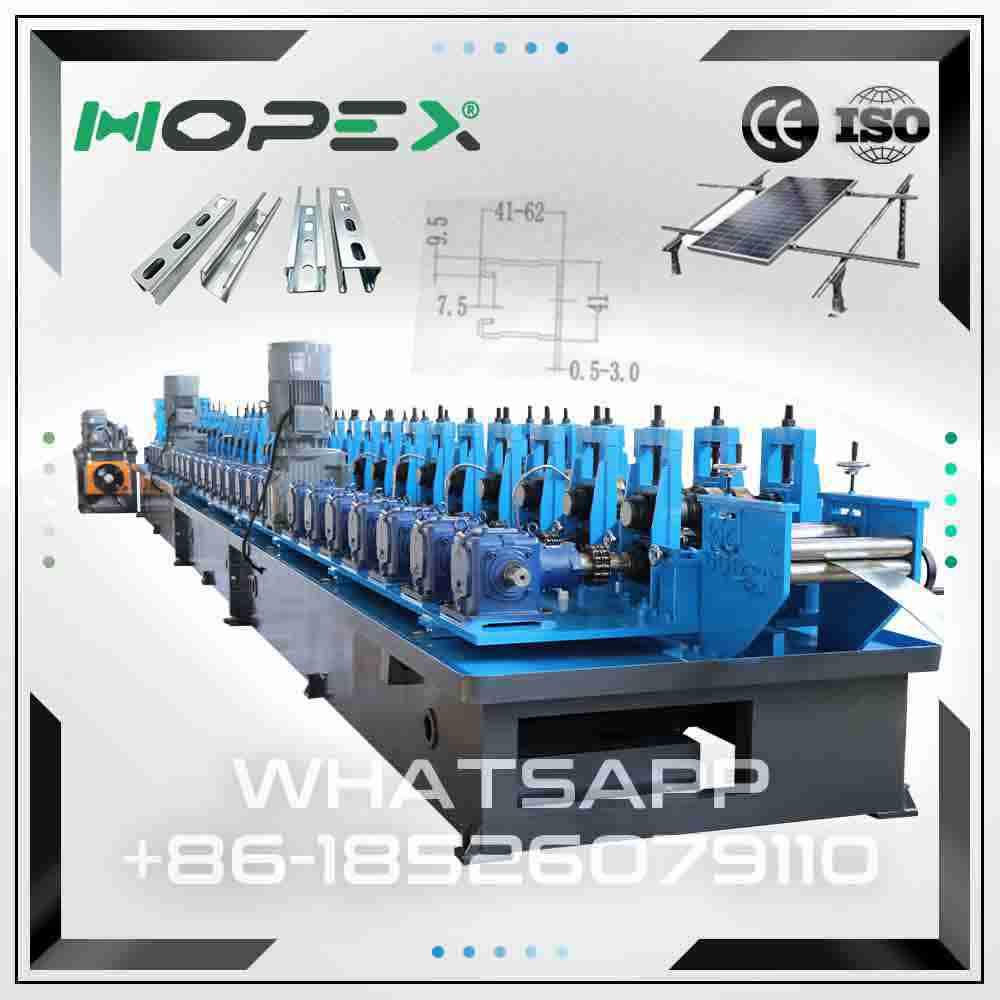

solar bracket roll forming machine
As a professional cold roll forming machine manufacturer, we specialize in providing advanced solutions for the renewable energy industry. One of our flagship products is the solar bracket roll forming machine, designed to produce high-strength mounting structures used in photovoltaic systems. With the rapid global growth of solar energy, demand for a reliable solar bracket roll forming machine continues to increase, and manufacturers require equipment that combines precision, efficiency, and flexibility.
Our solar bracket roll forming machine is engineered to deliver consistent forming accuracy and smooth surface quality. The machine adopts a heavy-duty frame, precision rollers, and an intelligent control system to ensure stable operation during continuous production. By using this high-performance solar bracket roll forming machine, customers can significantly improve output while reducing material waste and labor costs. Stable forming quality is critical in solar installations, and our machine ensures every bracket meets strict engineering standards.
Customization is one of the strongest advantages of our solar bracket roll forming machine. Different solar projects require different bracket sizes, thicknesses, and structural designs. We offer flexible customization for feeding width, forming thickness, punching configuration, and voltage standards. Whether customers are producing standard solar mounting rails or customized structural profiles, the solar bracket roll forming machine can be tailored to match exact production needs. This adaptability allows manufacturers to stay competitive in a fast-changing market.
| Photovoltaic bracket roll forming machine main parameters | |
| Forming Rollers | 26rollers |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 |
| Main Shaft Diameter | Finished diameter Ø80 mm |
| Main Shaft Material | 45# steel with quenching and tempering treatment |
| Motor Power | 18.5 kW *2 motors, K97 series hard-tooth gearbox |
| Transmission | Gearbox drive, coupled with universal couplings |
| Machine Frame | Cast iron archway 48 |
| Servo Punching | Non-stop servo punching,dual-module reverse punching |

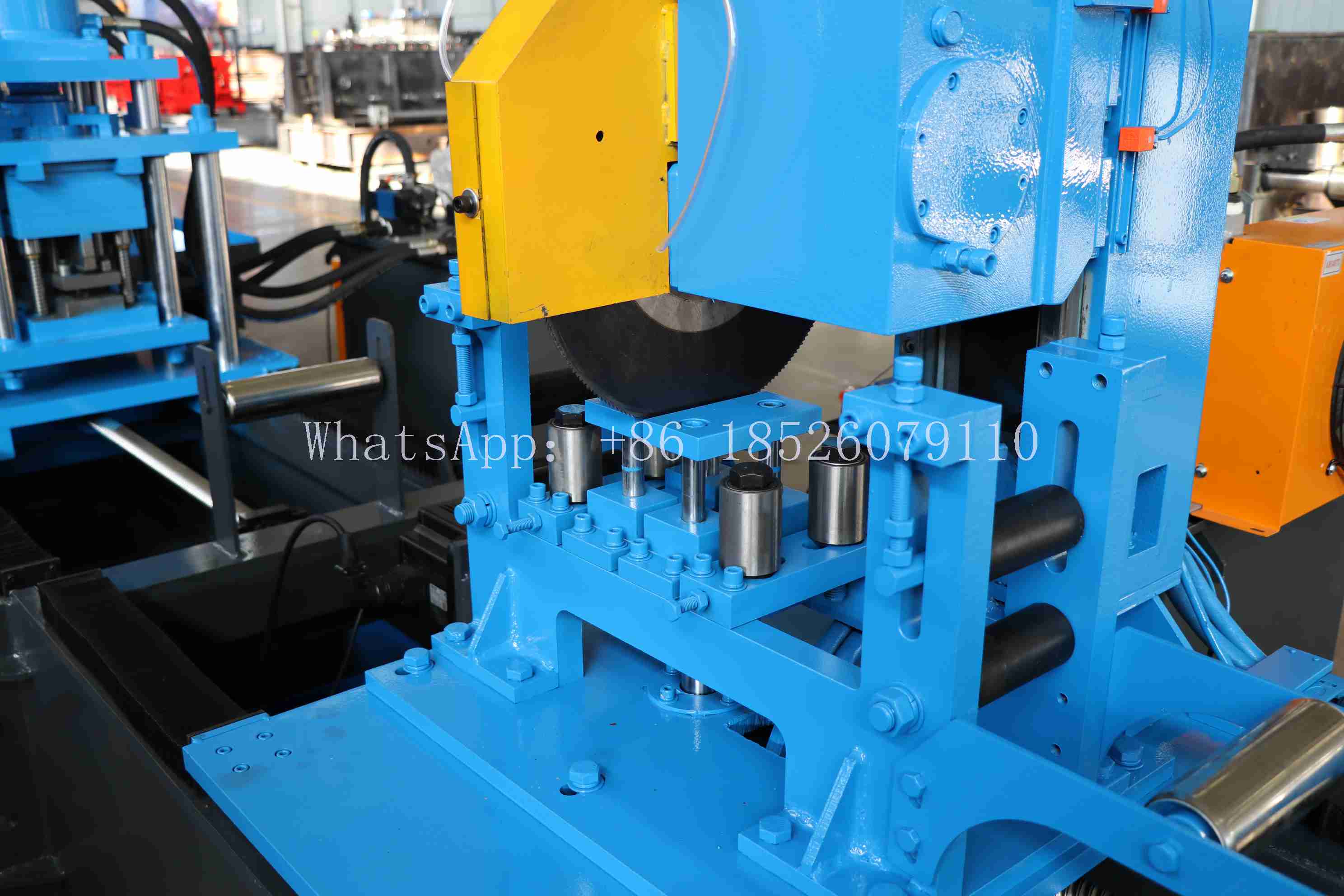

| Cutting Method | Flying tracking saw cutting (with scrap) |
| Discharge Table | 3 m × 2 Pieces, roller-type support |
| Forming Thickness | 1.5-2.5mm |
| Forming Speed | 10-15m/min |
| Inverter | INVT brand |
| LCD Screen | Display Control Electric |
| Low-Voltage Electrical Components | Delixi or Chint |
| Hydraulic System | 11 kW × 2 pump station (for punching |
| 4 kW pump station (for cutting) | |
| 3 kW pump station (for pressing) | |
| Bearings | Harbin Bearings |
| Reducer | Ruibofeng Reducer Co., Ltd. |
Reliable after-sales service adds long-term value to every solar bracket roll forming machine. If any technical issue occurs, our engineers provide real-time remote video guidance to help customers quickly solve operational problems. This remote support reduces downtime and eliminates delays caused by international travel. Customers can maintain stable production and protect their investment with confidence.

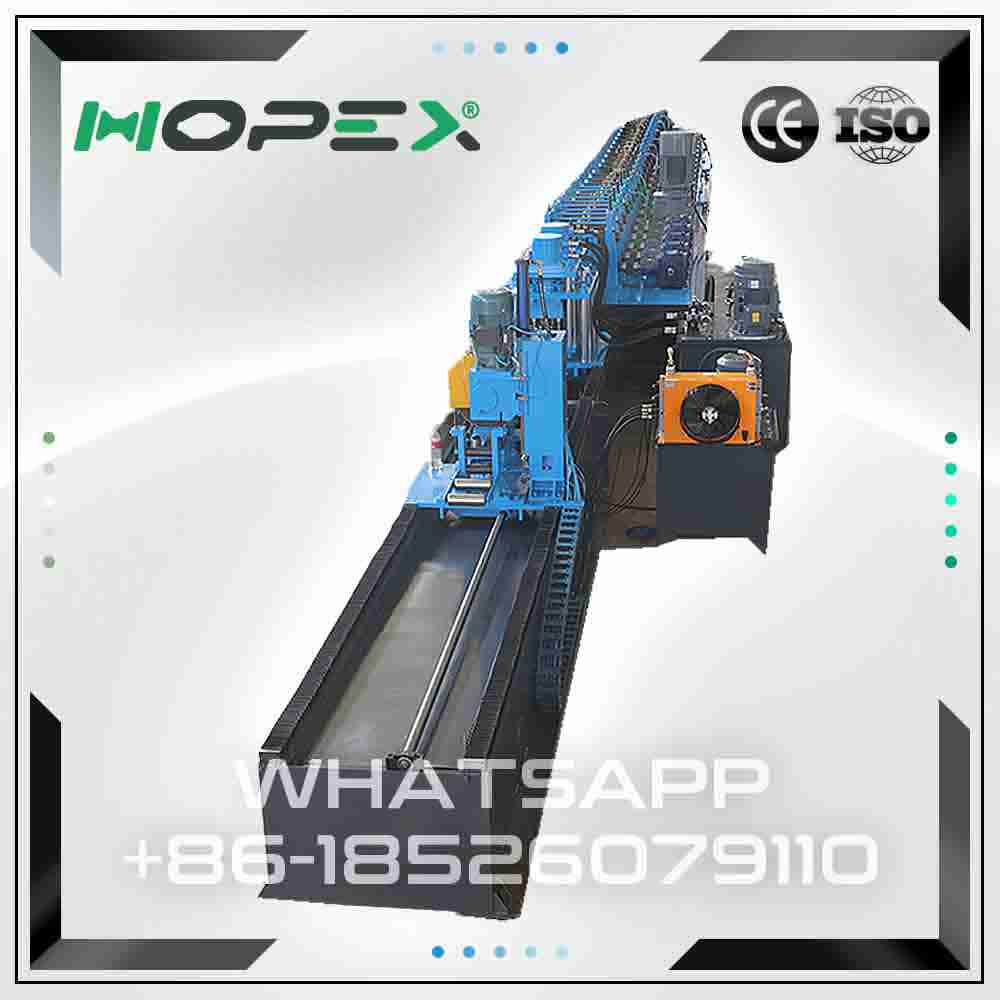

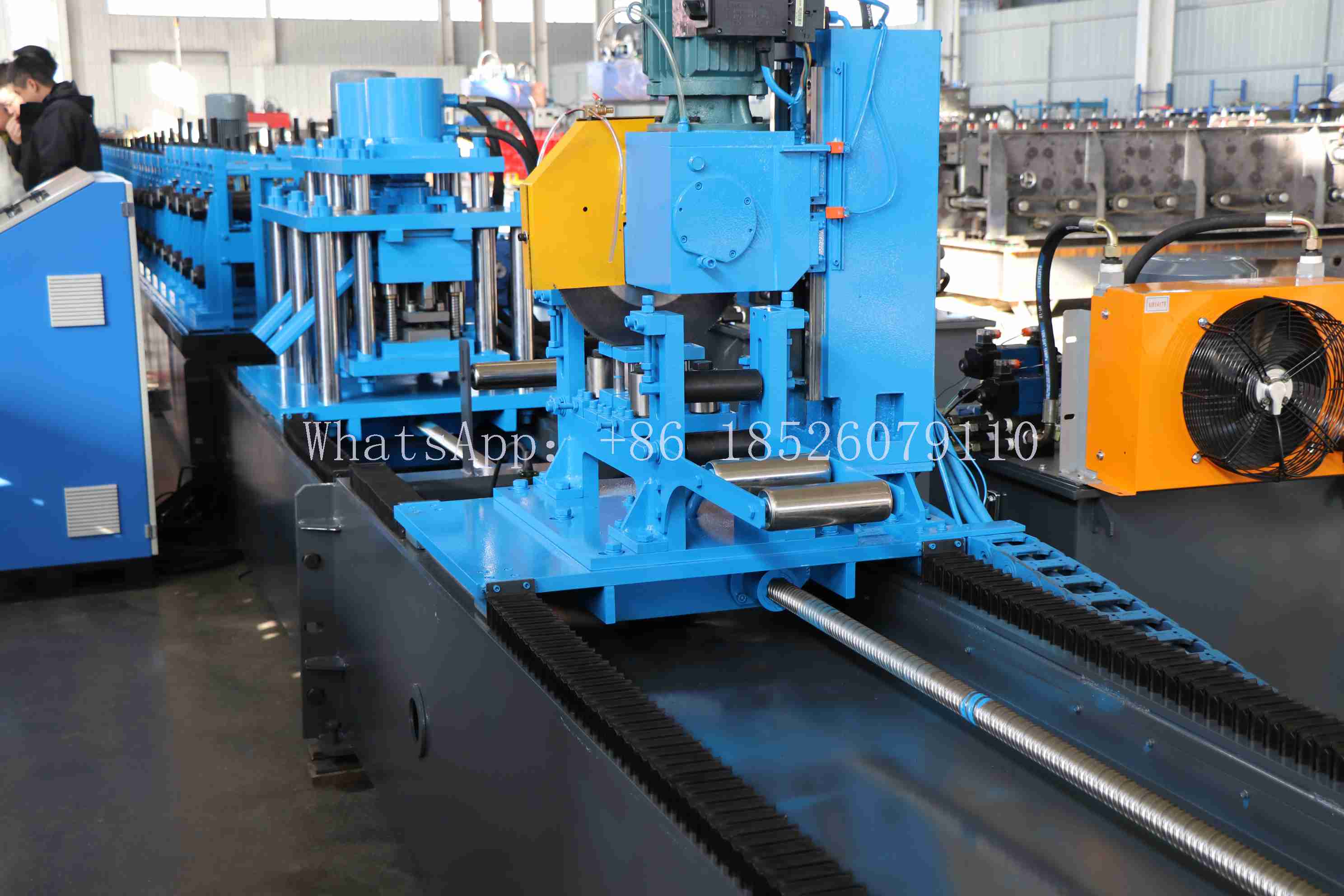

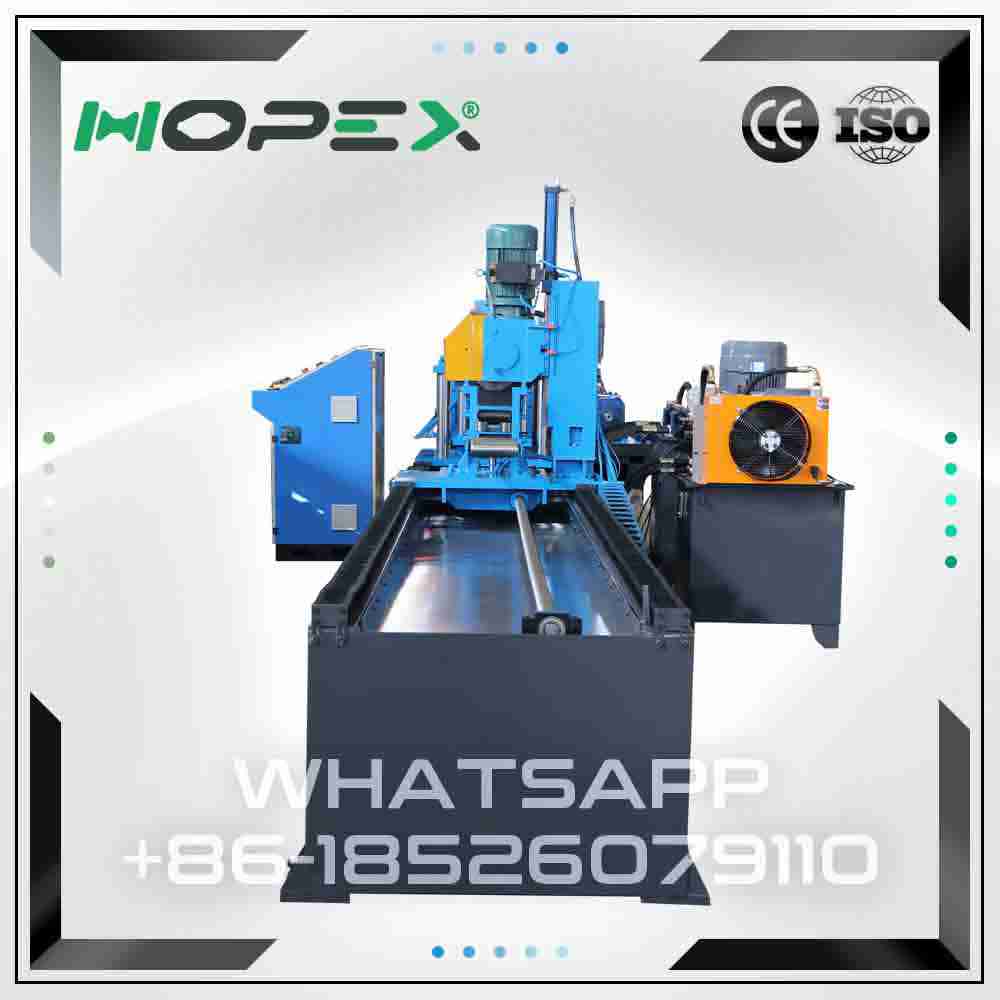

Solar pv support roll forming machine photos showing
Our machine is built using premium components to guarantee durability and low maintenance requirements. High-quality rollers, strong transmission systems, and user-friendly controls ensure that the solar bracket roll forming machine operates efficiently even under heavy workloads. The long service life of the equipment improves return on investment and lowers overall production costs.
Choosing a dependable solar bracket roll forming machine is essential for manufacturers entering or expanding in the solar energy sector. As a trusted supplier, we focus on delivering equipment that combines efficiency, customization, and professional support. Our goal is to provide every customer with a reliable solar bracket roll forming machine that drives productivity and supports long-term growth in renewable energy manufacturing.
| Carport Canopies | Dual-purpose structures that provide shade for vehicles while generating electricity. They require robust channels to span large areas and support significant loads |
| Building-Integrated Photovoltaics (BIPV) | Systems where the mounting structure is an integral part of the building envelope, such as facades or skylights. |
| Agricultural Applications (AgriVoltaics) | Mounting structures are elevated to allow farming activities to continue underneath the panels. |
| Floating PV Systems | Specialized structures designed to support panels on bodies of water, such as reservoirs and lakes. They are highly corrosion-resistant |
