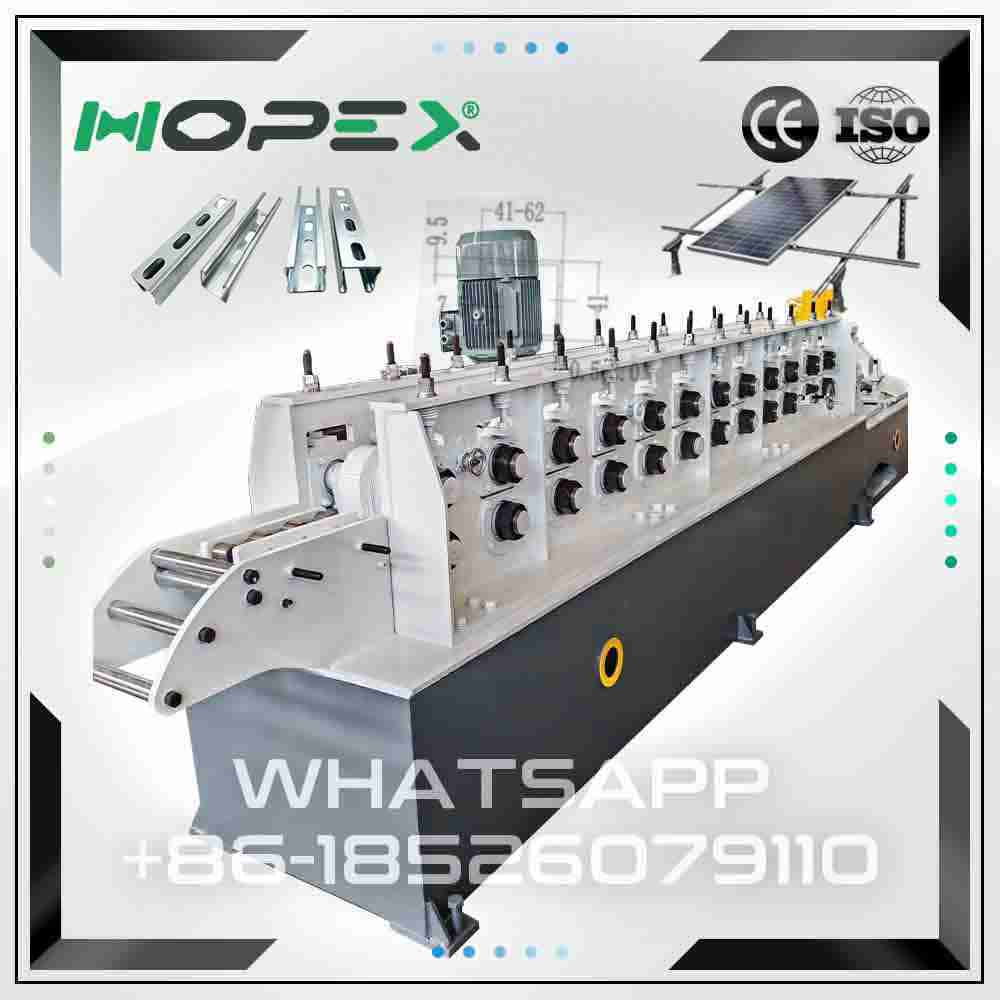

solar structure making machine
As a professional cold roll forming equipment manufacturer, we specialize in advanced solutions for the renewable energy industry. Our solar structure making machine is designed to meet the growing demand for efficient, precise, and durable solar mounting systems. With global solar projects expanding rapidly, investing in a high-quality solar structure making machine is essential for manufacturers who want stable output and long-term competitiveness.
Our solar structure making machine adopts advanced roll forming technology to ensure high precision and consistent shaping of solar mounting profiles. The machine is engineered for continuous production, reducing downtime while improving overall productivity. Whether producing C channels, U brackets, or customized solar structures, this solar structure making machine provides flexible manufacturing capabilities that adapt to different market requirements.
| Photovoltaic bracket roll forming machine main parameters | |
| Forming Rollers | 26rollers |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 |
| Main Shaft Diameter | Finished diameter Ø80 mm |
| Main Shaft Material | 45# steel with quenching and tempering treatment |
| Motor Power | 18.5 kW *2 motors, K97 series hard-tooth gearbox |
| Transmission | Gearbox drive, coupled with universal couplings |
| Machine Frame | Cast iron archway 48 |

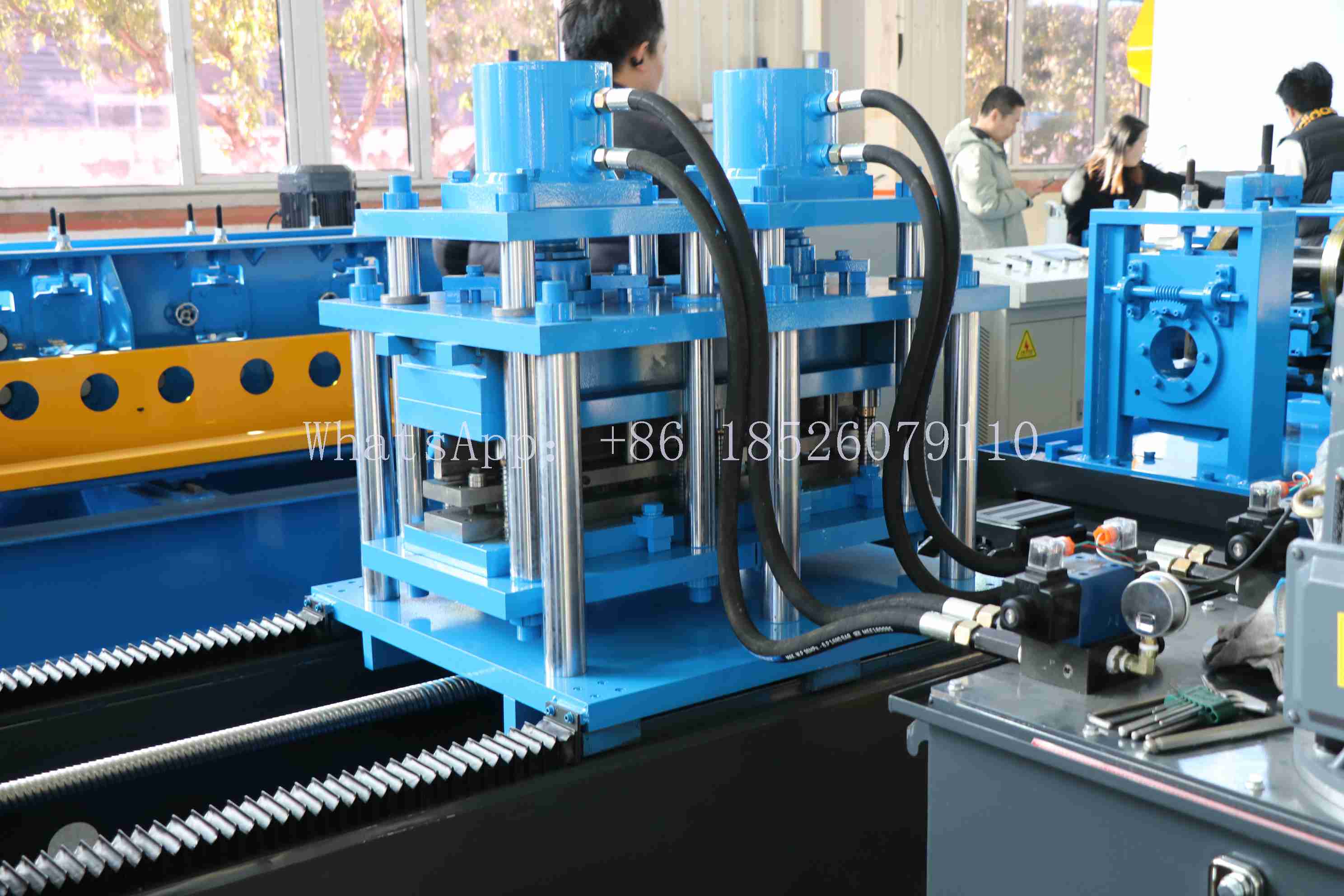

| Servo Punching | Non-stop servo punching,dual-module reverse punching |

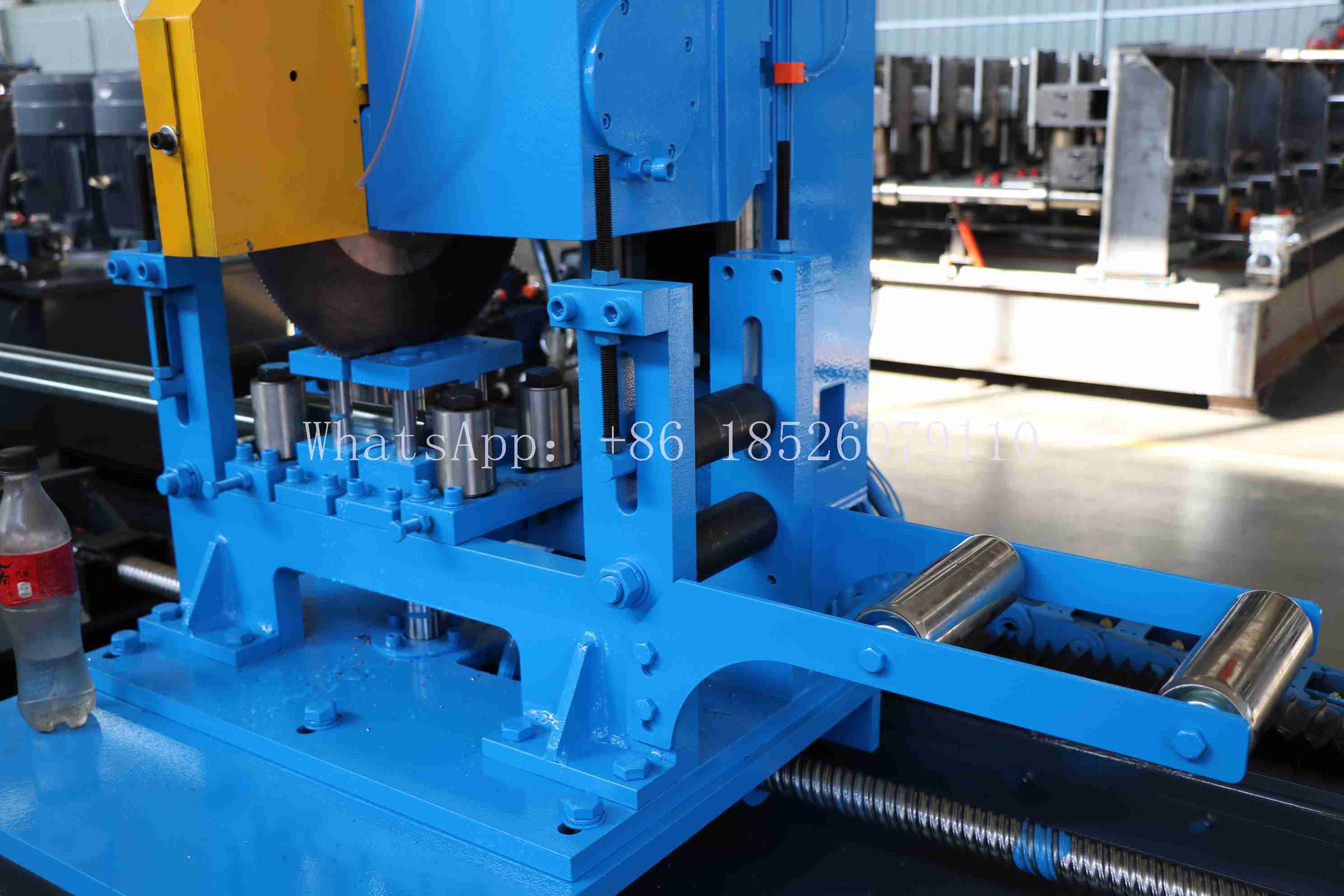

| Cutting Method | Flying tracking saw cutting (with scrap) |
| Discharge Table | 3 m × 2 Pieces, roller-type support |
| Forming Thickness | 1.5-2.5mm |
| Forming Speed | 10-15m/min |
| Inverter | INVT brand |
| LCD Screen | Display Control Electric |
| Low-Voltage Electrical Components | Delixi or Chint |
| Hydraulic System | 11 kW × 2 pump station (for punching） |
| 4 kW pump station (for cutting) | |
| 3 kW pump station (for pressing) | |
| Bearings | Harbin Bearings |
| Reducer | Ruibofeng Reducer Co., Ltd. |
Customization is one of the strongest advantages of our solar structure making machine. Feeding width, rolling thickness, and voltage can all be tailored to match local production standards. This flexibility allows customers to integrate the machine smoothly into existing factories. In addition, the robust mechanical structure ensures stable operation even under high-speed production conditions. The durability of the solar structure making machine reduces maintenance costs and extends service life.
We understand that after-sales support is critical for industrial equipment. If any issue occurs during operation, our engineers can provide real-time video guidance. Remote technical assistance ensures customers can quickly resume production without long delays. This service model makes our solar structure making machine a reliable choice for international buyers who need dependable support across different time zones.
Automation features further enhance the value of the solar structure making machine. Equipped with PLC control systems and user-friendly interfaces, operators can easily adjust parameters and monitor production data. Automatic cutting and punching systems improve accuracy and reduce labor intensity. By using our solar structure making machine, manufacturers can achieve higher efficiency while maintaining strict quality standards.
Energy efficiency is another key benefit. The optimized drive system minimizes power consumption while delivering strong performance. As the renewable energy industry focuses on sustainability, choosing an energy-saving solar structure making machine supports environmentally responsible manufacturing practices.
In today’s competitive solar market, production speed, precision, and adaptability are crucial. Our solar structure making machine combines advanced engineering, customizable design, and reliable service support to help businesses grow. It is not only a machine, but a long-term investment that increases productivity and strengthens market position. For companies aiming to expand their solar product line, our solar structure making machine offers a powerful and future-ready solution.
| Carport Canopies | ual-purpose structures that provide shade for vehicles while generating electricity. They require robust channels to span large areas and support significant loads |
| Building-Integrated Photovoltaics (BIPV) | Systems where the mounting structure is an integral part of the building envelope, such as facades or skylights |
| Agricultural Applications (AgriVoltaics) | Mounting structures are elevated to allow farming activities to continue underneath the panels. |
| Floating PV Systems | Specialized structures designed to support panels on bodies of water, such as reservoirs and lakes. They are highly corrosion-resistant |
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com
Our photos with our customers
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
