cable tray machine manufacturer
As a specialized **cable tray machine manufacturer**, we understand that the backbone of efficient electrical management and industrial storage lies in robust, reliable, and precisely fabricated support systems. Our core expertise is embodied in our advanced roll forming production line, engineered to manufacture the critical beams that form the structure of cable trays and heavy-duty shelving units. This integrated system represents the pinnacle of our commitment as a dedicated **cable tray machine manufacturer**, delivering automation, precision, and unwavering quality from raw material to finished product.

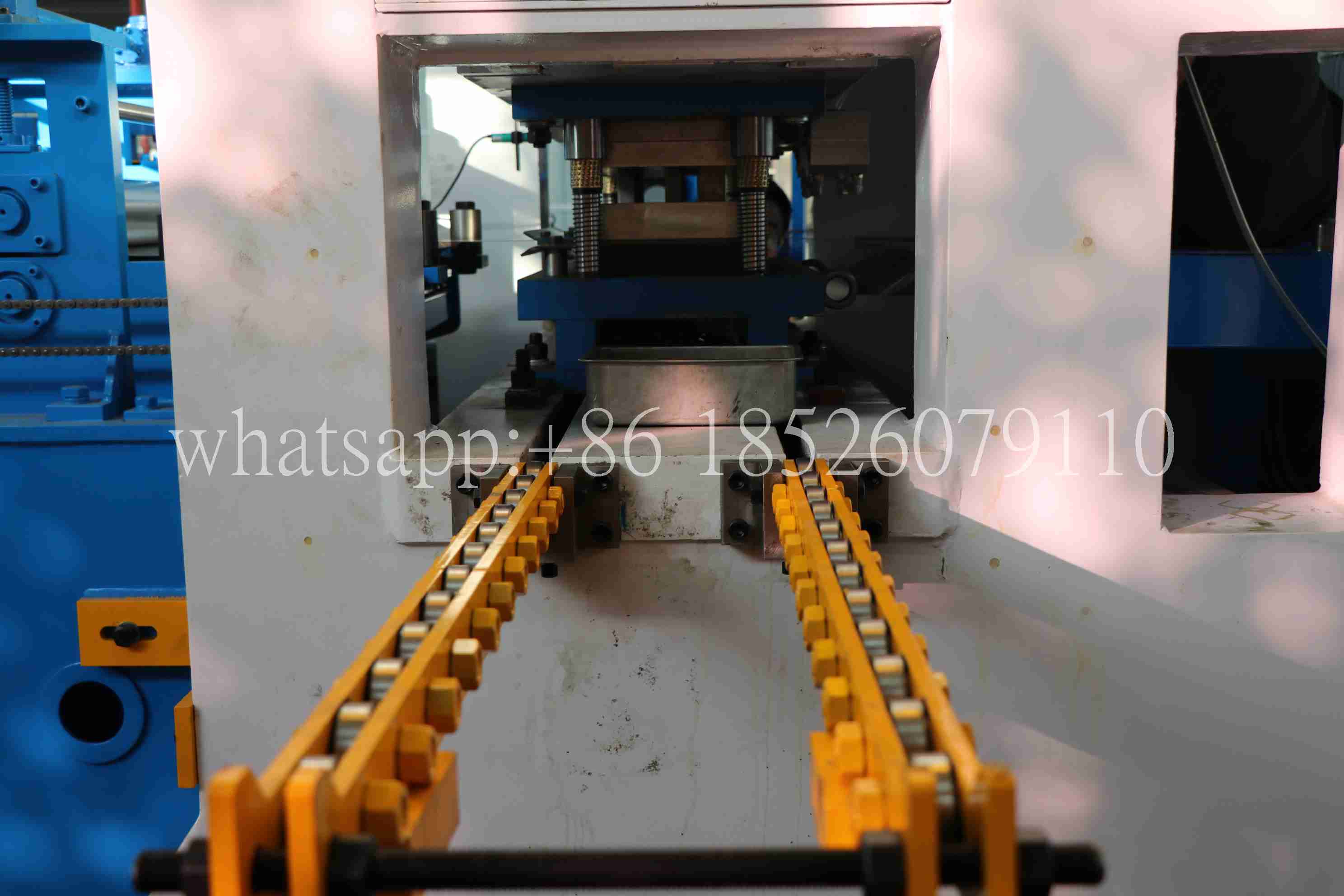

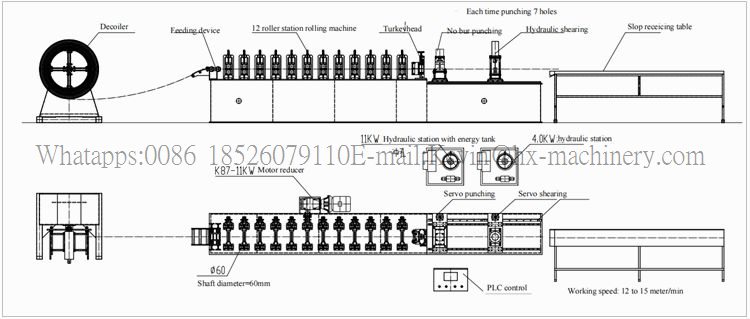

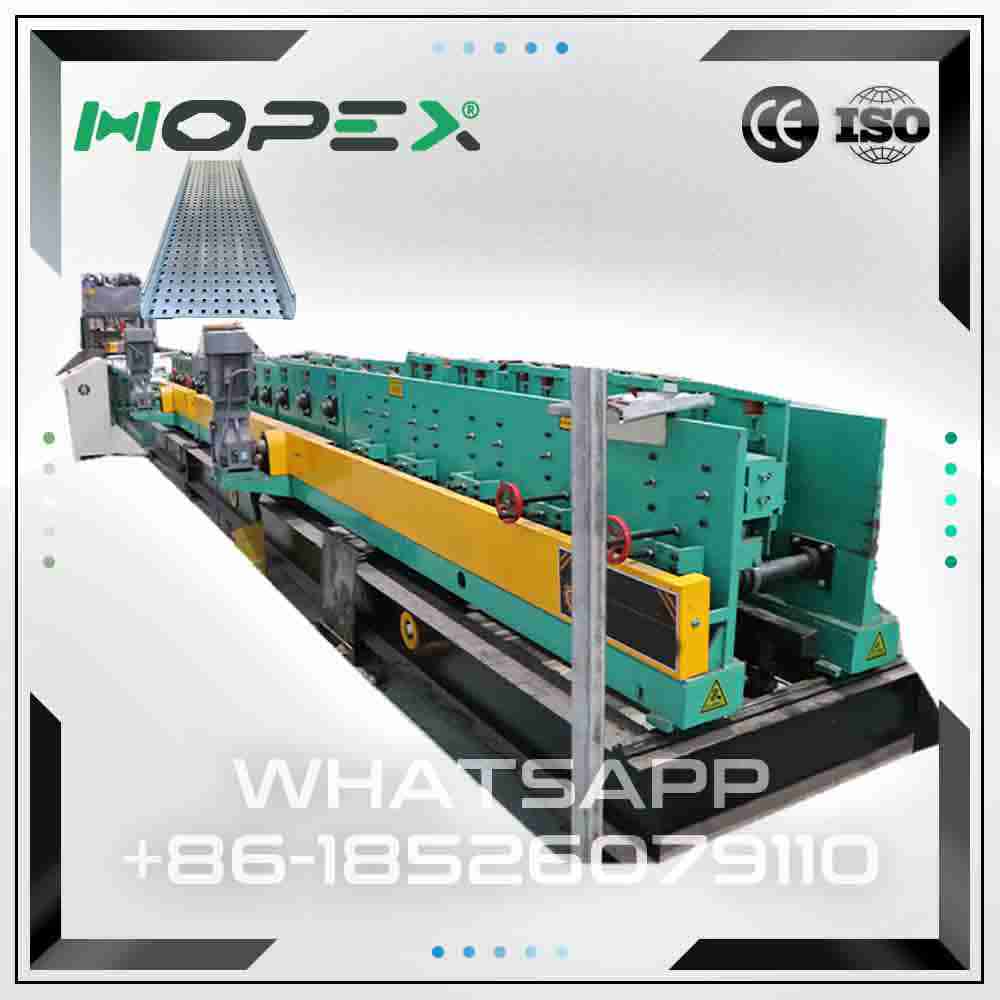

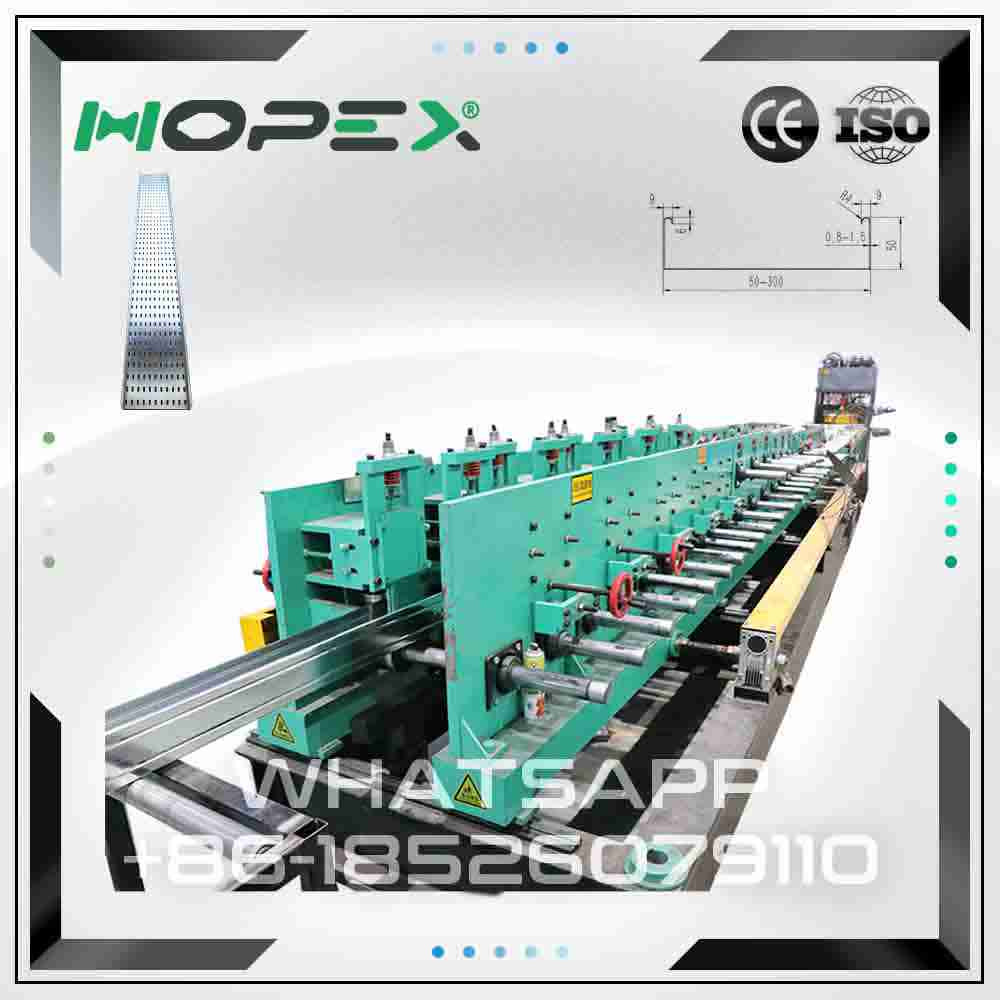

The production journey begins with a precision decoiler, ensuring smooth and consistent feeding of steel coil. The material then proceeds to the heart of the line—our high-performance roll forming machine. Through a meticulously calibrated series of roller dies, the flat strip is gradually and accurately shaped into a strong, uniform profile. A computer-controlled hydraulic shear then provides clean, distortion-free cutting to the exact required length. What sets our line apart is the subsequent, crucial stage: the semi-finished product interlocking roll forming unit. This innovative module, a testament to our ingenuity as a **cable tray machine manufacturer**, mechanically joins two pre-formed C-channels or profiles, interlocking them securely to create a single, incredibly rigid, and complete load-bearing beam. This(interlocking) technology is fundamental for achieving the superior strength and stability required in the final application. The finished beams are finally conveyed to an automatic receiving rack, ensuring orderly collection without surface damage.
| aw Material Specifications | Material Type | Galvanized / Cold-Rolled / Stainless Steel |
| Material Thickness | 0.8–2.5 mm (Customizable) | |
| Material Width | Customized according to tray size | |
| Yield Strength | G220-G250 | |
| Roll Forming System | Forming Stations | 18–24 stations |
| Roller Material | GCr15, heat treated | |
| Shaft Material | 45# steel, heat treate | |
| Shaft Diameter | Φ70–90 mm | |
| Drive System | Chain drive | |

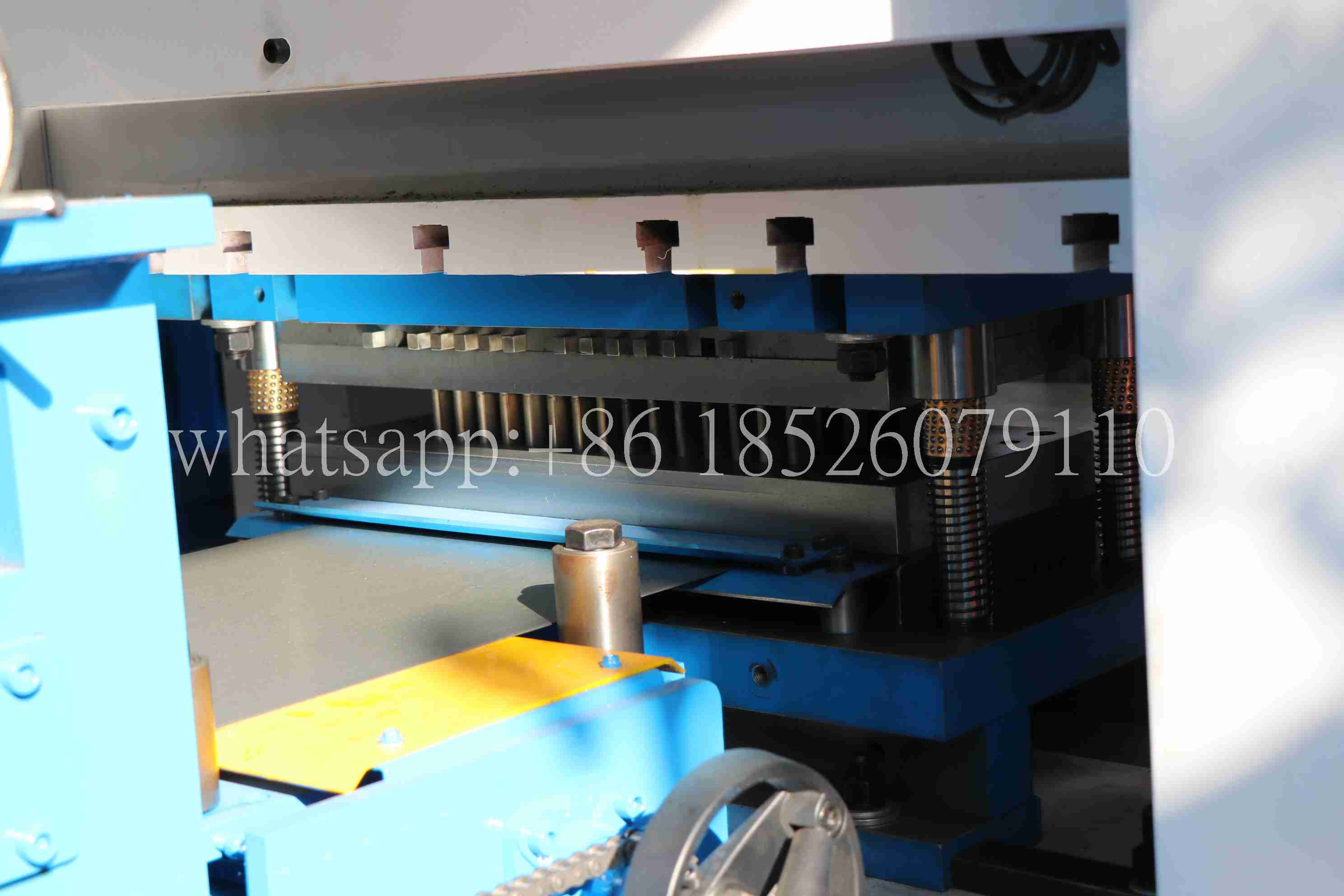

| Punching System | Punching Type | Hydraulic Punching |
| Punching Position | Before forming | |
| Hole Type | Round / Slotted / Customized | |
| Punching Accuracy | ±0.5 mm | |
| Control System | Operation Interface | Touch Screen (CN / EN) |
| Inverter | Famous brand | |
| Electrical Components | Siemens or Schnedier | |
| Data Memory | Parameter memory | |
| Motor & Hydraulic System | Main Motor Power | 11 kW *3 sets |
| Hydraulic Power | 7.5 kW | |
| Power Supply | 380V / 50Hz / 3Ph (Custom) | |
| Hydraulic Oil | 46# Anti-wear Hydraulic Oi | |
| Production size | Line Length | 35 meters |
| Machine Width | 2.5 meters | |
| Machine Weight | 25ton |
Recognizing that one size does not fit all, we build exceptional flexibility into our systems. Key operational parameters, including material feed width, roll forming thickness, and electrical voltage, can be fully customized. This adaptability ensures that our machinery meets your specific material specifications and local power standards perfectly, a capability central to our philosophy as a responsive **cable tray machine manufacturer**.
Beyond delivering state-of-the-art equipment, we provide a comprehensive partnership. To minimize potential downtime and offer immediate support, our technical engineers are available for real-time video online guidance. This service ensures quick troubleshooting and operational continuity, reinforcing our role as a supportive and reliable **cable tray machine manufacturer**.
In conclusion, choosing us as your **cable tray machine manufacturer** means investing in more than machinery; it means securing a complete production solution backed by deep technical expertise. Our automated roll forming line for interlocking beams enhances your manufacturing efficiency, reduces labor costs, and guarantees product consistency. We invite you to collaborate with us to elevate your production capabilities and strengthen your position in the market with equipment engineered for excellence.
Whatsapp:0086 18526079110
E-mail:Kevin@hx-machinery.com
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
