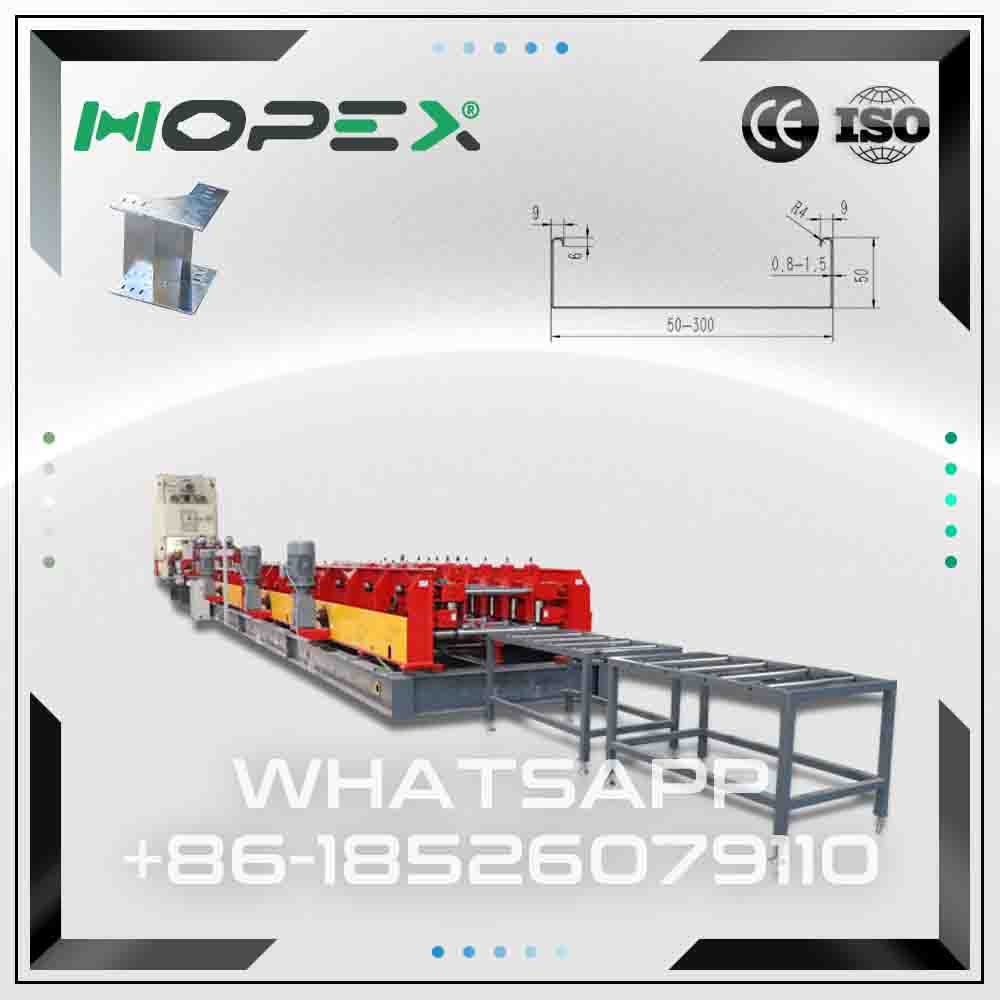

Cable tray making machine

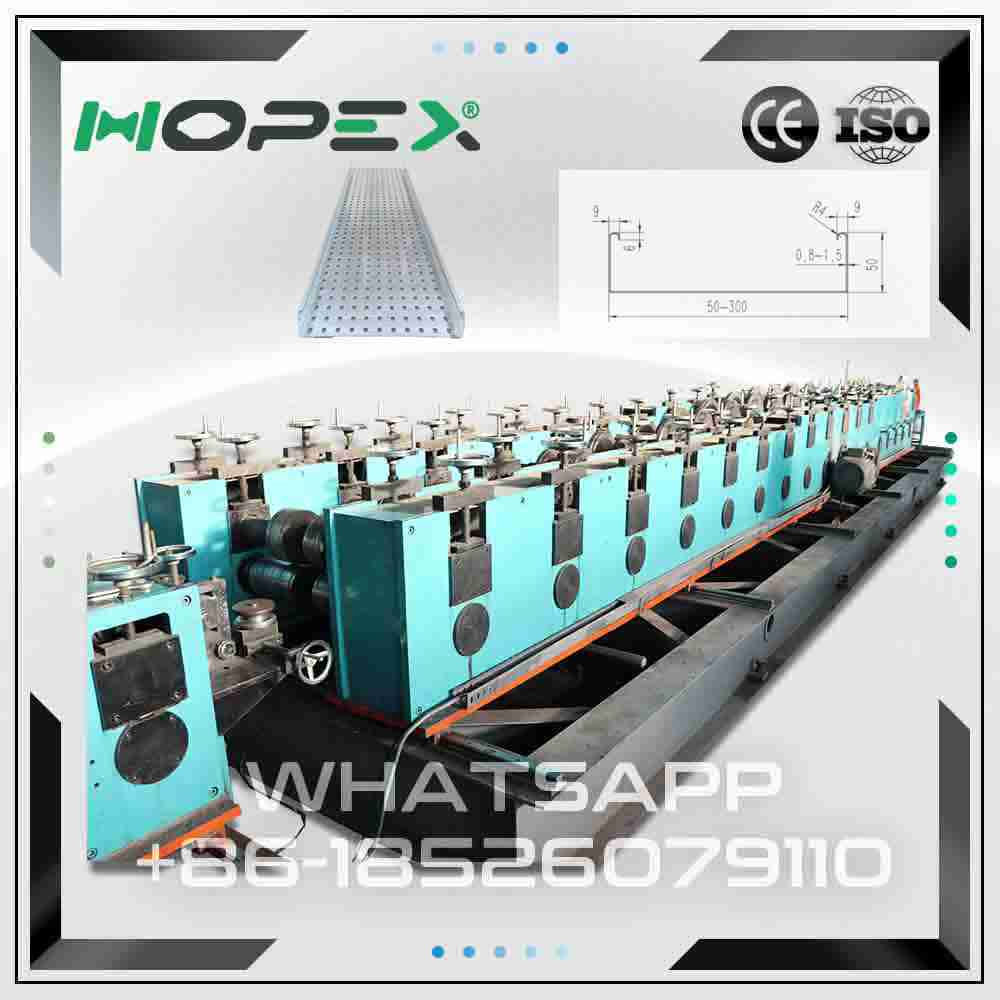

As a leading manufacturer of cold roll forming machines, we specialize in providing high-quality equipment for cable tray production. Our cable tray making machine is designed to offer high precision, efficiency, and flexibility in producing various types of cable trays. The cable tray making machine is widely used in industrial, commercial, and infrastructure projects, ensuring that cables are safely and efficiently managed.

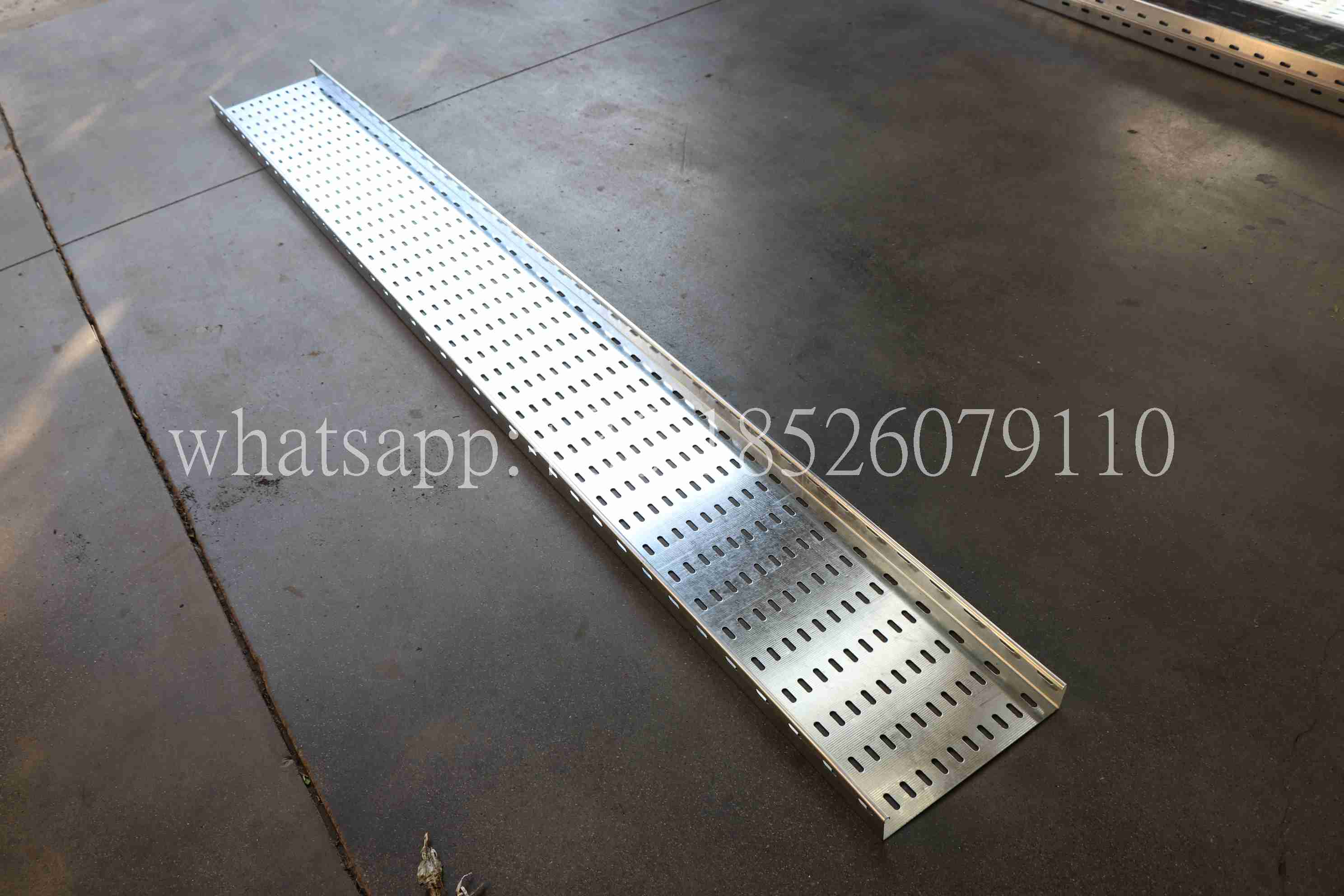

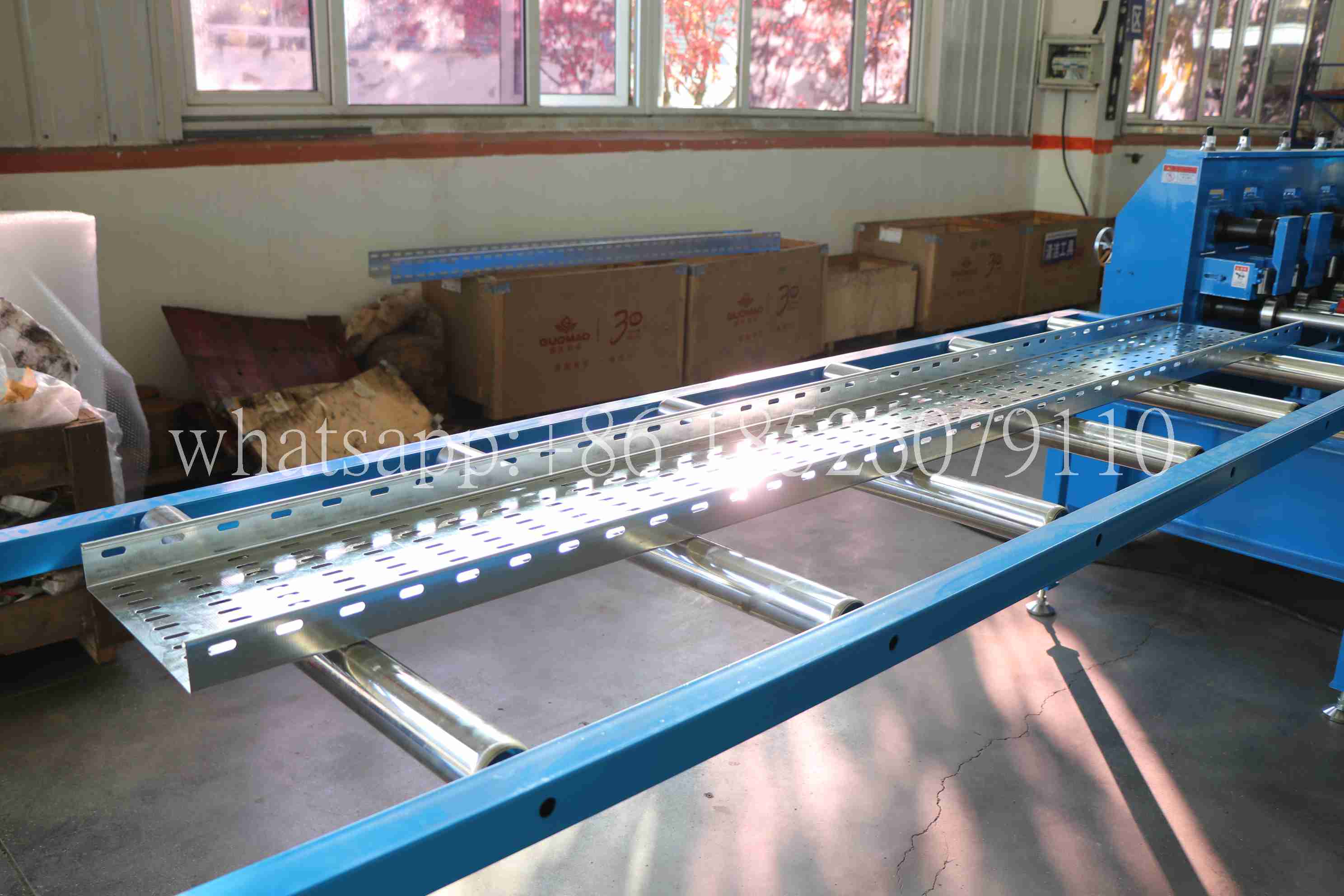

The cable tray making machine is ideal for producing different types of cable trays, such as ladder-type, perforated, and solid bottom trays. These trays are essential for organizing and protecting electrical cables in a wide range of industries, from power plants to commercial buildings. With its high level of automation, the cable tray making machine is capable of producing large quantities of cable trays in a continuous and efficient manner.
One of the main advantages of our cable tray making machine is its customization. We understand that different customers have different requirements, so we offer a high level of flexibility in the design of the machine. The feeding width, roll forming thickness, voltage, and even the number of roll forming stations can be customized to suit the specific needs of each customer. This flexibility allows businesses to optimize their production line and meet market demands more effectively.
| aw Material Specifications | Material Type | Galvanized / Cold-Rolled / Stainless Steel |
| Material Thickness | 0.8–2.5 mm (Customizable) | |
| Material Width | Customized according to tray size | |
| Yield Strength | G220-G250 | |
| Roll Forming System | Forming Stations | 18–24 stations |
| Roller Material | GCr15, heat treated | |
| Shaft Material | 45# steel, heat treate | |
| Shaft Diameter | Φ70–90 mm | |
| Drive System | Chain drive | |
| Punching System | Punching Type | Hydraulic Punching |
| Punching Position | Before forming | |
| Hole Type | Round / Slotted / Customized | |
| Punching Accuracy | ±0.5 mm | |
| Control System | Operation Interface | Touch Screen (CN / EN) |
| Inverter | Famous brand | |
| Electrical Components | Siemens or Schnedier | |
| Data Memory | Parameter memory | |
| Motor & Hydraulic System | Main Motor Power | 11 kW *3 sets |
| Hydraulic Power | 7.5 kW | |
| Power Supply | 380V / 50Hz / 3Ph (Custom) | |
| Hydraulic Oil | 46# Anti-wear Hydraulic Oil | |
| Production size | Line Length | 35 meters |
| Machine Width | 2.5 meters | |
| Machine Weight | 25ton |

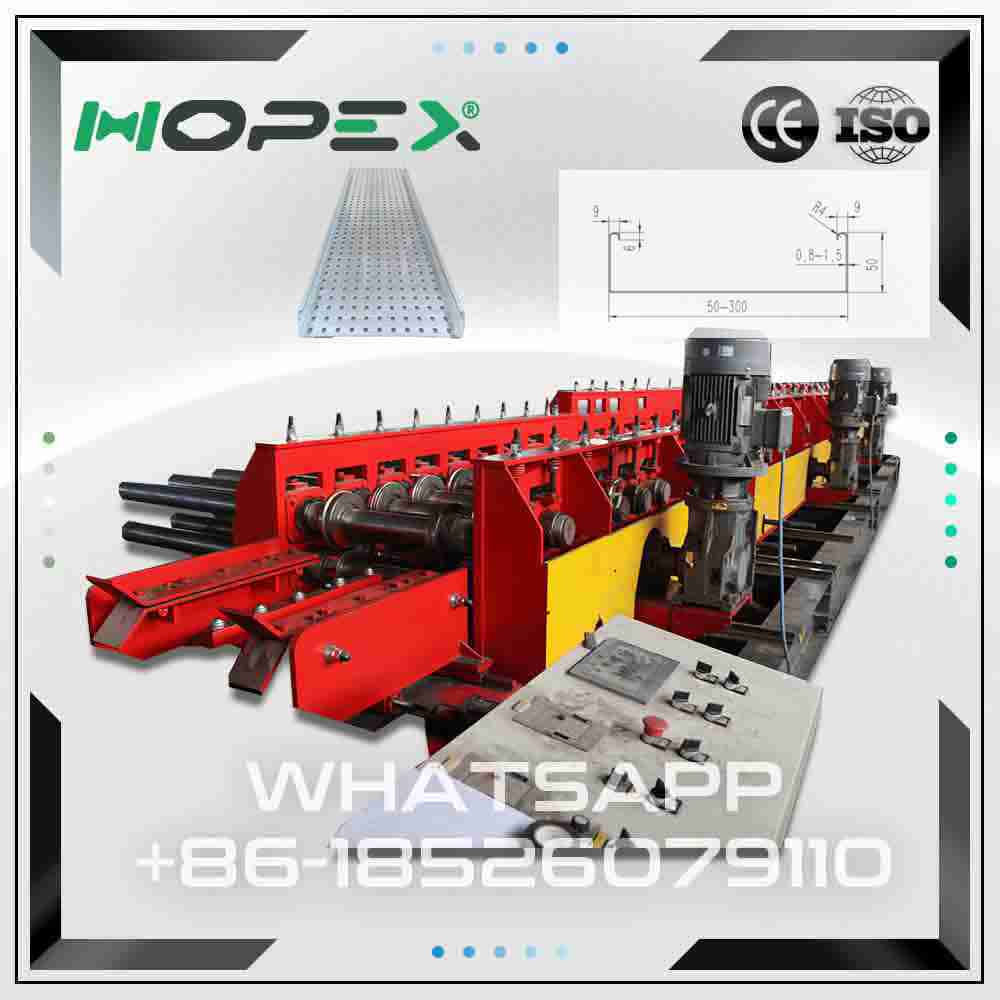

The cable tray making machine is built with high-quality materials and precision components to ensure long-lasting performance. The machine features a robust steel frame, high-precision rollers, and advanced cutting systems to deliver consistent results. Even under heavy production conditions, the machine operates smoothly with minimal downtime, helping businesses maintain high production capacity while keeping operational costs low.
、
To further enhance the value of the cable tray making machine, we provide comprehensive after-sales support. In the event of a machine issue, our experienced engineers are available to offer remote video technical guidance to assist in troubleshooting. This service significantly reduces downtime and helps businesses quickly resolve technical issues without the need for on-site visits. We also offer maintenance services, spare parts, and operational manuals to ensure that the machine continues to perform at its best for years to come.
In conclusion, the cable tray making machine is a highly reliable and cost-effective solution for businesses that need to produce cable trays in large quantities. With its customizable features, high-quality construction, and comprehensive after-sales support, our machine helps businesses optimize their cable tray production lines and improve overall efficiency. Choosing the right cable tray making machine is an investment that will pay off in the long term, providing businesses with the tools they need to meet growing demand in the electrical and construction industries.
Whatsapp:0086 18526079110
E-mail:Kevin@hx-machinery.com
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
