trench cable tray

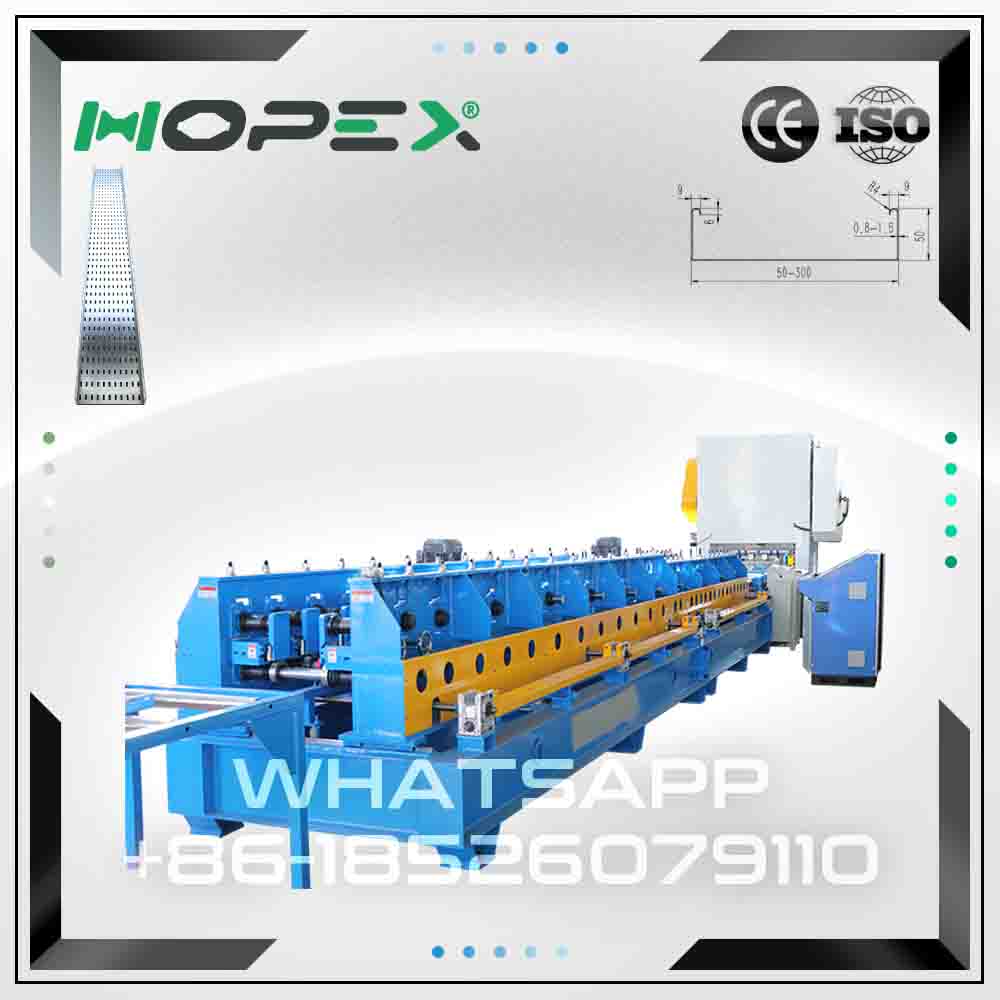

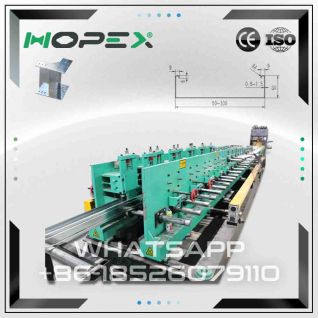

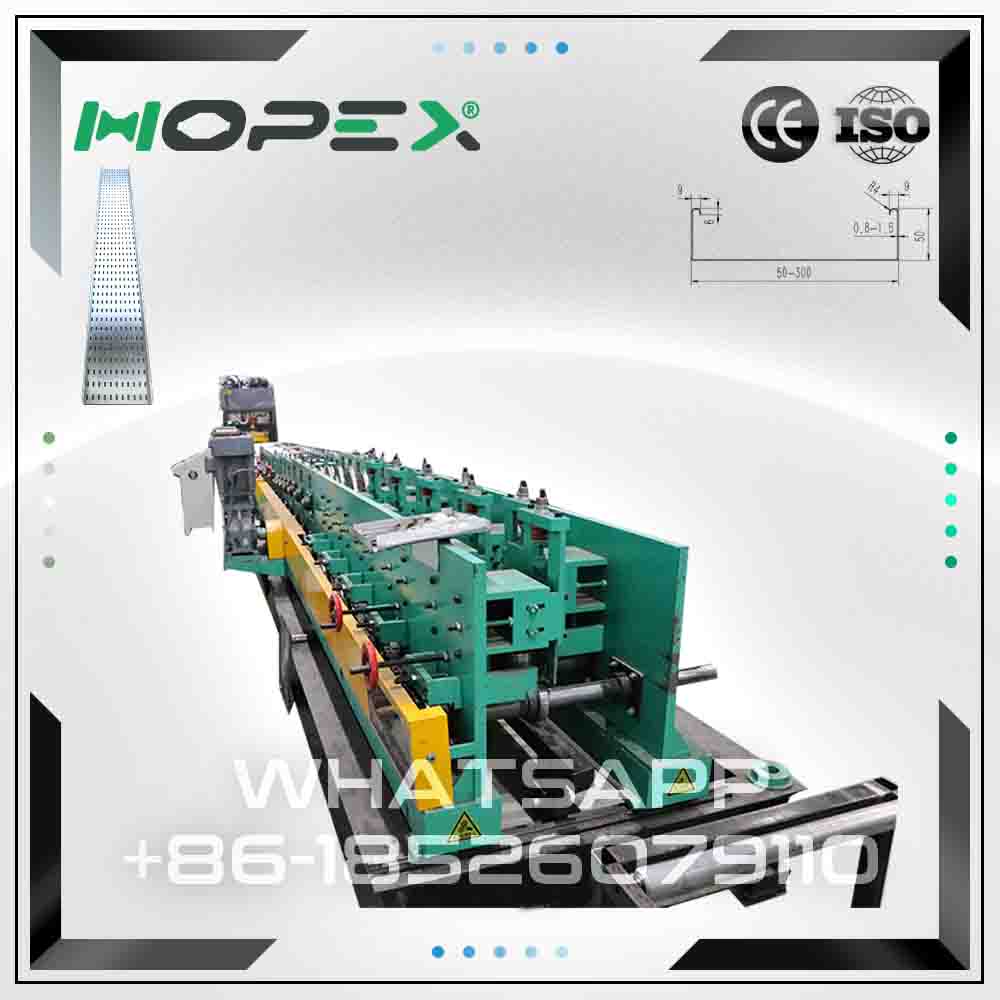

As a professional cold roll forming machine manufacturer, we provide advanced production solutions for trench cable tray systems used in modern infrastructure and industrial projects. Our trench cable tray equipment is designed to manufacture durable, precise, and corrosion-resistant cable trays that are widely applied in underground cable routing, industrial plants, data centers, tunnels, and utility corridors.
| aw Material Specifications | Material Type | Galvanized / Cold-Rolled / Stainless Steel |
| Material Thickness | 0.8–2.5 mm (Customizable) | |
| Material Width | Customized according to tray size | |
| Yield Strength | G220-G250 | |
| Roll Forming System | Forming Stations | 18–24 stations |
| Roller Material | GCr15, heat treated | |
| Shaft Material | 45# steel, heat treate | |
| Shaft Diameter | Φ70–90 mm | |
| Drive System | Chain drive | |
| Punching System | Punching Type | Hydraulic Punching |
| Punching Position | Before forming | |
| Hole Type | Round / Slotted / Customized | |
| Punching Accuracy | ±0.5 mm | |
| Control System | Operation Interface | Touch Screen (CN / EN) |
| Inverter | Famous brand | |
| Electrical Components | Siemens or Schnedier | |
| Data Memory | Parameter memory | |
| Motor & Hydraulic System | Main Motor Power | 11 kW *3 sets |
| Hydraulic Power | 7.5 kW | |
| Power Supply | 380V / 50Hz / 3Ph (Custom) | |
| Hydraulic Oil | 46# Anti-wear Hydraulic Oi | |
| Production size | Line Length | 35 meters |
| Machine Width | 2.5 meters | |
| Machine Weight | 25ton |

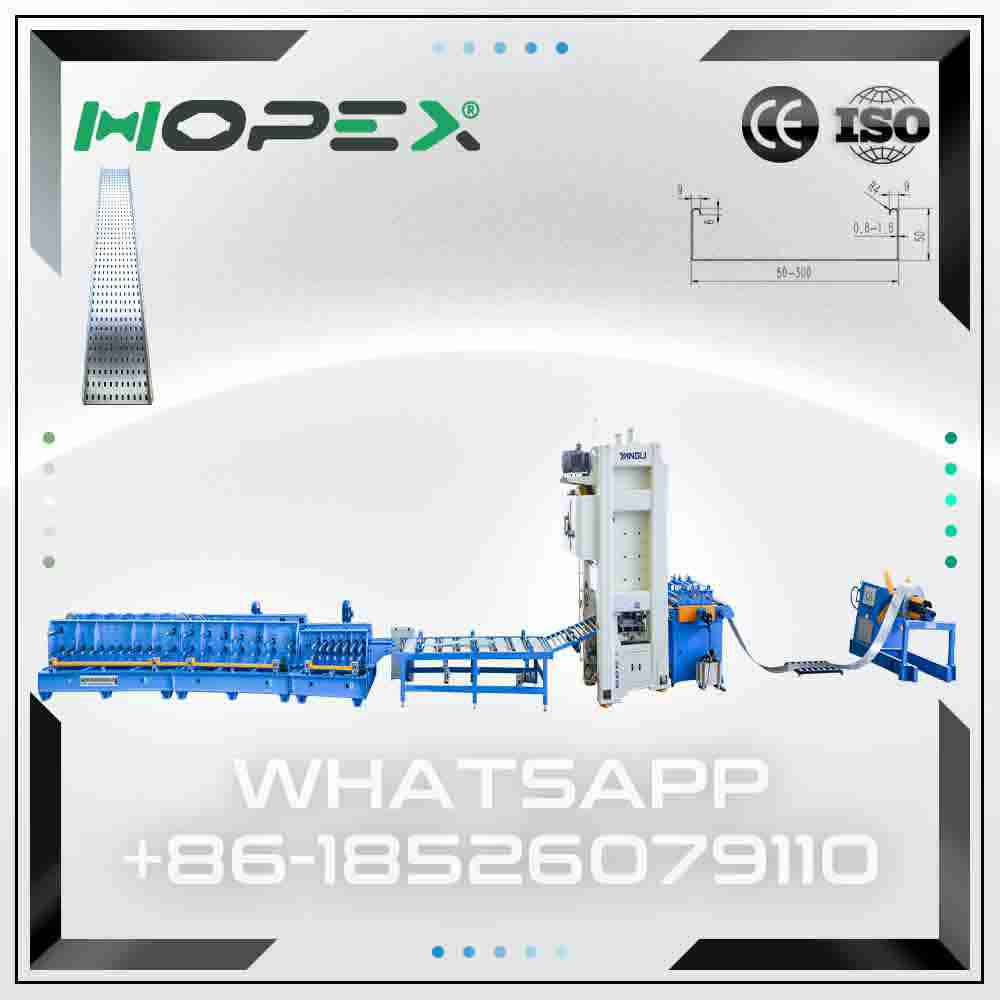

The trench cable tray plays a critical role in protecting and organizing power cables, communication cables, and control wiring in underground or floor-level installations. To meet these requirements, our trench cable tray production machine adopts stable roll forming technology combined with an automatic control system. The complete production process usually includes decoiling, leveling, roll forming, optional punching, hydraulic cutting, and finished product output, ensuring continuous and efficient trench cable tray manufacturing.
One of the main advantages of our trench cable tray solution is its high level of customization. Feeding width, forming thickness, tray height, side wall structure, and cover design can all be customized according to different trench cable tray project requirements. Whether producing standard trench cable trays or special profiles for specific engineering conditions, our machines can be precisely configured to meet customer needs. Voltage, frequency, and electrical control systems can also be customized to match different country standards.

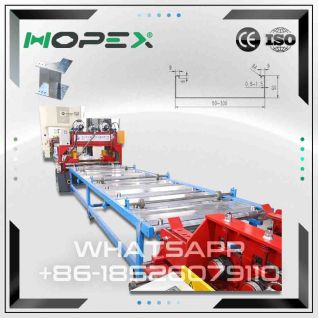

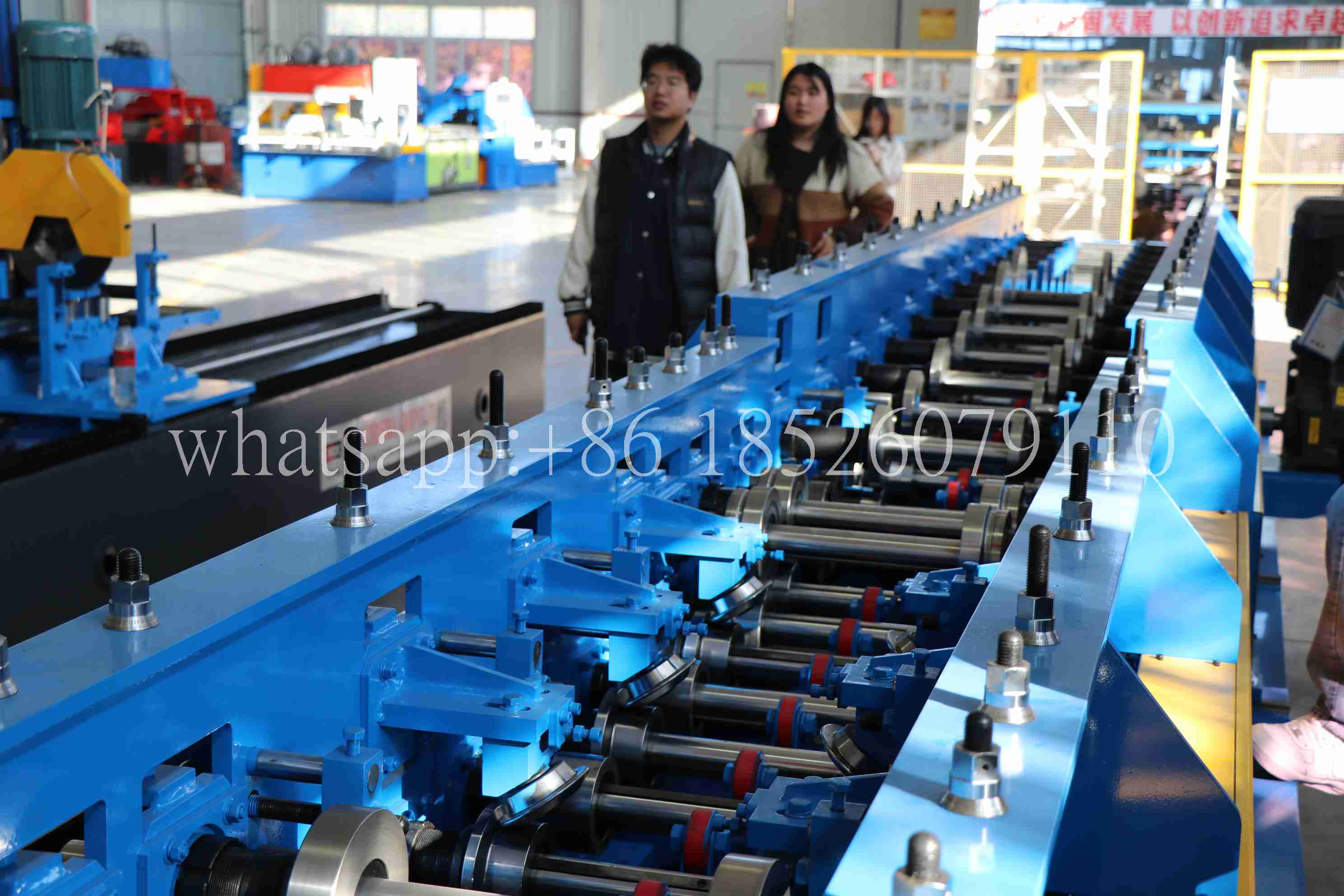

Our trench cable tray forming equipment is manufactured using high-quality steel frames and precision-machined rollers. The forming rollers are hardened and carefully designed to ensure smooth surfaces and consistent dimensions during long production runs. The hydraulic cutting system provides clean and accurate cutting without deformation, ensuring that every trench cable tray meets strict quality standards.
We understand that stable operation and technical support are essential for customers. When issues occur during trench cable tray machine operation, our experienced engineers can provide online video guidance for installation, adjustment, troubleshooting, and maintenance. This remote support service helps customers reduce downtime, avoid unnecessary on-site service costs, and keep trench cable tray production running efficiently.
Safety and ease of operation are also important considerations. Our trench cable tray machines are equipped with emergency stop systems, safety guards, and user-friendly PLC control panels. Operators can easily adjust parameters, monitor production status, and switch between different trench cable tray specifications with minimal training.
With years of experience in cold roll forming equipment manufacturing, we are committed to delivering reliable, efficient, and cost-effective trench cable tray production solutions. Our trench cable tray machines help customers improve productivity, ensure consistent quality, and gain a competitive advantage in underground cable management and infrastructure construction projects.
Whatsapp:0086 18526079110
E-mail:Kevin@hx-machinery.com
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
