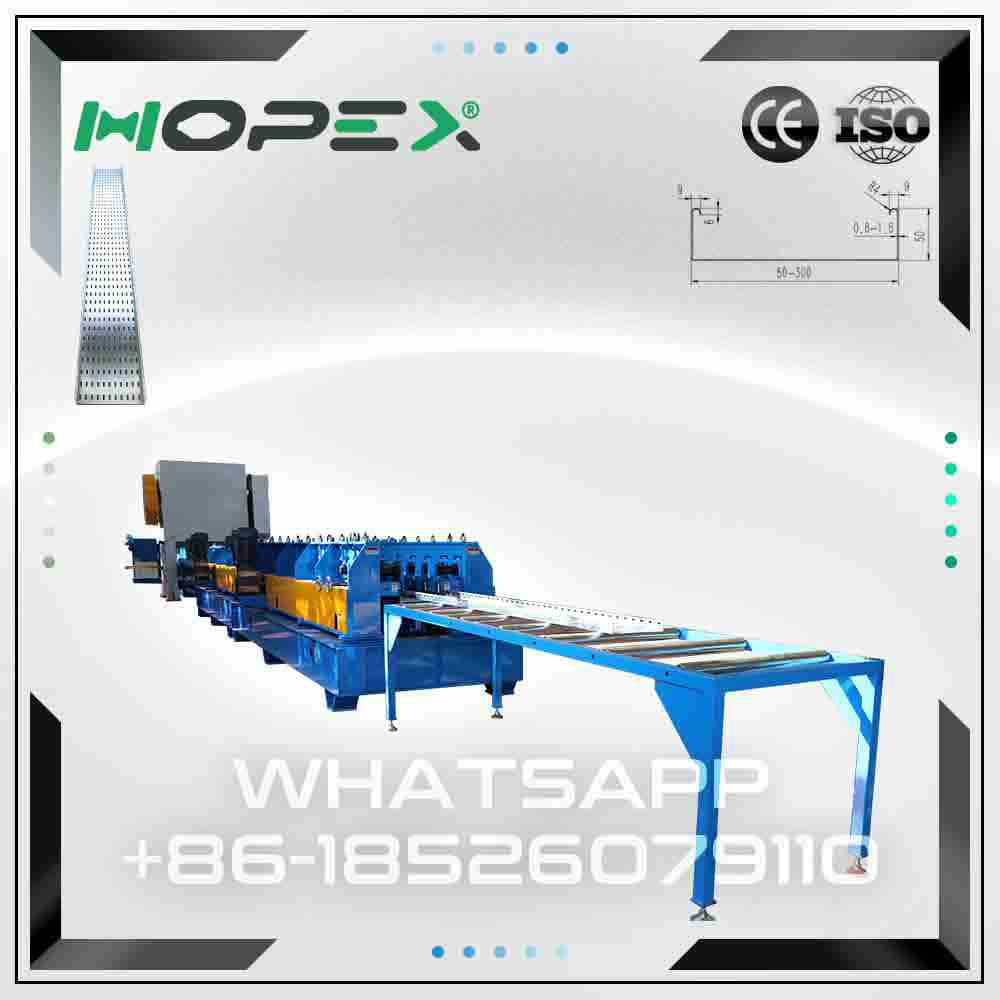

galvanized cable tray making machine
As a professional cold roll forming machine manufacturer, we specialize in the design and production of high-performance galvanized cable tray making machine solutions for global customers. Our galvanized cable tray making machine is engineered to meet the increasing demand for durable, corrosion-resistant cable management systems used in industrial plants, commercial buildings, power projects, and infrastructure construction.
| aw Material Specifications | Material Type | Galvanized / Cold-Rolled / Stainless Steel |
| Material Thickness | 0.8–2.5 mm (Customizable) | |
| Material Width | Customized according to tray size | |
| Yield Strength | G220-G250 | |
| Roll Forming System | Forming Stations | 18–24 stations |
| Roller Material | GCr15, heat treated | |
| Shaft Material | 45# steel, heat treate | |
| Shaft Diameter | Φ70–90 mm | |
| Drive System | Chain drive | |
| Punching System | Punching Type | Hydraulic Punching |
| Punching Position | Before forming | |
| Hole Type | Round / Slotted / Customized | |
| Punching Accuracy | ±0.5 mm | |
| Control System | Operation Interface | Touch Screen (CN / EN) |
| Inverter | Famous brand | |
| Electrical Components | Siemens or Schnedier | |
| Data Memory | Parameter memory | |
| Motor & Hydraulic System | Main Motor Power | 11 kW *3 sets |
| Hydraulic Power | 7.5 kW | |
| Power Supply | 380V / 50Hz / 3Ph (Custom) | |
| Hydraulic Oil | 46# Anti-wear Hydraulic Oi | |
| Production size | Line Length | 35 meters |
| Machine Width | 2.5 meters | |
| Machine Weight | 25ton |
The galvanized cable tray making machine is designed to process pre-galvanized steel or hot-dip galvanized steel coils with high precision. Through advanced roll forming technology, the machine can continuously produce cable trays with consistent dimensions, smooth surfaces, and excellent structural strength. Compared with traditional fabrication methods, a galvanized cable tray making machine significantly improves production efficiency while reducing labor costs and material waste.
One of the main advantages of our galvanized cable tray making machine is its high level of customization. The feeding width, roll forming thickness, tray height, tray width, and side rail profile can all be customized according to customer drawings or project requirements. In addition, the voltage, frequency, and electrical standards of the galvanized cable tray making machine can be configured to match different countries and regions, ensuring smooth installation and operation worldwide.
To guarantee stable performance, our galvanized cable tray making machine adopts high-quality rollers, precision shafts, and a rigid machine frame. The forming rollers are made from heat-treated alloy steel, providing long service life and stable forming accuracy. The control system uses PLC and touchscreen operation, making the galvanized cable tray making machine easy to operate, monitor, and maintain. Automatic punching, cutting, and stacking systems can also be integrated to build a fully automatic galvanized cable tray production line.
We understand that overseas customers value after-sales support as much as machine quality. When any technical issue occurs, our engineers can provide online video guidance to help customers troubleshoot and adjust the galvanized cable tray making machine in real time. This remote support service greatly reduces downtime and ensures continuous production without waiting for on-site service.
Our galvanized cable tray making machine is suitable for producing solid cable trays, perforated cable trays, and customized tray profiles. It is widely used in electrical installations, data centers, solar power plants, and industrial facilities where reliable cable support systems are essential. With stable operation, flexible configuration, and professional technical support, our galvanized cable tray making machine helps customers improve productivity and expand their cable tray manufacturing business.
As an experienced manufacturer, we are committed to providing reliable equipment, competitive pricing, and long-term technical support. Choosing our galvanized cable tray making machine means choosing efficiency, quality, and professional service for your cable tray production line.
Whatsapp:0086 18526079110
E-mail:Kevin@hx-machinery.com
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
