cable tray manufacturing machines
In the demanding world of electrical infrastructure and industrial storage, the quality and efficiency of **cable tray manufacturing machines** directly impact project timelines and structural reliability. Our specialized roll forming production line is engineered precisely for this purpose, offering a comprehensive, automated solution for fabricating high-strength metal shelf beams or cable tray supports. This complete system transforms raw coil metal into finished, interlocked beams with exceptional precision and speed.
| aw Material Specifications | Material Type | Galvanized / Cold-Rolled / Stainless Steel |
| Material Thickness | 0.8–2.5 mm (Customizable) | |
| Material Width | Customized according to tray size | |
| Yield Strength | G220-G250 | |
| Roll Forming System | Forming Stations | 18–24 stations |
| Roller Material | GCr15, heat treated | |
| Shaft Material | 45# steel, heat treate | |
| Shaft Diameter | Φ70–90 mm | |
| Drive System | Chain drive | |
| Punching System | Punching Type | Hydraulic Punching |
| Punching Position | Before forming | |
| Hole Type | Round / Slotted / Customized | |
| Punching Accuracy | ±0.5 mm | |
| Control System | Operation Interface | Touch Screen (CN / EN) |
| Inverter | Famous brand | |
| Electrical Components | Siemens or Schnedier | |
| Data Memory | Parameter memory | |
| Motor & Hydraulic System | Main Motor Power | 11 kW *3 sets |
| Hydraulic Power | 7.5 kW | |
| Power Supply | 380V / 50Hz / 3Ph (Custom) | |
| Hydraulic Oil | 46# Anti-wear Hydraulic Oi | |
| Production size | Line Length | 35 meters |
| Machine Width | 2.5 meters | |
| Machine Weight | 25ton |

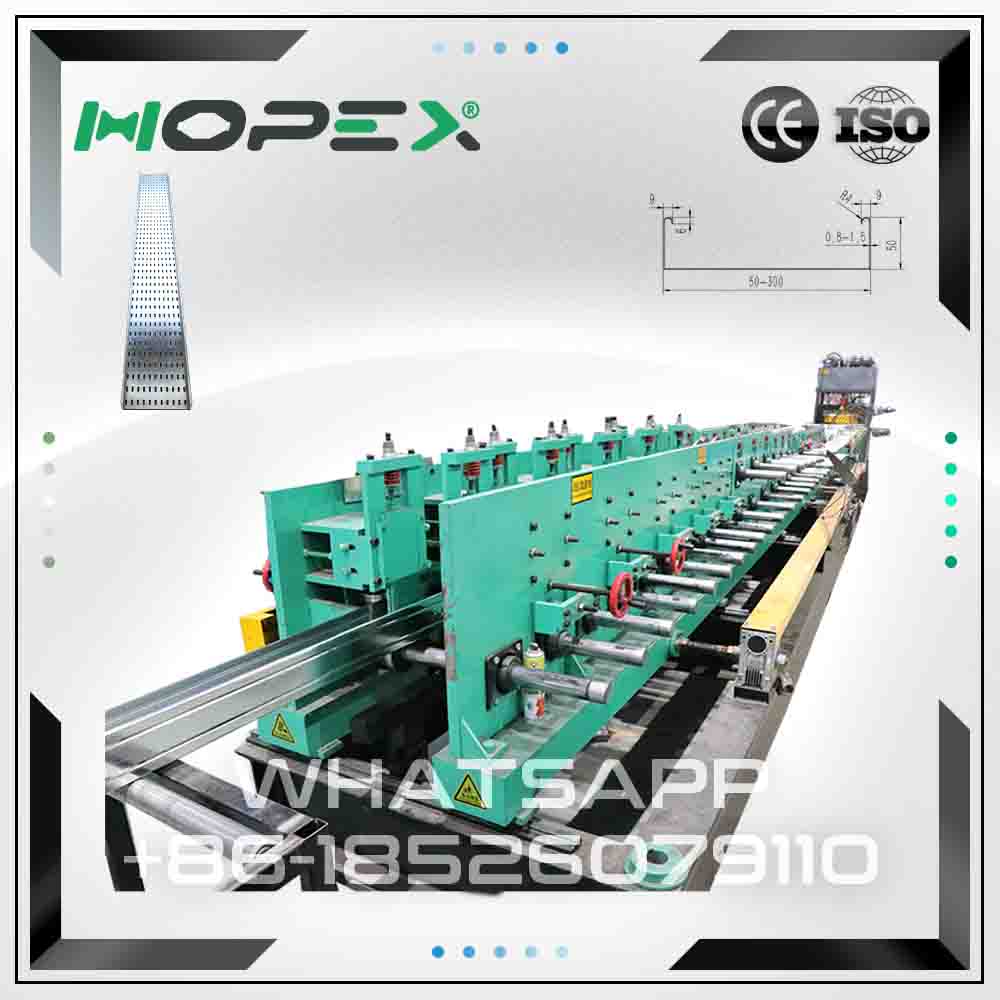

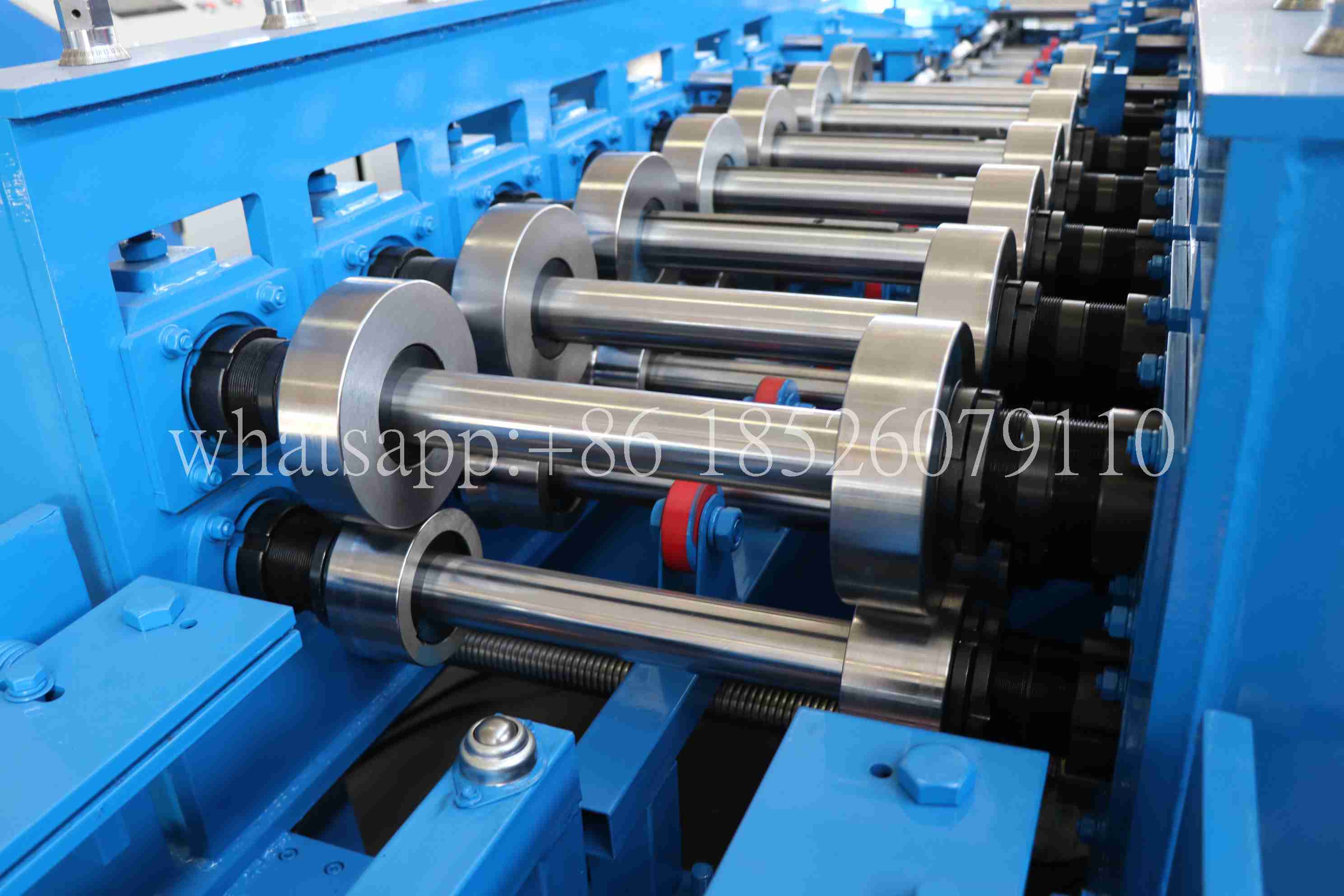

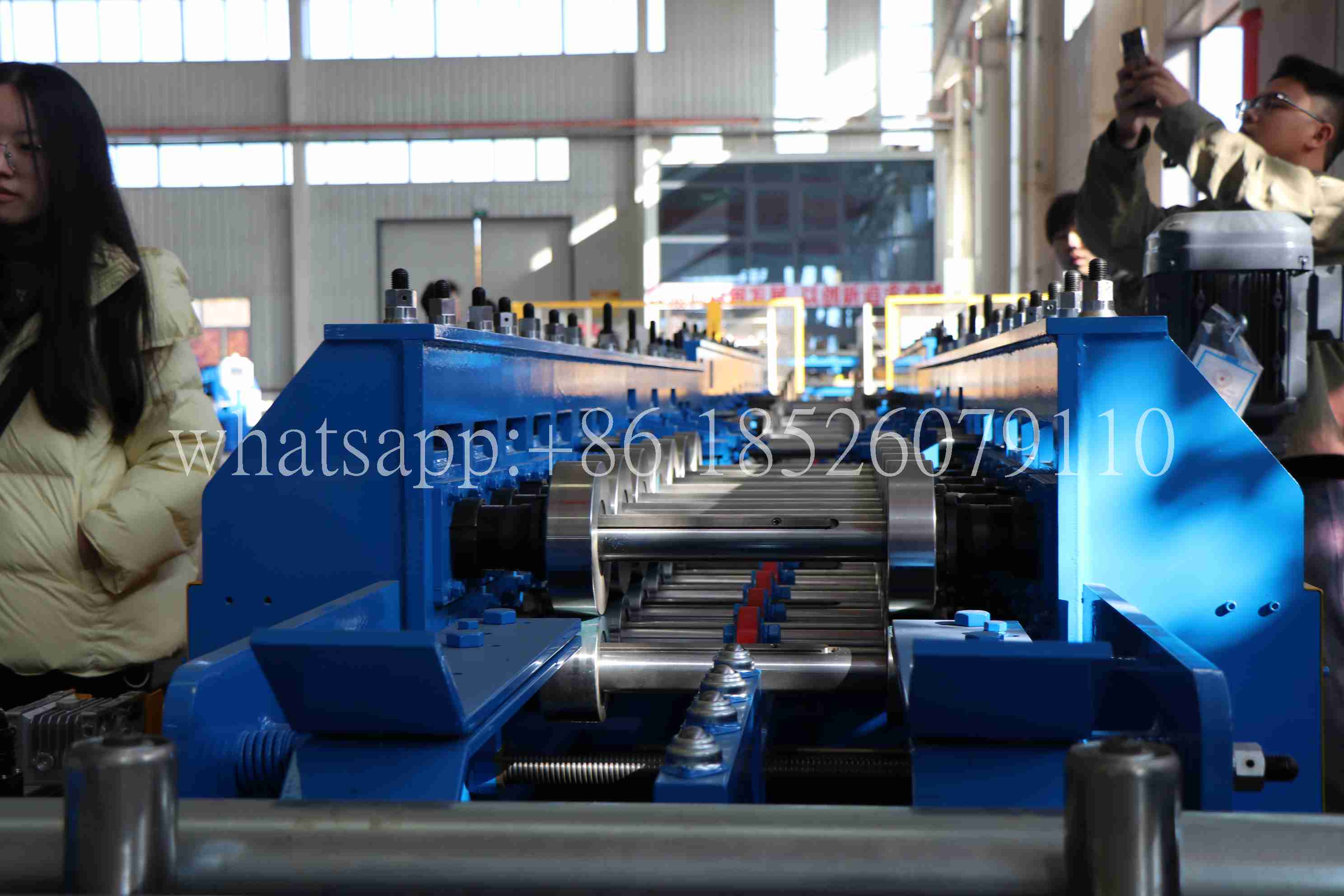

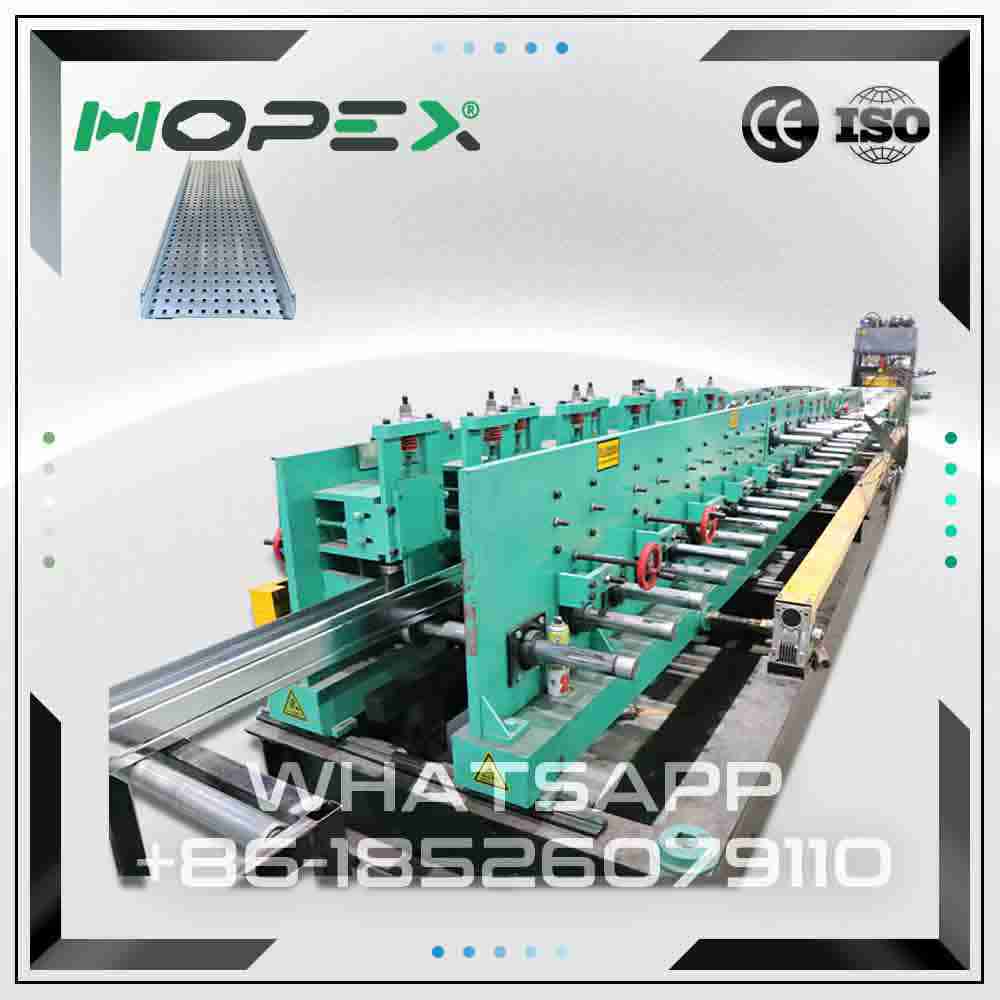

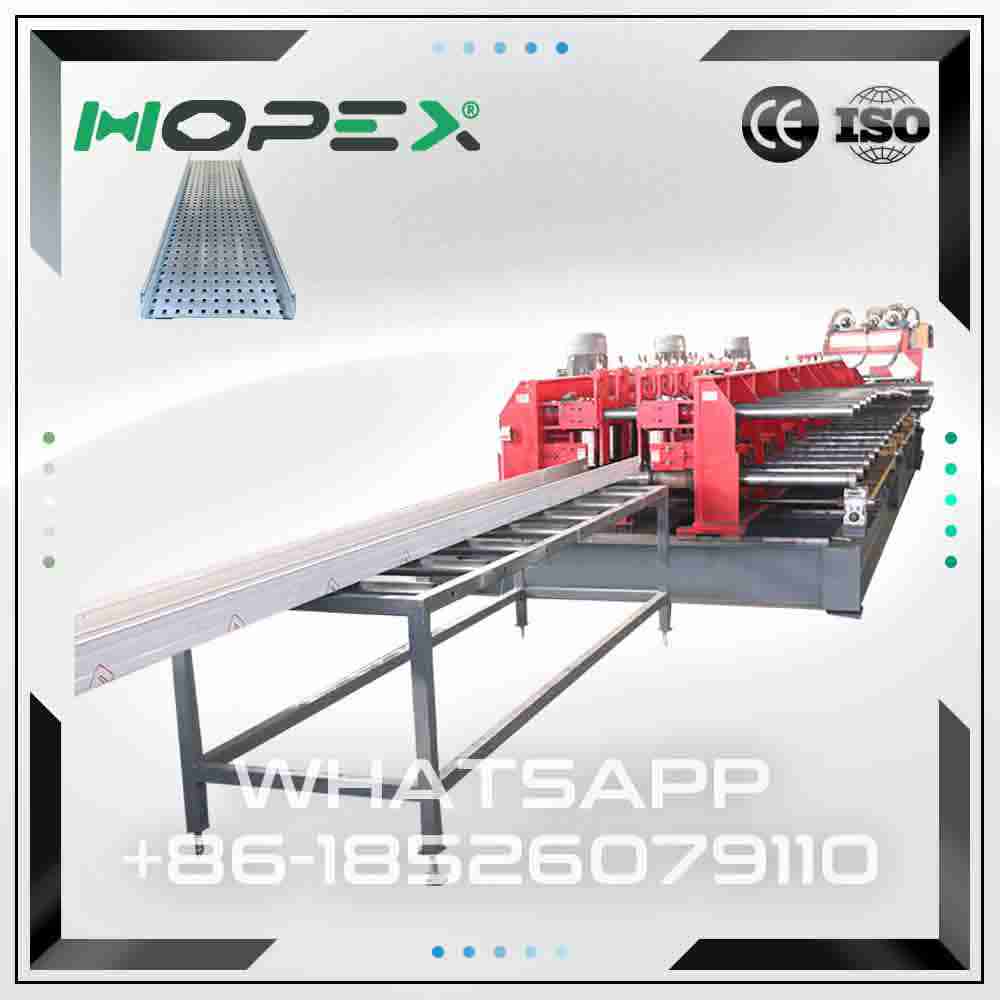

he fully integrated process begins with a precision decoiler, ensuring smooth and consistent feeding of steel coil into the system. The heart of the line is our robust **roll forming machine**. Utilizing a series of meticulously designed roller dies, it gradually forms the precise channel or hat profile required for the beam. Critical to the process is the subsequent hydraulic shear, which provides clean, burr-free cutting of the profiles to exact lengths with minimal distortion. The defining feature of this line is the dedicated **semi-finished product interlocking roll forming unit**. This innovative stage mechanically joins two pre-formed sections, seamlessly(interlocking) them together to create a single, rigid, and complete load-bearing beam. This interlock design is paramount for the structural integrity of the final cable tray or shelving unit. The finished beams are then automatically conveyed to a receiving rack, ensuring orderly collection and preventing damage.
Understanding that needs vary, we build flexibility into our **cable tray manufacturing machines**. Key parameters such as material feed width, roll forming thickness, and line voltage can be customized to suit your specific raw material specifications and local power standards. This ensures optimal performance for your unique product range.
Beyond hardware, we provide unparalleled support. Recognizing that downtime is costly, our commitment includes responsive after-sales service. Should any technical questions arise, our engineers are available for real-time **video online guidance**, facilitating quick diagnostics and resolution to keep your production running smoothly.
In summary, this production line is more than just a collection of **cable tray manufacturing machines**; it is a cohesive, customizable, and intelligently supported manufacturing cell. It empowers manufacturers to produce superior, consistent beams with reduced labor input and enhanced operational efficiency. By automating the entire workflow from coil to interlocked product, we deliver not just machinery, but a reliable partnership for your productivity and growth in the competitive cable tray and metal fabrication industry.
