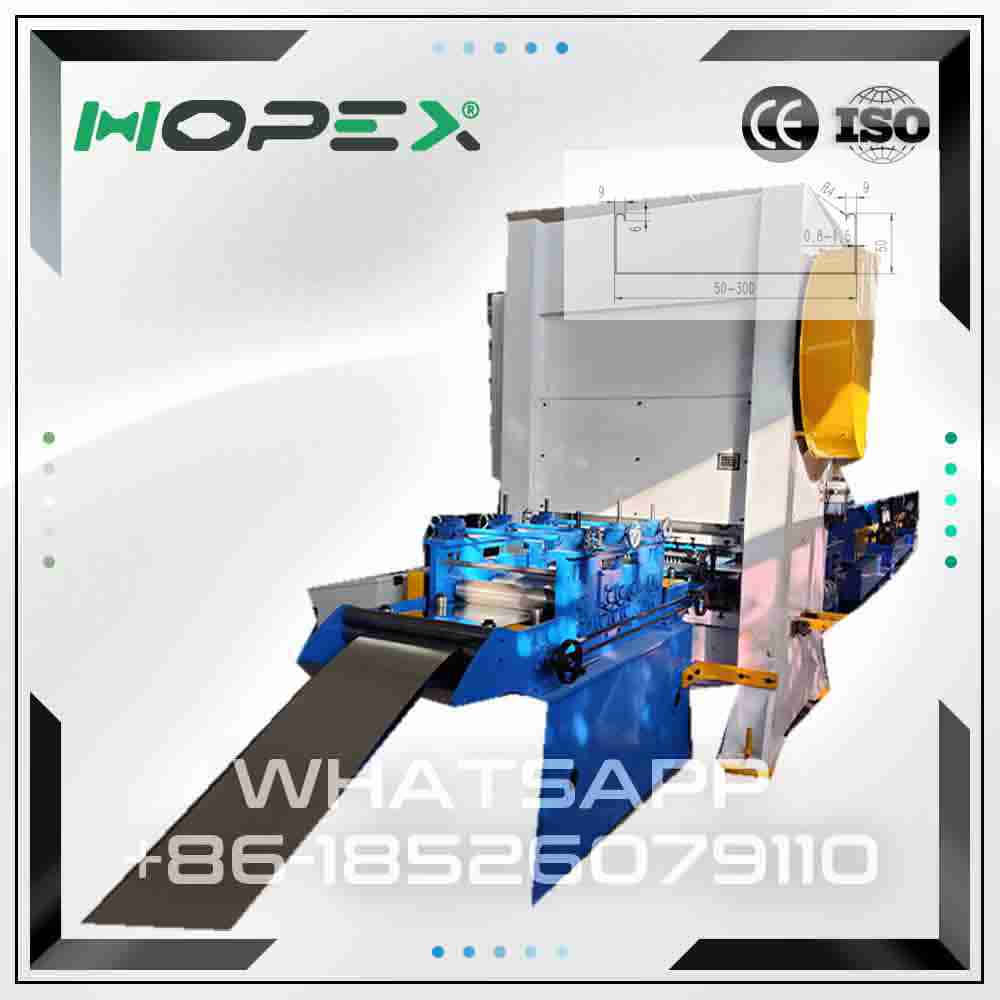

cable tray punching machine
As a professional cold roll forming machine manufacturer, we focus on the research, design, and sales of advanced metal forming equipment for global customers. One of our core products is the cable tray punching machine, which is specially designed for efficient, accurate, and stable punching of cable trays used in industrial, commercial, and infrastructure projects. With years of manufacturing experience, our cable tray punching machine has become a reliable solution for cable tray production lines.
The cable tray punching machine is mainly used to punch holes, slots, and special patterns on metal sheets before or after forming. It supports materials such as galvanized steel, stainless steel, and carbon steel. Our cable tray punching machine adopts a high-precision hydraulic or servo punching system, ensuring consistent hole accuracy, smooth edges, and high production efficiency. This makes the cable tray punching machine ideal for mass production as well as customized cable tray requirements.
| aw Material Specifications | Material Type | Galvanized / Cold-Rolled / Stainless Steel |
| Material Thickness | 0.8–2.5 mm (Customizable) | |
| Material Width | Customized according to tray size | |
| Yield Strength | G220-G250 | |

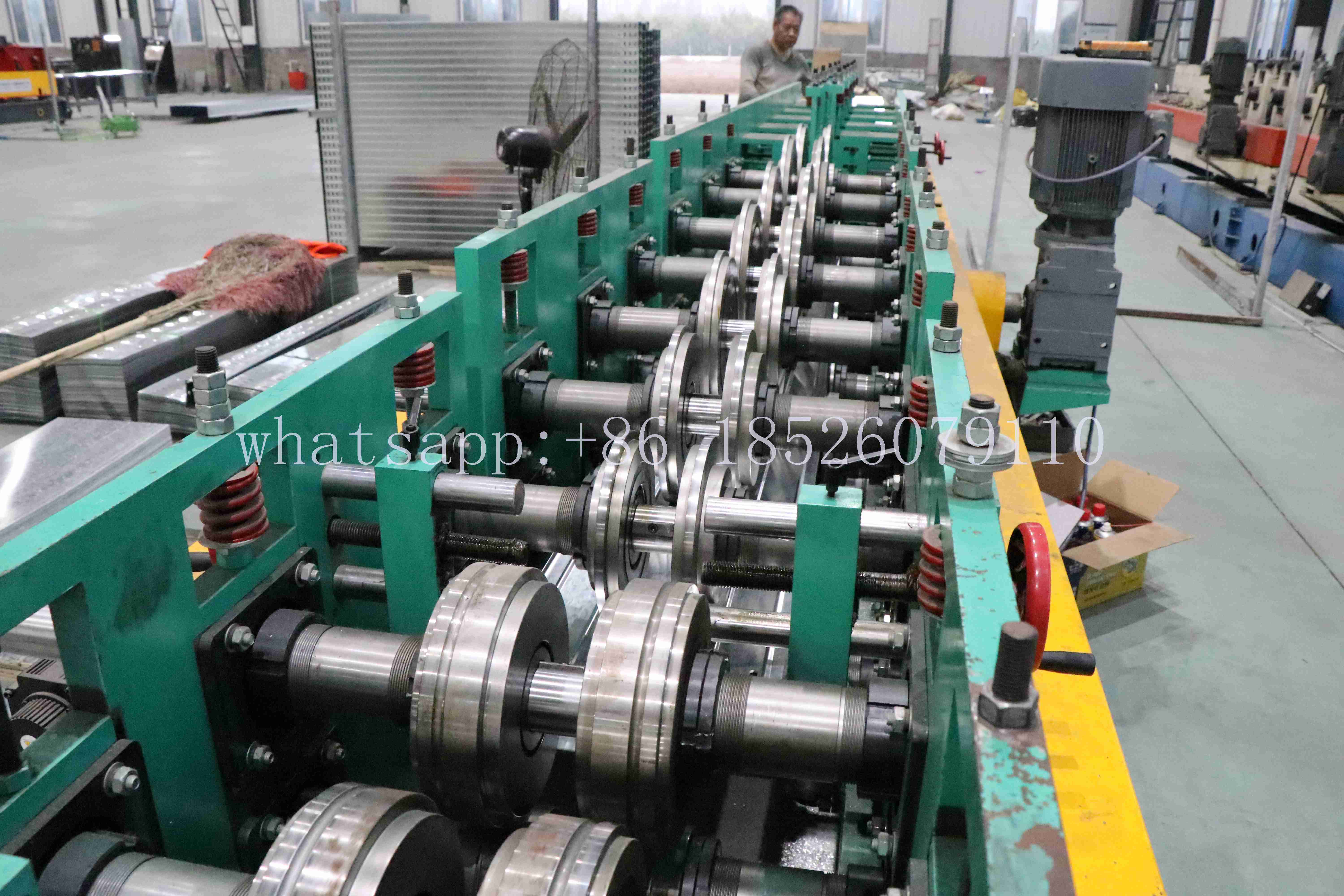

| Roll Forming System | Forming Stations | 18–24 stations |
| Roller Material | GCr15, heat treated | |
| Shaft Material | 45# steel, heat treate | |
| Shaft Diameter | Φ70–90 mm | |
| Drive System | Chain drive | |
| Punching System | Punching Type | Hydraulic Punching |
| Punching Position | Before forming | |
| Hole Type | Round / Slotted / Customized | |
| Punching Accuracy | ±0.5 mm | |
| Control System | Operation Interface | Touch Screen (CN / EN) |
| Inverter | Famous brand | |
| Electrical Components | Siemens or Schnedier | |
| Data Memory | Parameter memory | |

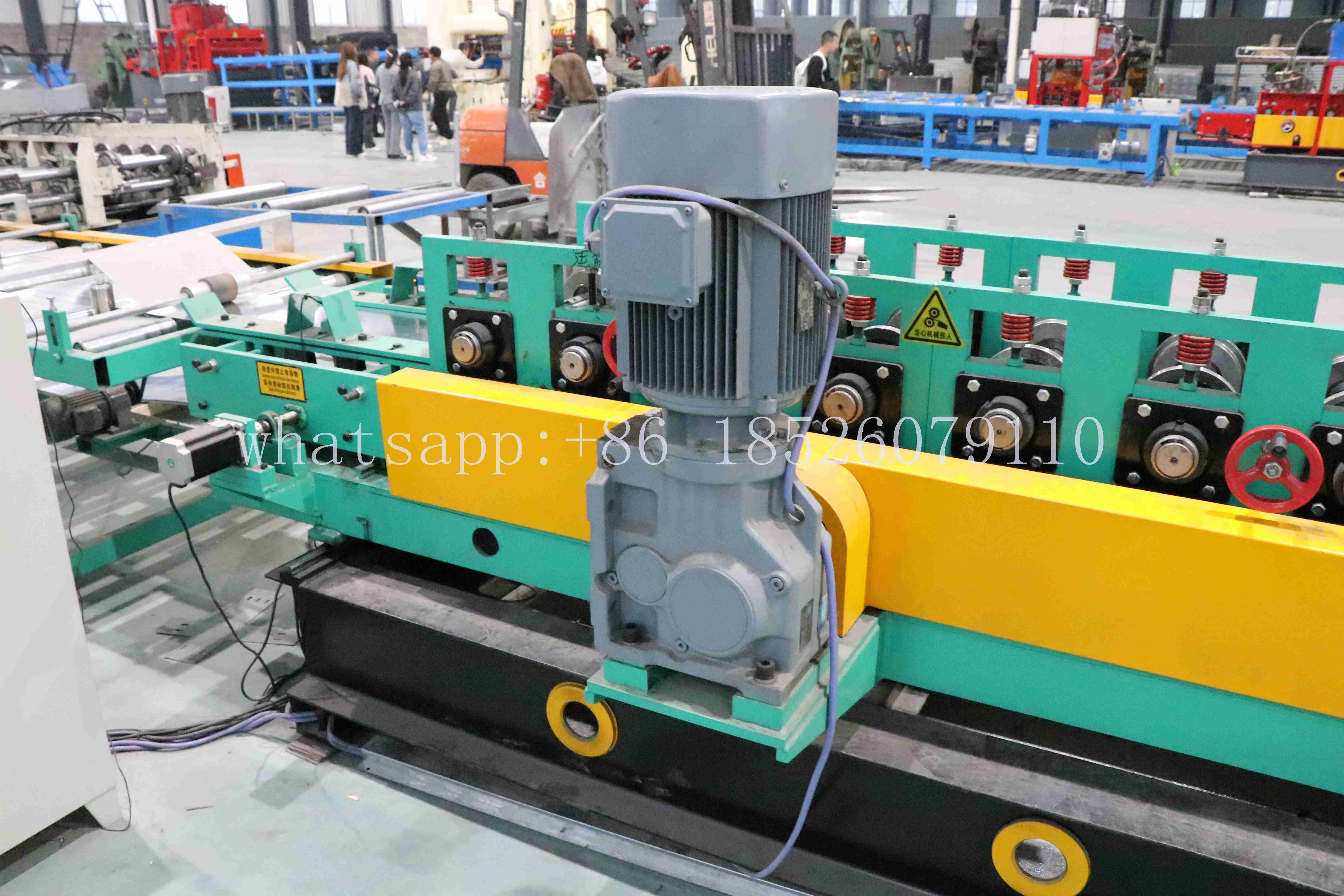

| Motor & Hydraulic System | Main Motor Power | 11 kW *3 sets |
| Hydraulic Power | 7.5 kW | |
| Power Supply | 380V / 50Hz / 3Ph (Custom) | |
| Hydraulic Oil | 46# Anti-wear Hydraulic Oil | |
| Production size | Line Length | 35 meters |
| Machine Width | 2.5 meters | |
| Machine Weight | 25ton |
One major advantage of our cable tray punching machine is its strong customization capability. Feeding width, punching thickness, hole size, hole spacing, and punching patterns can all be customized according to customer drawings or project requirements. In addition, voltage, frequency, and electrical standards can be adjusted to meet different country standards. Whether you need a standalone cable tray punching machine or a fully integrated solution with a cable tray roll forming line, we can provide a suitable configuration.
To ensure smooth operation, we offer professional after-sales service for every cable tray punching machine we sell. When the cable tray punching machine encounters any technical issues, our engineers can provide real-time video guidance online. Through video calls, we help customers quickly diagnose problems, adjust parameters, and resume production, reducing downtime and maintenance costs. This remote support service greatly improves user experience and production efficiency.
Our cable tray punching machine is designed with user-friendly control systems, including PLC touch screens, automatic feeding, and safety protection devices. The stable structure and high-quality components ensure long service life and low maintenance. Each cable tray punching machine undergoes strict testing before delivery to guarantee stable performance and reliable operation.
In conclusion, if you are looking for a high-efficiency, durable, and customizable cable tray punching machine, our solution is an ideal choice. With advanced technology, flexible customization, and dependable online technical support, our cable tray punching machine helps customers improve productivity and competitiveness in the cable tray manufacturing industry.
Whatsapp:0086 18526079110
E-mail:Kevin@hx-machinery.com
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
