As a professional cold roll forming machine manufacturer, we are committed to providing customers with high-efficiency and highly reliable metal forming solutions. The Cable Tray Production Line is one of our key promoted and well-proven products, widely used in industrial plants, commercial buildings, power projects, and infrastructure construction. The line integrates our extensive experience gained from the Heavy Rack Roll Forming Machine For Making Industrial Shelf Beam Production, ensuring stable performance, high forming accuracy, and long-term operational reliability.
| aw Material Specifications | Material Type | Galvanized / Cold-Rolled / Stainless Steel |
| Material Thickness | 0.8–2.5 mm (Customizable) | |
| Material Width | Customized according to tray size | |
| Yield Strength | G250–G550 | |
| Roll Forming System | Forming Stations | 18–24 stations |
| Roller Material | GCr15, heat treated | |
| Shaft Material | 45# steel, heat treate | |
| Shaft Diameter | Φ70–90 mm | |
| Drive System | Chain drive | |

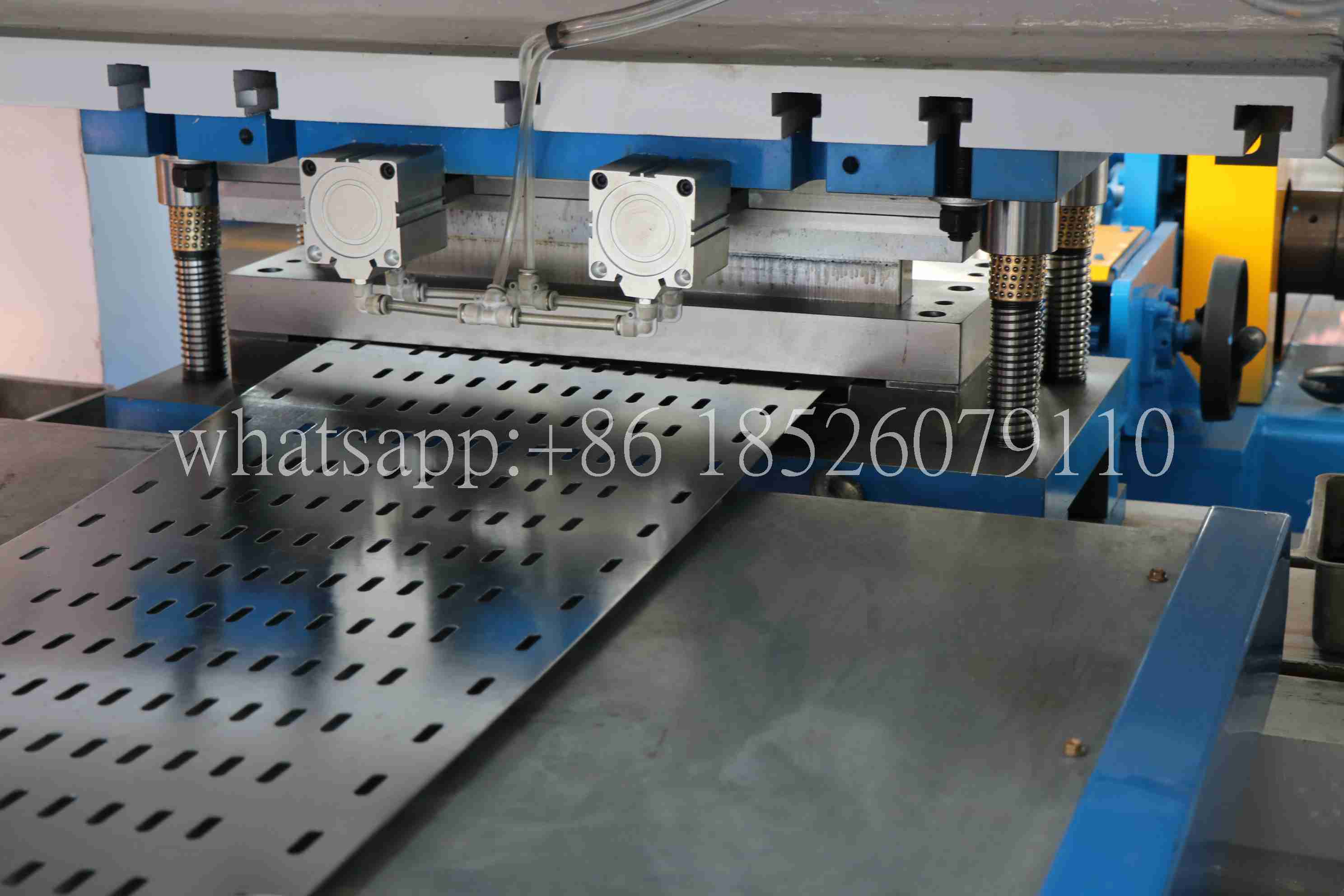

| Punching System | Punching Type | Hydraulic Punching |
| Punching Position | Before forming | |
| Hole Type | Round / Slotted / Customized | |
| Punching Accuracy | ±0.5 mm | |
| Control System | Operation Interface | Touch Screen (CN / EN) |
| Inverter | Famous brand | |
| Electrical Components | Siemens or Schnedier | |
| Data Memory | Parameter memory | |
| Motor & Hydraulic System | Main Motor Power | 11 kW *3 sets |
| Hydraulic Power | 7.5 kW | |
| Power Supply | 380V / 50Hz / 3Ph (Custom) | |
| Hydraulic Oil | 46# Anti-wear Hydraulic Oil | |
| Production size | Line Length | 35 meters |
| Machine Width | 2.5 meters | |
| Machine Weight | 25ton |

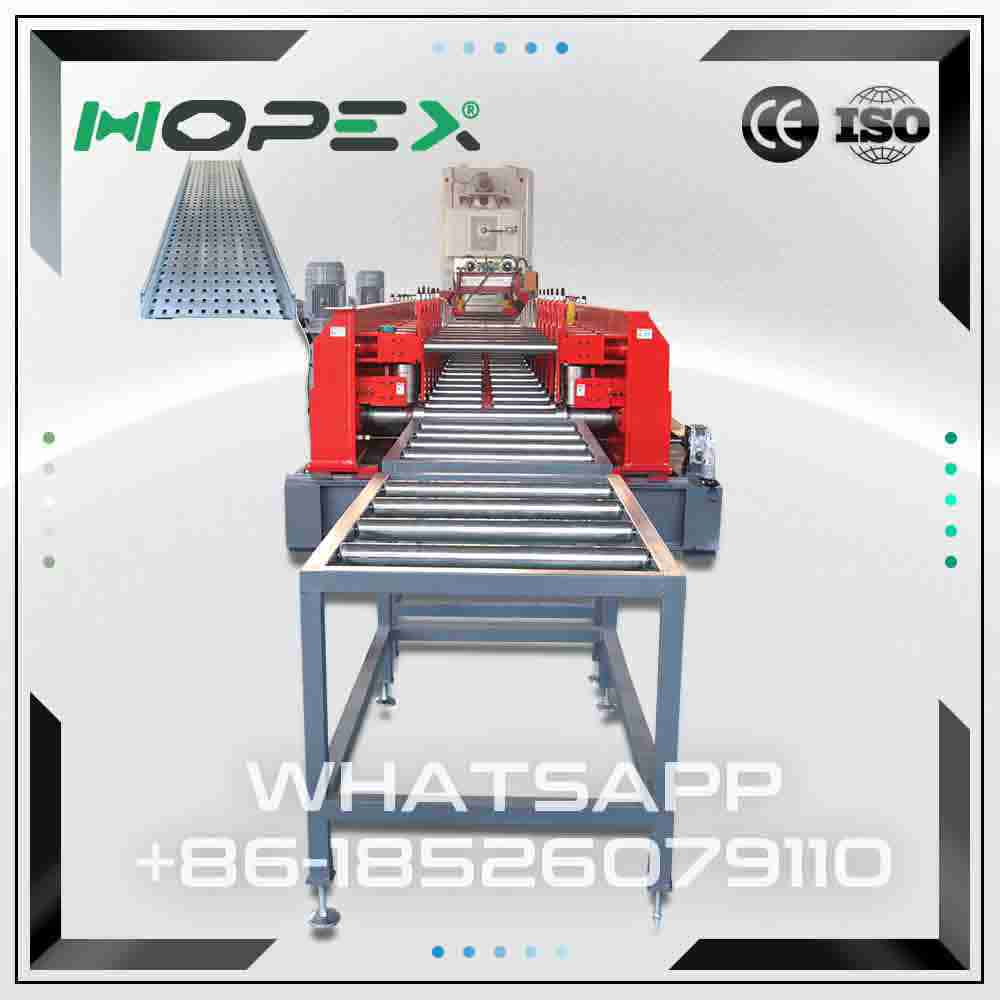

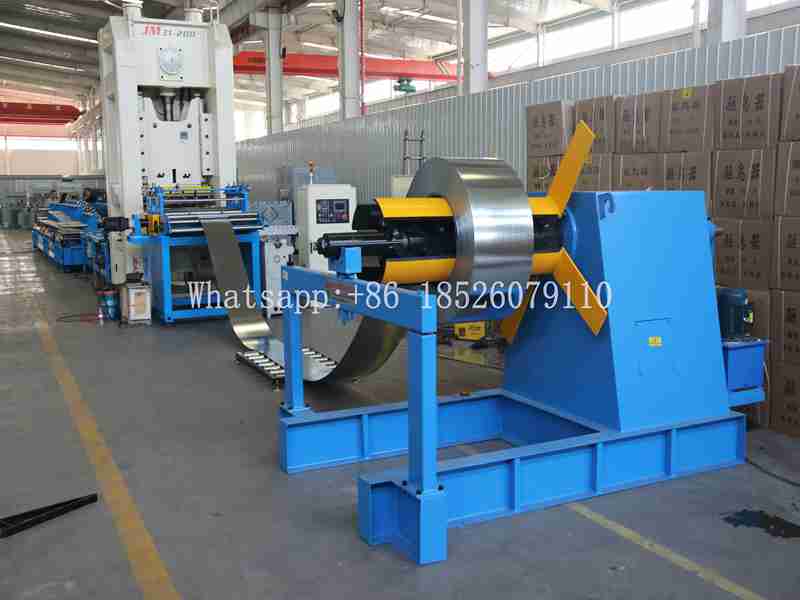

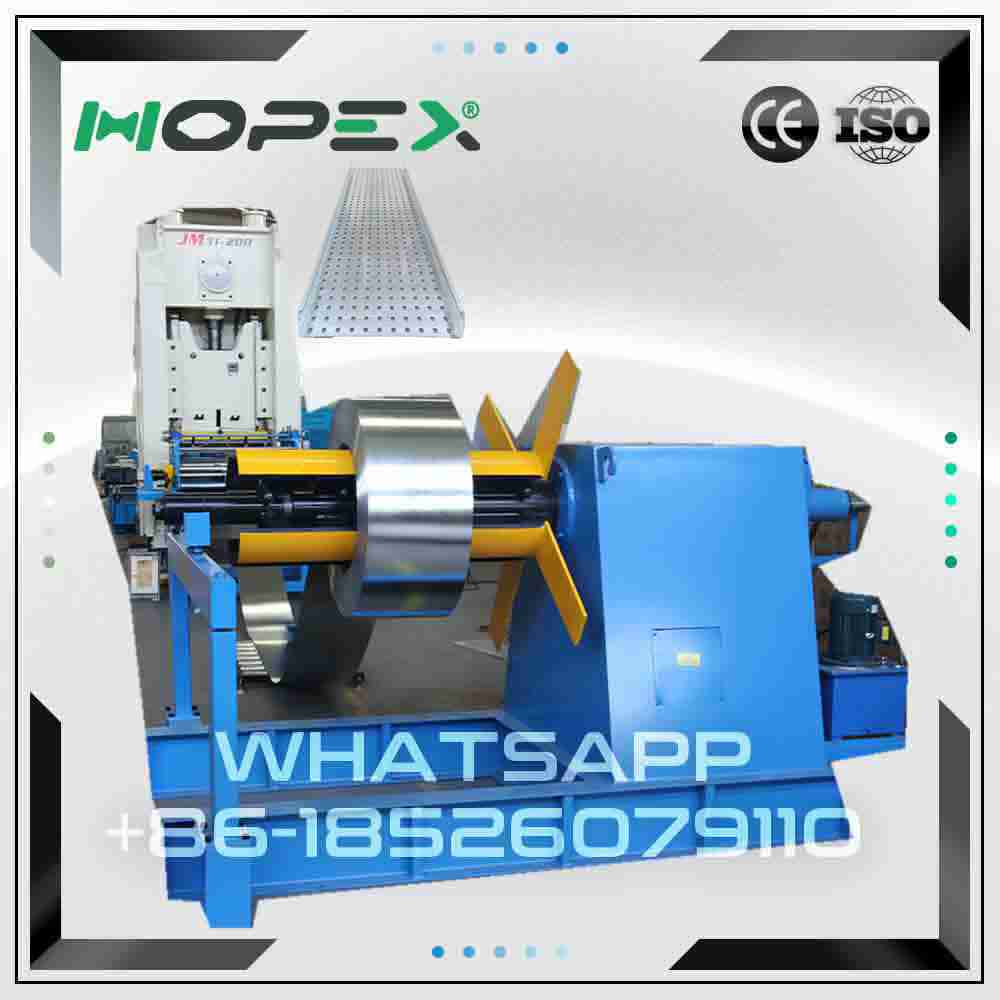

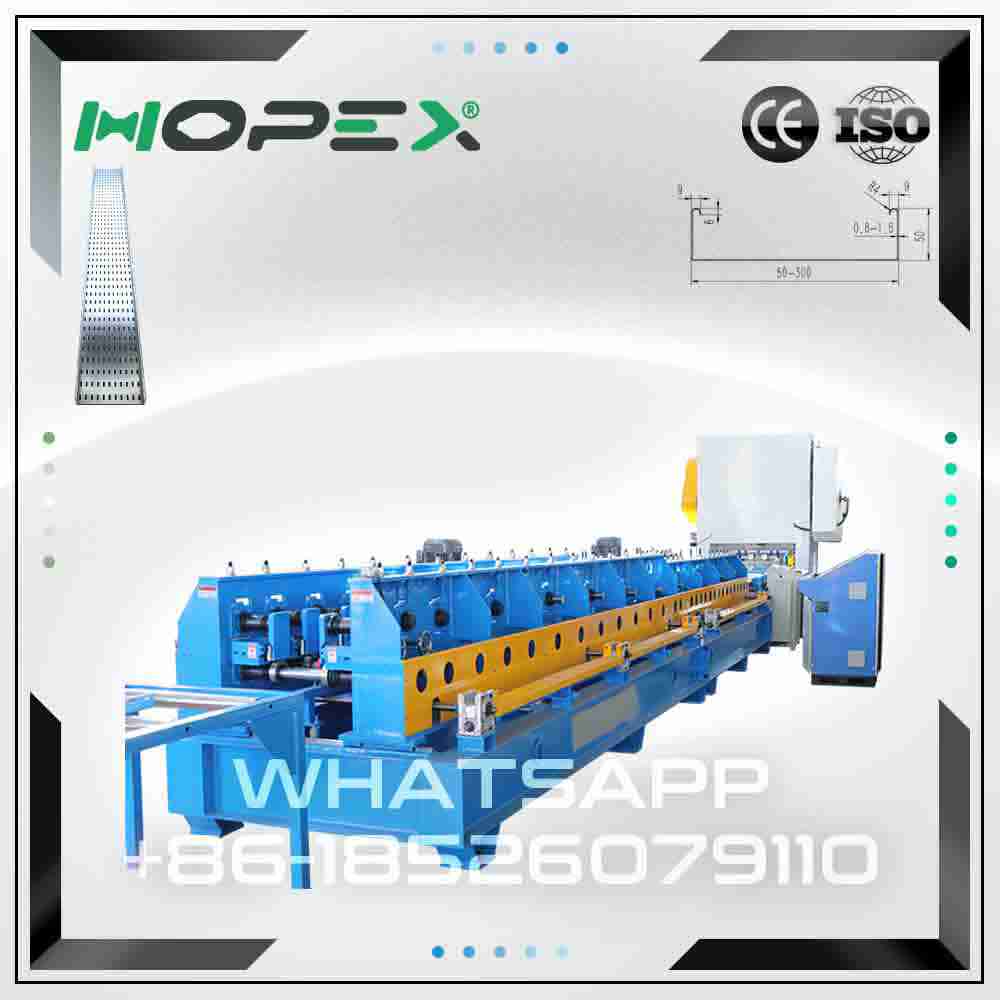

The Cable Tray Production Line adopts a fully automated continuous production mode, enabling one-time forming from raw material to finished products. The complete production process includes automatic decoiling, precision leveling, continuous roll forming, optional punching system, hydraulic length cutting, and finished product receiving or stacking. The entire line operates smoothly with high efficiency, delivering cable trays with consistent dimensions and excellent appearance, fully meeting engineering requirements for strength and installation accuracy.

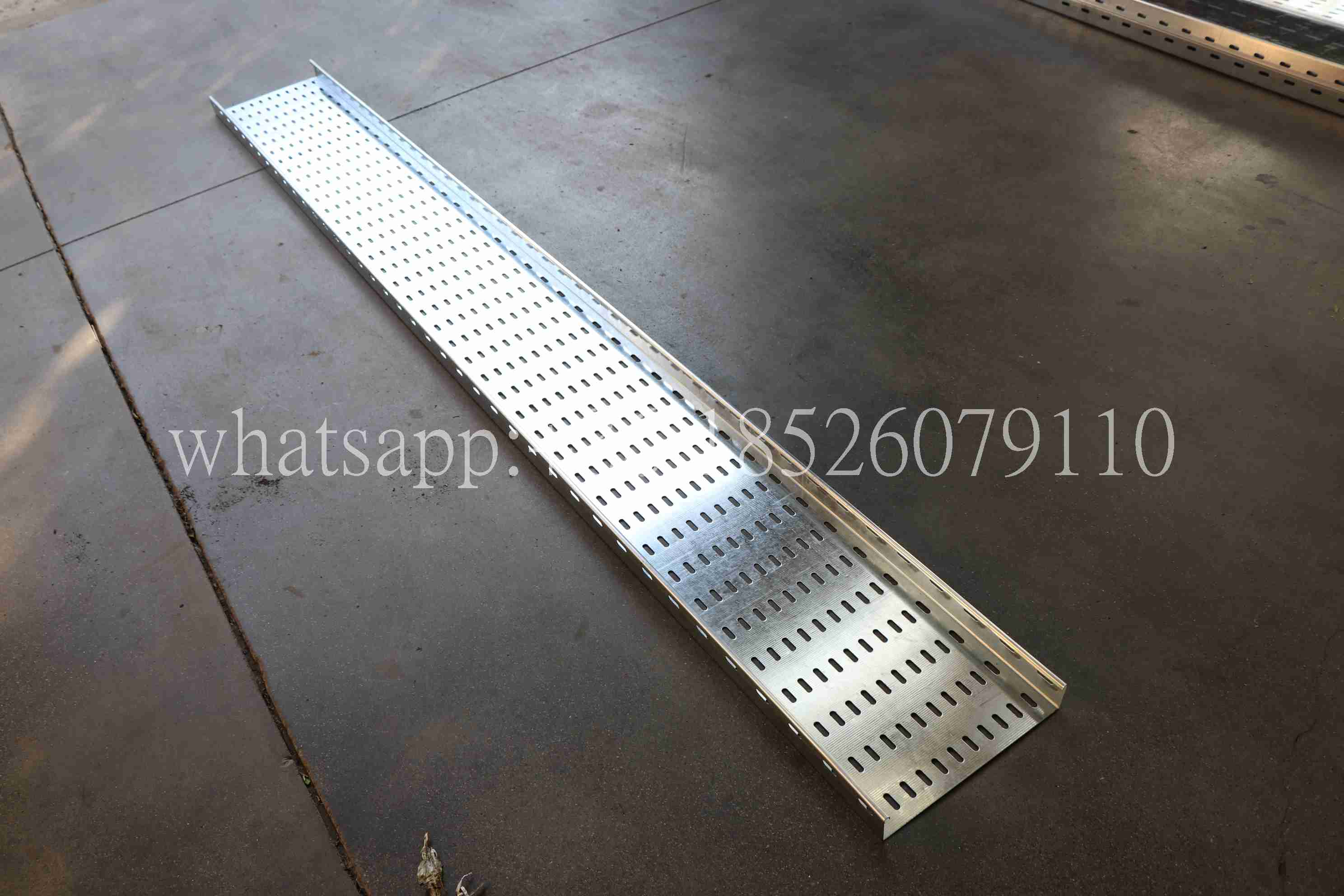

This production line is suitable for processing various metal materials, such as pre-galvanized steel, cold-rolled steel, hot-rolled steel, stainless steel, and aluminum. It can manufacture different types of cable trays, including solid bottom trays and perforated trays. The mature forming technology ensures high load-bearing capacity and structural stability, matching the same quality standards applied in the Heavy Rack Roll Forming Machine For Making Industrial Shelf Beam Production.
To meet diverse market demands, the Cable Tray Production Line supports a high level of customization. Feeding width, material thickness, tray height, side rail structure, hole patterns, and production speed can all be customized according to customer requirements. Electrical systems can be configured to different voltage standards, making the equipment suitable for global markets.
The entire line is controlled by a PLC system with a user-friendly touch screen interface, allowing easy operation and convenient parameter adjustment while reducing labor costs. In case of any technical issues during operation, our engineers can provide real-time remote support through video guidance, ensuring quick troubleshooting and minimal downtime. This professional after-sales service system has already been successfully applied in many Heavy Rack Roll Forming Machine For Making Industrial Shelf Beam Production projects worldwide.
Choosing our Cable Tray Production Line means choosing high efficiency, stable quality, and reliable service. With mature engineering solutions and rich export experience, we provide one-stop services from production line design and manufacturing to installation guidance and after-sales support, helping customers quickly enhance their cable tray manufacturing capacity and gain a stronger competitive advantage in the market.
WhatsApp:0086 18526079110
E-mail:Kevin@hx-machinery.com
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
