cable tray rolling machine
As a professional cold roll forming machine manufacturer, we specialize in designing and supplying high-performance cable tray rolling machine solutions for customers worldwide. Our cable tray rolling machine is engineered to produce various types of cable trays with high precision, stable forming quality, and long-term operational reliability. It is widely used in power distribution systems, industrial plants, commercial buildings, and infrastructure projects.
| aw Material Specifications | Material Type | Galvanized / Cold-Rolled / Stainless Steel |
| Material Thickness | 0.8–2.5 mm (Customizable) | |
| Material Width | Customized according to tray size | |
| Yield Strength | G220-G250 | |
| Roll Forming System | Forming Stations | 18–24 stations |
| Roller Material | GCr15, heat treated | |
| Shaft Material | 45# steel, heat treate | |
| Shaft Diameter | Φ70–90 mm | |
| Drive System | Chain drive | |
| Punching System | Punching Type | Hydraulic Punching |
| Punching Position | Before forming | |
| Hole Type | Round / Slotted / Customized | |
| Punching Accuracy | ±0.5 mm | |
| Control System | Operation Interface | Touch Screen (CN / EN) |
| Inverter | Famous brand | |
| Electrical Components | Siemens or Schnedier | |
| Data Memory | Parameter memory | |
| Motor & Hydraulic System | Main Motor Power | 11 kW *3 sets |
| Hydraulic Power | 7.5 kW | |
| Power Supply | 380V / 50Hz / 3Ph (Custom) | |
| Hydraulic Oil | 46# Anti-wear Hydraulic Oi | |
| Production size | Line Length | 35 meters |
| Machine Width | 2.5 meters | |
| Machine Weight | 25ton |
The cable tray rolling machine adopts advanced roll forming technology combined with an automatic PLC control system to ensure smooth and continuous production. A complete cable tray rolling machine production line usually includes decoiling, leveling, roll forming, optional punching, hydraulic cutting, and finished product output. This integrated process allows the cable tray rolling machine to achieve high production efficiency while maintaining consistent product dimensions and surface quality.
One of the key advantages of our cable tray rolling machine is its strong customization capability. Feeding width, material thickness, tray height, side wall structure, and rolling speed can all be customized according to customer requirements. Whether producing standard cable trays or special profiles, the cable tray rolling machine can be precisely configured to meet different project specifications. In addition, voltage, frequency, and electrical components can be customized to match local standards in different countries and regions.

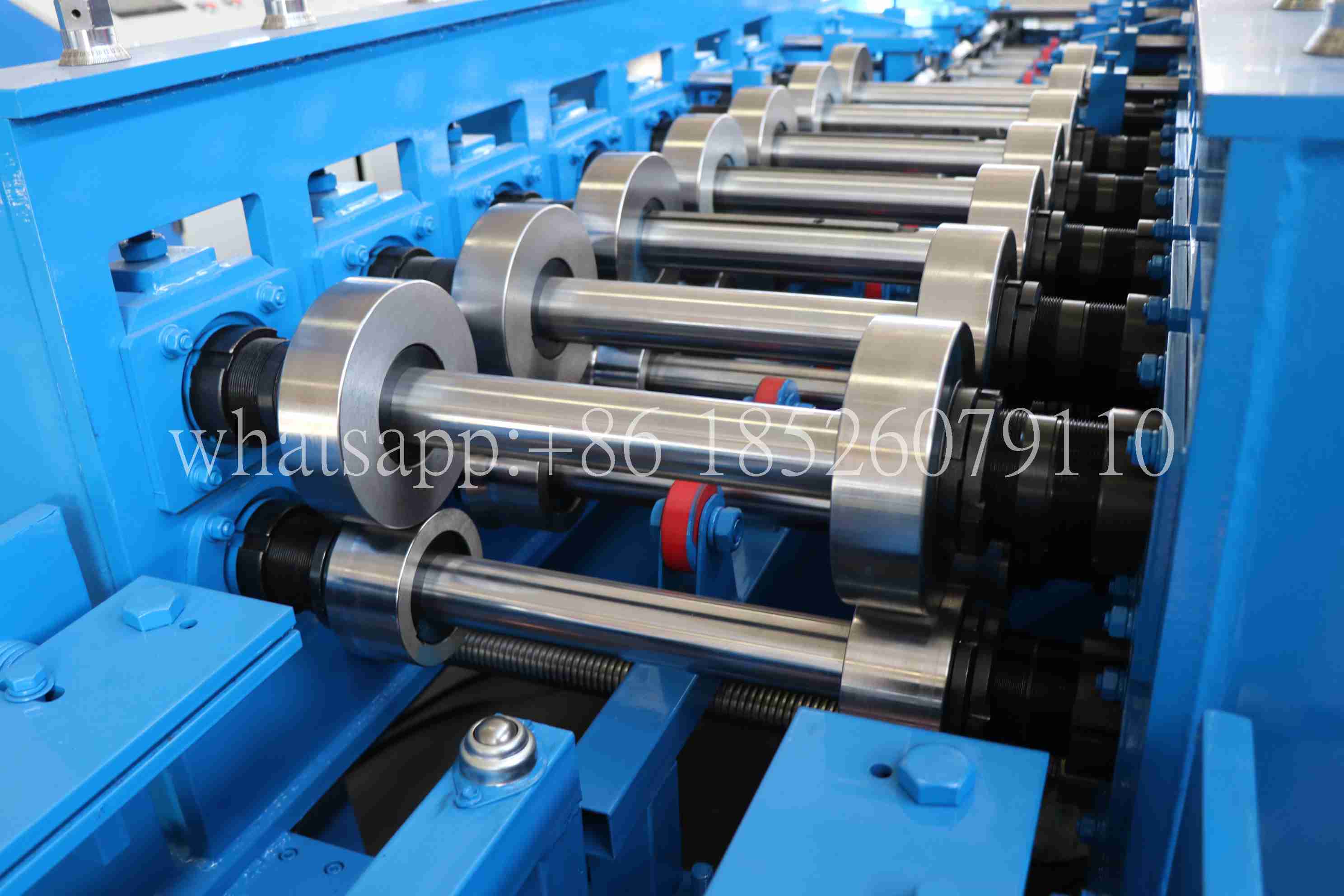

To ensure stable operation and long service life, our cable tray rolling machine is manufactured using high-quality steel frames and precision-machined forming rollers. The rollers are hardened and carefully designed to reduce wear and prevent surface scratches during continuous cable tray rolling machine operation. The hydraulic cutting system provides clean and accurate cuts without deformation, ensuring high-quality finished cable trays.
We understand that reliable technical support is essential for customers. When any issue occurs during cable tray rolling machine operation, our experienced engineers can provide online video guidance to assist with installation, adjustment, troubleshooting, and routine maintenance. This remote support service helps customers reduce downtime, lower operating costs, and maintain stable cable tray production.
Safety and ease of operation are also important considerations in the design of our cable tray rolling machine. The machine is equipped with emergency stop systems, safety covers, and a user-friendly control interface. Operators can easily adjust production parameters, monitor machine status, and switch between different cable tray specifications efficiently.
With years of experience in cold roll forming equipment manufacturing, we are committed to delivering reliable, efficient, and cost-effective cable tray rolling machine solutions. Our cable tray rolling machine helps customers improve productivity, ensure consistent quality, and gain a competitive advantage in the cable tray manufacturing industry.
Whatsapp:0086 18526079110
E-mail:Kevin@hx-machinery.com
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
