Cable Tray Machine
As a professional cold roll forming machine manufacturer, we provide efficient and reliable metal forming solutions for industrial applications. Our cable tray machine is designed for manufacturing high-quality cable trays used in industrial plants, commercial buildings, power systems, and infrastructure projects. The machine is developed based on our extensive experience with the Heavy Rack Roll Forming Machine For Making Industrial Shelf Beam Production, ensuring stable performance and precise forming.

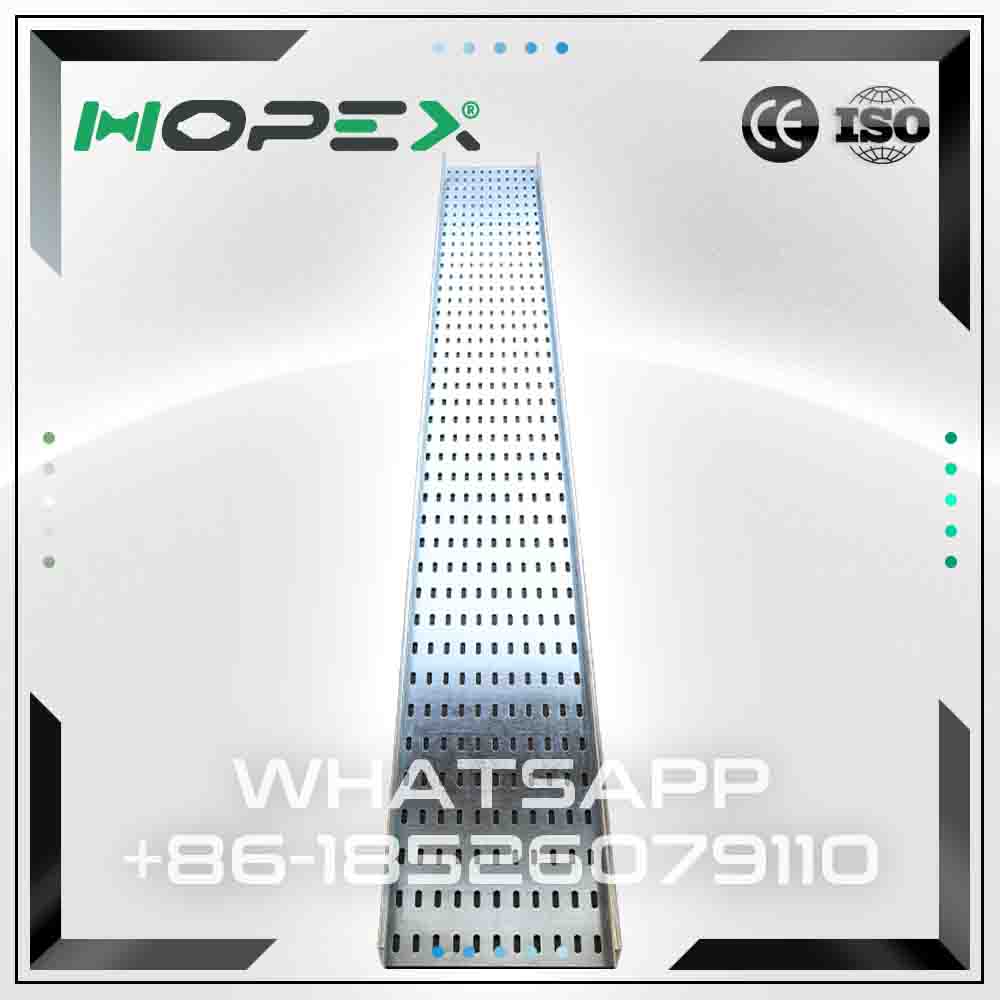

The cable tray machine is mainly used to form metal sheets into solid bottom or perforated cable trays. Compared with a complete cable tray production line, this machine focuses on core forming functions, offering a flexible and cost-effective solution. Its forming accuracy and structural stability follow the same engineering standards applied in the Heavy Rack Roll Forming Machine For Making Industrial Shelf Beam Production, which has been widely recognized by global customers.

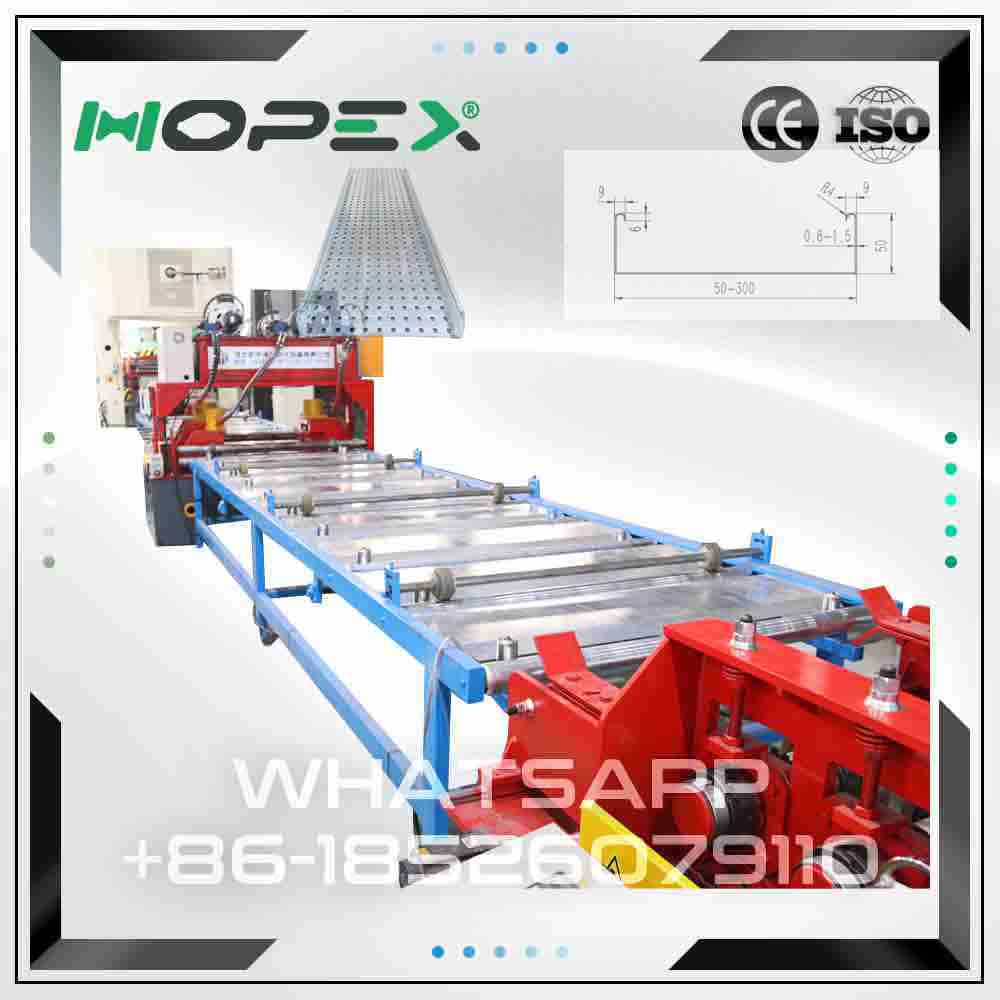

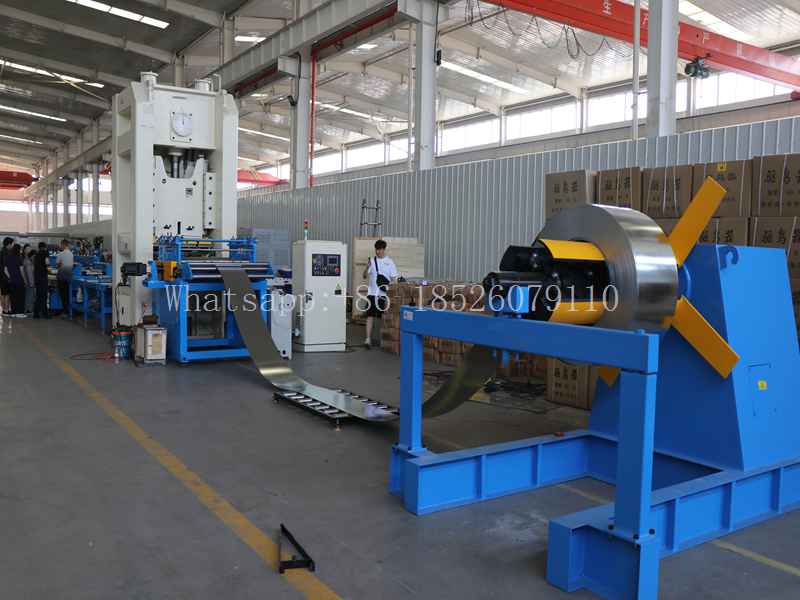

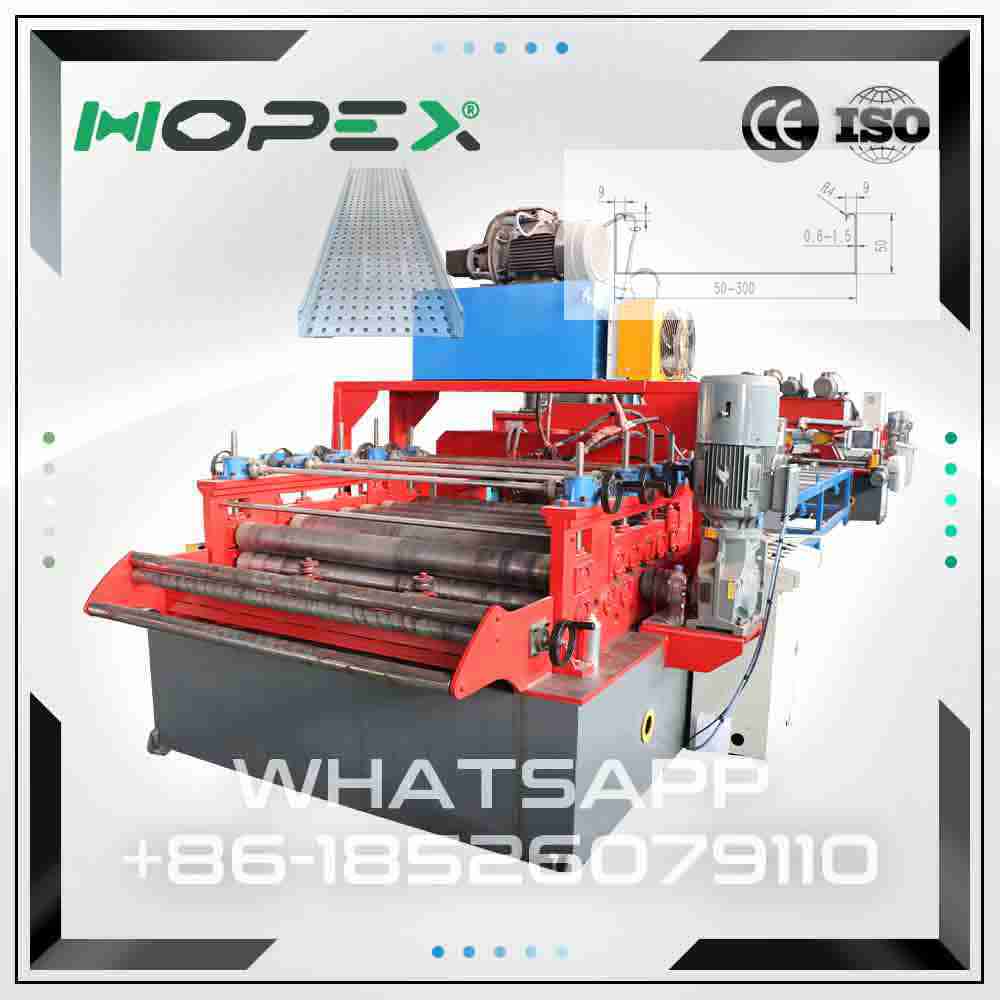

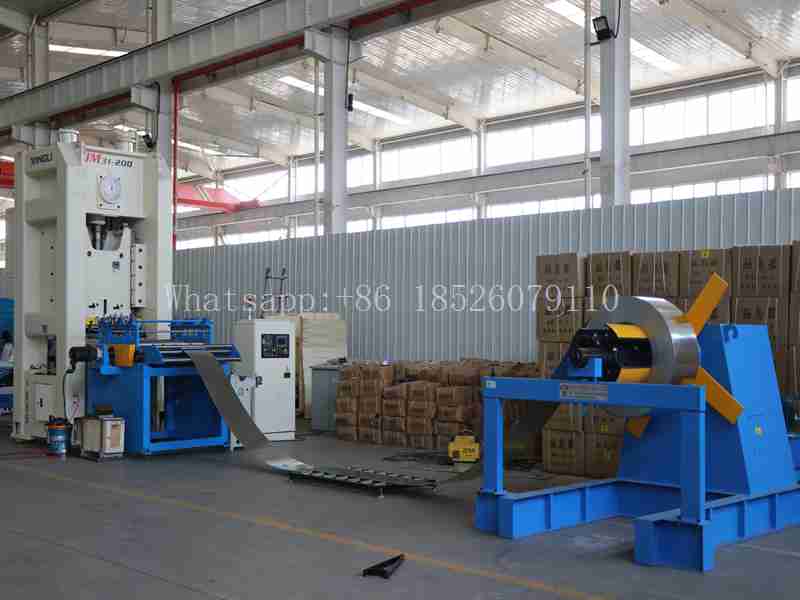

The typical working process includes decoiling, feeding, roll forming, hydraulic cutting, and finished product receiving. Steel coils are smoothly uncoiled and gradually shaped through multiple roll forming stations. This progressive forming method is identical to the technology used in the Heavy Rack Roll Forming Machine For Making Industrial Shelf Beam Production, ensuring consistent dimensions and strong load-bearing capacity.Contact us to learn more
| aw Material Specifications | Material Type | Galvanized / Cold-Rolled / Stainless Steel |
| Material Thickness | 0.8–2.5 mm (Customizable) | |
| Material Width | Customized according to tray size | |
| Yield Strength | G250–G550 | |

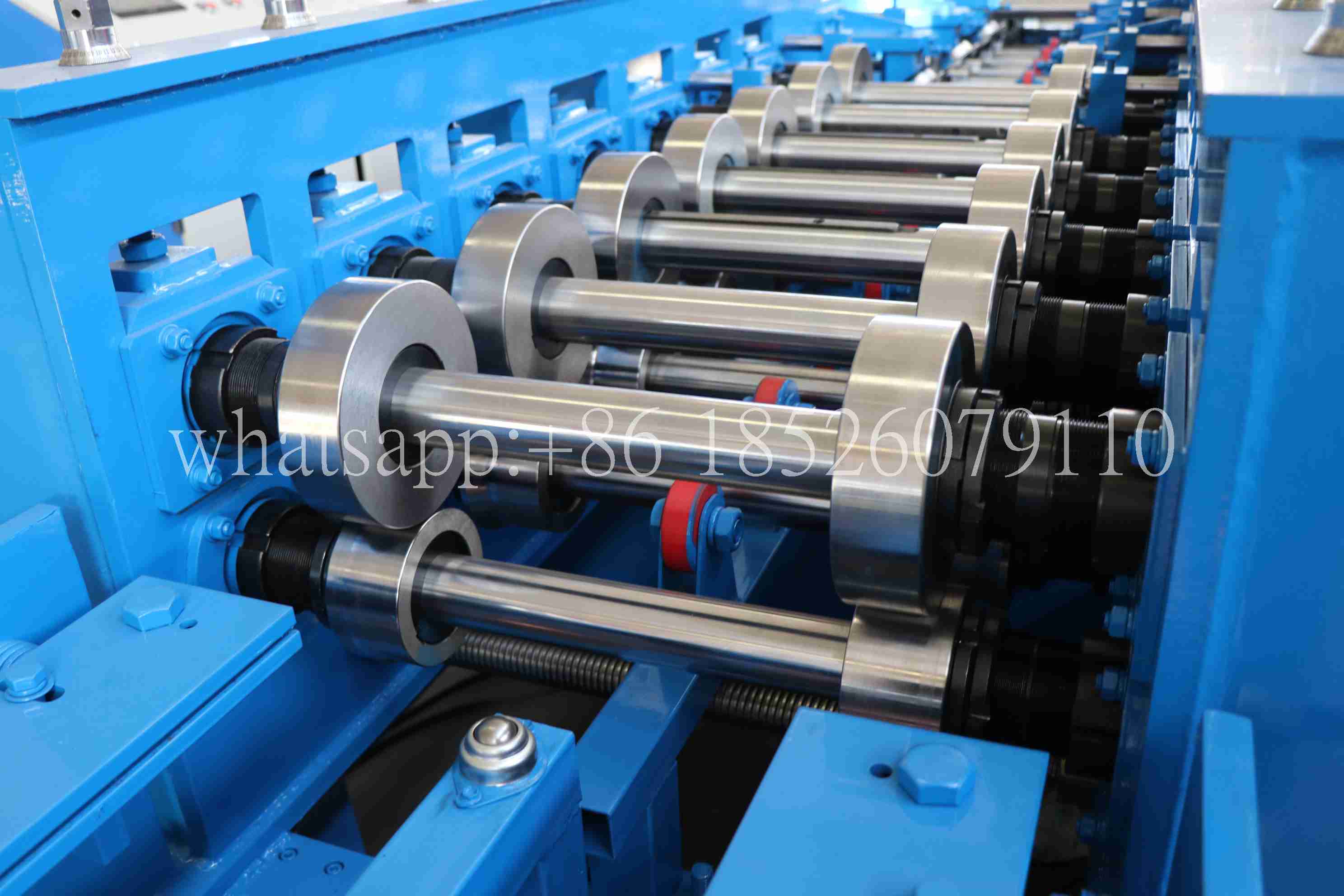

| Roll Forming System | Forming Stations | 18–24 stations |
| Roller Material | GCr15, heat treated | |
| Shaft Material | 45# steel, heat treate | |
| Shaft Diameter | Φ70–90 mm | |
| Drive System | Chain drive | |
| Punching System | Punching Type | Hydraulic Punching |
| Punching Position | Before forming | |
| Hole Type | Round / Slotted / Customized | |
| Punching Accuracy | ±0.5 mm | |
| Motor & Hydraulic System | Operation Interface | Touch Screen (CN / EN) |
| Inverter | Famous brand | |
| Electrical Components | Siemens or Schnedier | |
| Data Memory | Parameter memory | |
| Production size | Main Motor Power | 11 kW *3 sets |
| Hydraulic Power | 7.5 kW | |
| Power Supply | 380V / 50Hz / 3Ph (Custom) | |
| Hydraulic Oil | 46# Anti-wear Hydraulic Oil | |
| Production size | Line Length | 35 meters |
| Machine Width | 2.5 meters | |
| Machine Weight | 25ton |

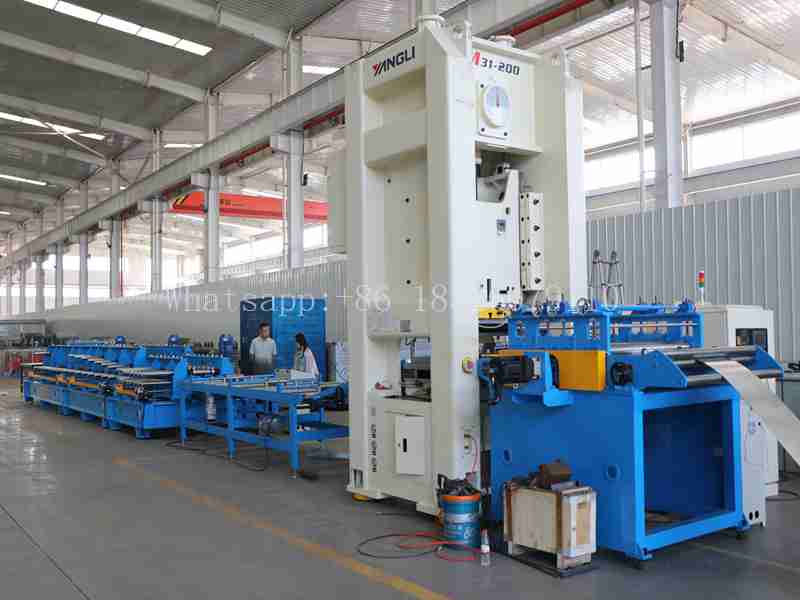

Punching systems can be installed before or after roll forming to create mounting holes, ventilation holes, or connection slots according to customer requirements. Hydraulic cutting guarantees accurate length control with clean cutting edges. The production flow reflects the mature and proven design concept derived from the Heavy Rack Roll Forming Machine For Making Industrial Shelf Beam Production.
The cable tray machine supports full customization, including feeding width, material thickness, tray size, hole patterns, and voltage standards. PLC control with a touch screen ensures easy operation. If any technical issues occur, our engineers provide remote video guidance, a service model already applied successfully in many Heavy Rack Roll Forming Machine For Making Industrial Shelf Beam Production projects.
Whats app:0086 18526079110
E-mail:Kevin@hx-machinery.com
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
