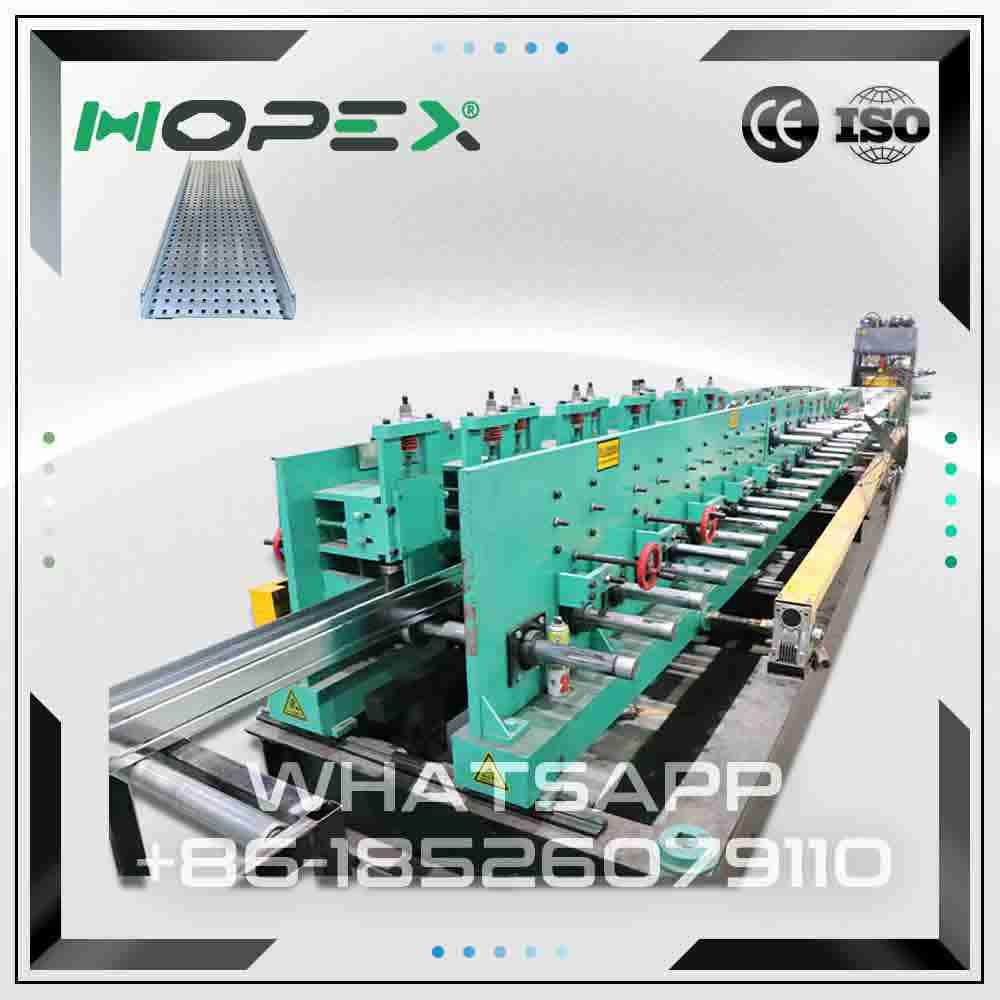

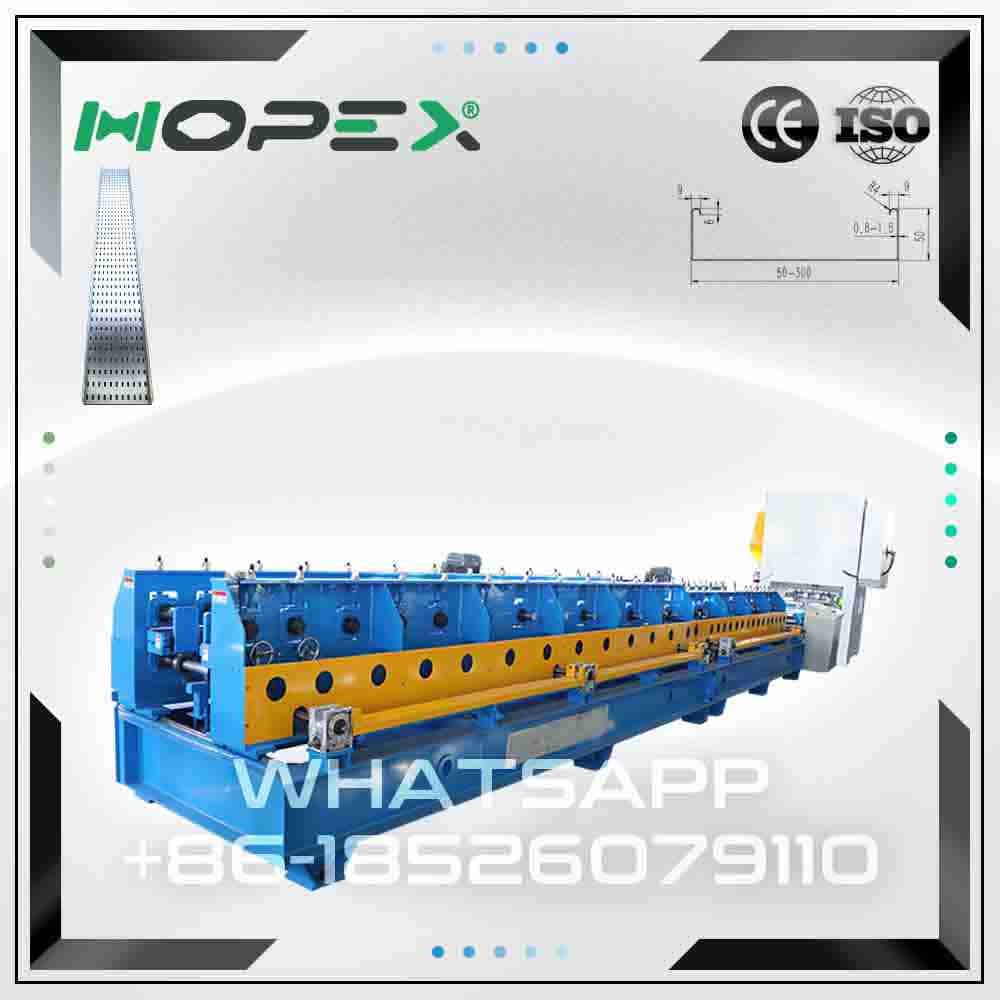

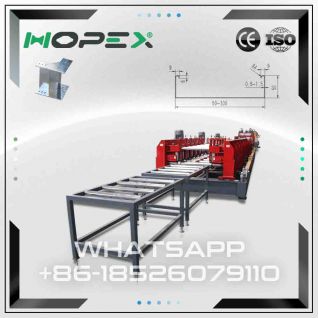

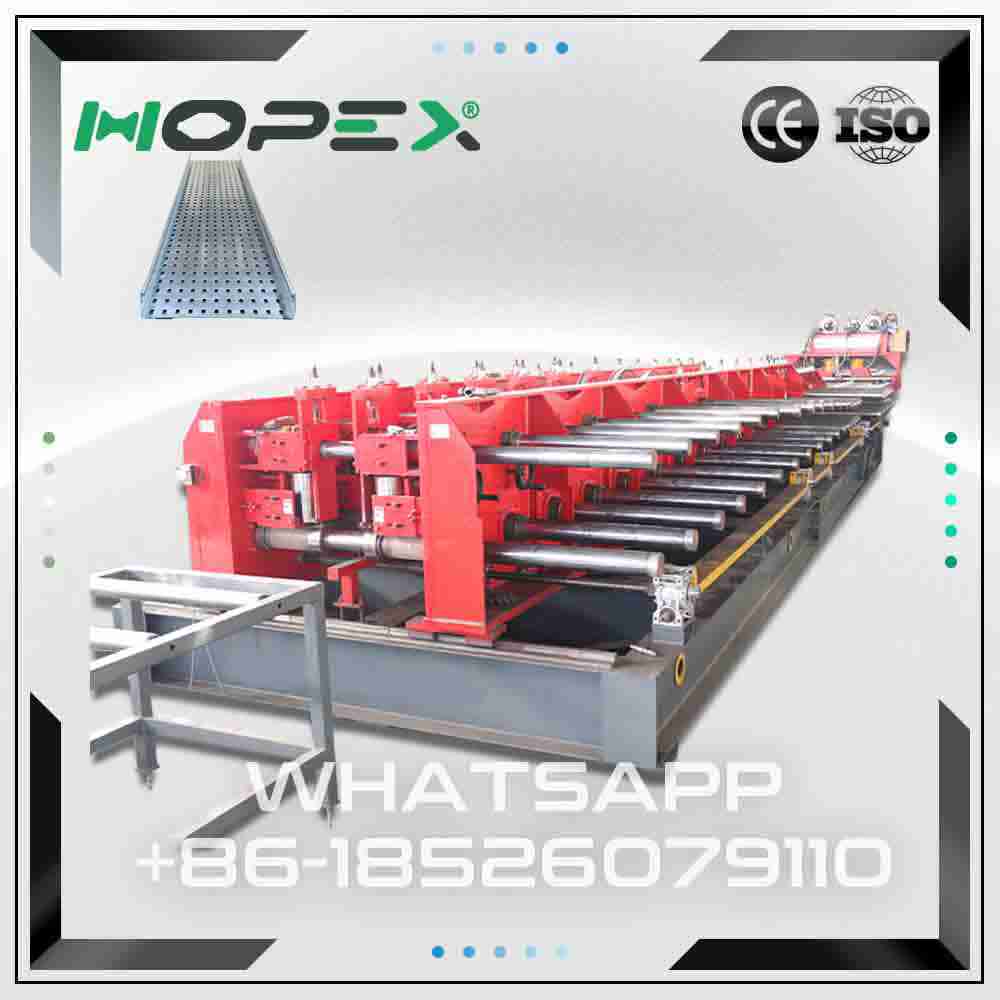

cable tray roll former
As a professional cold roll forming machine manufacturer, we specialize in designing and supplying high-performance cable tray roll former solutions for global customers. Our cable tray roll former is engineered to produce various types of cable trays with high precision, stable forming quality, and long-term operational reliability. It is widely used in power distribution systems, industrial plants, commercial buildings, and infrastructure projects.
| aw Material Specifications | Material Type | Galvanized / Cold-Rolled / Stainless Steel |
| Material Thickness | 0.8–2.5 mm (Customizable) | |
| Material Width | Customized according to tray size | |
| Yield Strength | G220-G250 | |
| Roll Forming System | Forming Stations | 18–24 stations |
| Roller Material | GCr15, heat treated | |
| Shaft Material | 45# steel, heat treate | |
| Shaft Diameter | Φ70–90 mm | |
| Drive System | Chain drive | |
| Punching System | Punching Type | Hydraulic Punching |
| Punching Position | Before forming | |
| Hole Type | Round / Slotted / Customized | |
| Punching Accuracy | ±0.5 mm | |
| Control System | Operation Interface | Touch Screen (CN / EN) |
| Inverter | Famous brand | |
| Electrical Components | Siemens or Schnedier | |
| Data Memory | Parameter memory | |
| Motor & Hydraulic System | Main Motor Power | 11 kW *3 sets |
| Hydraulic Power | 7.5 kW | |
| Power Supply | 380V / 50Hz / 3Ph (Custom) | |
| Hydraulic Oil | 46# Anti-wear Hydraulic Oi | |
| Production size | Line Length | 35 meters |
| Machine Width | 2.5 meters | |
| Machine Weight | 25ton |

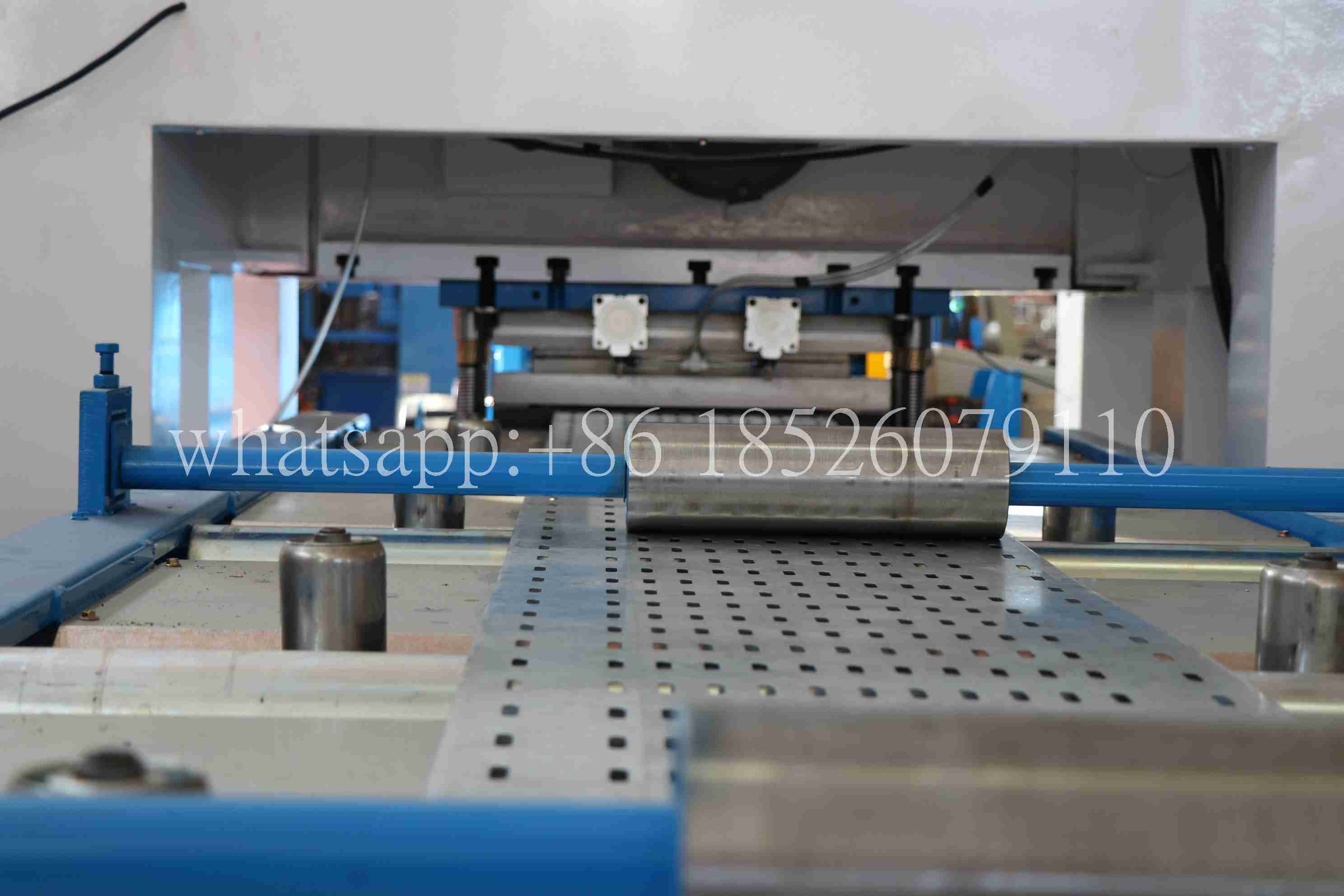

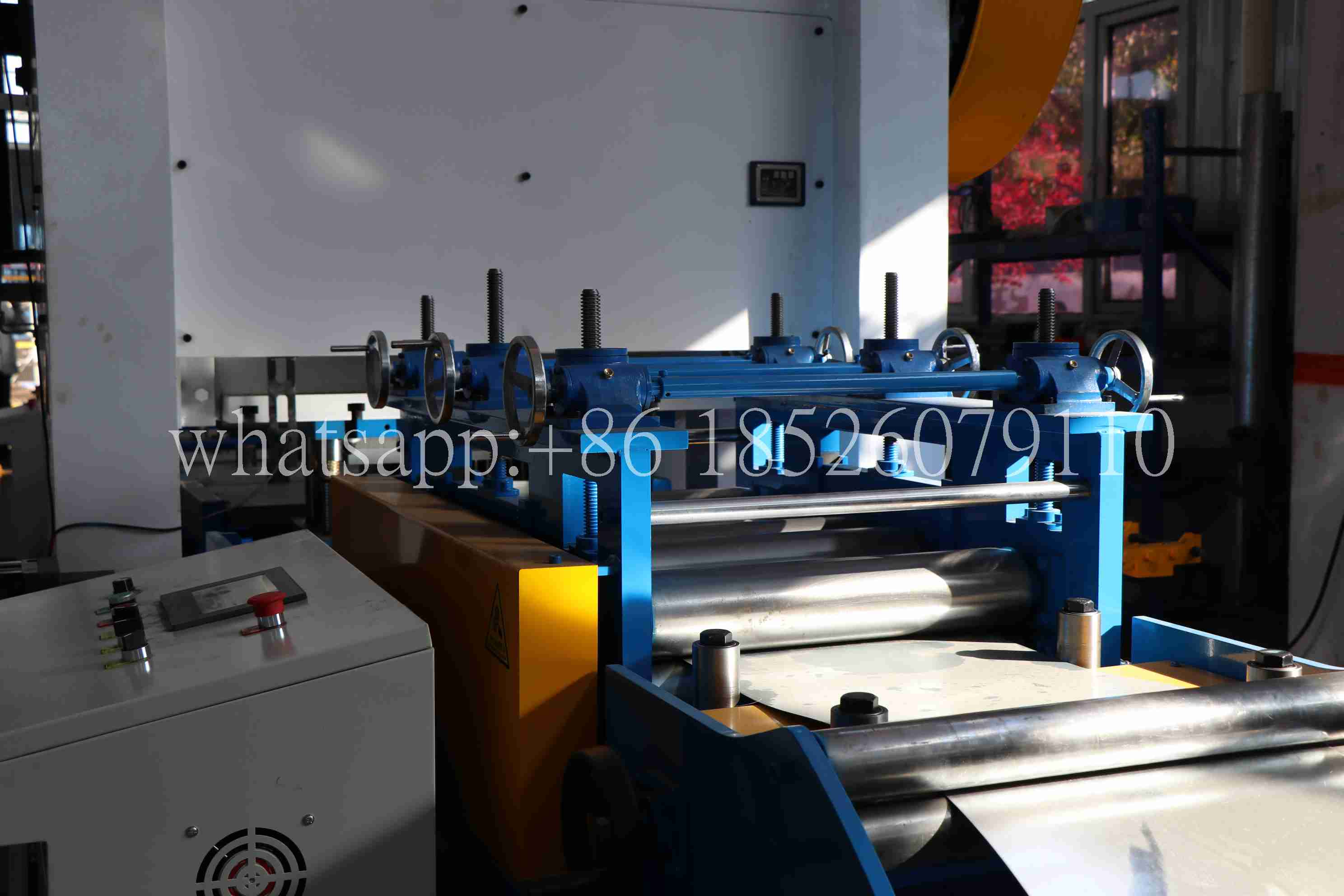

The cable tray roll former integrates advanced roll forming technology with an automatic control system to ensure smooth and continuous production. The complete production process typically includes decoiling, leveling, roll forming, optional punching, hydraulic cutting, and finished product output. With this streamlined workflow, the cable tray roll former significantly improves production efficiency while reducing labor costs and material waste.
One of the key advantages of our cable tray roll former is its high level of customization. Feeding width, material thickness, forming speed, tray profile, and overall machine structure can all be tailored according to customer requirements. Whether you need standard cable trays or customized profiles, our cable tray roll former can be precisely configured to match your project needs. In addition, voltage, frequency, and electrical standards can be customized for different countries and regions.

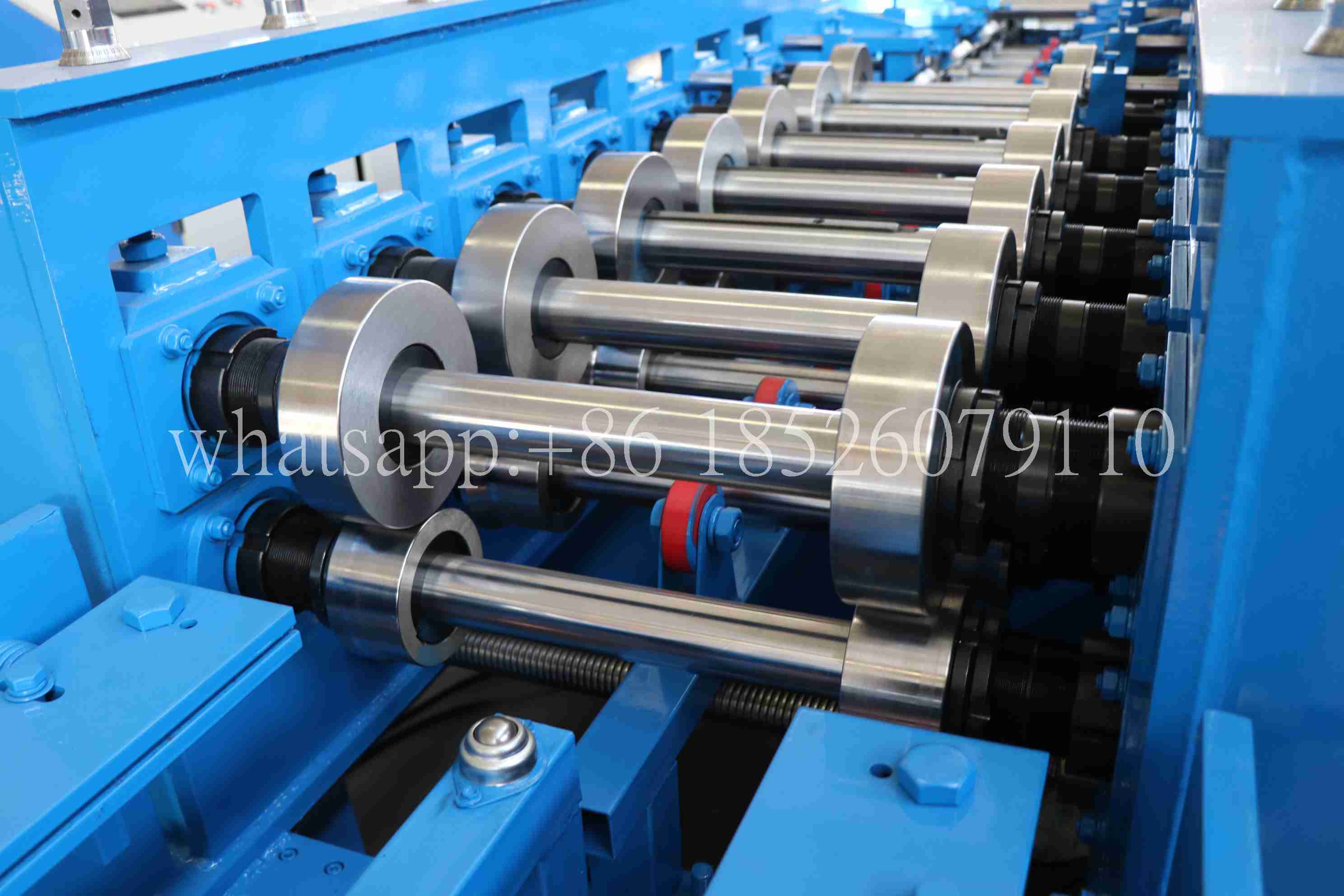

To ensure reliable operation, our cable tray roll former is manufactured using high-quality steel, precision-machined rollers, and durable bearings. The forming rollers are designed to minimize surface scratches and maintain consistent tray dimensions throughout long production runs. The hydraulic cutting system delivers clean and accurate cuts without deformation, ensuring high-quality finished cable trays.
We also provide strong after-sales support for every cable tray roll former we sell. When machine issues occur, our experienced engineers can offer online video guidance to help customers troubleshoot and resolve problems quickly. This remote technical support reduces downtime and avoids unnecessary travel costs, ensuring stable and continuous production.
Safety and ease of operation are also core considerations in our cable tray roll former design. The machine is equipped with emergency stop systems, protective covers, and an intuitive PLC control interface. Operators can easily adjust parameters, monitor production status, and switch between different tray sizes with minimal training.
With years of experience in cold roll forming equipment manufacturing, we are committed to delivering reliable, efficient, and cost-effective cable tray roll former solutions. Our machines help customers enhance productivity, maintain consistent quality, and gain a competitive advantage in the cable tray manufacturing industry.
Whatsapp:0086 18526079110
E-mail:Kevin@hx-machinery.com
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
