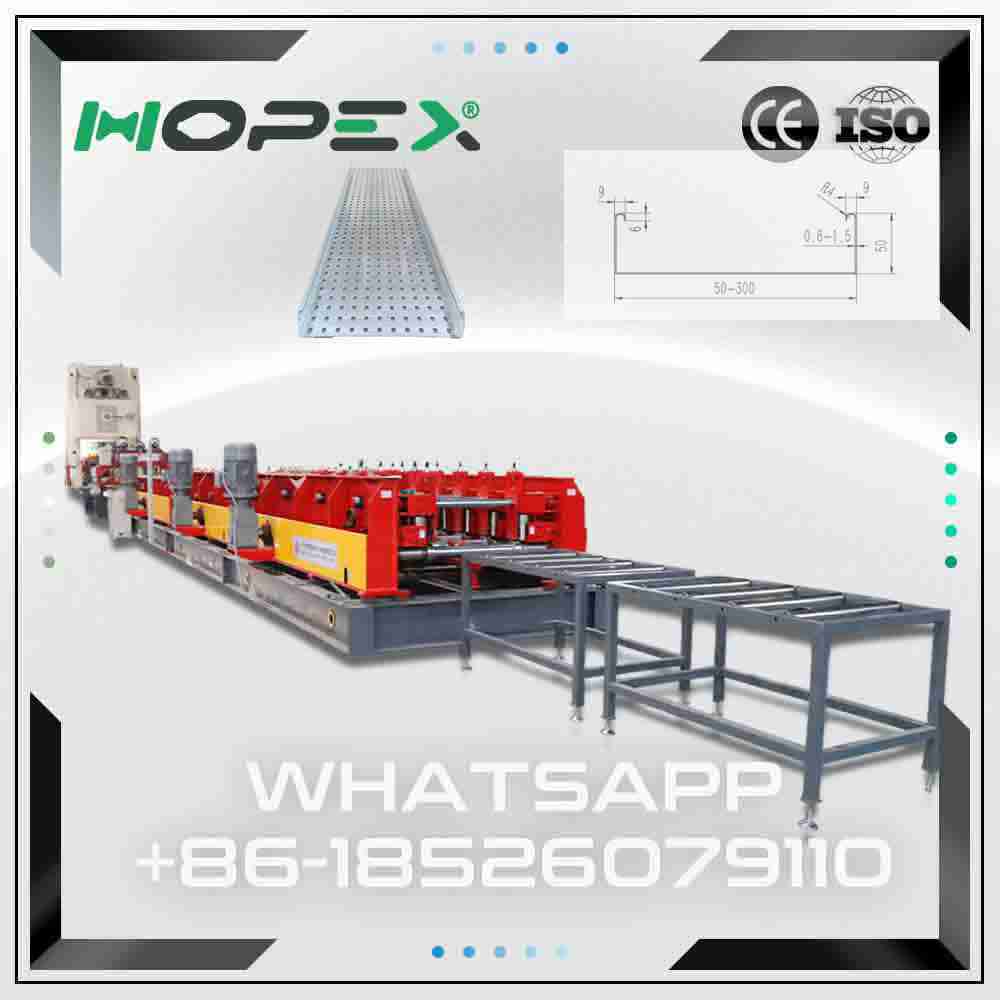

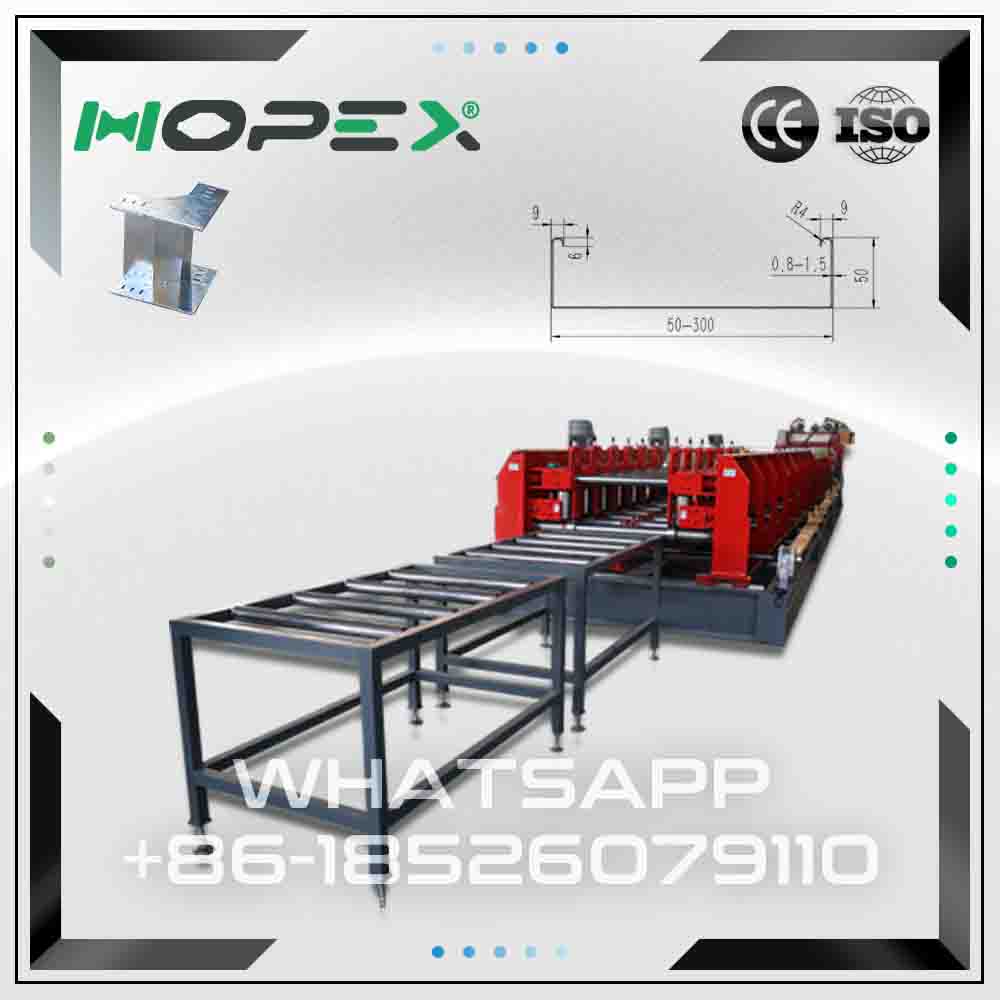

Cable tray roll forming machine

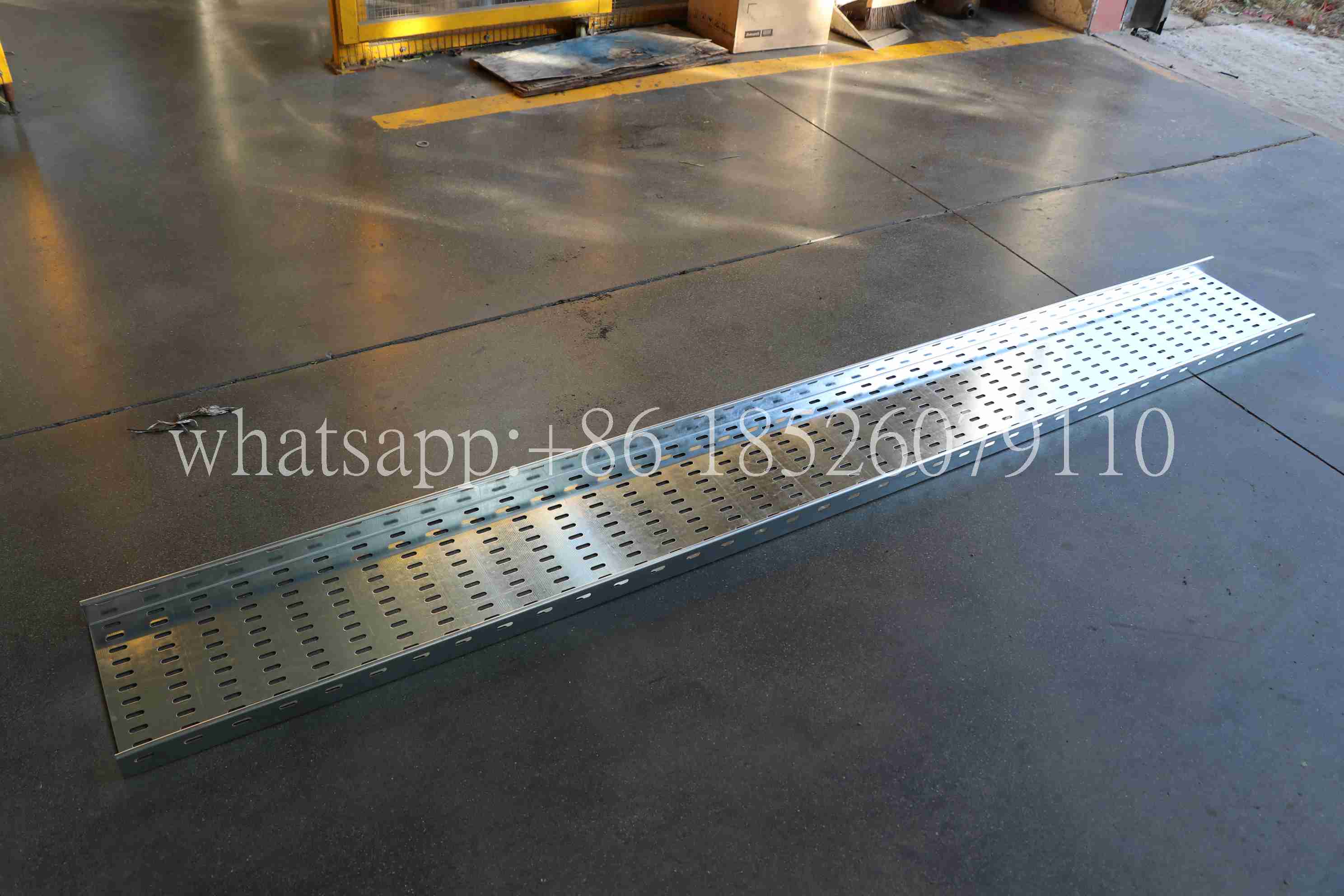

As a professional cold roll forming machine manufacturer, we specialize in designing and supplying high-quality cable tray roll forming machine solutions for global customers. Our cable tray roll forming machine is widely used to produce different types of cable trays, including ladder type, perforated type, and solid bottom cable trays, meeting the needs of industrial, commercial, and infrastructure projects.
The cable tray roll forming machine adopts an advanced roll forming process to ensure stable forming, accurate dimensions, and high production efficiency. From raw material feeding to final cutting, the entire production process is automated, reducing labor costs and improving consistency. For manufacturers who want to expand cable tray production capacity, investing in a reliable cable tray roll forming machine is an efficient and long-term solution.
One of the main advantages of our cable tray roll forming machine is its strong customization capability. Feeding width, roll forming thickness, forming speed, roller stations, and machine layout can all be customized according to customer requirements. Voltage options such as 380V / 50Hz / 60Hz or other local standards are also available. This flexibility allows customers to configure the cable tray roll forming machine to perfectly match their production needs and local market standards.
| aw Material Specifications | Material Thickness | Galvanized / Cold-Rolled / Stainless Steel |
| Material Thickness | 0.8–2.5 mm (Customizable) | |
| Material Width | Customized according to tray size | |
| Yield Strength | G250–G550 | |
| Roll Forming System | Forming Stations | 18–24 stations |
| Roller Material | GCr15, heat treated | |
| Shaft Material | 45# steel, heat treate | |
| Shaft Diameter | Φ70–90 mm | |
| Drive System | Chain drive | |
| Punching System | Punching Type | Hydraulic Punching |
| Punching Position | Before forming | |
| Hole Type | Round / Slotted / Customized | |
| Punching Accuracy | ±0.5 mm | |
| Motor & Hydraulic System | Operation Interface | Touch Screen (CN / EN) |
| Inverter | Famous brand | |
| Electrical Components | Siemens or Schnedier | |
| Data Memory | Parameter memory | |
| Production size | Main Motor Power | 11 kW *3 sets |
| Hydraulic Power | 7.5 kW | |
| Power Supply | 380V / 50Hz / 3Ph (Custom) | |
| Hydraulic Oil | 46# Anti-wear Hydraulic Oil | |
| Production size | Line Length | 35 meters |
| Machine Width | 2.5 meters | |
| Machine Weight | 25ton |
Machine stability and durability are key considerations when selecting a cable tray roll forming machine. Our machines are manufactured with high-strength steel frames, precision-machined rollers, and reliable transmission systems to ensure long-term stable operation. Even under continuous production conditions, the cable tray roll forming machine maintains high forming accuracy and smooth surface quality.
After-sales service plays an important role in the overall value of the cable tray roll forming machine. When machine problems occur, our experienced engineers can provide real-time video technical guidance to help customers troubleshoot and solve issues quickly. This remote service reduces downtime and minimizes additional service costs. Operation manuals, maintenance guidance, and spare parts support are also provided to ensure smooth production.
From machine design and manufacturing to installation guidance and after-sales support, we focus on delivering complete solutions. Choosing our cable tray roll forming machine means choosing efficiency, reliability, and professional service. With competitive pricing, flexible customization, and strong technical support, our cable tray roll forming machine helps customers build a stable and profitable cable tray production line.
Whatsapp:0086 18526079110
E-mail:Kevin@hx-machinery.com
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
