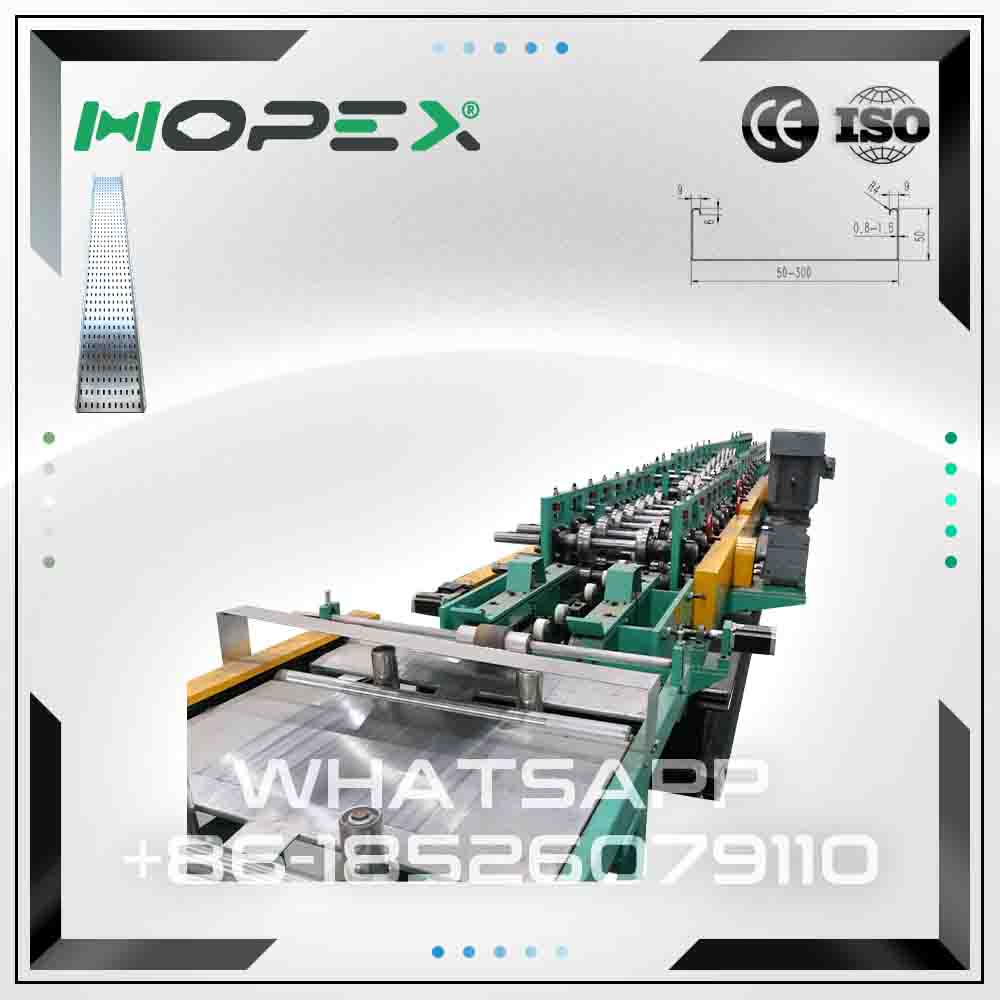

cable tray roll

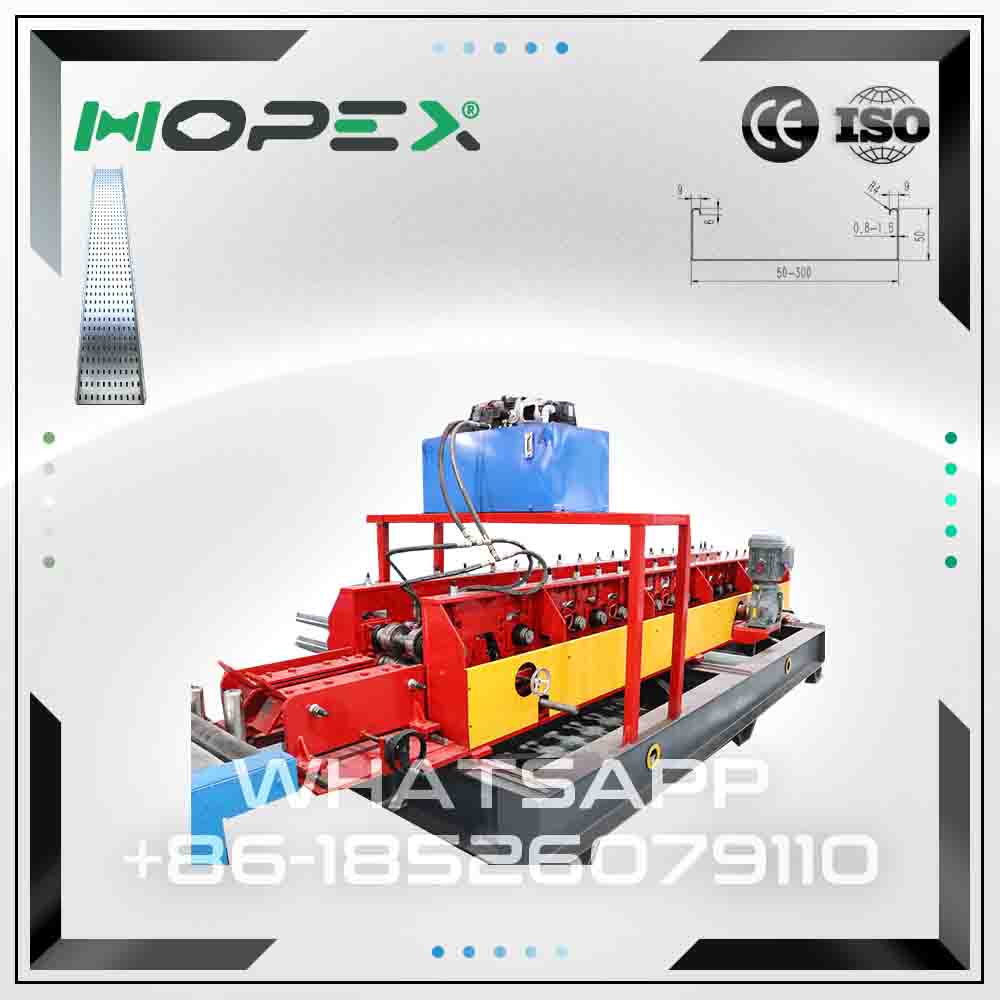

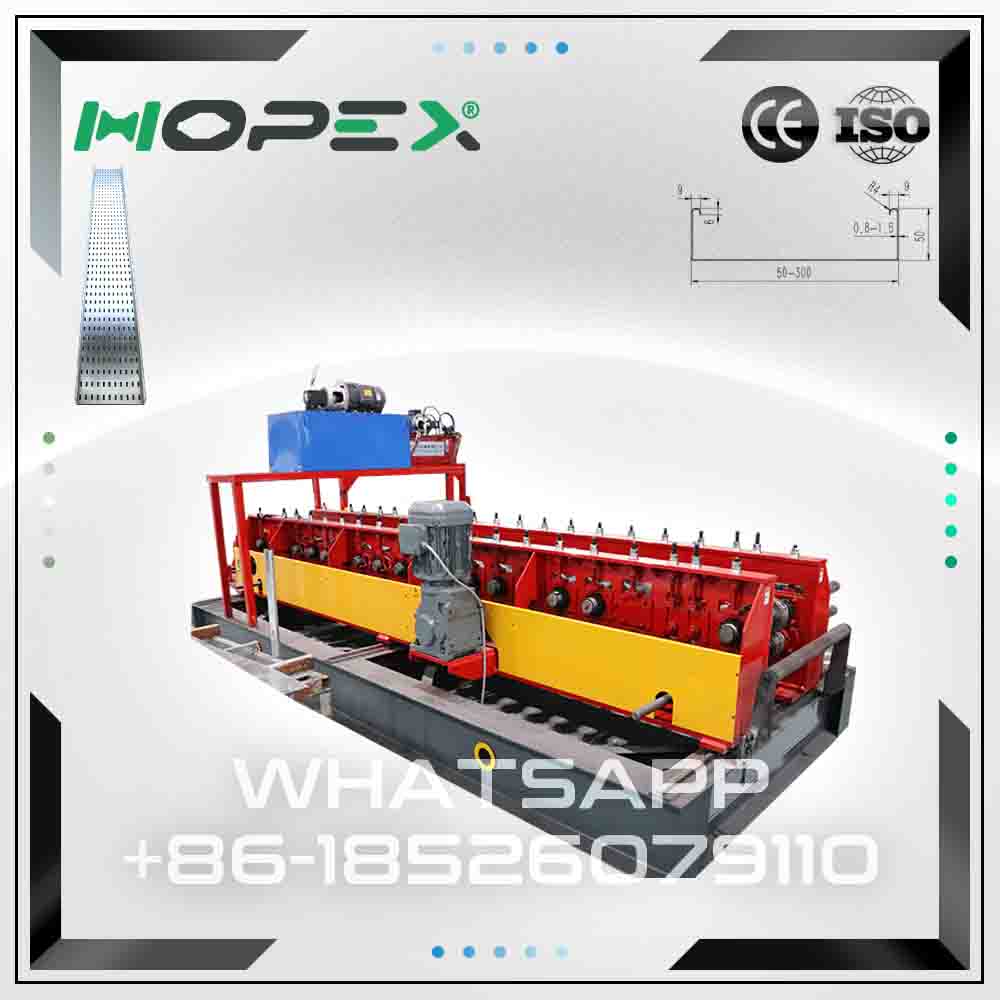

As a professional cold roll forming machine manufacturer, we provide advanced and reliable cable tray roll production solutions for customers around the world. Our cable tray roll machine is designed to manufacture cable trays in continuous roll form, offering higher efficiency, flexible installation, and lower transportation costs compared with traditional fixed-length cable tray systems.
| aw Material Specifications | Material Type | Galvanized / Cold-Rolled / Stainless Steel |
| Material Thickness | 0.8–2.5 mm (Customizable) | |
| Material Width | Customized according to tray size | |
| Yield Strength | G220-G250 | |
| Roll Forming System | Forming Stations | 18–24 stations |
| Roller Material | GCr15, heat treated | |
| Shaft Material | 45# steel, heat treate | |
| Shaft Diameter | Φ70–90 mm | |
| Drive System | Chain drive | |
| Punching System | Punching Type | Hydraulic Punching |
| Punching Position | Before forming | |
| Hole Type | Round / Slotted / Customized | |
| Punching Accuracy | ±0.5 mm | |
| Control System | Operation Interface | Touch Screen (CN / EN) |
| Inverter | Famous brand | |
| Electrical Components | Siemens or Schnedier | |
| Data Memory | Parameter memory | |
| Motor & Hydraulic System | Main Motor Power | 11 kW *3 sets |
| Hydraulic Power | 7.5 kW | |
| Power Supply | 380V / 50Hz / 3Ph (Custom) | |
| Hydraulic Oil | 46# Anti-wear Hydraulic Oi | |
| Production size | Line Length | 35 meters |
| Machine Width | 2.5 meters | |
| Machine Weight | 25ton |
The cable tray roll solution is widely used in electrical installations, data centers, industrial plants, and commercial buildings. By producing cable trays in roll form, the cable tray roll system allows installers to cut the required length directly on site, reducing material waste and improving construction efficiency. This makes the cable tray roll an ideal choice for modern projects that require fast installation and flexible cable routing.
Our cable tray roll machine integrates decoiling, feeding, precision roll forming, optional punching, edge forming, and recoiling into a fully automatic production line. The continuous forming process ensures stable dimensions, smooth edges, and consistent quality throughout the entire coil. With advanced roll forming technology, the cable tray roll machine can maintain high accuracy even during long-time, high-speed production.

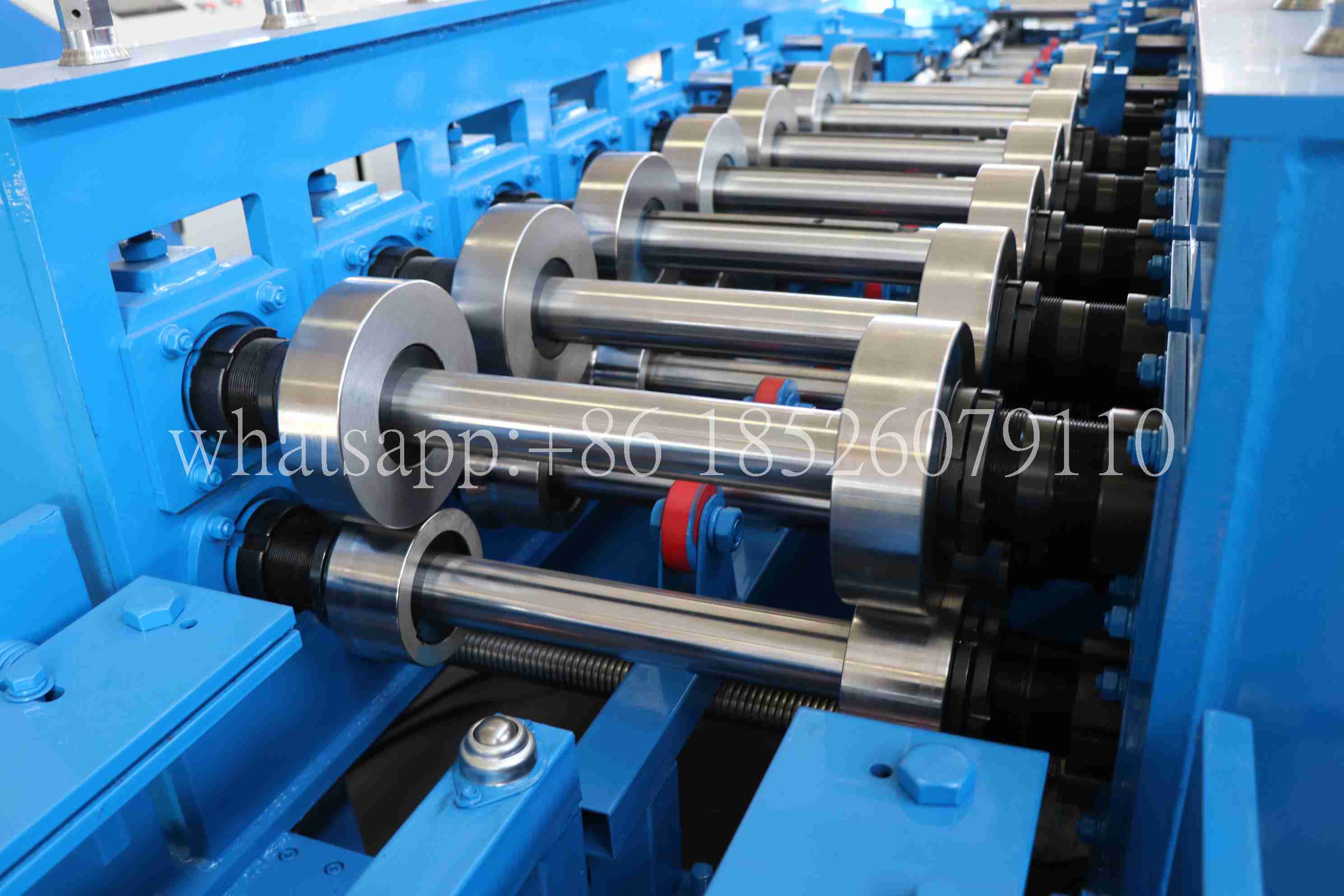

The machine structure of the cable tray roll system is built with a heavy-duty steel frame to ensure stability and durability. Forming rollers are made from high-quality alloy steel, processed by CNC machining and heat treatment to guarantee long service life and reliable performance. The cable tray roll machine supports various materials such as galvanized steel, stainless steel, and cold rolled steel, with customizable thickness ranges commonly from 0.6 mm to 1.5 mm.
Customization is a major advantage of our cable tray roll equipment. Feeding width, roll forming thickness, tray profile design, punching patterns, recoiling tension, and production speed can all be customized according to customer requirements. Electrical components, voltage, and frequency can also be configured to meet different international standards, making the cable tray roll system suitable for global markets.
For easy operation and intelligent control, the cable tray roll machine is equipped with a PLC control system and a user-friendly touchscreen interface. Operators can easily adjust parameters, monitor production status, and store multiple product programs. When machine issues occur, our experienced engineers provide real-time video technical support, helping customers quickly solve problems and reduce downtime without waiting for on-site service.
Each cable tray roll machine is strictly tested before delivery to ensure stable operation and compliance with international quality standards. Combined with professional after-sales service, including installation guidance, training, spare parts supply, and long-term technical support, our cable tray roll solution delivers high reliability and excellent return on investment.
Whatsapp:0086 18526079110
E-mail:Kevin@hx-machinery.com
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
