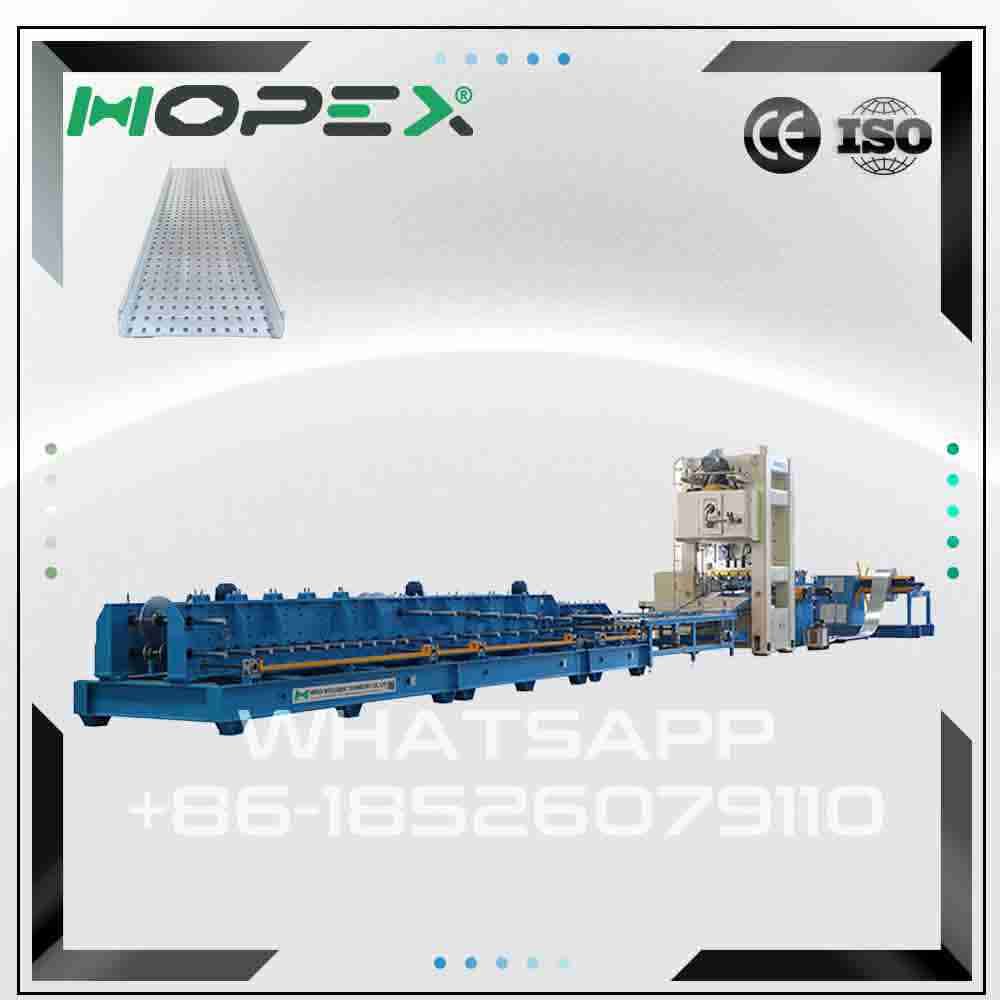

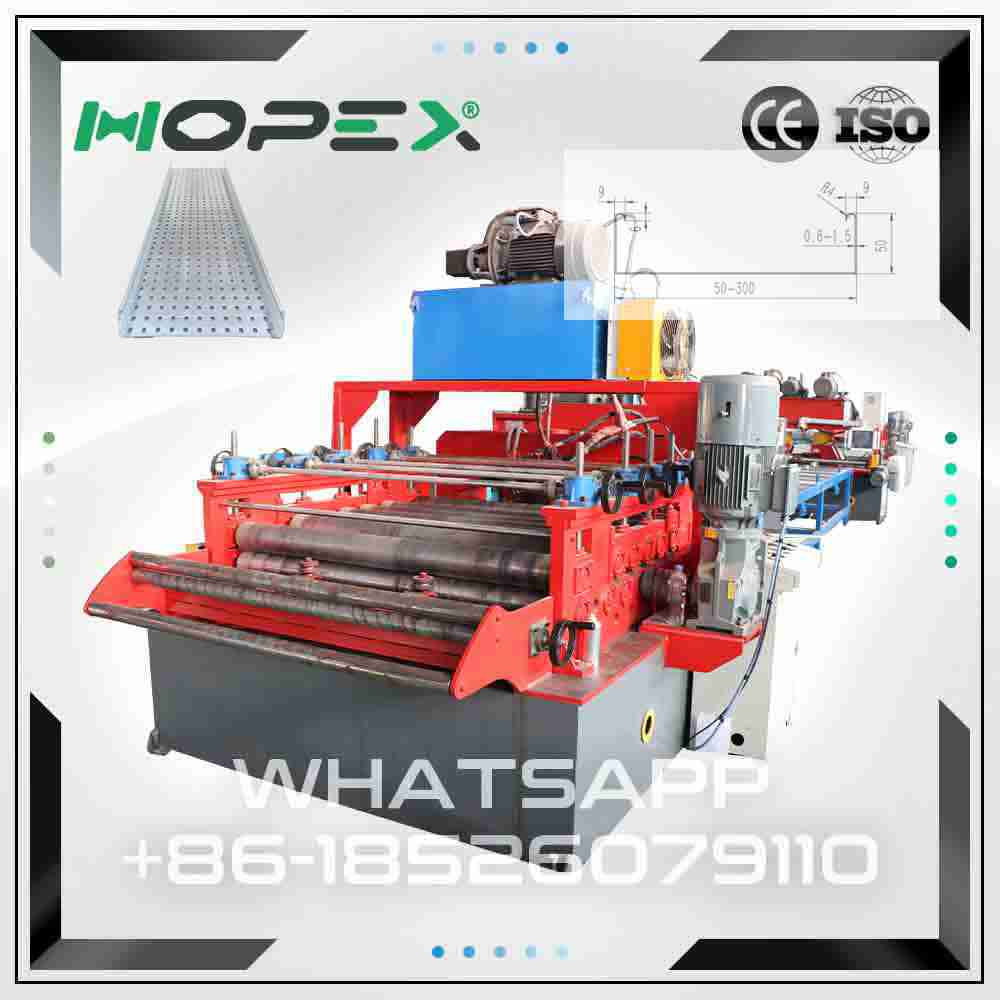

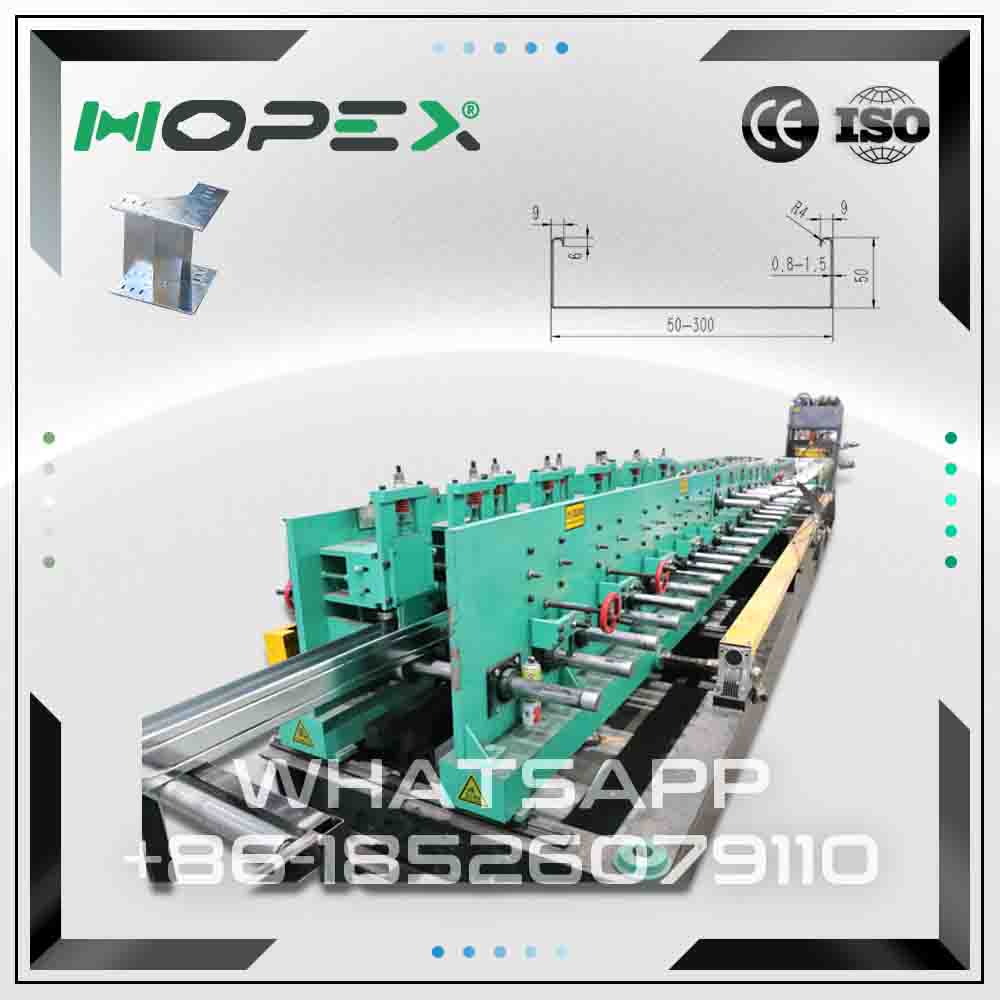

cable tray bending machine
As a professional cold roll forming machine manufacturer, we specialize in supplying advanced equipment for metal cable tray production. Among our core products, the cable tray bending machine plays a crucial role in shaping high-precision cable tray components used in industrial and commercial electrical systems. Customers worldwide choose our cable tray bending machine because of its stable performance, customization flexibility, and long-term reliability.
Our cable tray bending machine is designed to bend metal sheets with consistent accuracy and smooth edges, ensuring every finished cable tray meets strict quality standards. The machine adopts a reinforced frame structure and intelligent control system, allowing continuous operation with minimal vibration. This stable working condition improves productivity and reduces material waste. For manufacturers looking to upgrade production efficiency, investing in a high-performance cable tray bending machine significantly increases output while maintaining precision.
| aw Material Specifications | Material Type | Galvanized / Cold-Rolled / Stainless Steel |
| Material Thickness | 0.8–2.5 mm (Customizable) | |
| Material Width | Customized according to tray size | |
| Yield Strength | G220-G250 | |

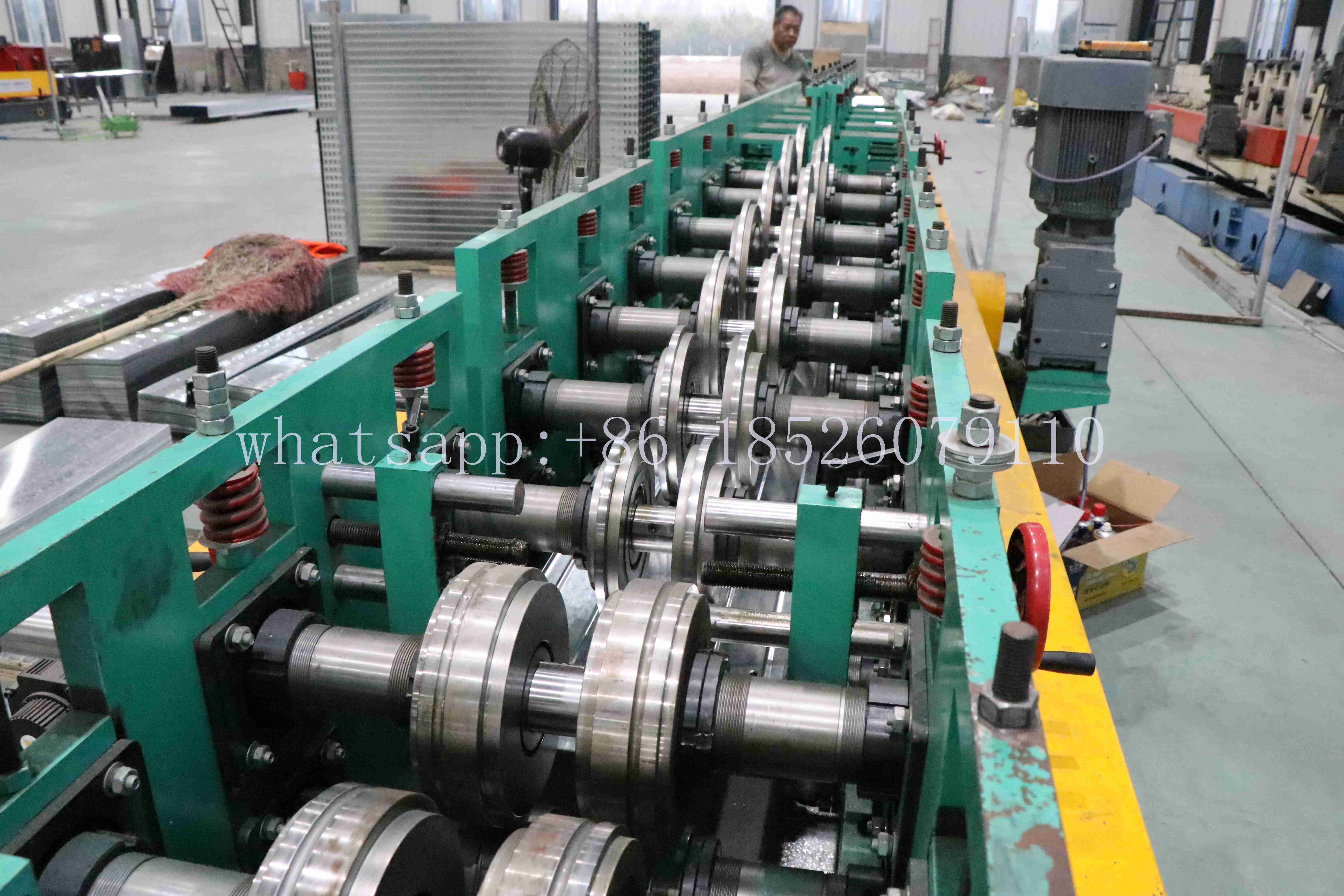

| Roll Forming System | Forming Stations | 18–24 stations |
| Roller Material | GCr15, heat treated | |
| Shaft Material | 45# steel, heat treate | |
| Shaft Diameter | Φ70–90 mm | |
| Drive System | Chain drive | |
| Punching System | Punching Type | Hydraulic Punching |
| Punching Position | Before forming | |
| Hole Type | Round / Slotted / Customized | |
| Punching Accuracy | ±0.5 mm | |
| Control System | Operation Interface | Touch Screen (CN / EN) |
| Inverter | Famous brand | |
| Electrical Components | Siemens or Schnedier | |
| Data Memory | Parameter memory | |
| Motor & Hydraulic System | Main Motor Power | 11 kW *3 sets |
| Hydraulic Power | 7.5 kW | |
| Power Supply | 380V / 50Hz / 3Ph (Custom) | |
| Hydraulic Oil | 46# Anti-wear Hydraulic Oi | |
| Production size | Line Length | 35 meters |
| Machine Width | 2.5 meters | |
| Machine Weight | 25ton |
Customization is one of the key advantages of our cable tray bending machine. We understand that different markets require different tray specifications. Therefore, feeding width, bending thickness, bending angle range, and voltage standards can all be tailored according to customer requirements. Whether producing light-duty cable trays or heavy industrial trays, our cable tray bending machine adapts easily to various production demands. This flexibility helps customers optimize production while controlling investment costs.
In addition to machine performance, technical support is essential for long-term success. When any operational issue occurs, our experienced engineers provide real-time remote video guidance. This ensures customers can quickly restore production without waiting for on-site service. Reliable support adds significant value to every cable tray bending machine, giving customers confidence in daily operation.
The machine is built with high-quality components to guarantee durability and low maintenance frequency. Precision bending molds, strong hydraulic systems, and user-friendly control interfaces make the cable tray bending machine easy to operate and maintain. Even under heavy production schedules, the equipment maintains consistent bending accuracy and structural stability.
Choosing the right cable tray bending machine is not only about purchasing equipment; it is about securing a dependable production partner. As a trusted manufacturer, we focus on delivering machines that combine efficiency, customization, and professional after-sales service. Our goal is to provide every customer with a reliable cable tray bending machine that supports long-term growth and competitive cable tray manufacturing.
Whatsapp:0086 18526079110
E-mail:Kevin@hx-machinery.com
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
