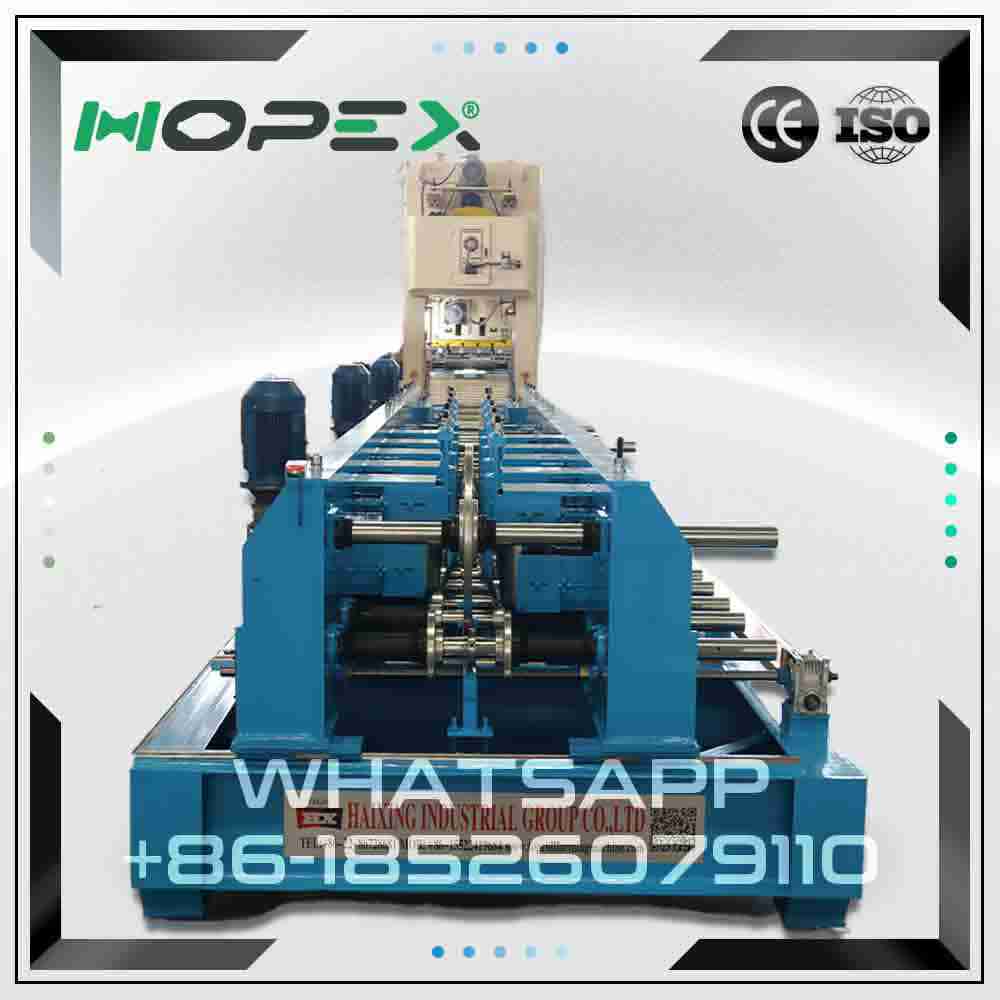

cable tray manufacturing machine
As a leading cold roll forming machine manufacturer, we specialize in providing high-quality solutions for industrial cable tray production. Our cable tray manufacturing machine is designed to offer superior performance and precision in producing cable trays for industrial, commercial, and infrastructure projects. The cable tray manufacturing machine ensures a cost-effective and efficient production process, making it an ideal choice for businesses aiming to meet growing demand while minimizing operational costs.
Our cable tray manufacturing machine can produce various types of cable trays, such as ladder-type, perforated-type, and solid-bottom cable trays. These trays are used to manage and protect electrical cables in various settings, such as factories, commercial buildings, and power stations. The machine features a high degree of automation, making it suitable for continuous, high-speed production.
One of the key benefits of the cable tray manufacturing machine is its customization options. We understand that different projects have different requirements, and therefore, our machines can be tailored to suit specific needs. Customizations include feeding width, roll forming thickness, voltage (380V, 50Hz, 60Hz, etc.), and the number of roll forming stations. Additionally, the machine’s cutting system can be customized to handle various types of cuts, ensuring the production of high-quality cable trays.
| aw Material Specifications | Material Type | Galvanized / Cold-Rolled / Stainless Steel |
| Material Thickness | 0.8–2.5 mm (Customizable) | |
| Material Width | Customized according to tray size | |
| Yield Strength | G250–G550 | |
| Roll Forming System | Forming Stations | 18–24 stations |
| Roller Material | GCr15, heat treated | |
| Shaft Material | 45# steel, heat treate | |
| Shaft Diameter | Φ70–90 mm | |
| Drive System | Chain drive | |

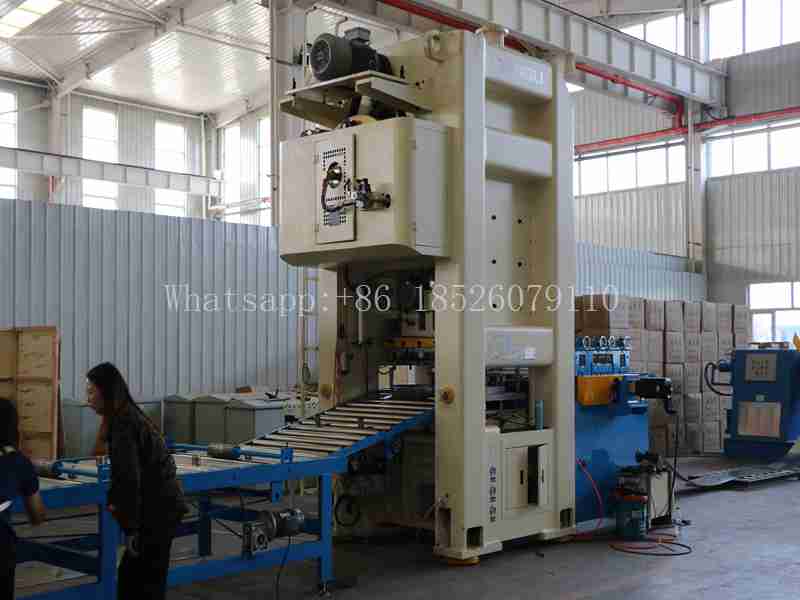

| Punching System | Punching Type | Hydraulic Punching |
| Punching Position | Before forming | |
| Hole Type |
|
|
| Punching Accuracy | ±0.5 mm | |
| Control System | Operation Interface | Touch Screen (CN / EN) |
| Inverter | Famous brand | |
| Electrical Components | Siemens or Schnedier | |
| Data Memory | Parameter memory | |
| Motor & Hydraulic System | Main Motor Power | 11 kW *3 sets |
| Hydraulic Power | 7.5 kW | |
| Power Supply | 380V / 50Hz / 3Ph (Custom) | |
| Hydraulic Oil | 46# Anti-wear Hydraulic Oil | |
| Production size | Line Length | 35 meters |
| Machine Width | 2.5 meters | |
| Machine Weight | 25ton |

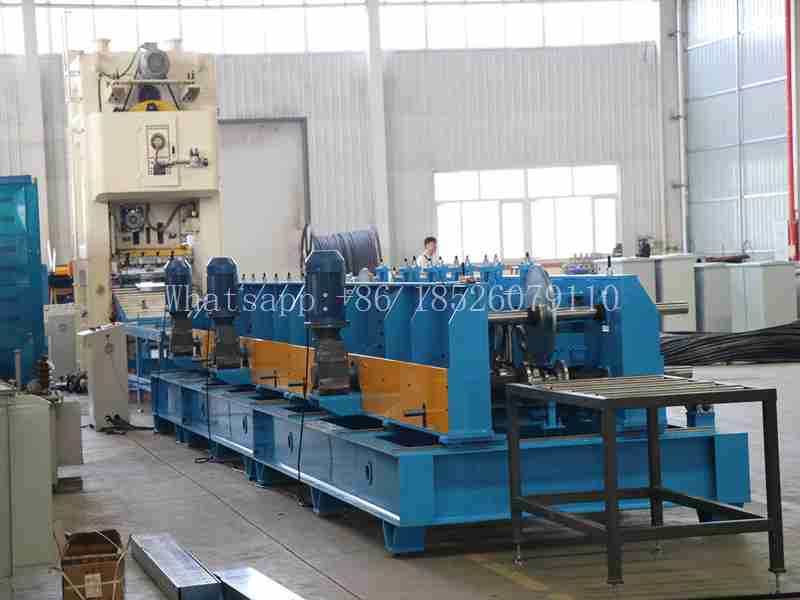

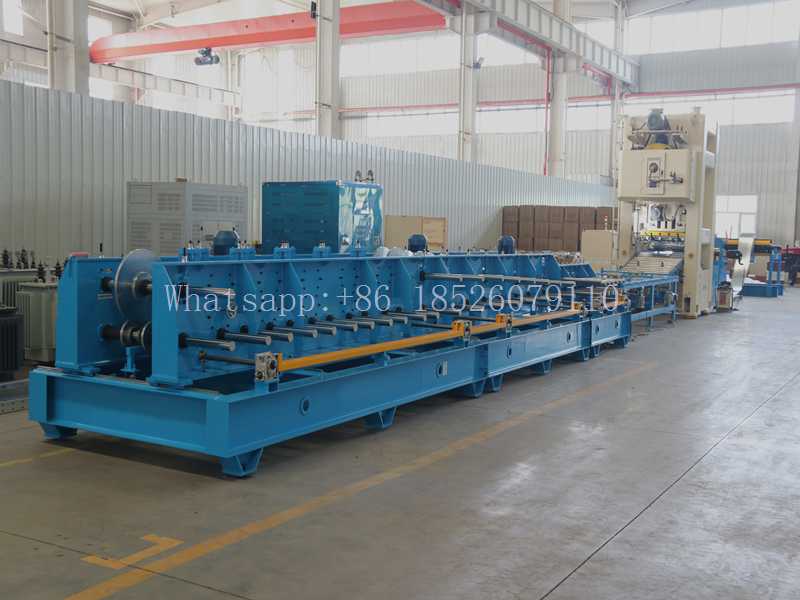

The cable tray manufacturing machine is built for long-term reliability. It features a robust steel frame, precision-machined rollers, and a dependable transmission system. The machine operates with minimal downtime, which is crucial for keeping production schedules on track. Despite its high production capacity, the machine is designed to maintain the highest level of quality, offering consistent and precise results in every production cycle.
In addition to the high-quality build and customizable options, the cable tray manufacturing machine is also supported by our comprehensive after-sales service. Our experienced engineers are available to offer remote video technical support, ensuring that any issues can be resolved quickly and efficiently. This remote service feature significantly reduces the downtime caused by technical problems and helps businesses maintain continuous operations. Spare parts and maintenance services are also available, further ensuring the longevity of the machine.
In conclusion, the cable tray manufacturing machine provides a highly efficient, cost-effective, and customizable solution for businesses looking to increase production capacity. Whether you are manufacturing cable trays for a small project or a large industrial facility, our machine offers the flexibility and reliability required to meet your needs. With competitive pricing, high-quality construction, and comprehensive support, the cable tray manufacturing machine is an excellent investment for companies seeking to streamline their cable tray production process.
Whatsapp:0086 18526079110
E-mail:Kevin@hx-machinery.com
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
