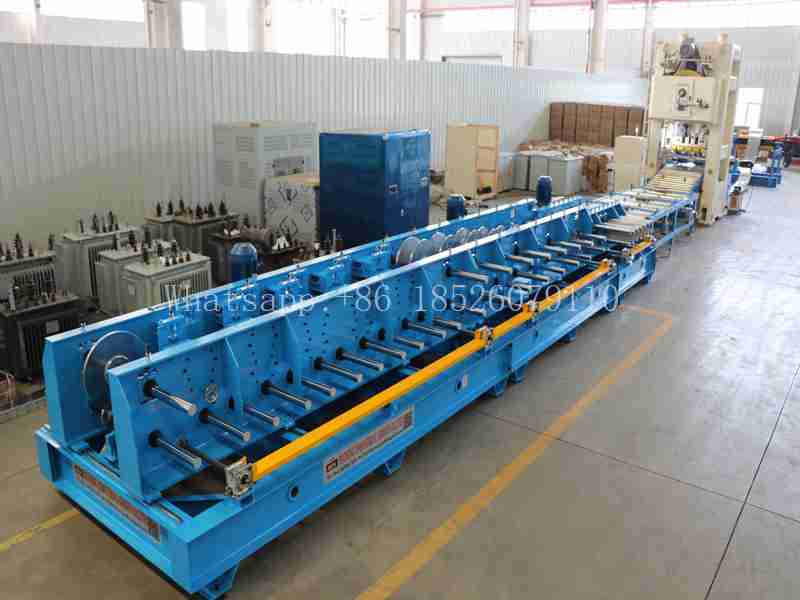

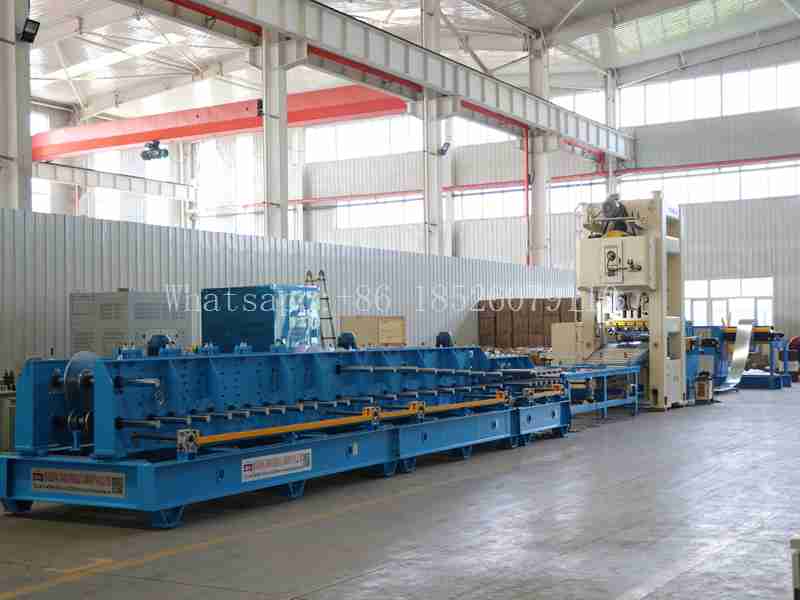

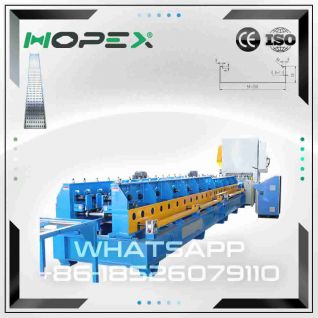

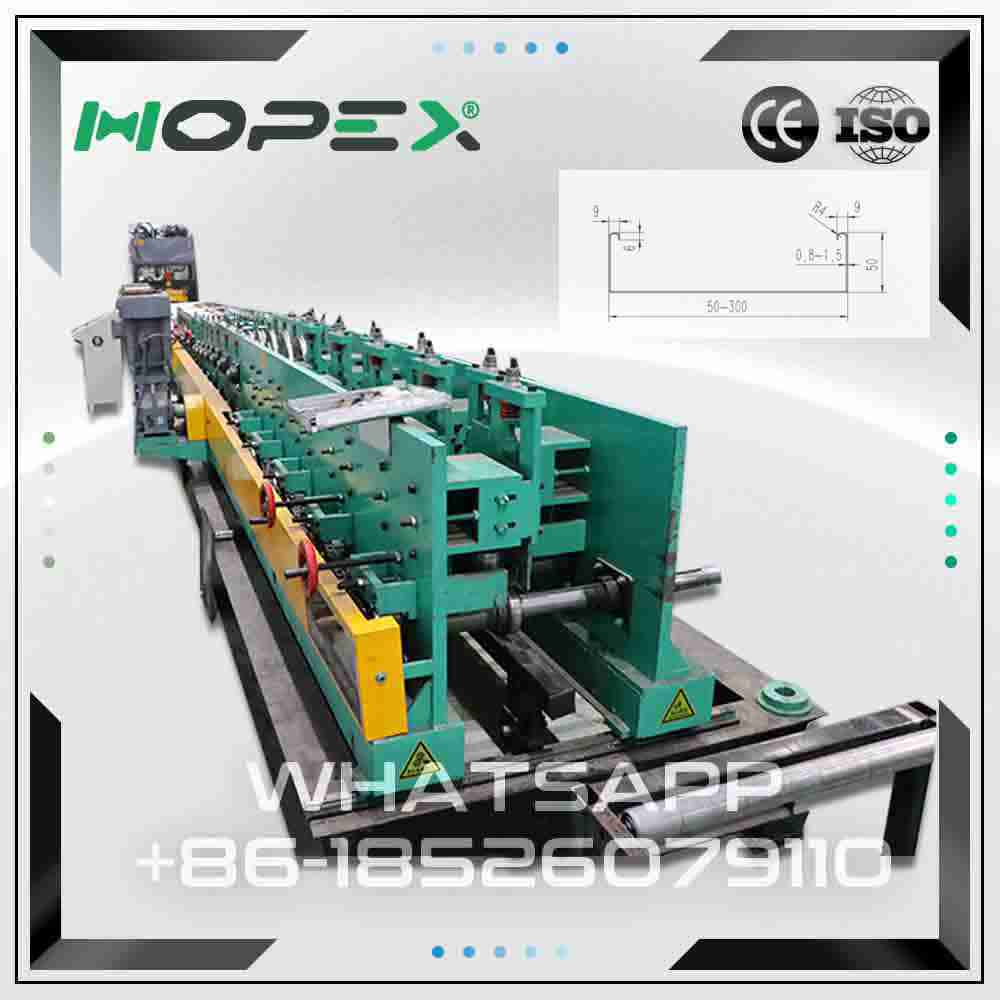

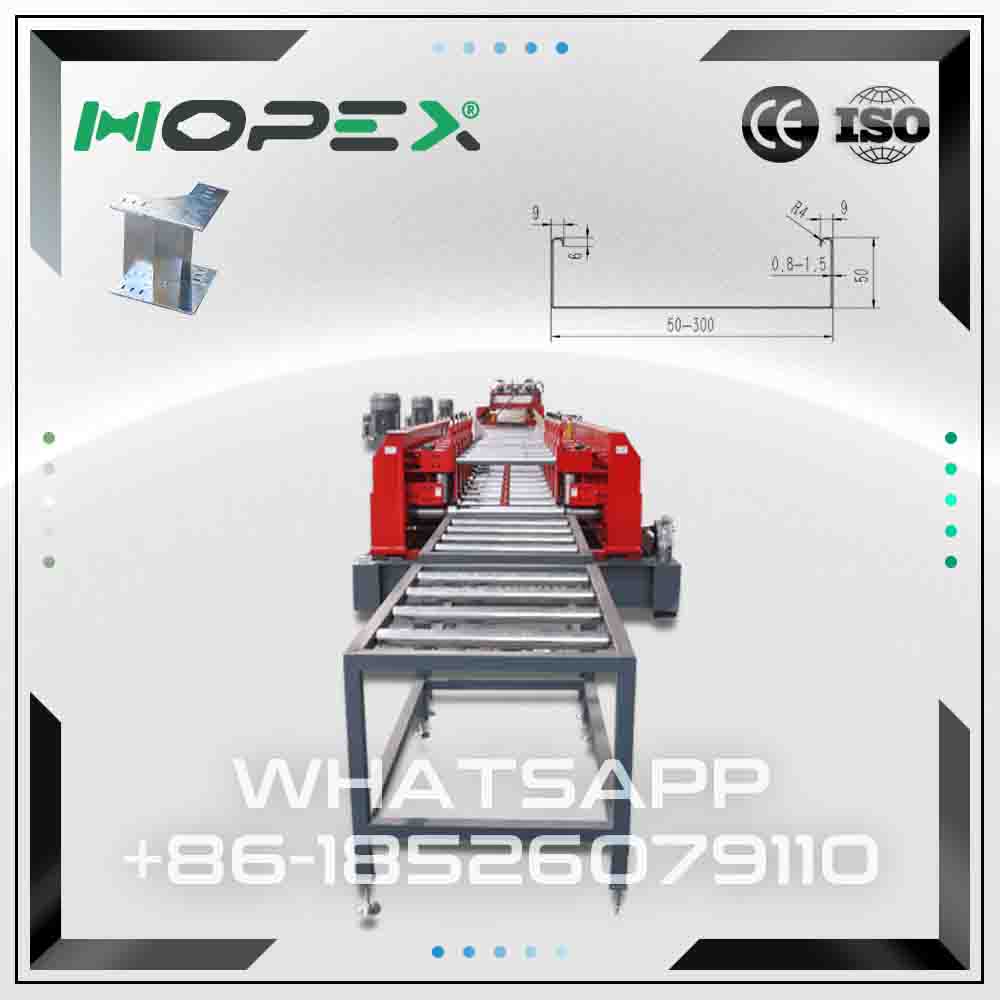

cable tray forming machine
As a professional cold roll forming machine manufacturer, we focus on providing reliable and efficient solutions for the cable management industry. Our cable tray forming machine is designed for producing high-quality cable trays with excellent precision and stable performance. The cable tray forming machine is widely used in industrial plants, commercial buildings, power projects, and infrastructure construction.
The cable tray forming machine can manufacture different types of cable trays, including ladder type, perforated type, and solid bottom cable trays. These products are essential for organizing and protecting electrical cables safely. With advanced roll forming technology, the cable tray forming machine ensures smooth forming, accurate dimensions, and consistent product quality throughout long production runs.
| aw Material Specifications | Material Type | Galvanized / Cold-Rolled / Stainless Steel |
| Material Thickness | 0.8–2.5 mm (Customizable) | |
| Material Width | Customized according to tray size | |
| Yield Strength | G220-G250 | |
| Roll Forming System | Forming Stations | 18–24 stations |
| Roller Material | GCr15, heat treated | |
| Shaft Material | 45# steel, heat treate | |
| Shaft Diameter | Φ70–90 mm | |
| Drive System | Chain drive | |

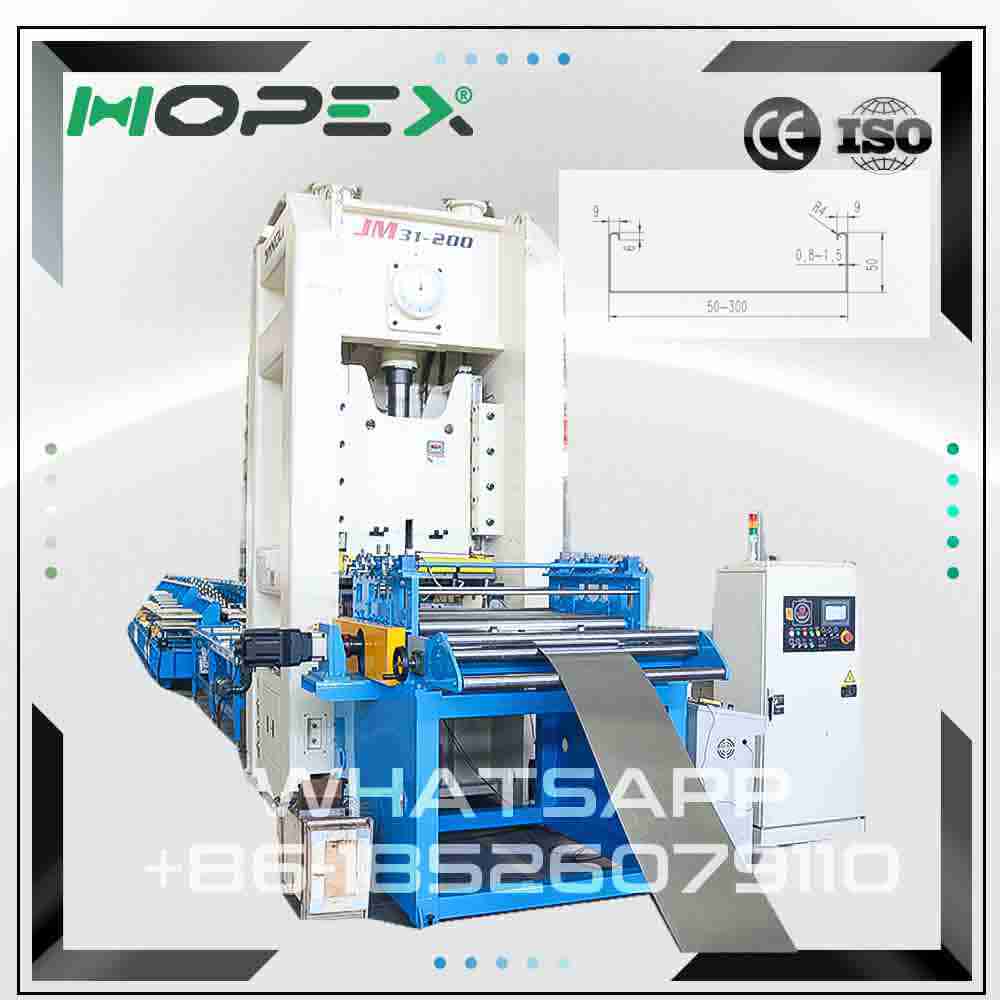

| Punching System | Punching Type | Hydraulic Punching |
| Punching Position | Before forming | |
| Hole Type | Round / Slotted / Customized | |
| Punching Accuracy | ±0.5 mm | |
| Control System | Operation Interface | Touch Screen (CN / EN) |
| Inverter | Famous brand | |
| Electrical Components | Siemens or Schnedier | |
| Data Memory | Parameter memory | |
| Motor & Hydraulic System | Main Motor Power | 11 kW *3 sets |
| Hydraulic Power | 7.5 kW | |
| Power Supply | 380V / 50Hz / 3Ph (Custom) | |
| Hydraulic Oil | 46# Anti-wear Hydraulic Oil | |
| Production size | Line Length | 35 meters |
| Machine Width | 2.5 meters | |
| Machine Weight | 25ton |
One of the key advantages of our cable tray forming machine is its strong customization capability. We understand that customers have different production requirements, so the feeding width, roll forming thickness, forming speed, and voltage can all be customized. Whether you need thicker material processing or special width cable trays, our cable tray forming machine can be designed to match your exact needs. Voltage options such as 380V, 50Hz, 60Hz, or other local standards are also available.
The structure of the cable tray forming machine is robust and durable. It is manufactured using high-strength steel frames, precision-machined rollers, and reliable transmission systems. This ensures long-term stable operation with minimal maintenance. Even under continuous production conditions, the cable tray forming machine maintains high efficiency and low failure rates, helping customers reduce operating costs and improve productivity.
To ensure worry-free operation, we provide professional after-sales service for every cable tray forming machine. When machine problems occur, our experienced engineers can offer real-time video technical guidance to help customers quickly identify and solve issues. This remote support service significantly reduces downtime and eliminates the need for immediate on-site service, saving both time and cost. Detailed operation manuals and maintenance guidance are also provided to support long-term use.
In summary, our cable tray forming machine is an ideal solution for manufacturers seeking efficiency, flexibility, and reliability. With customized design options, stable forming performance, and strong after-sales support, the cable tray forming machine helps customers build efficient cable tray production lines and stay competitive in the global market. Choosing a high-quality cable tray forming machine is a smart investment for long-term business growth.
WhatsApp：0086 18526079110
E-mail:Kevin@hx-machinery.com
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
