perforated cable tray machine
As an experienced cold roll forming machine manufacturer, we are committed to supplying high-performance equipment for the cable management industry. Our perforated cable tray machine is specially designed for producing high-quality perforated cable trays with precise hole patterns, stable forming, and high production efficiency. The perforated cable tray machine is widely used in power plants, data centers, commercial buildings, and industrial facilities.

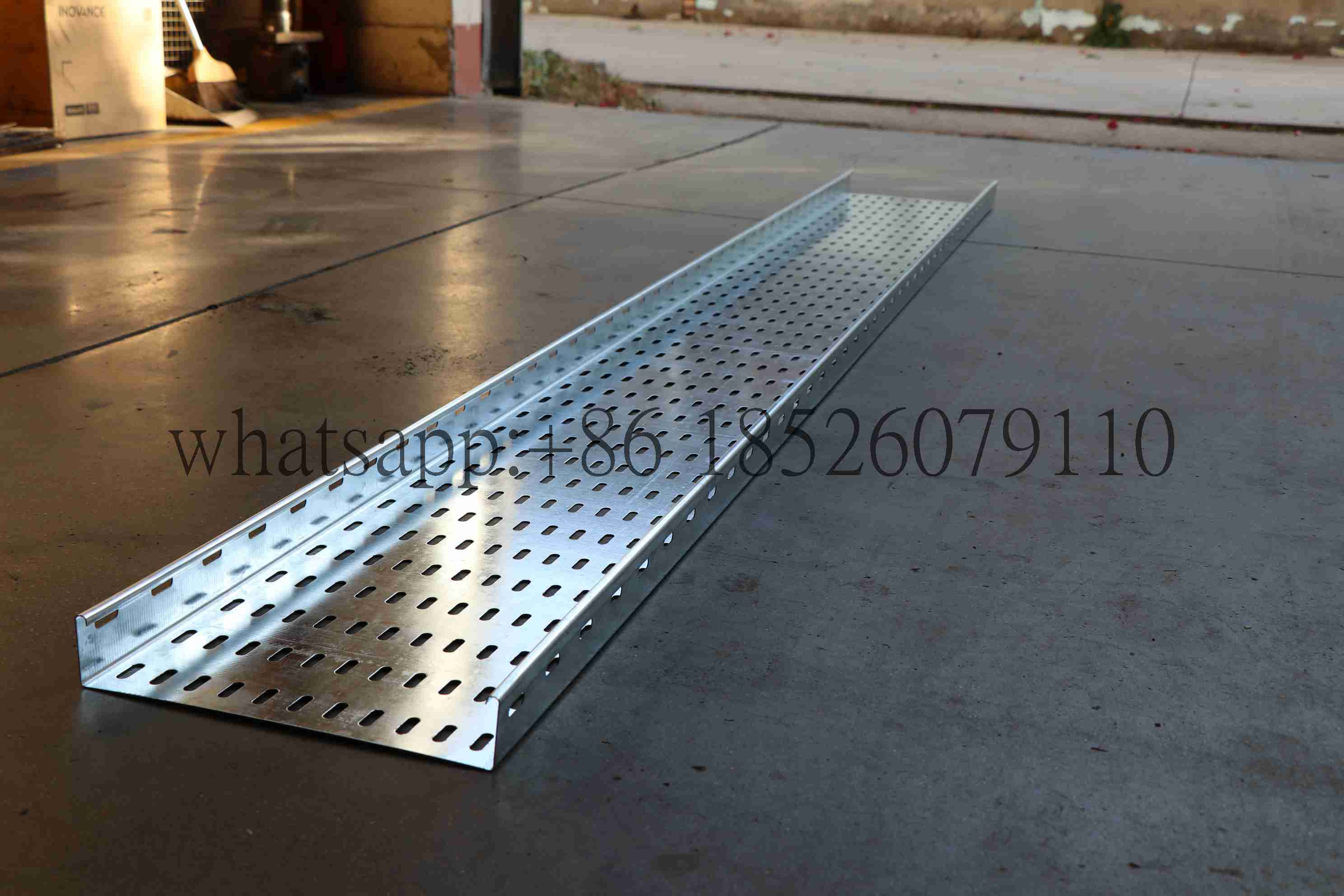

The perforated cable tray machine is capable of manufacturing different sizes and profiles of perforated cable trays that provide excellent ventilation and heat dissipation for electrical cables. With advanced roll forming technology and accurate punching systems, the perforated cable tray machine ensures consistent hole alignment, smooth edges, and uniform dimensions throughout continuous production.
| aw Material Specifications | Material Type | Galvanized / Cold-Rolled / Stainless Steel |
| Material Thickness | 0.8–2.5 mm (Customizable) | |
| Material Width | Customized according to tray size | |
| Yield Strength | G220-G250 | |

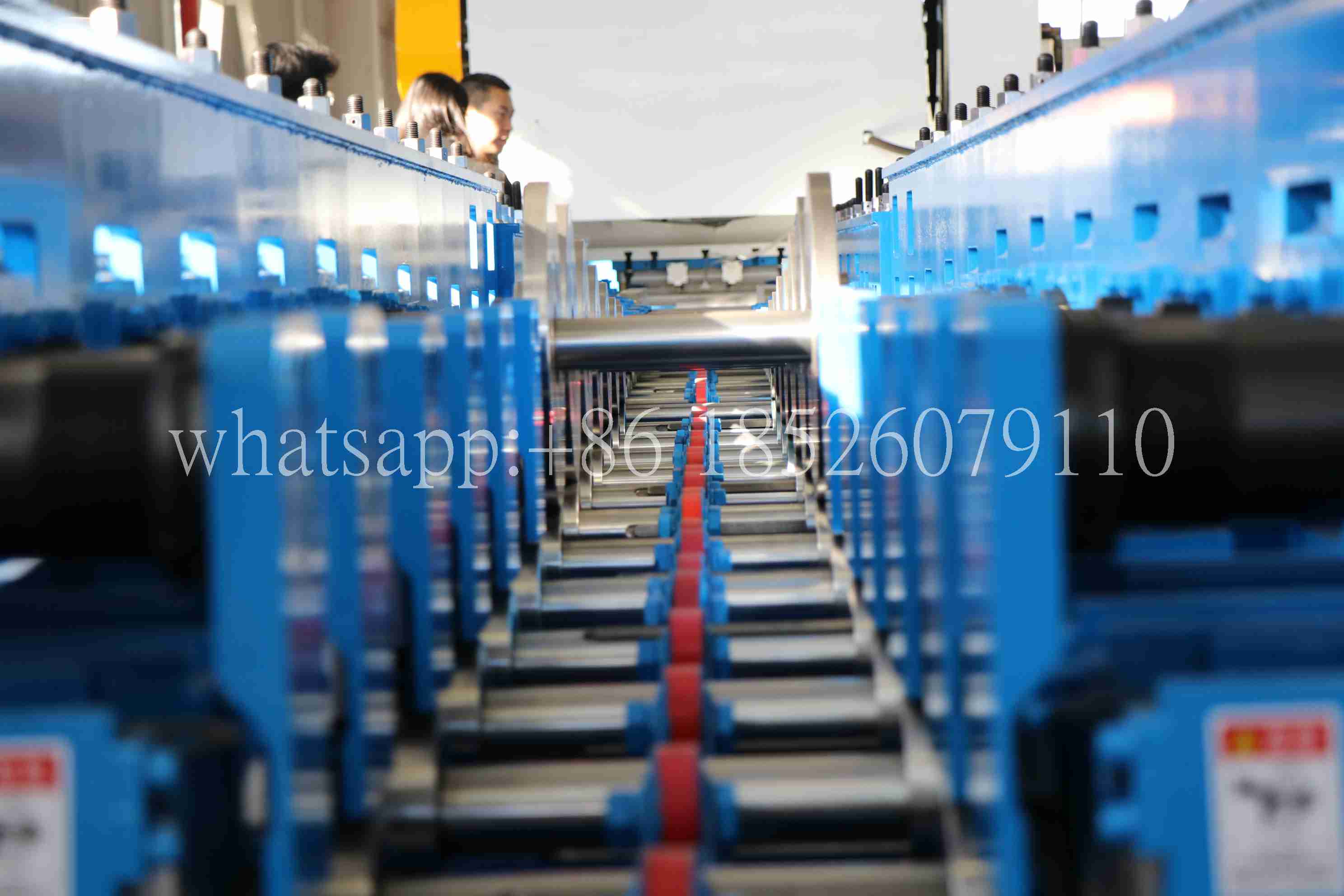

| Roll Forming System | Forming Stations | 18–24 stations |
| Roller Material | GCr15, heat treated | |
| Shaft Material | 45# steel, heat treate | |
| Shaft Diameter | Φ70–90 mm | |
| Drive System | Chain drive | |

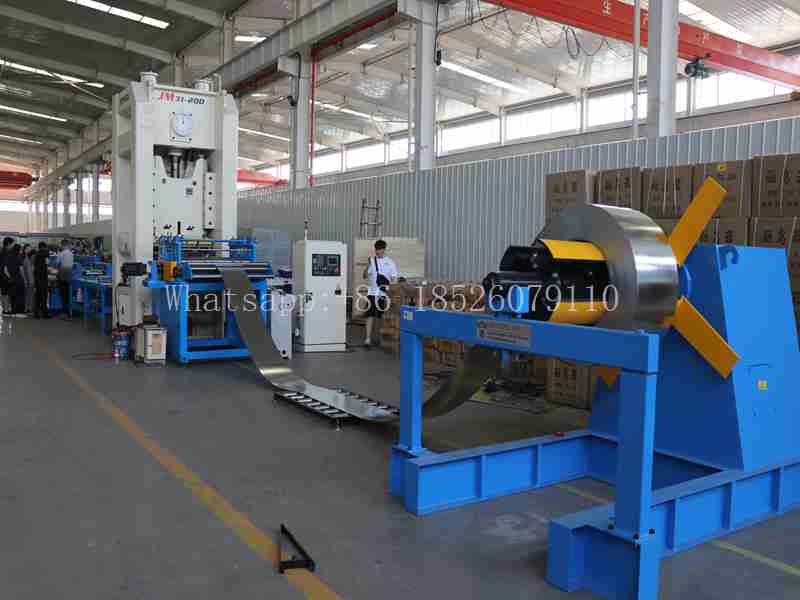

| Punching System | Punching Type | Hydraulic Punching |
| Punching Position | Before forming | |
| Hole Type | Round / Slotted / Customized | |
| Punching Accuracy | ±0.5 mm | |
| Control System | Operation Interface | Touch Screen (CN / EN) |
| Inverter | Famous brand | |
| Electrical Components | Siemens or Schnedier | |
| Data Memory | Parameter memory | |
| Motor & Hydraulic System | Main Motor Power | 11 kW *3 sets |
| Hydraulic Power | 7.5 kW | |
| Power Supply | 380V / 50Hz / 3Ph (Custom) | |
| Hydraulic Oil | 46# Anti-wear Hydraulic Oil | |
| Production size | Line Length | 35 meters |
| Machine Width | 2.5 meters | |
| Machine Weight | 25ton |
One of the key advantages of our perforated cable tray machine is its strong customization capability. To meet different customer requirements, the feeding width, roll forming thickness, punching mold design, and production speed can all be customized. Whether you need standard perforation patterns or special hole designs, our perforated cable tray machine can be engineered accordingly. Voltage options such as 380V, 50Hz, 60Hz, or other local standards are also available to ensure smooth operation in different countries.

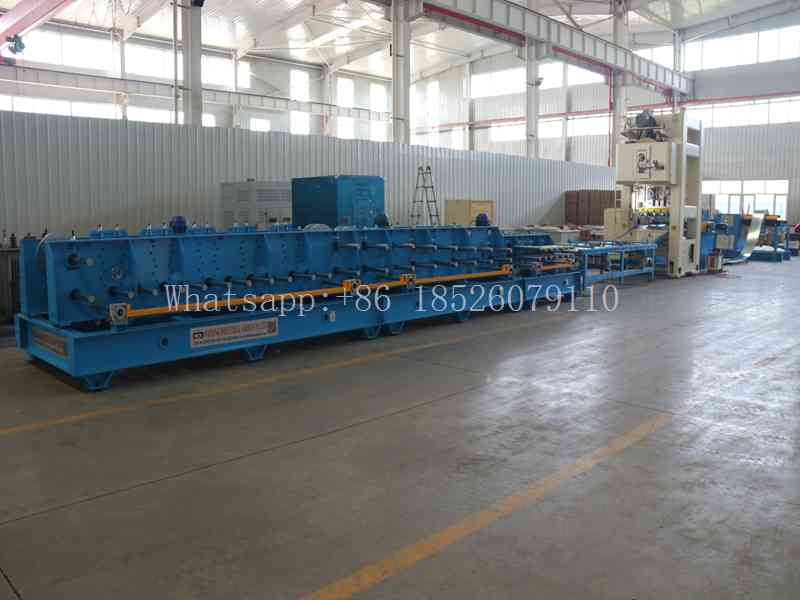

The structure of the perforated cable tray machine is designed for long-term durability and stability. It features a heavy-duty steel frame, precision-machined rollers, and reliable transmission components. This robust design allows the perforated cable tray machine to operate continuously with minimal maintenance, even under demanding production conditions. Customers benefit from reduced downtime, lower operating costs, and higher overall productivity.
After-sales service is a critical part of the value of our perforated cable tray machine. When machine issues occur, our professional engineers can provide real-time video technical guidance to assist customers in troubleshooting and adjustment. This remote support service helps customers quickly restore production without waiting for on-site service. In addition, we supply detailed operation manuals, maintenance instructions, and spare parts support to ensure long-term stable operation of the perforated cable tray machine.
In conclusion, our perforated cable tray machine is an ideal solution for manufacturers seeking efficiency, precision, and flexibility in perforated cable tray production. With customized configurations, reliable performance, and strong after-sales support, the perforated cable tray machine enables customers to build efficient production lines and remain competitive in the global market. Choosing a high-quality perforated cable tray machine is a smart investment for sustainable business growth.
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
