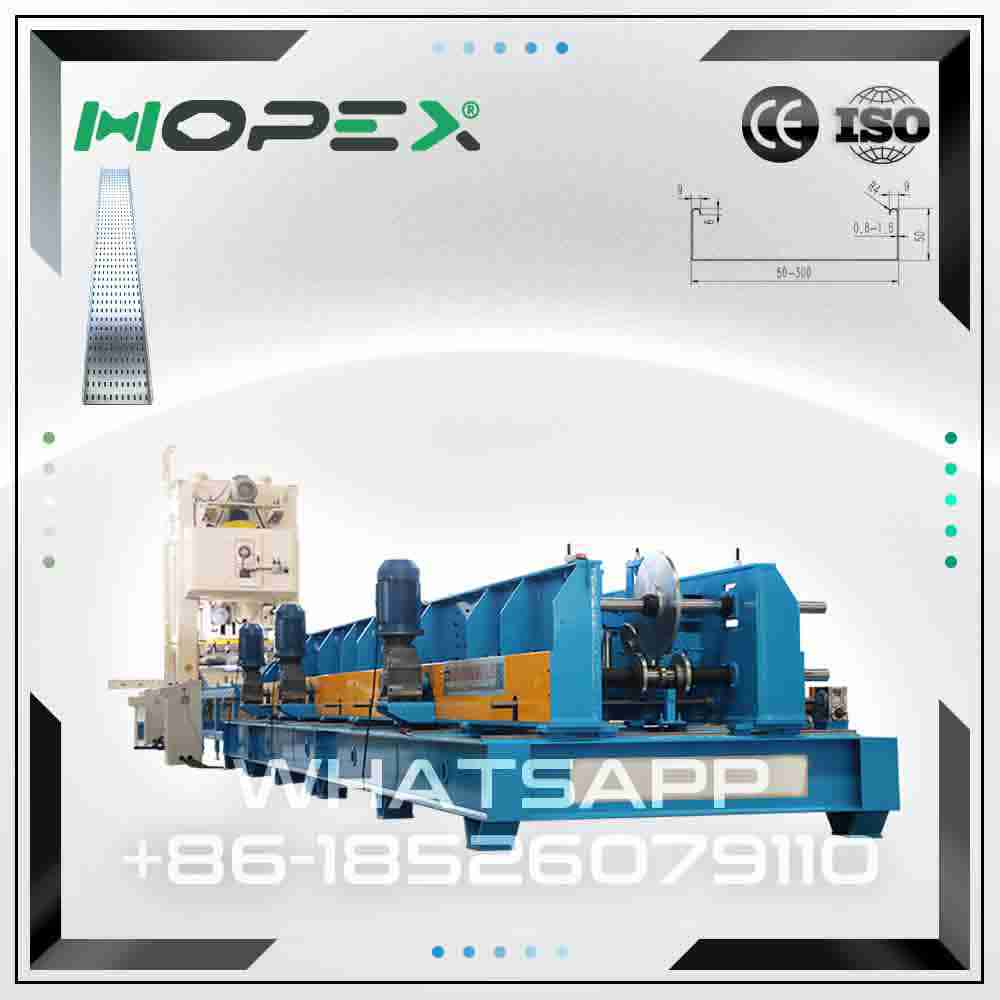

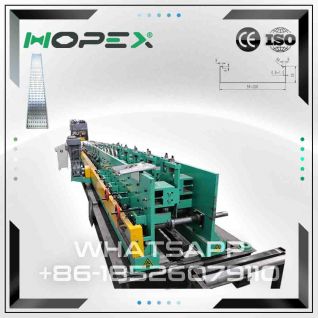

cable ladder machine

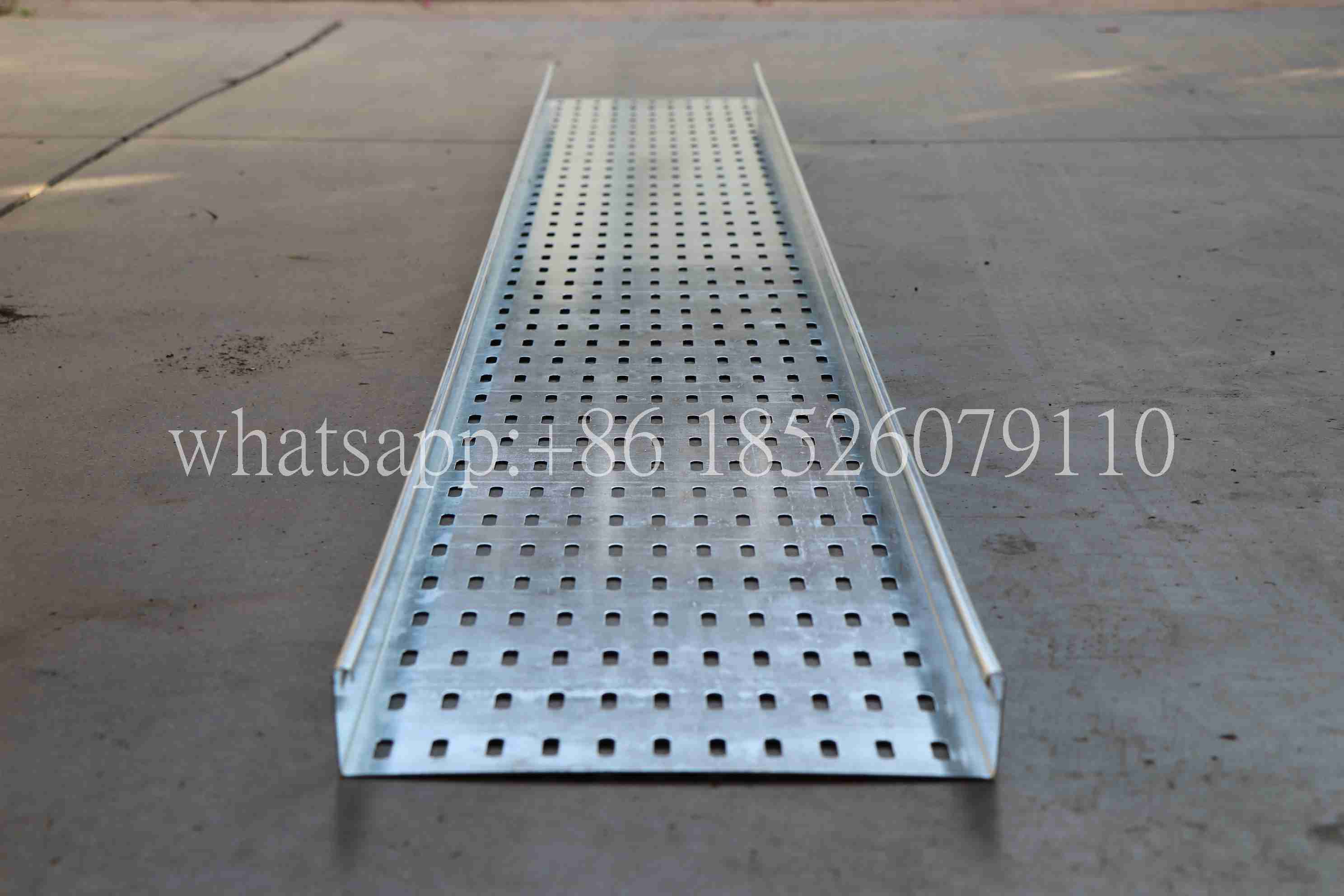

As a professional cold roll forming machine manufacturer, we specialize in designing and supplying high-quality cable ladder machine solutions for customers around the world. Our cable ladder machine is developed to produce strong, durable, and precisely formed cable ladders used in power distribution, industrial plants, data centers, and large infrastructure projects.
| aw Material Specifications | Material Type | Galvanized / Cold-Rolled / Stainless Steel |
| Material Thickness | 0.8–2.5 mm (Customizable) | |
| Material Width | Customized according to tray size | |
| Yield Strength | G220-G250 | |
| Roll Forming System | Forming Stations | 18–24 stations |
| Roller Material | GCr15, heat treated | |
| Shaft Material | 45# steel, heat treate | |
| Shaft Diameter | Φ70–90 mm | |
| Drive System | Chain drive | |
| Punching System | Punching Type | Hydraulic Punching |
| Punching Position | Before forming | |
| Hole Type | Round / Slotted / Customized | |
| Punching Accuracy | ±0.5 mm | |
| Control System | Operation Interface | Touch Screen (CN / EN) |
| Inverter | Famous brand | |
| Electrical Components | Siemens or Schnedier | |
| Data Memory | Parameter memory | |
| Motor & Hydraulic System | Main Motor Power | 11 kW *3 sets |
| Hydraulic Power | 7.5 kW | |
| Power Supply | 380V / 50Hz / 3Ph (Custom) | |
| Hydraulic Oil | 46# Anti-wear Hydraulic Oi | |
| Production size | Line Length | 35 meters |
| Machine Width | 2.5 meters | |
| Machine Weight | 25ton |

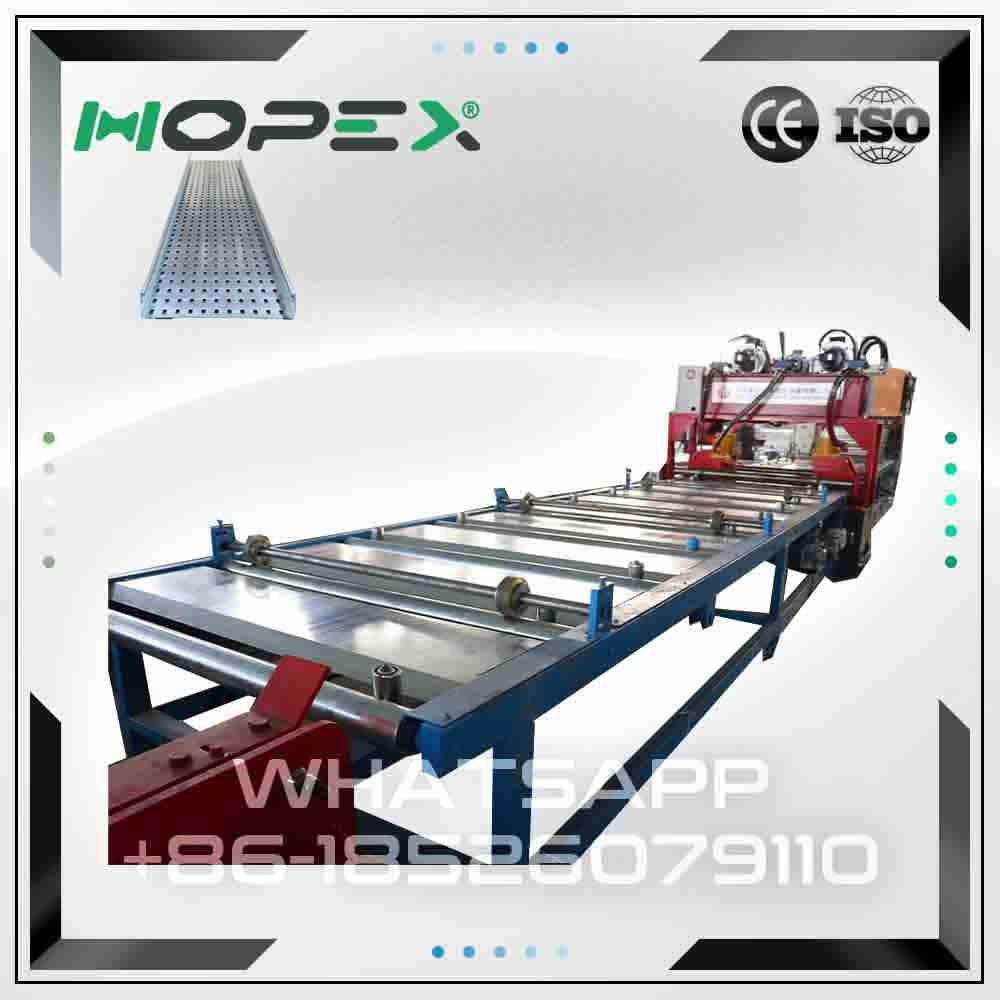

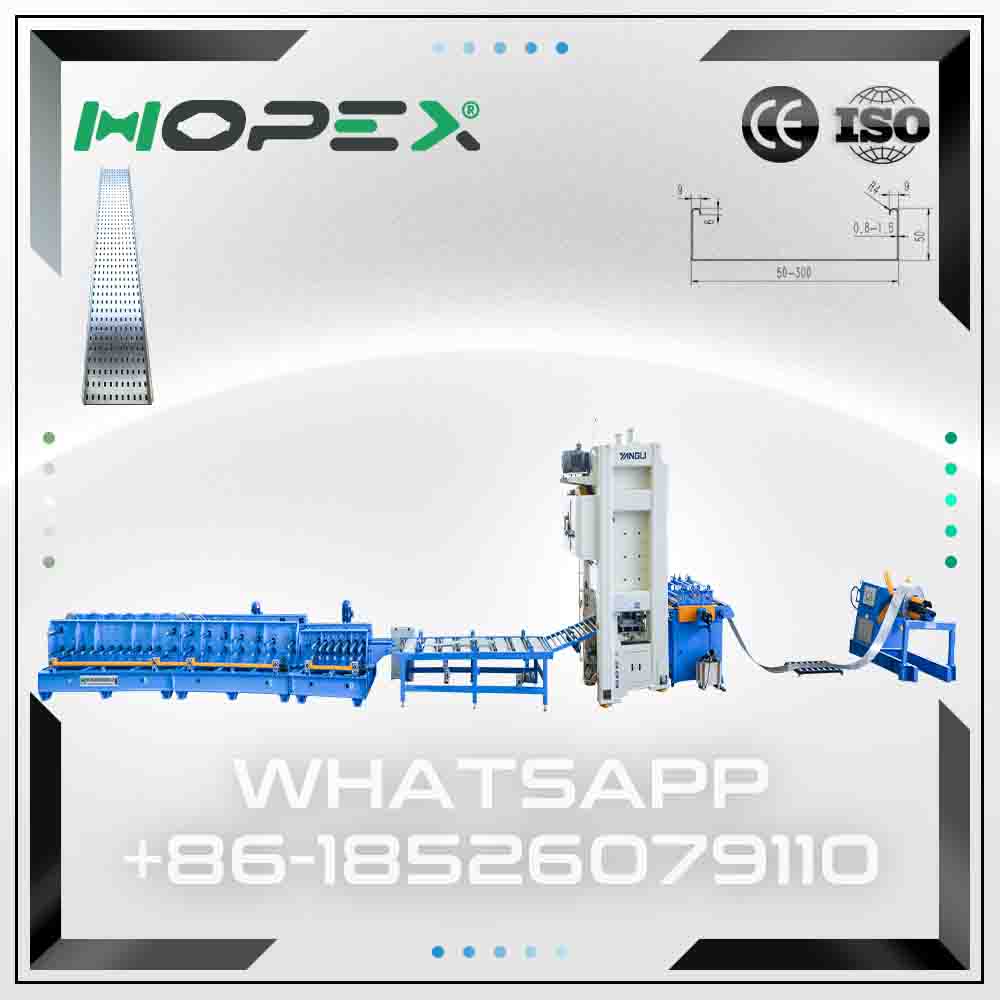

The cable ladder machine adopts advanced roll forming technology combined with an automatic control system to ensure stable and continuous production. A complete cable ladder machine production line usually includes decoiling, leveling, roll forming, optional punching, hydraulic cutting, and finished product stacking. This efficient workflow allows the cable ladder machine to achieve high output while maintaining consistent product quality and dimensional accuracy.
One of the key advantages of our cable ladder machine is its high level of customization. Feeding width, forming thickness, ladder height, rung spacing, and production speed can all be adjusted according to customer requirements. Whether manufacturing standard cable ladders or customized profiles, the cable ladder machine can be configured to meet different engineering specifications. In addition, voltage, frequency, and electrical control systems can be customized to match local standards in different countries and regions.

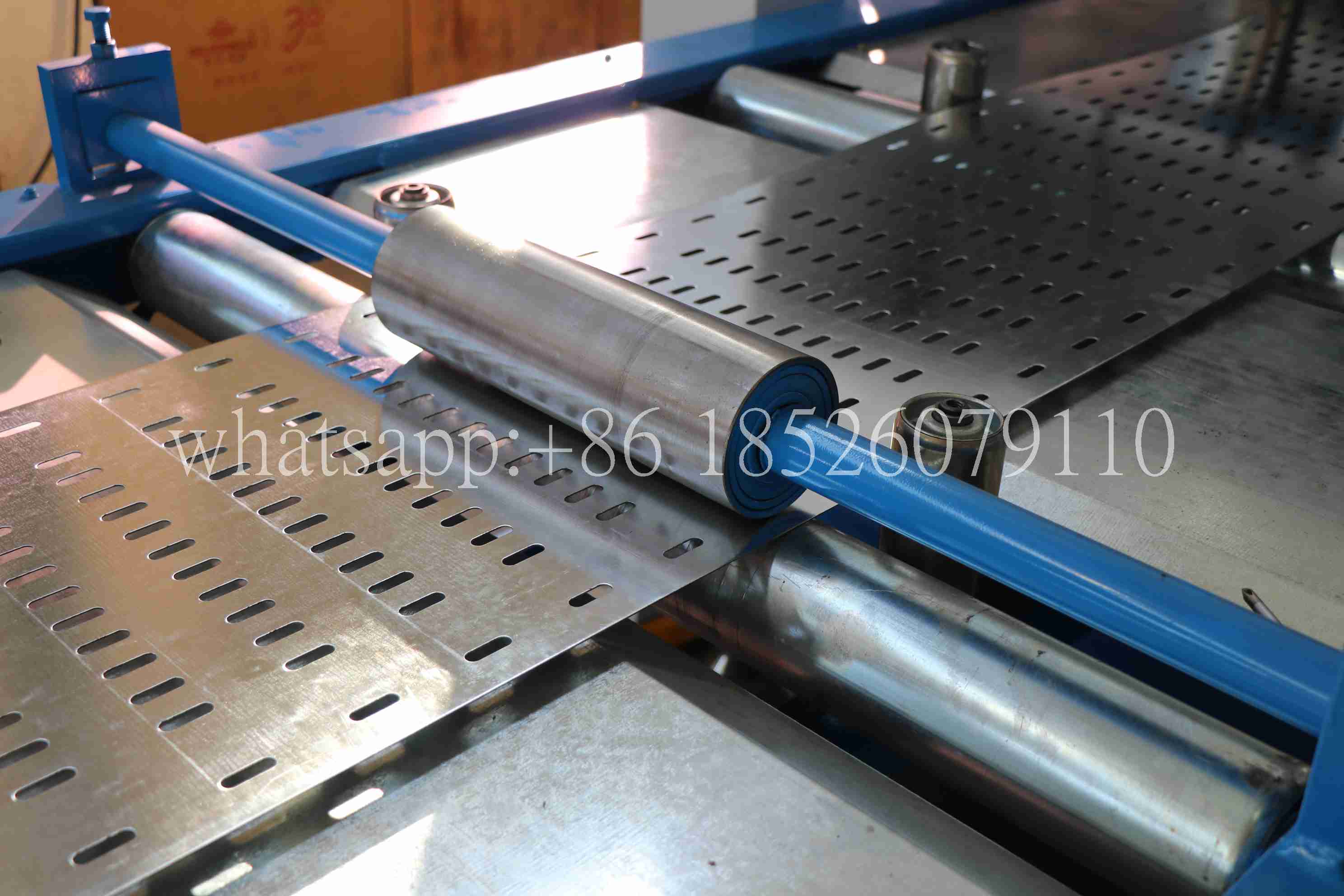

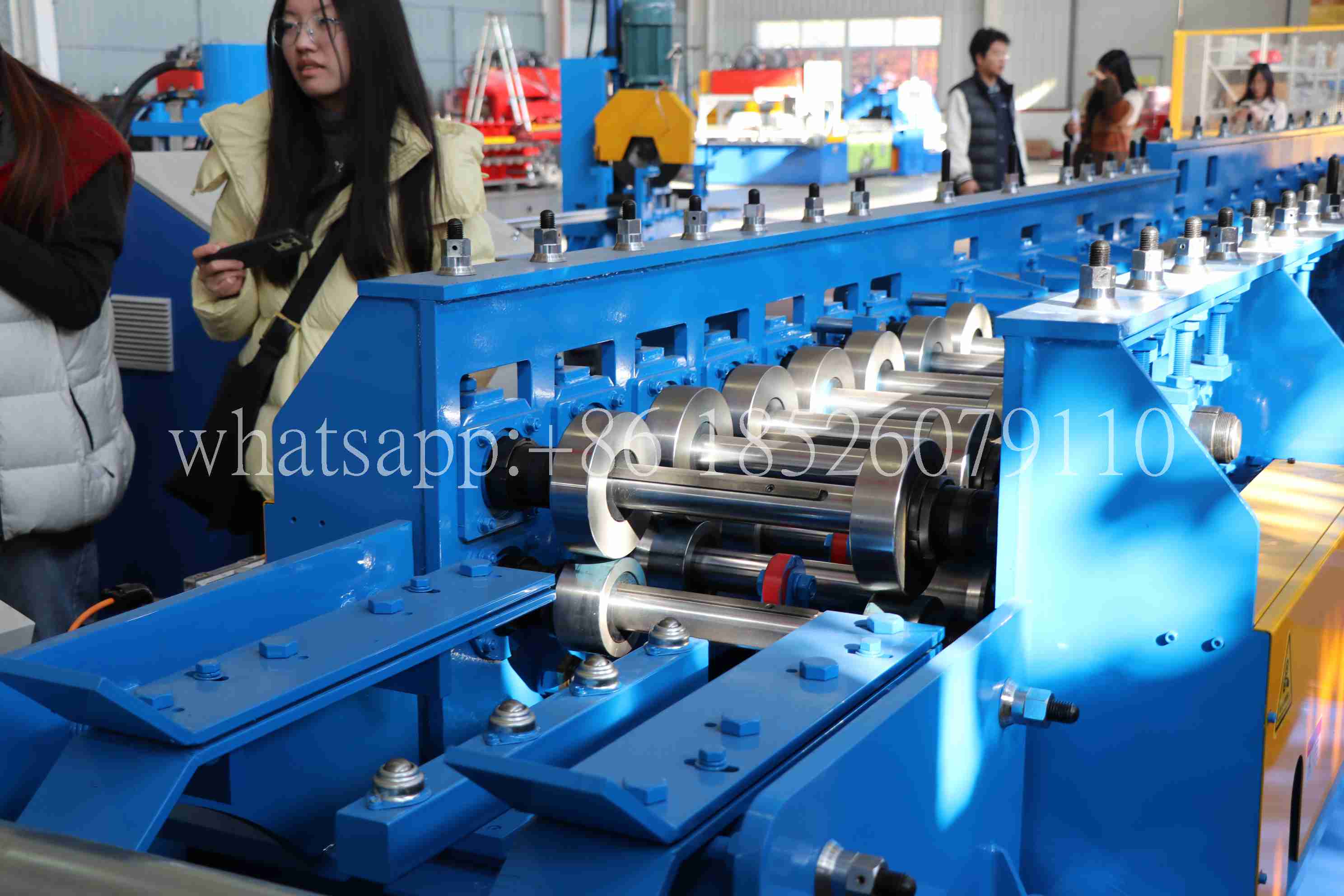

To ensure long-term reliability, the cable ladder machine is manufactured using high-strength steel structures and precision-machined forming rollers. The rollers are designed to reduce surface scratches and ensure uniform forming during continuous cable ladder machine operation. The hydraulic cutting system provides clean and accurate cuts without deformation, ensuring each cable ladder meets strict quality standards.
We also understand the importance of technical support in daily production. When any issue occurs during cable ladder machine operation, our experienced engineers can provide online video guidance for troubleshooting, adjustment, and maintenance. This remote support service helps customers reduce downtime, avoid unnecessary travel costs, and keep production running smoothly.
Safety and ease of operation are core considerations in the design of our cable ladder machine. The machine is equipped with emergency stop devices, protective covers, and a user-friendly PLC control system. Operators can easily set parameters, monitor production status, and switch between different cable ladder sizes with minimal training.
With years of experience in cold roll forming equipment manufacturing, we are committed to delivering reliable, efficient, and cost-effective cable ladder machine solutions. Our cable ladder machine helps customers improve productivity, ensure consistent quality, and gain a competitive advantage in the cable ladder manufacturing industry.
Whatsapp:0086 18526079110
E-mail:Kevin@hx-machinery.com
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
