Guardrail Roll Forming Machine Manufacturers



As leading Guardrail roll forming machine manufacturers**, we specialize in the design, engineering, and manufacturing of fully integrated production lines for W-beam (two-wave) and thrie-beam (three-wave) highway guardrail systems. With decades of collective experience in cold roll forming technology, our position as premier **Guardrail roll forming machine manufacturers** is built on a foundation of precision engineering, robust construction, and comprehensive customer support that extends from initial consultation to lifelong after-sales service .



Rack upright roll forming machine working flow

Steel Coil → Decoiler → Leveling → Punching → Roll Forming → Cutting → Output Table



Guardrail roll forming machine manufacturers parameters
1	Decoiler	8 Ton single-arm decoiler
2	Machine body frame	500H Beams welding
3	Forming guide feed frame	Side arch type
4	Forming Machine Type	55 portal frame with chain drive
5	Diameter of shaft	Ø120 mm
6	Transmission System	TX230 distribution gearbox + 180 cross shaft universal coupling
7	Main Motor Power	Dual 22 kW motors with K107 reducer
8	Forming Speed	5-15 m/min
9	Roller station	15-18 rows
10	Material of rollers	High-quality CR12, quenched and precision machined
11	Hydraulic system power	22 KW with four-valve plunger pump
12	Cutting Method	Hydraulic triple-blade shearing
13	Punching Units	Three sets (one for center hole, two for side holes)
14	Cutting blade	Cr12, Quenched treatment 58℃-62℃
15	Forming Thickness	2.0-4.0 mm ( Length Tolerance: ±2 mm)
16	Control System	Delta PLC, Doble 22 kW Delta inverters, Delta touch screen
17	Machine Dimensions	1400mm*2400mm(L*W)

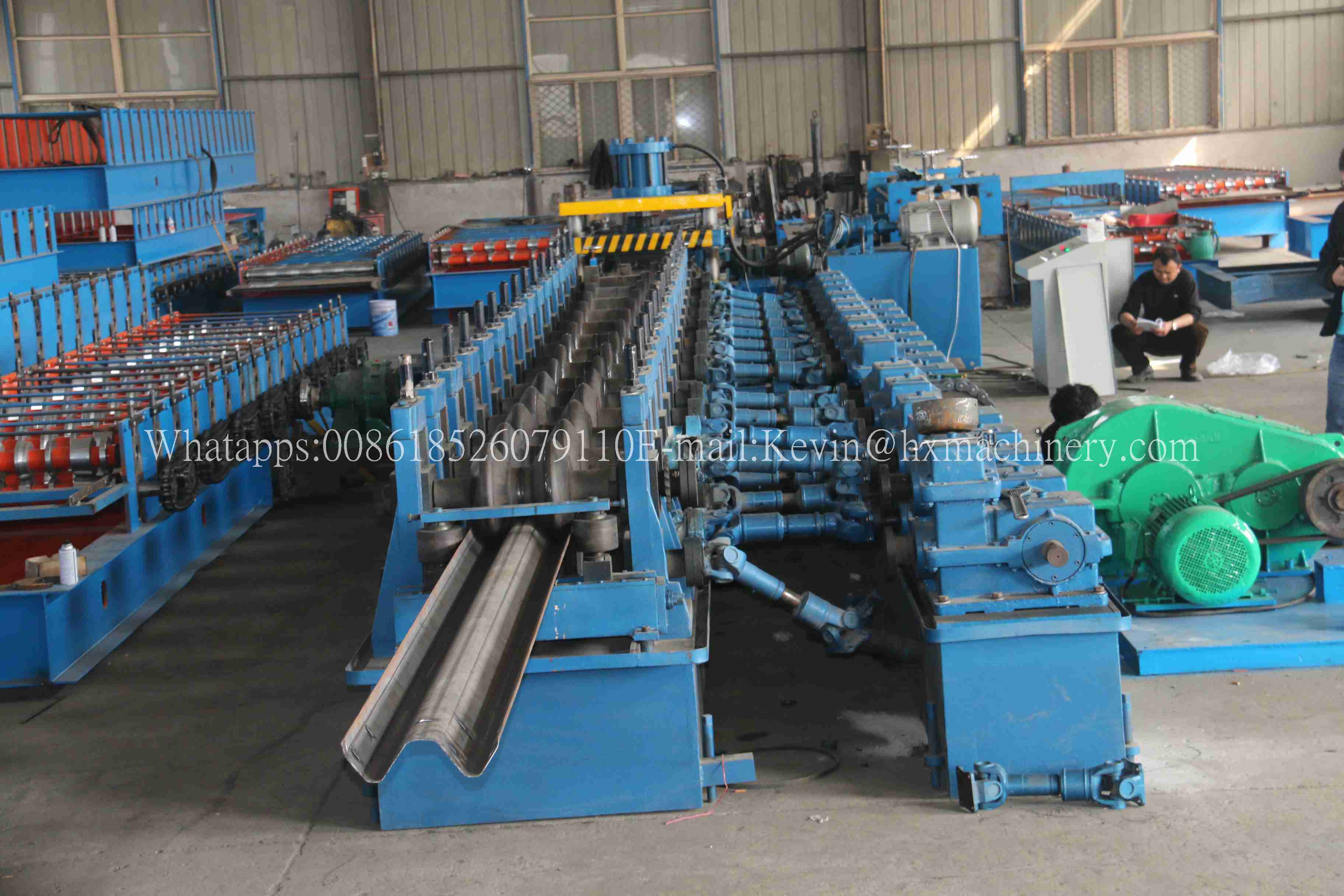

Our **Guardrail roll forming machine** represents the pinnacle of automated manufacturing for road safety infrastructure. These sophisticated production lines are engineered to transform raw steel coil into finished, stack-ready guardrail beams with exceptional efficiency and uncompromising dimensional accuracy . As dedicated **Guardrail roll forming machine manufacturers**, we understand that the barriers produced on our equipment serve a critical: protecting motorists on expressways, bridges, and high-speed roadways worldwide through superior impact resistance and energy absorption characteristics .



Comprehensive Production Workflow Engineered for Performance



Our **Guardrail roll forming machine** orchestrates a seamless, fully automated manufacturing sequence. The process begins with a heavy-duty hydraulic decoiler, optionally equipped with a pit-type coil car that enables continuous production without downtime during coil changeover – a hallmark of experienced **Guardrail roll forming machine manufacturers** . The electrical control steel coil peeler facilitates safe and effortless feeding of high-tensile steel coil into the production line .



The material then advances through a precision seven-roller leveling system, where pinch rolls and leveling rollers manufactured from 40Cr steel (quenched to HRC48°-52°) eliminate internal coil stresses and ensure absolute flatness . This critical preparation stage, perfected by leading **Guardrail roll forming machine manufacturers**, establishes the foundation for subsequent high-precision operations.



Advanced Hydraulic Punching Systems



Our **Guardrail roll forming machine** incorporates high-capacity hydraulic punching systems, typically YL32-315 four-column hydraulic presses . These robust units perform all necessary hole punching and notching operations with exceptional precision. The punching dies, crafted from premium Cr12MoV alloy steel and quenched to HRC58°-62°, deliver consistent accuracy over millions of cycles . What distinguishes elite **Guardrail roll forming machine manufacturers** is our ability to integrate fully programmable PLC-controlled punching systems that accommodate various national standard hole patterns without mechanical adjustments .

The 2-in-1 Interchangeable Cassette Innovation



A defining advancement offered by premier **Guardrail roll forming machine manufacturers** is the 2-in-1 interchangeable cassette system. This innovative design enables a single production line to seamlessly switch between two-wave and three-wave guardrail profiles by exchanging only the final forming stations (typically the last three stations) and corresponding cutting tooling . This咬扣 (interlocking) of modular tooling architecture represents a paradigm shift in production flexibility, dramatically reducing capital expenditure while expanding manufacturing capabilities.



 Precision Roll Forming Engineering

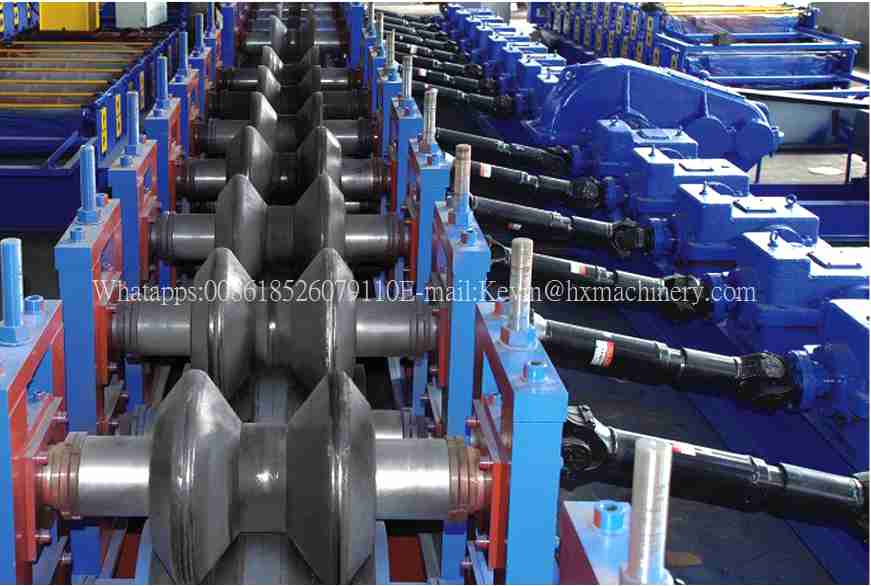

The heart of our **Guardrail roll forming machine** features 16-25 precision roll forming stations mounted on heavy-duty cast iron HT200 frames . Main shafts, typically Φ70-100mm and crafted from 45# forged steel, transmit robust torque through gearbox transmission systems with universal shafts . The forming rollers, manufactured from premium GCR15 bearing steel and quenched to HRC58°-62° with hard chrome plating, deliver exceptional wear resistance and consistent profile accuracy . As experienced **Guardrail roll forming machine manufacturers**, we specify bearing types including fixed surface 7216 and regulation 32216, ensuring long-term reliability under continuous heavy-duty operation .



Hydraulic Cutting and Automated Stacking



Our **Guardrail roll forming machine** employs high-pressure hydraulic cutting stations (operating up to 60MPa) that deliver clean, square, burr-free cuts to exact programmed lengths – standard 4320mm, 6000mm, or fully customized dimensions . Cutting blades, fabricated from Cr12 alloy steel and quenched to HRC58°-62°, maintain sharpness through extended production runs .



The automatic stacking system, a signature feature of advanced **Guardrail roll forming machine manufacturers**, organizes finished guardrail beams into bundles of 20+ pieces with PLC-controlled precision, dramatically reducing manual labor and increasing overall production efficiency .



 Intelligent Control Systems



Every **Guardrail roll forming machine** is governed by advanced PLC control systems from industry leaders including Panasonic, Omron, Siemens, and Mitsubishi . The HMI touchscreen interface provides operators with real-time production monitoring, parameter modification, diagnostic error reporting, and comprehensive failure detection functions that automatically halt operations upon discovering irregularities . Multilingual interfaces (English, Spanish, Chinese, and others) reflect the global perspective of leading **Guardrail roll forming machine manufacturers** .



Technical Specifications and Customization



Our **Guardrail roll forming machine** accommodates material thicknesses from 2.0mm to 4.0mm (customizable to 6.0mm), with sheet widths of 462mm, 736mm, or fully customized dimensions . Forming speeds range from 8-25 meters per minute, with length accuracy maintained within ±3.0mm . Total installed power typically ranges from 71-100KW depending on configuration .



 Comprehensive Global Support



As customer-centric **Guardrail roll forming machine manufacturers**, we provide extensive after-sales support including **real-time video online guidance** from senior engineers for immediate troubleshooting and process optimization . Overseas installation, commissioning, and operator training services are available, ensuring your production line achieves peak performance regardless of location .



Investing in our **Guardrail roll forming machine** means partnering with manufacturers committed to quality certifications including CE, EAC, TUV, and ISO 9001 . This is not merely equipment acquisition – it is a strategic partnership with experienced **Guardrail roll forming machine manufacturers** dedicated to your success in the global infrastructure market.
