Highway guardrail roll forming machine

Highway guardrail roll forming machine

As a professional manufacturer of cold roll forming equipment, we specialize in designing efficient and reliable production lines for structural steel components. Our advanced Highway guardrail roll forming machine is developed with mature roll forming technology and rich manufacturing experience. This Highway guardrail roll forming machine is widely used for producing high-strength metal beams, especially for applications requiring strong structural support and precise interlocking assembly.、

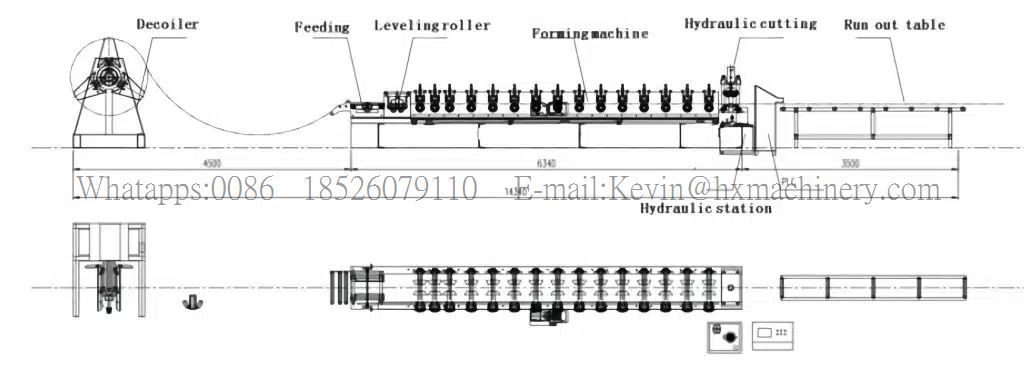

Steel Coil → Decoiler → Leveling → Punching → Roll Forming → Cutting → Output Table

The complete production process of the Highway guardrail roll forming machine includes: Decoiling → Roll Forming → Hydraulic Cutting → Semi-Finished Interlocking Roll Forming Machine → Finished Product Receiving Rack. Each section of the line is carefully engineered to ensure smooth operation, high efficiency, and stable performance.

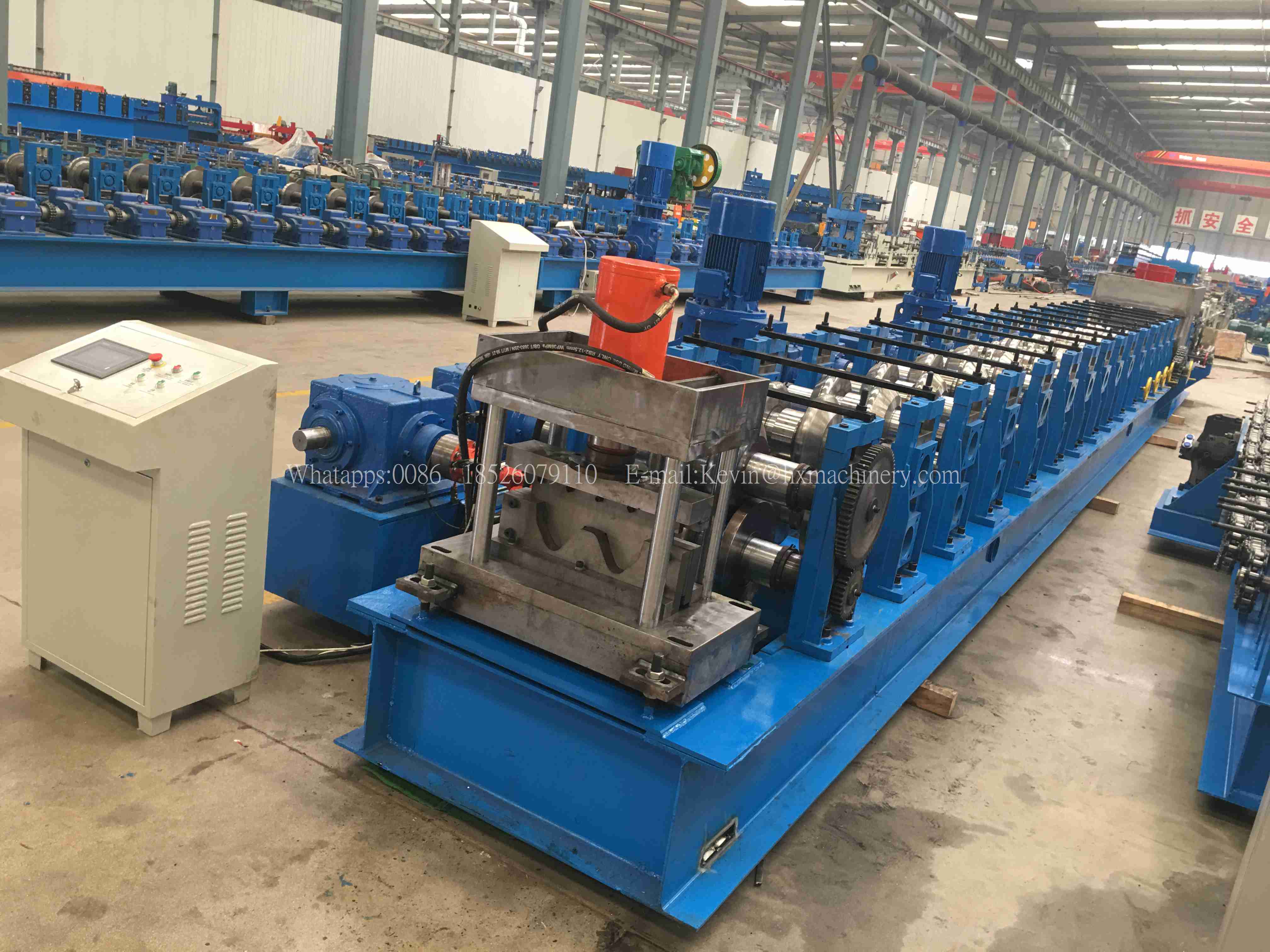

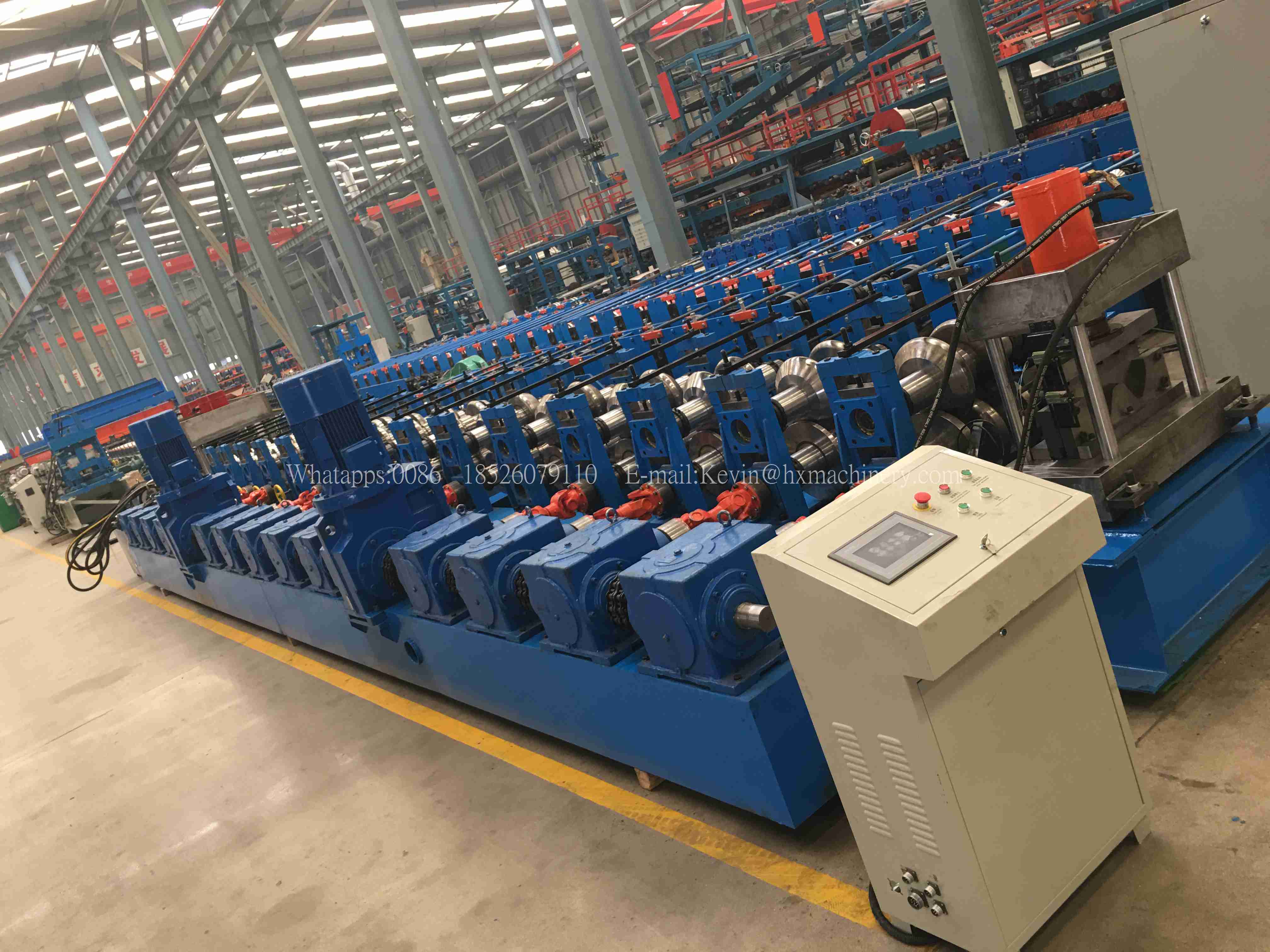

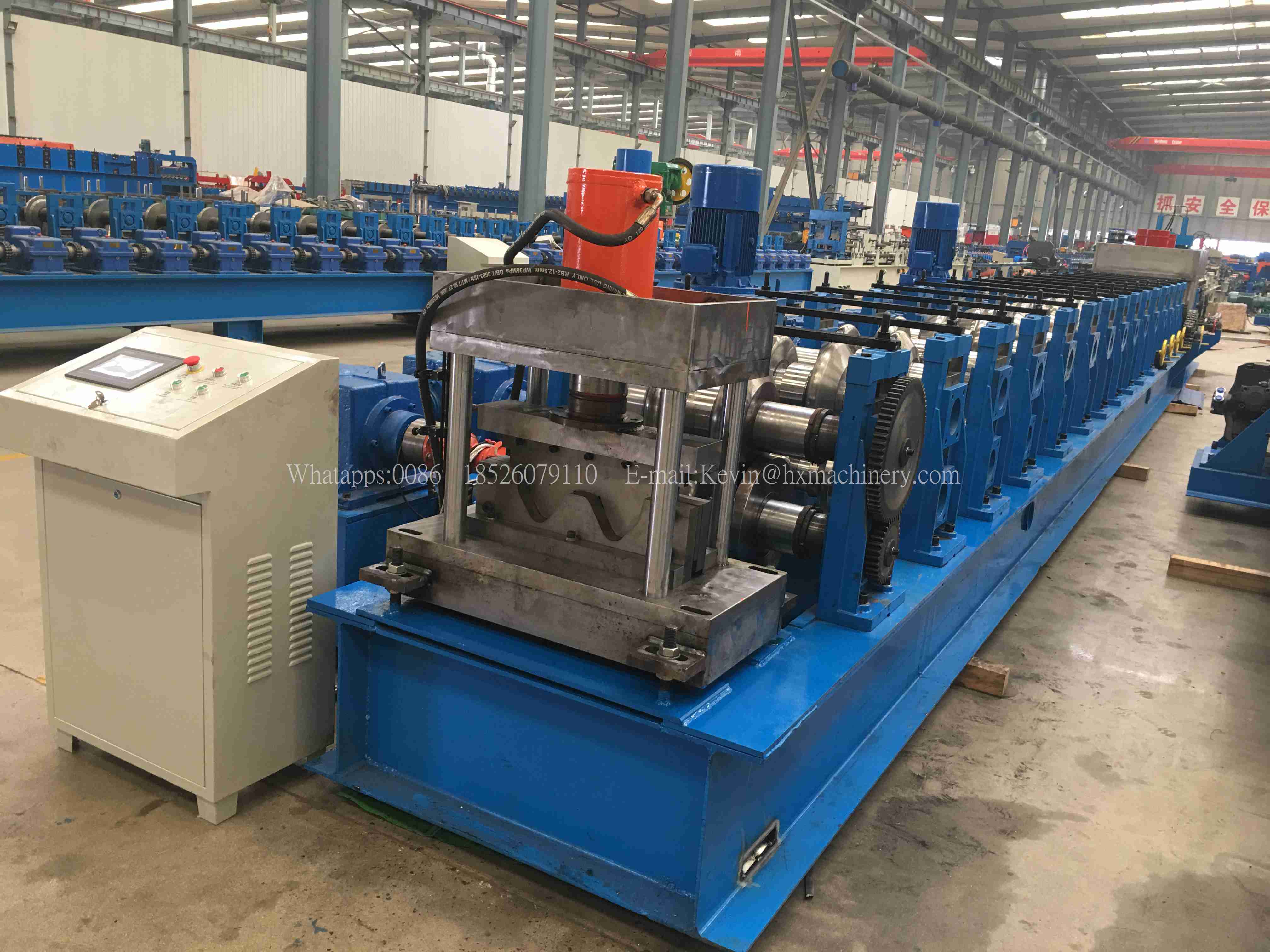

Production begins with the decoiler, which feeds the steel coil steadily into the system. The material then enters the main roll forming unit of the Highway guardrail roll forming machine. Through a series of precision forming rollers, the flat steel strip is gradually shaped into the required beam profile. The roll forming process guarantees uniform thickness, accurate dimensions, and excellent structural consistency. All forming rollers are manufactured from high-quality alloy steel and processed with advanced heat treatment to ensure durability and long service life.

After forming, the profile proceeds to the hydraulic cutting system. The hydraulic cutter of the Highway guardrail roll forming machine provides precise length control and smooth cutting surfaces without deformation. The cutting action is synchronized with the line speed, ensuring continuous production and reducing material waste.

One of the key features of this Highway guardrail roll forming machine is the semi-finished interlocking roll forming section. In this stage, two formed profiles are mechanically pressed and interlocked together to create a complete and reinforced beam structure. This special interlocking design significantly improves the load-bearing capacity and overall strength of the finished product. The process ensures tight connection, consistent shape, and reliable structural performance.

Once the interlocking process is completed, the final beam is automatically delivered to the finished product receiving rack. The entire Highway guardrail roll forming machine is controlled by a PLC system with a user-friendly interface. Operators can easily adjust parameters such as length, speed, and quantity. The automated design reduces labor intensity and increases production efficiency.

Customization is a major advantage of our Highway guardrail roll forming machine. Feeding width, rolling thickness, product dimensions, and voltage configuration can all be tailored to meet specific customer requirements. Whether your project requires different steel grades or unique profile designs, we can provide flexible solutions to match your production needs.

In addition, we provide comprehensive after-sales service. If any issues occur during operation, our professional engineers can offer real-time video technical support to help diagnose and solve problems quickly. This remote guidance service ensures minimal downtime and stable production.

With its strong machine structure, precise forming system, efficient workflow, and customizable configuration, the Highway guardrail roll forming machine offers a reliable and cost-effective solution for manufacturing high-strength beam products. We are committed to delivering high-quality equipment and professional service to support our customers’ long-term development and market competitiveness.

Contat us to learn more

Whatsapp:0086 18526079110

E-mail:Kevin@hx-machinery.com

Our photos with our customers

About us

HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.

FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.

Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
