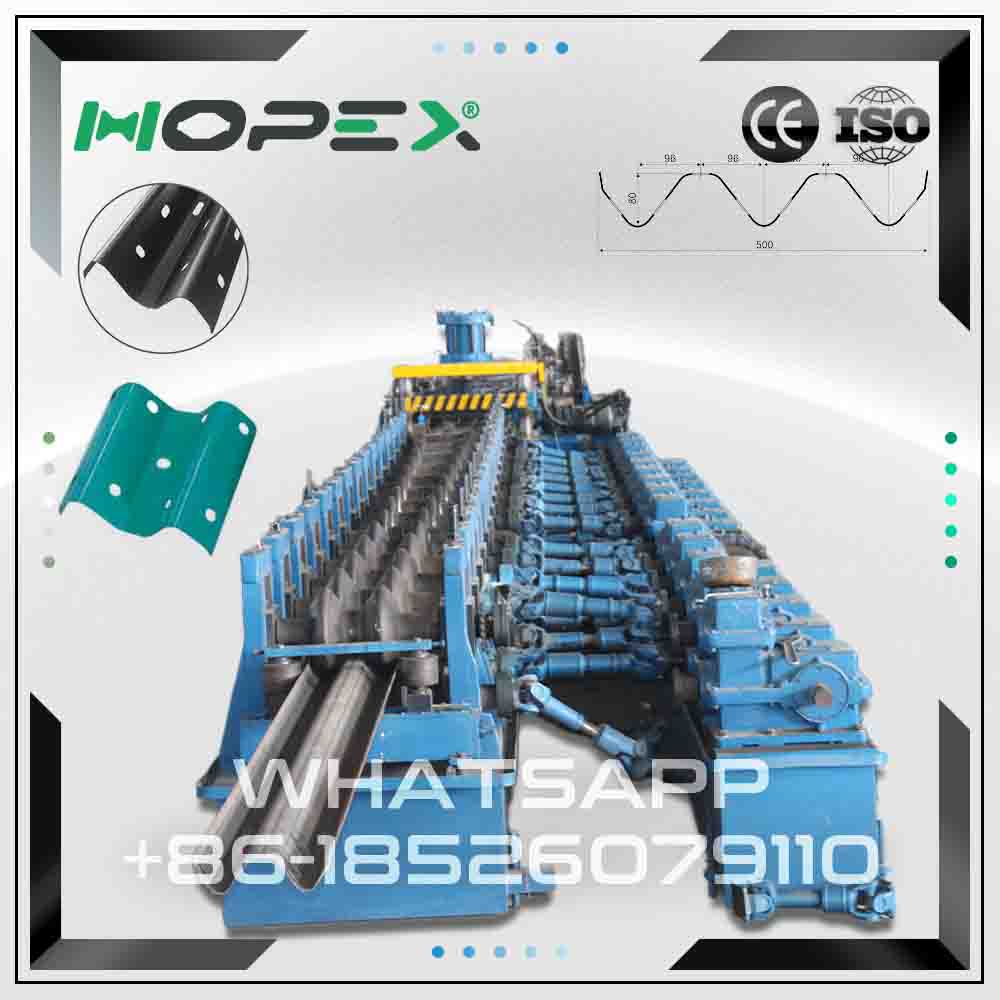

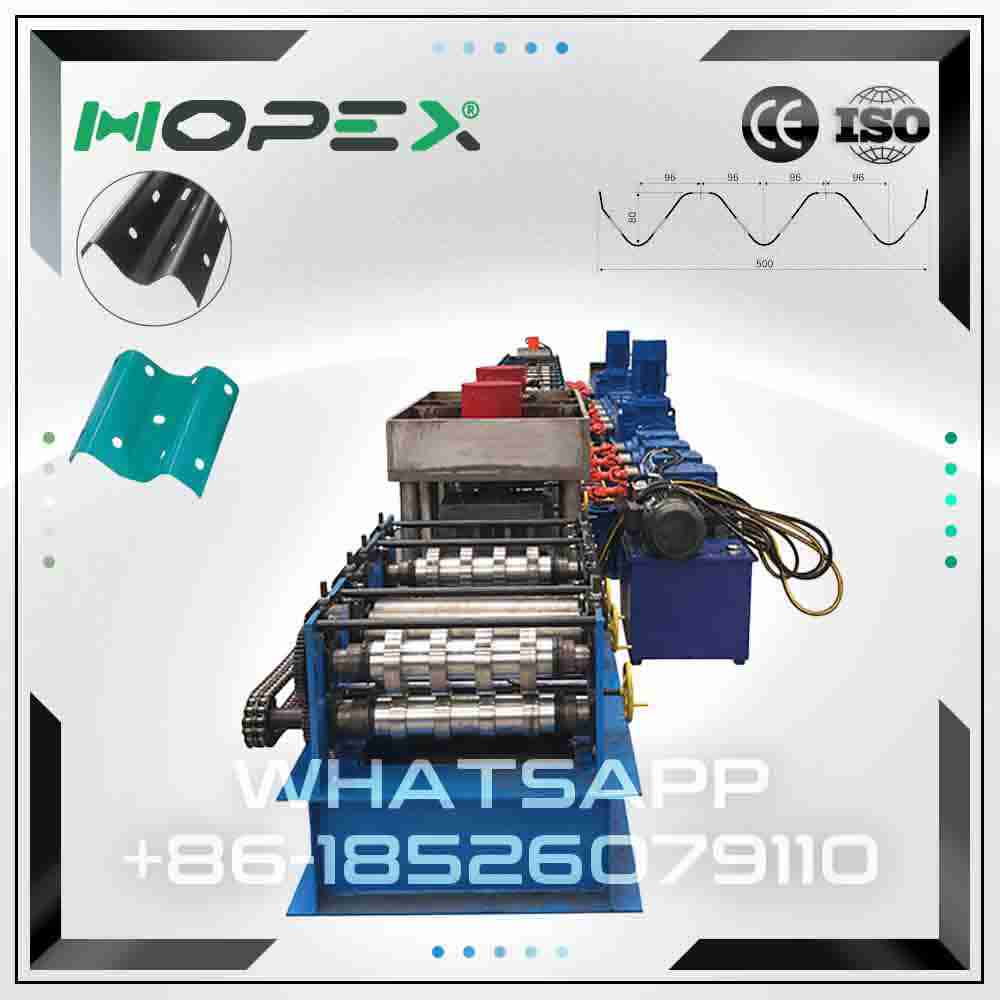

Guardrail Roll Forming Machine



As a professional manufacturer of cold roll forming machinery, we proudly present our advanced Guardrail Roll Forming Machine** — a fully integrated, high-precision production line engineered specifically for the volume fabrication of highway safety barriers, including W-beam (two-wave) and thrie-beam (three-wave) guardrail profiles . This robust system is meticulously designed to transform raw steel coil into standardized, high-strength crash barrier components with exceptional efficiency, dimensional accuracy, and structural integrity, meeting the rigorous demands of global infrastructure and transportation projects .

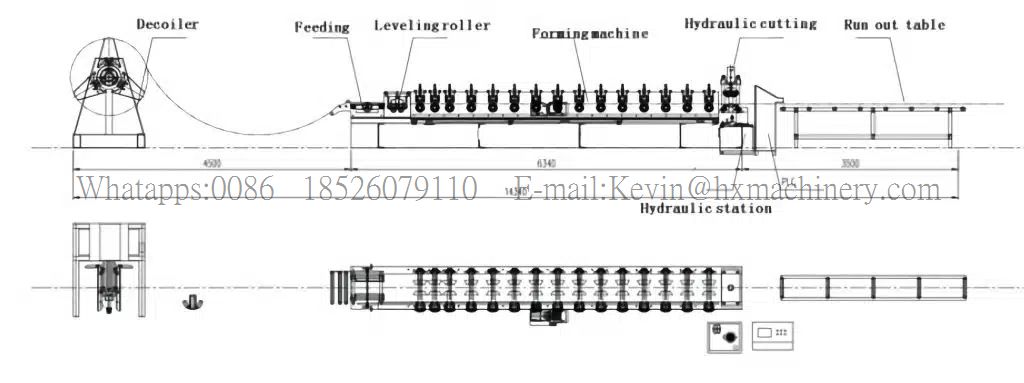

Rack upright roll forming machine working flow

Steel Coil → Decoiler → Leveling → Punching → Roll Forming → Cutting → Output Table



Guardrail roll forming machine manufacturers parameters
1	Decoiler	8 Ton single-arm decoiler
2	Machine body frame	500H Beams welding
3	Forming guide feed frame	Side arch type
4	Forming Machine Type	55 portal frame with chain drive
5	Diameter of shaft	Ø120 mm
6	Transmission System	TX230 distribution gearbox + 180 cross shaft universal coupling
7	Main Motor Power	Dual 22 kW motors with K107 reducer
8	Forming Speed	5-15 m/min
9	Roller station	15-18 rows
10	Material of rollers	High-quality CR12, quenched and precision machined
11	Hydraulic system power	22 KW with four-valve plunger pump
12	Cutting Method	Hydraulic triple-blade shearing
13	Punching Units	Three sets (one for center hole, two for side holes)
14	Cutting blade	Cr12, Quenched treatment 58℃-62℃
15	Forming Thickness	2.0-4.0 mm ( Length Tolerance: ±2 mm)
16	Control System	Delta PLC, Doble 22 kW Delta inverters, Delta touch screen
17	Machine Dimensions	1400mm*2400mm(L*W)

Our **Guardrail Roll Forming Machine** represents the convergence of heavy-duty engineering and intelligent automation. It is purpose-built to produce the critical safety barriers that protect motorists on expressways, freeways, bridges, and high-speed roadways worldwide . These guardrail profiles are specifically engineered to absorb and redirect the impact energy of vehicles, significantly enhancing road safety and reducing the severity of accidents .



 Complete and Automated Production Workflow



Our **Guardrail Roll Forming Machine** orchestrates a seamless, continuous manufacturing sequence from coil to finished, stacked product:



1. Precision Decoiling & Coil Loading:** The process begins with a heavy-duty hydraulic decoiler, optionally equipped with a coil car for large-quantity production without downtime during coil changeover . Coil weight capacity typically ranges from 5 to 10 tons, with inner diameters of 470-520mm and maximum outer diameters up to 1800mm .



2. Advanced Leveling System:** The steel strip passes through a precision leveler with 7-9 leveling rollers . The leveling rollers are manufactured from 40Cr steel, quenched to HRC48-52°, ensuring exceptional flatness and elimination of internal coil stresses . This critical stage prepares the material for subsequent high-precision punching and forming operations.



3. Integrated Hydraulic Punching:** A high-capacity hydraulic punching system (typically 63-315 tons) performs all necessary hole punching and notching operations . Our **Guardrail Roll Forming Machine** utilizes premium mold materials such as Cr12 or Cr12MoV alloy steel, quenched to HRC58-62°, ensuring extended tool life and consistent hole accuracy over millions of cycles . The punching unit is fully programmable via PLC, accommodating various hole patterns including 9-hole and 10-hole configurations with middle reinforcement hole punching mechanisms .



4. Servo-Controlled Feeding:** A servo-feeding mechanism ensures precise material advancement into the roll forming mill, with length accuracy typically maintained within ±3.0mm . The touch-screen interface allows operators to input multiple production batches and easily modify technical parameters .

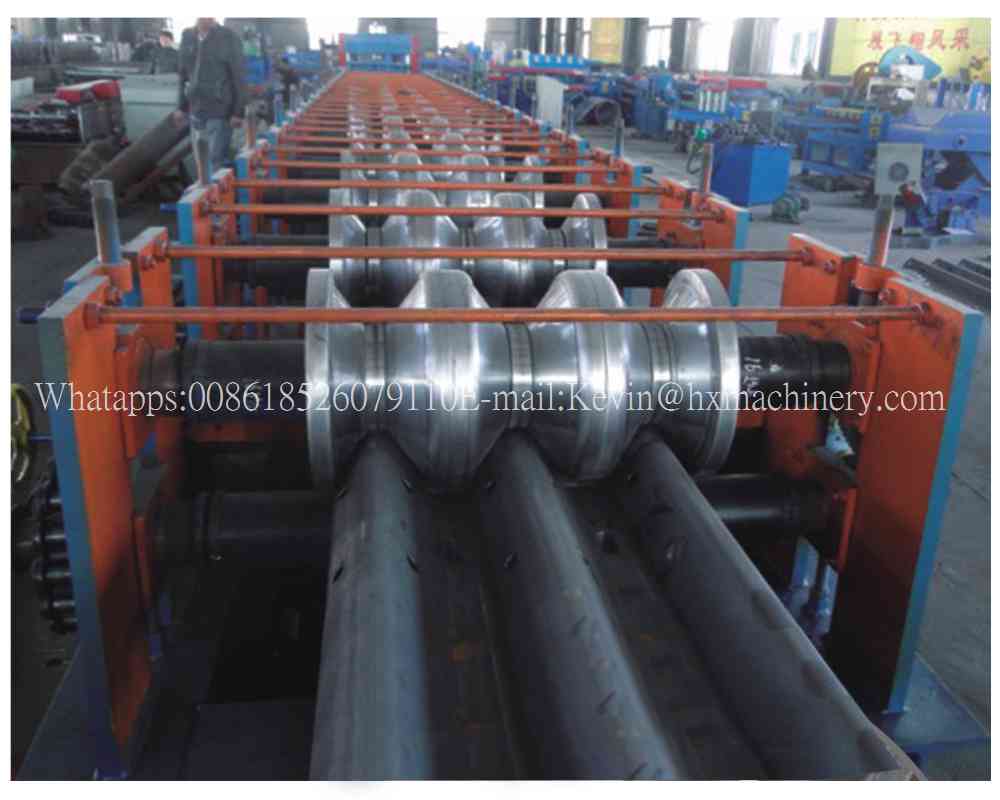

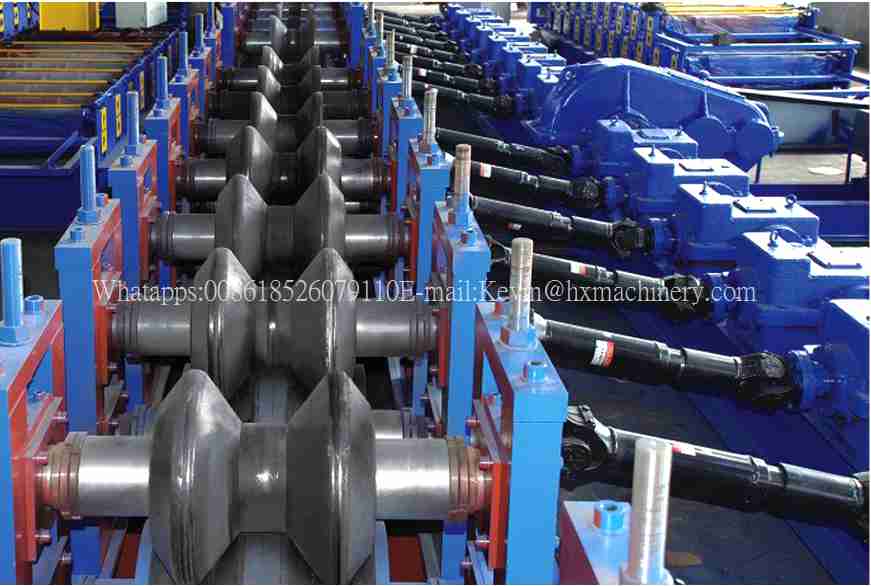

5. Progressive Roll Forming Stations:** The core of the system features 16-25 stations of precision roll forming dies, depending on profile complexity . Rollers are crafted from high-grade GCr15 bearing steel, quenched to HRC58-62°, and hard-chrome plated for exceptional wear resistance . The main shaft (typically Φ65-110mm, 45# forged steel) is driven by a gearbox transmission system with universal shafts, delivering robust torque for forming guardrail steel up to 4.0-4.5mm thickness .



6. 2-in-1 Interchangeable Capability:** A distinctive advantage of our **Guardrail Roll Forming Machine** is the interchangeable cassette system, enabling one production line to seamlessly switch between two-wave and three-wave profiles by exchanging only the final forming stations and cutting tooling . This(interlocking) of modular tooling design significantly enhances production flexibility and reduces capital expenditure for manufacturers serving diverse project specifications .



7. Hydraulic Cutting System:** A high-pressure hydraulic cutting station (operating up to 60MPa) provides clean, square, burr-free cuts to exact programmed lengths (standard 4320mm, 6000mm, or custom specifications) . Blade material is Cr12 or equivalent, quenched to HRC58-62° for exceptional longevity .



8. Automatic Stacking System:** Finished guardrail beams are automatically conveyed to a heavy-duty stacking system, capable of organizing 20+ pieces per bundle for safe transport and storage . The PLC-controlled stacker dramatically reduces manual labor and increases overall production efficiency .

 Intelligent Control & Industry 4.0 Integration



Every **Guardrail Roll Forming Machine** is governed by an advanced PLC control system (Panasonic, Omron, Siemens, or Mitsubishi) with HMI touchscreen interface . Operators can monitor real-time production status, modify parameters, access diagnostic error reporting, and utilize failure detection functions that automatically halt operations upon discovering irregularities . The system supports manual/auto operation modes and includes comprehensive emergency stop safety features .

Engineering for Extreme Duty Cycles



Understanding that highway infrastructure projects demand uncompromised durability, our **Guardrail Roll Forming Machine** features:

- Heavy-duty cast iron HT200 or welded steel plate frames

- Precision-ground main shafts and high-capacity bearings (7216, 32216)

- Robust gearbox transmission systems with hardened gears

- Forming speed of 8-20 meters per minute, with output capacity reaching 500-1,500 tons per month



 Comprehensive Customization & Global Support



We recognize that highway safety standards vary worldwide. Therefore, our **Guardrail Roll Forming Machine** offers extensive customization of:

- **Material thickness**: Customizable from 2.0mm to 4.5mm, with heavy-duty versions available up to 6.0mm

- **Forming speed**: Adjustable 8-20 m/min depending on profile and thickness

- **Punching patterns**: Fully programmable for national standard requirements worldwide

- **Electrical voltage and control system language**: English, Spanish, Chinese, and other options available



Our commitment extends beyond machinery delivery. We provide comprehensive after-sales support, including **real-time video online guidance** from our senior engineers for immediate troubleshooting, operator training, and process optimization . On-site installation and commissioning services are also available upon request .



Investing in our **Guardrail Roll Forming Machine** production line equips your manufacturing operation with the capacity to produce certified, high-integrity highway safety barriers that meet CE, EAC, TUV, and ISO 9001 international standards . It is a strategic investment in quality, capacity, and access to the growing global infrastructure market.









Contat us to learn more

Whatsapp:0086 18526079110

E-mail:Kevin@hx-machinery.com



Our photos with our customers

About us



HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
