Model：HOPEX-Highway guardrail machine
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
Warranty :2 years for machinery warranty
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com

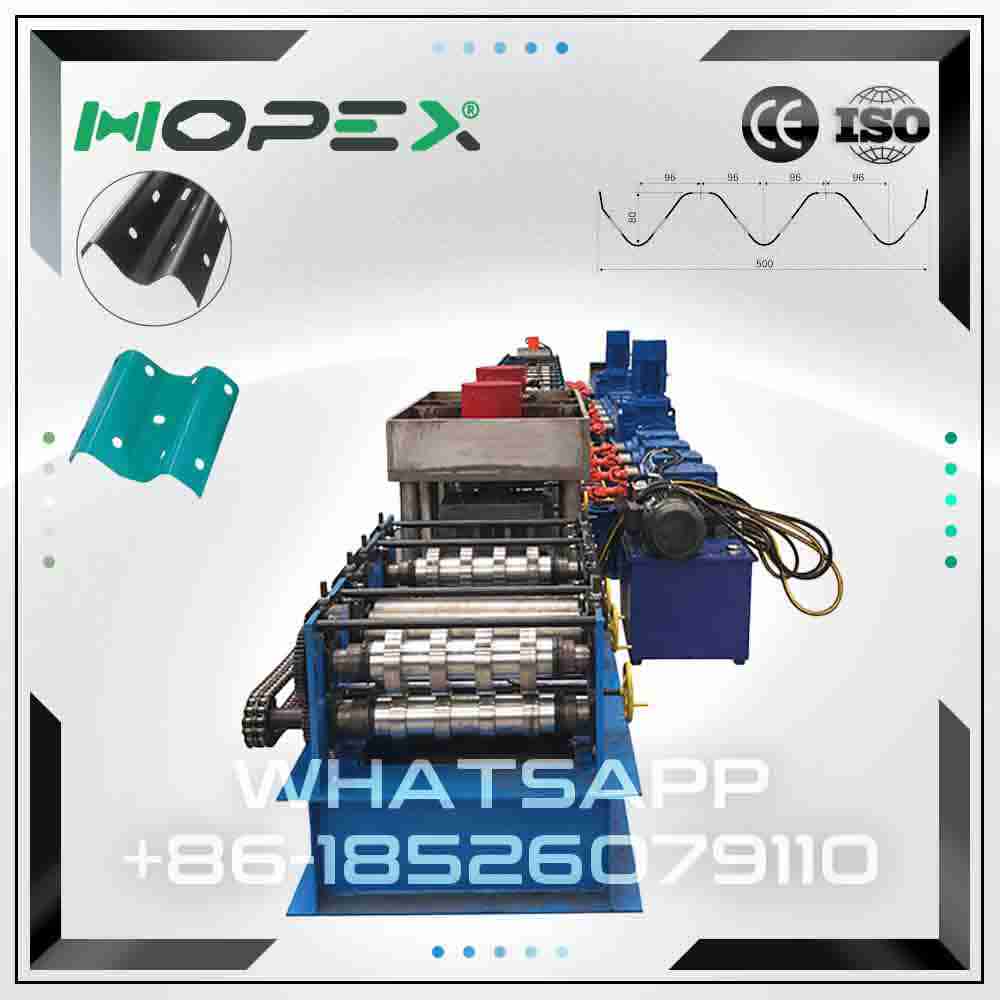

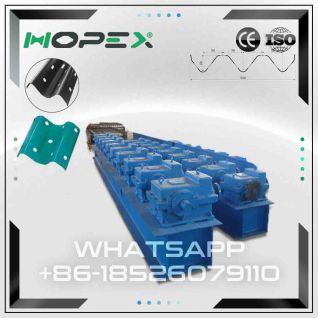

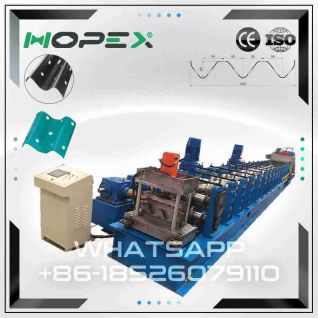

Highway Guardrail Machine
As a professional manufacturer of cold roll forming equipment, we proudly introduce our advanced Highway guardrail machine, designed for efficient and precise production of metal beam components. This Highway guardrail machine is engineered with mature technology, stable performance, and flexible customization options to meet various international standards and project requirements.
The complete production line of the Highway guardrail machine includes the following process: Decoiler → Roll Forming → Hydraulic Cutting → Semi-finished Interlocking Roll Forming Machine → Finished Product Receiving Rack. Each stage is carefully designed to ensure high precision and consistent output.

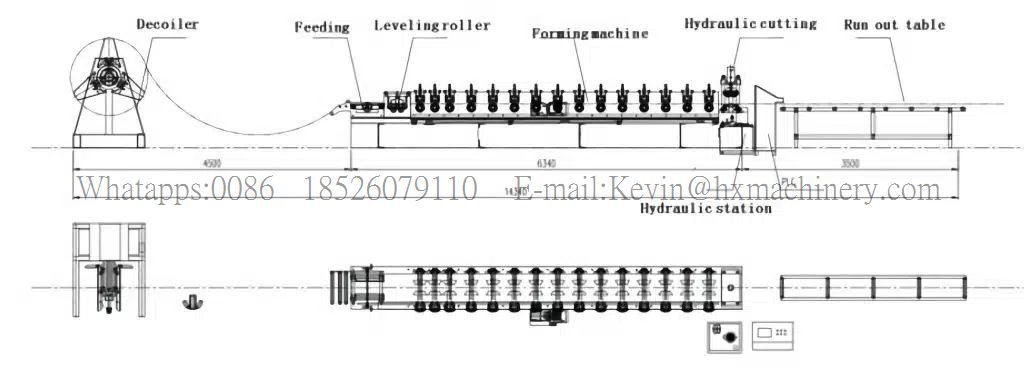

Steel Coil → Decoiler → Leveling → Punching → Roll Forming → Cutting → Output Table
| Guardrail roll forming machine manufacturers parameters | ||
|
1
|
Decoiler | 8 Ton single-arm decoiler |
| 2 | Machine body frame | 500H Beams welding |
| 3 | Forming guide feed frame | Side arch type |
| 4 | Forming Machine Type | 55 portal frame with chain drive |
| 5 | Diameter of shaft | Ø120 mm |
| 6 | Transmission System | TX230 distribution gearbox + 180 cross shaft universal coupling |
| 7 | Main Motor Power | Dual 22 kW motors with K107 reducer |
| 8 | Forming Speed | 5-15 m/min |
| 9 | Roller station | 15-18 rows |
| 10 | Material of rollers | High-quality CR12, quenched and precision machined |
| 11 | Hydraulic system power | 22 KW with four-valve plunger pump |
| 12 | Cutting Method | Hydraulic triple-blade shearing |
| 13 | Punching Units | Three sets (one for center hole, two for side holes) |
| 14 | Cutting blade | Cr12, Quenched treatment 58℃-62℃ |
| 15 | Forming Thickness | 2.0-4.0 mm ( Length Tolerance: ±2 mm) |
| 16 | Control System | Delta PLC, Doble 22 kW Delta inverters, Delta touch screen |
| 17 | Machine Dimensions | 1400mm*2400mm(L*W) |

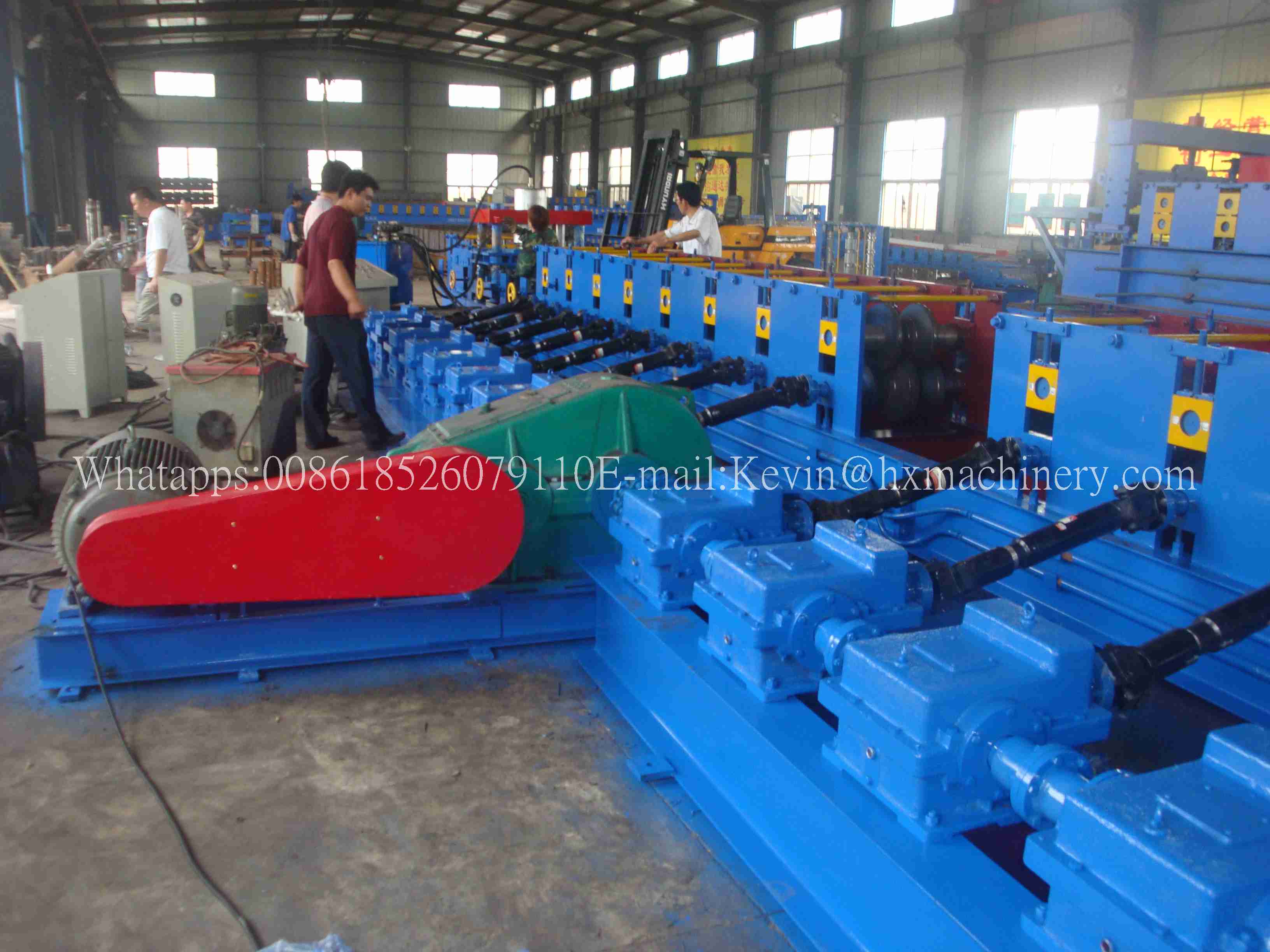

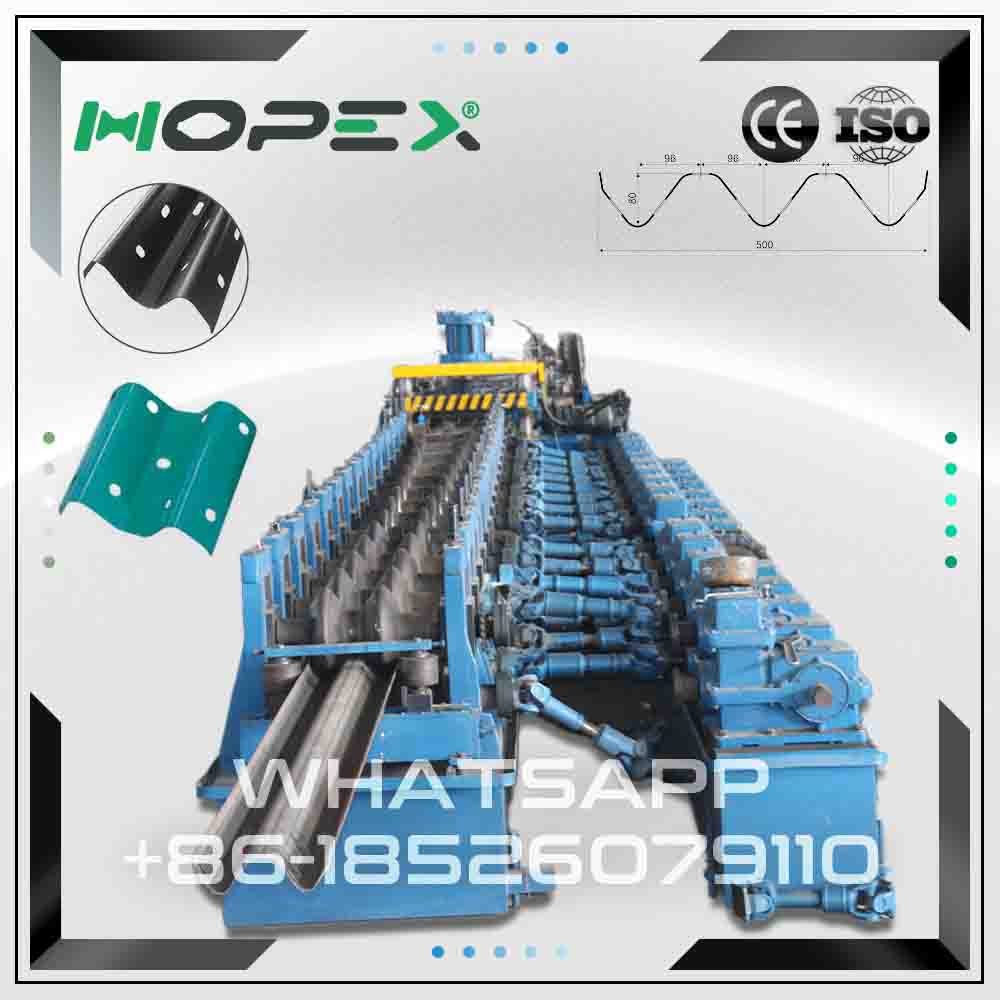

The production begins with the decoiler, which smoothly feeds metal coils into the system. The material then enters the main roll forming section of the Highway guardrail machine, where multiple precision rollers gradually shape the steel strip into the required beam profile. The roll forming process ensures uniform thickness, accurate dimensions, and high structural strength.

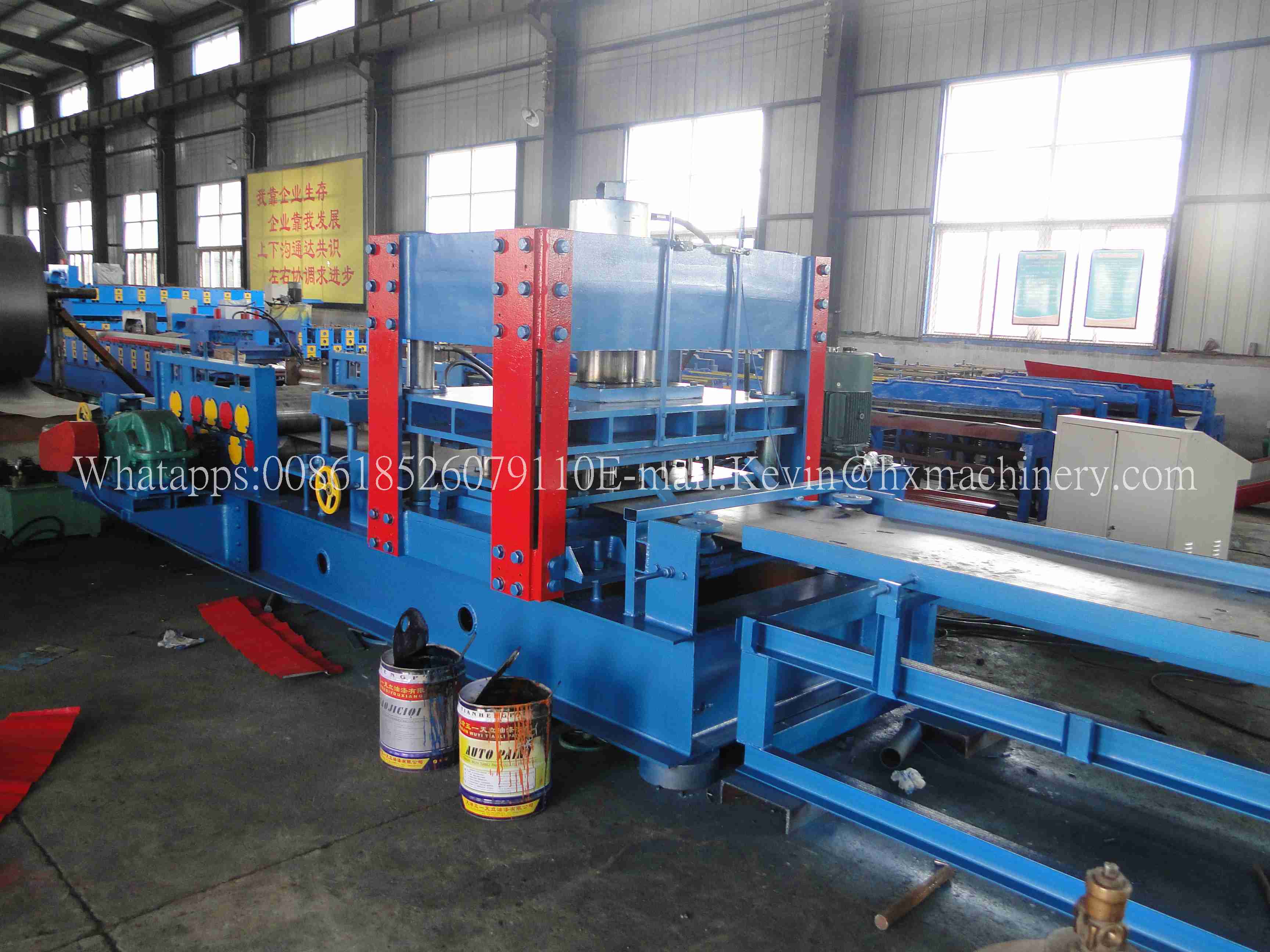

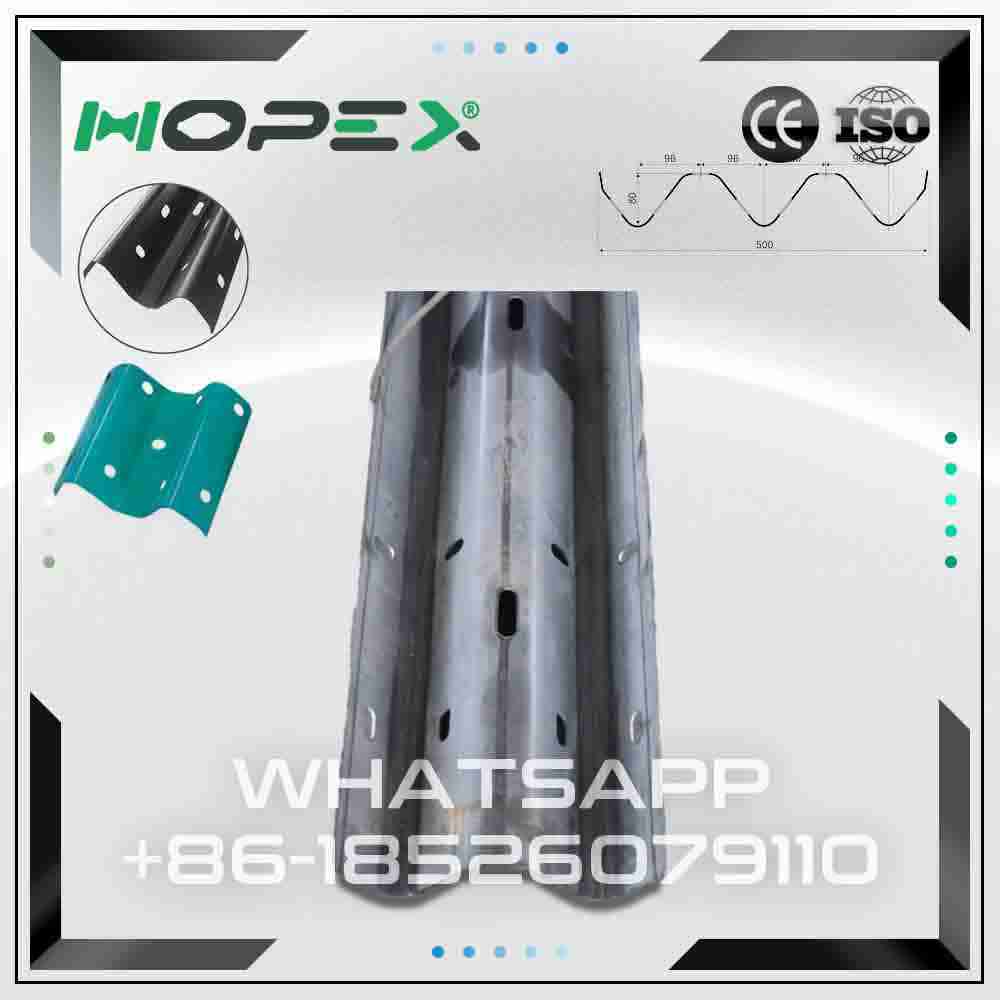

After forming, the material proceeds to the hydraulic cutting system. The hydraulic cutter provides accurate length control and clean cutting edges without deformation. The cut semi-finished beams then move into the interlocking roll forming section. In this stage, two profiles are pressed and interlocked together to form a complete and reinforced beam structure. This innovative design significantly improves the load-bearing capacity and durability of the final product.
The finished beams are automatically transferred to the receiving rack for collection and packaging. The entire Highway guardrail machine operates in a continuous and automated manner, greatly reducing labor costs while increasing production efficiency.
Our Highway guardrail machine supports customization according to customer requirements. Feeding width, rolling thickness, voltage configuration, and beam specifications can all be adjusted. Whether your market requires different material grades or varying structural standards, we can tailor the machine to suit your needs.
In addition, we provide comprehensive after-sales support. If any issue occurs during operation, our experienced engineers can offer real-time video technical guidance to help customers quickly solve problems and resume production. This remote support service ensures minimal downtime and maximizes productivity.
The Highway guardrail machine is manufactured using high-quality components, including durable forming rollers, a stable transmission system, and a reliable PLC control system. The machine structure is strong and precisely processed to ensure long-term stability and low maintenance requirements.

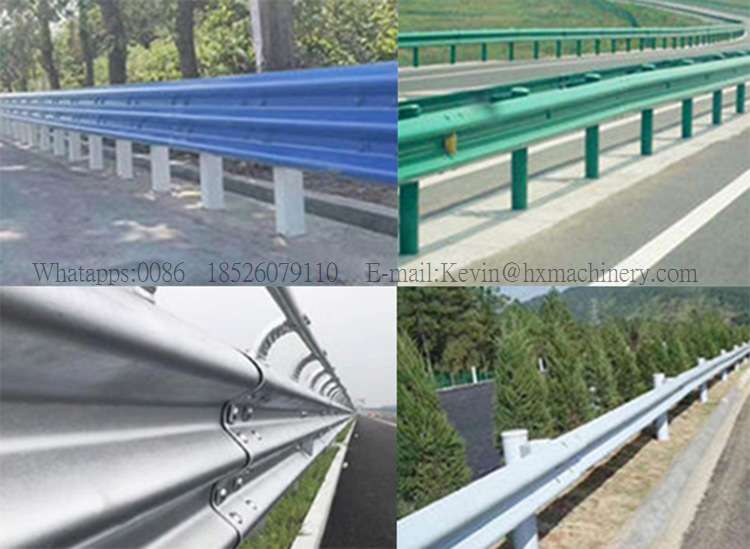

With its efficient workflow, precision forming capability, and flexible customization features, the Highway guardrail machine is an ideal solution for producing high-strength beam products used in infrastructure and industrial applications. We are committed to delivering high-performance machinery and professional service to customers worldwide.
If you are looking for a reliable Highway guardrail machine supplier, we are ready to provide technical consultation, detailed parameters, and competitive quotations to support your business growth.
Whatsapp:0086 18526079110
E-mail:Kevin@hx-machinery.com
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
