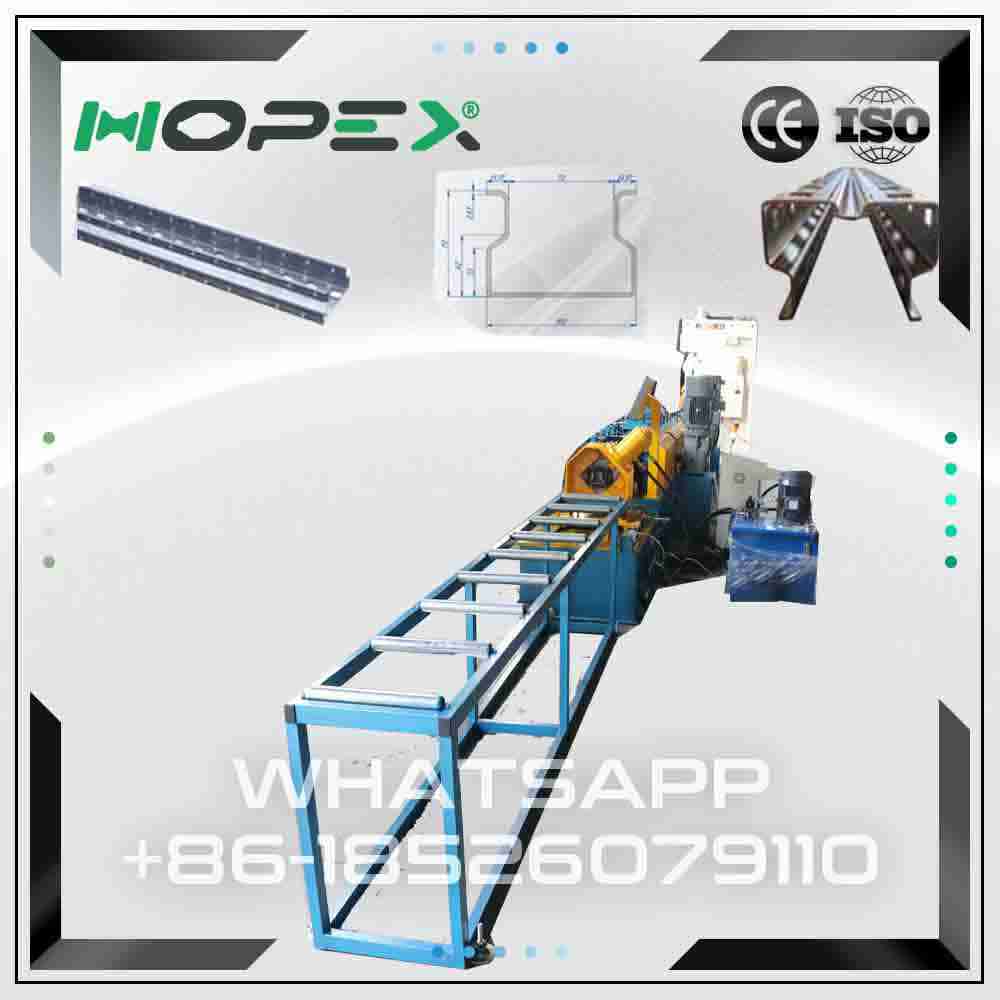

Beam Roll Forming Machine

As a specialized manufacturer in cold roll forming technology, we are proud to introduce our advanced **Beam Roll Forming Machine** — a fully integrated production line engineered specifically for the high-volume fabrication of structural beams, with a particular focus on the innovative interlocking beams used in modern storage racking systems. This system is designed to transform raw steel coil into robust, ready-to-assemble beams with exceptional precision, speed, and structural integrity, addressing the core demands of the logistics, warehousing, and construction industries.

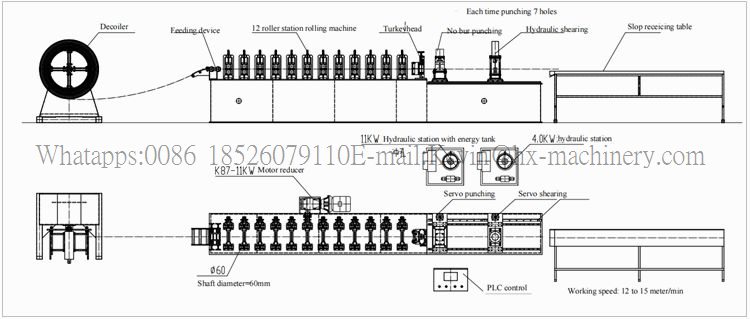

Rack upright roll forming machine working flow

Uncoiling → Leveling → Roll forming system→ Punching system→ Cutting system → Products receiving table

 The core innovation of this **Beam Roll Forming Machine** lies in its dedicated capability to manufacture interlocking beams. This process involves two separate C-channel profiles being mechanically joined or "bite-fastened" together. The **Beam Roll Forming Machine** facilitates this precise (interlocking) operation within a continuous workflow, resulting in a single, unified structural member. This design offers dramatically enhanced load-bearing capacity, torsional rigidity, and overall stability compared to conventional single-profile beams, making it the essential choice for the horizontal members of heavy-duty pallet racking.

**Complete and Automated Production Workflow:**

Our **Beam Roll Forming Machine** orchestrates a seamless and efficient manufacturing sequence from coil to finished product:

1.  **Precision Decoiling:** The process begins with a heavy-duty decoiler that ensures smooth, controlled, and consistent feeding of the steel coil, providing a stable foundation for the entire forming line.

2.  **Progressive Roll Forming:** The steel strip is guided through a multi-station forming mill. Equipped with a custom-engineered set of high-grade, hardened roller dies, the **Beam Roll Forming Machine** progressively and accurately shapes the metal into the exact C-channel profile required for the interlocking beam.

3.  **Accurate Hydraulic Cutting:** A computer-controlled hydraulic shear provides clean, square, and burr-free cuts to precise, programmed lengths. This dimensional accuracy is crucial for ensuring perfect alignment and structural fit in the subsequent, critical interlocking stage.

4.  **Interlocking Forming (The Key Stage):** This is the defining phase of production. Two of the pre-formed C-channels are fed into the dedicated **Semi-Finished Interlocking Roll Forming Unit**. Through a specialized sequence of rolling and crimping operations, their flanges are permanently joined, creating a single, exceptionally strong double-walled beam. The precision and consistency achieved by the **Beam Roll Forming Machine** in the initial profile forming are vital for the success of this interlocking process.

5.  **Automated Discharge and Stacking:** The finished interlocked beams are automatically conveyed to a receiving rack or stacking table. They are organized for easy handling and are ready for subsequent processes like welding or powder coating, thereby minimizing manual labor and streamlining production.

Designed for maximum adaptability, our **Beam Roll Forming Machine** offers extensive customization to meet diverse global standards and specific client requirements. Key operational parameters, including **material entry width**, **roll forming thickness**, **production line speed**, and **control voltage**, can be fully tailored to your specific raw material specifications and factory environment.

We are committed to a true partnership beyond delivering reliable machinery. Our comprehensive support includes access to **real-time video online guidance** from our expert engineering team for immediate troubleshooting, operational training, and continuous process optimization, ensuring your production line maintains peak performance and maximum uptime.

Investing in our **Beam Roll Forming Machine** production line empowers your business to manufacture top-tier, high-strength structural beams with improved efficiency, reduced operational costs, and superior product quality. This strategic investment strengthens your production capability and competitive edge in the demanding material handling and structural fabrication markets.

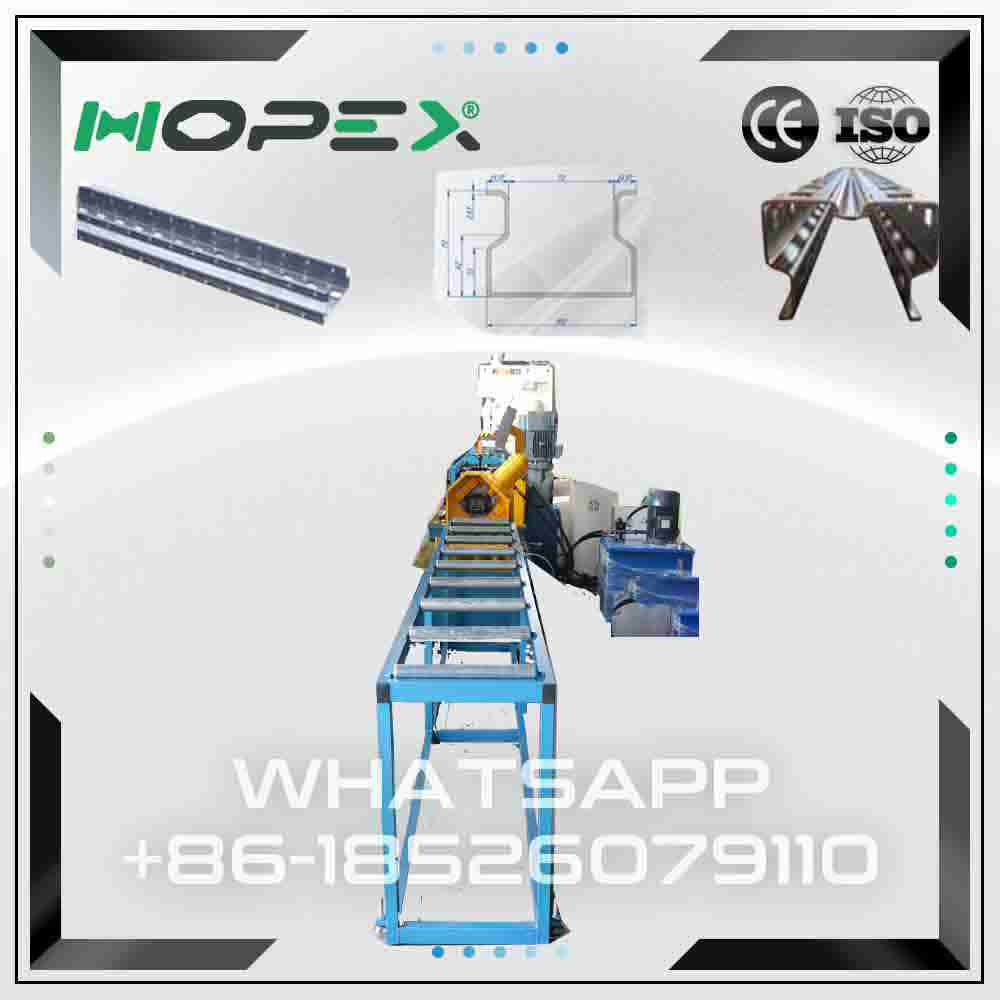

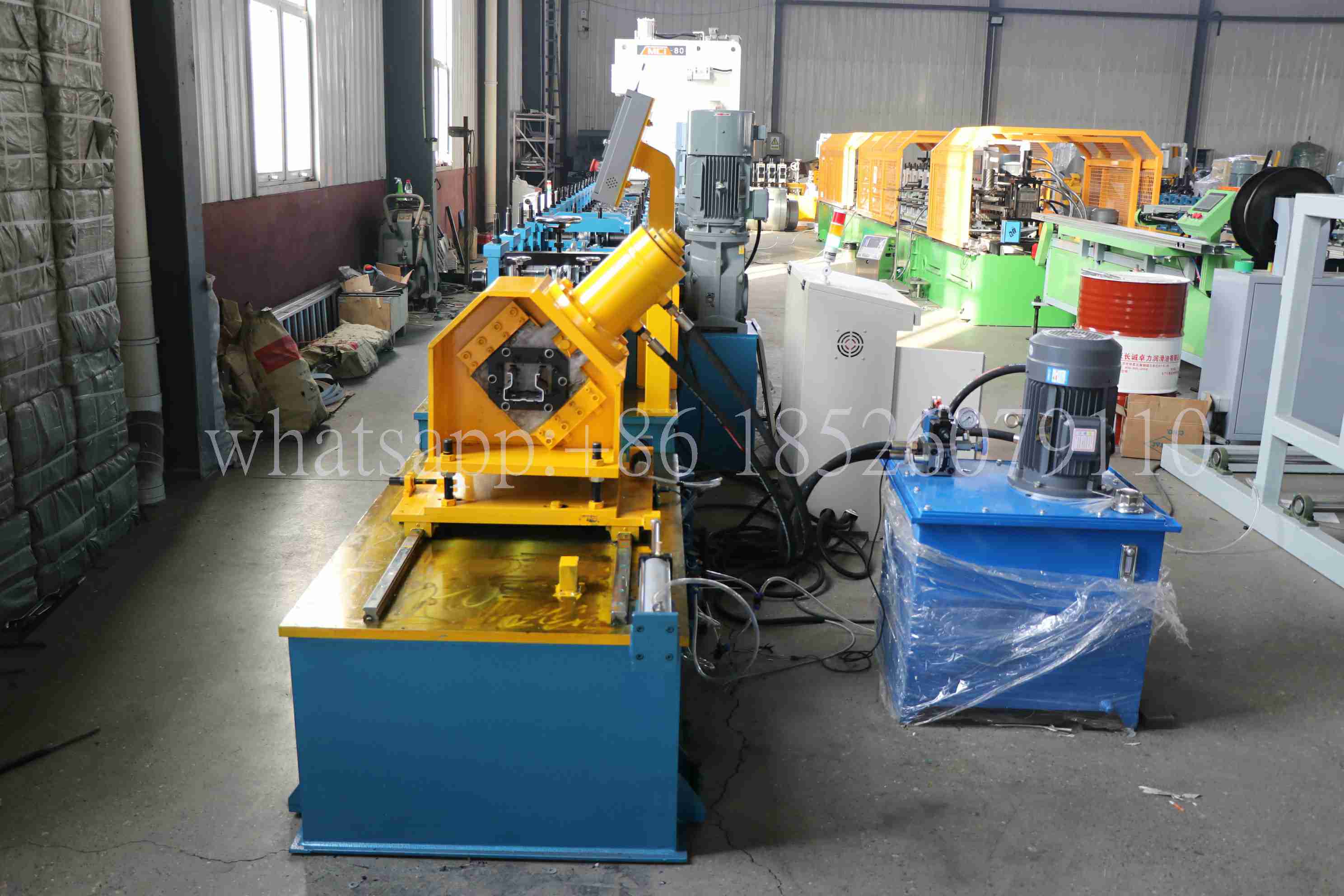

  Rack upright roll forming machine photos showing

Contat us to learn more

Whatsapp:0086 18526079110

E-mail:Kevin@hx-machinery.com

Our photos with our customers

About us

HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.

FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.

Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
