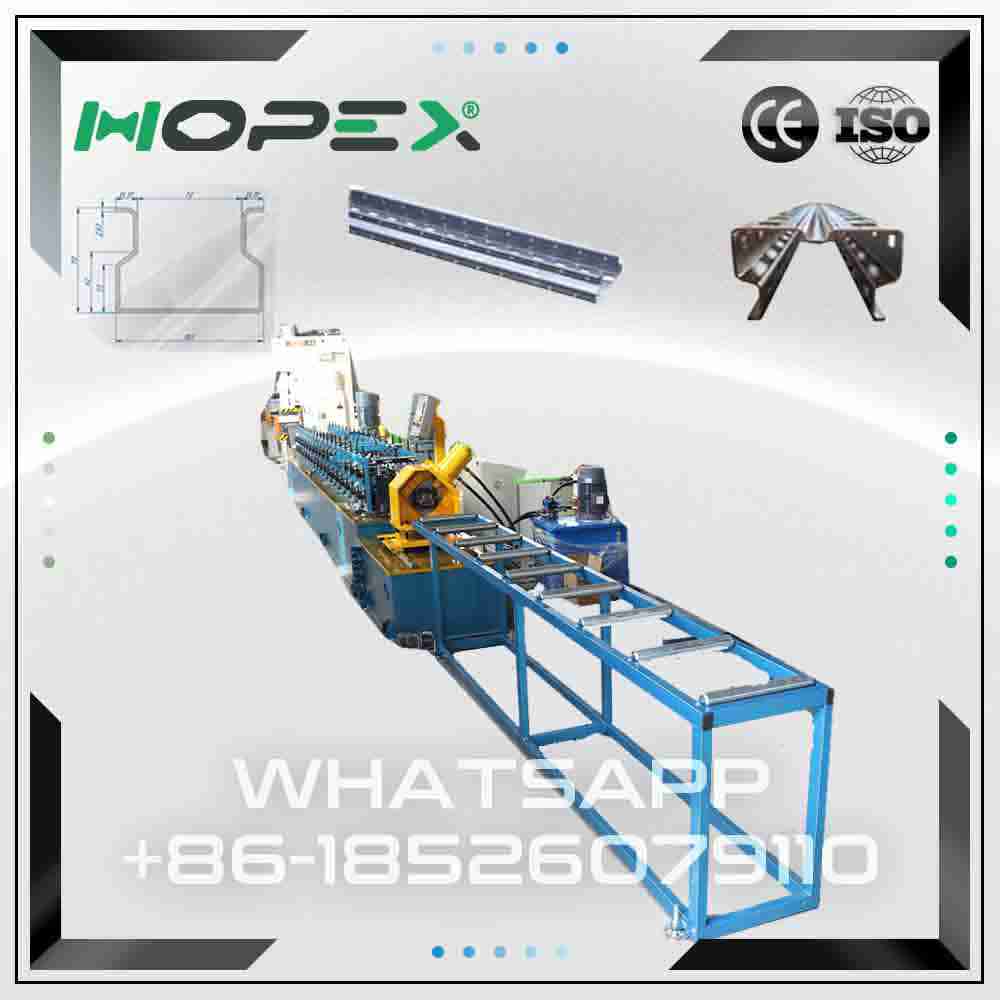

 Shelf Panel Roll Forming Machine

As a specialized manufacturer in cold roll forming technology, we are proud to present our advanced **Shelf Panel Roll Forming Machine** — a dedicated and fully integrated production line engineered for the high-volume fabrication of durable, versatile shelf panels, along with the innovative capability to produce structural interlocking beams. This system is expertly designed to transform raw steel coil into flat, corrugated, or reinforced panels and beams with exceptional precision, speed, and consistency, serving the critical needs of the industrial storage, retail shelving, and warehouse solutions markets.

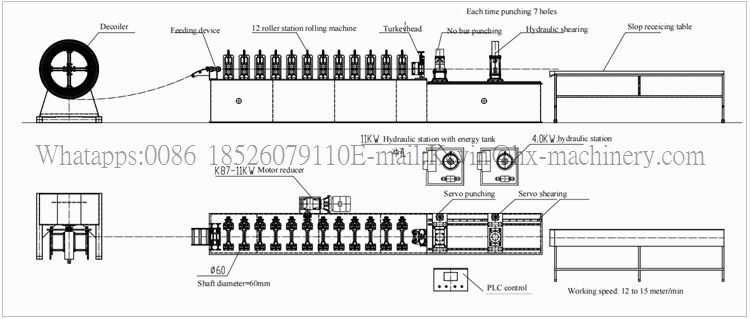

Rack upright roll forming machine working flow

Uncoiling → Leveling → Roll forming system→ Punching system→ Cutting system → Products receiving table

While the primary function of this **Shelf Panel Roll Forming Machine** is to manufacture the load-bearing surfaces for shelving units, our advanced line configuration demonstrates remarkable versatility. A significant technological extension allows for the production of high-strength, **interlocking horizontal beams**. This process involves forming two complementary C-channel profiles that are mechanically joined in a precise (interlocking) operation. The **Shelf Panel Roll Forming Machine** facilitates this within its continuous workflow, resulting in a single, unified beam with a closed or reinforced section. This design offers dramatically enhanced load-bearing capacity and structural integrity compared to standard beams, making it ideal for the supportive framework in heavy-duty pallet racking. This dual capability for both functional shelf panels and robust structural beams positions our **Shelf Panel Roll Forming Machine** as a uniquely comprehensive solution for complete storage system manufacturing.

**Complete and Automated Production Workflow:**

Our **Shelf Panel Roll Forming Machine** orchestrates a seamless and optimized manufacturing sequence:

1.  **Precision Decoiling & Feeding:** The process begins with a heavy-duty decoiler that ensures smooth, controlled, and consistent feeding of the steel coil, providing a stable foundation for the entire line.

2.  **Progressive Roll Forming:** For shelf panels, the strip is guided through forming stations that create flat decks, downward flanges for strength, or specific corrugation patterns for added rigidity. For beam production, the machine forms precise C-channel profiles.

3.  **Embossing/Stiffening (Optional for Panels):** An integrated embossing unit can add reinforcing ribs or patterns to the panel surface, significantly increasing its load capacity without adding material thickness.

4.  **Punching/Notching:** A precision punching station creates necessary features such as drainage holes in panels, or connection holes and slots in beam profiles at programmed locations.

5.  **Accurate Hydraulic Cutting:** A computer-controlled hydraulic shear provides clean, burr-free cuts to exact, programmed lengths for both panels and beams.

6.  **Interlocking Forming (For Beam Production):** For manufacturing interlocking beams, two pre-formed C-channels are fed into a dedicated unit and permanently joined.

7.  **Automated Discharge and Stacking:** Finished products are automatically conveyed and stacked, ready for packaging or further processing like powder coating.

Engineered for maximum flexibility, our **Shelf Panel Roll Forming Machine** offers extensive customization. Key parameters, including **material width/thickness**, **panel profile or beam design**, **embossing pattern**, **hole pattern**, **line speed**, and **control voltage**, are fully adaptable to your specifications.

We provide comprehensive support with **real-time video online guidance** from our engineering team, ensuring your **Shelf Panel Roll Forming Machine** operates at peak efficiency, delivering the high-quality components essential for modern storage and display solutions.

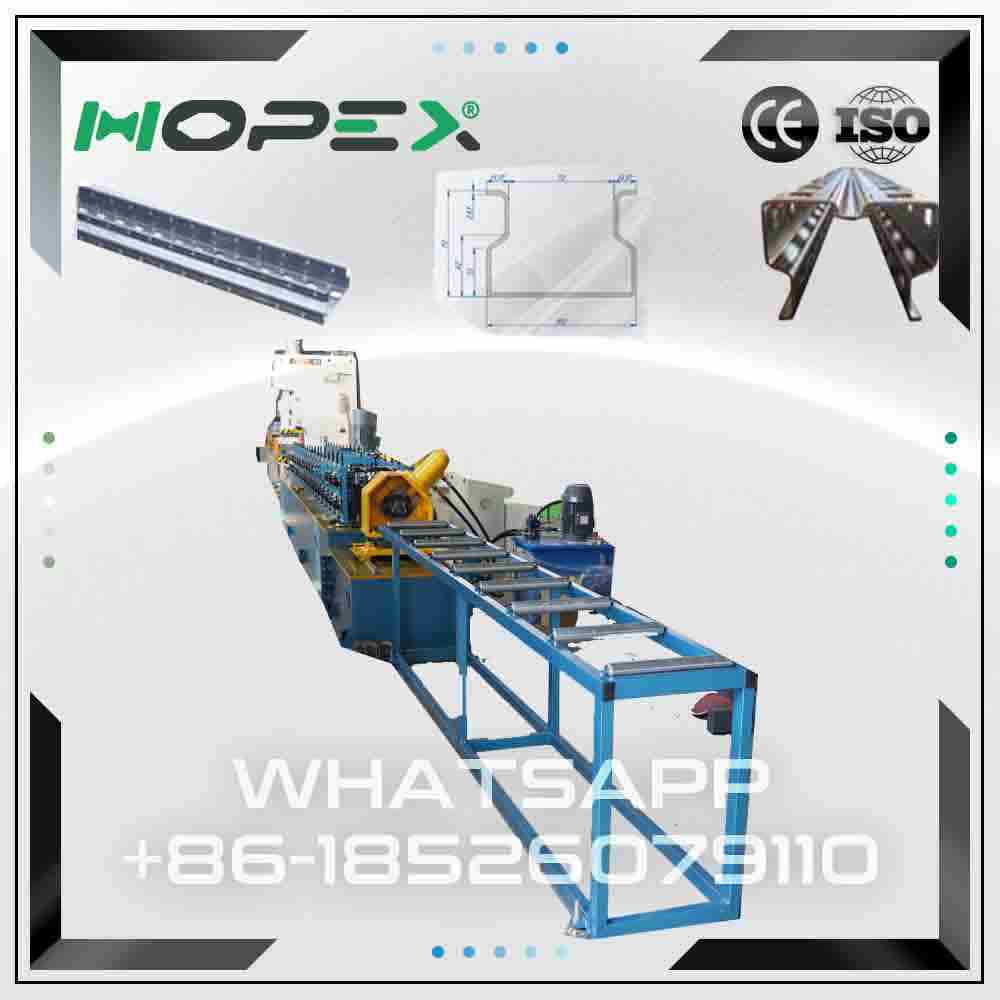

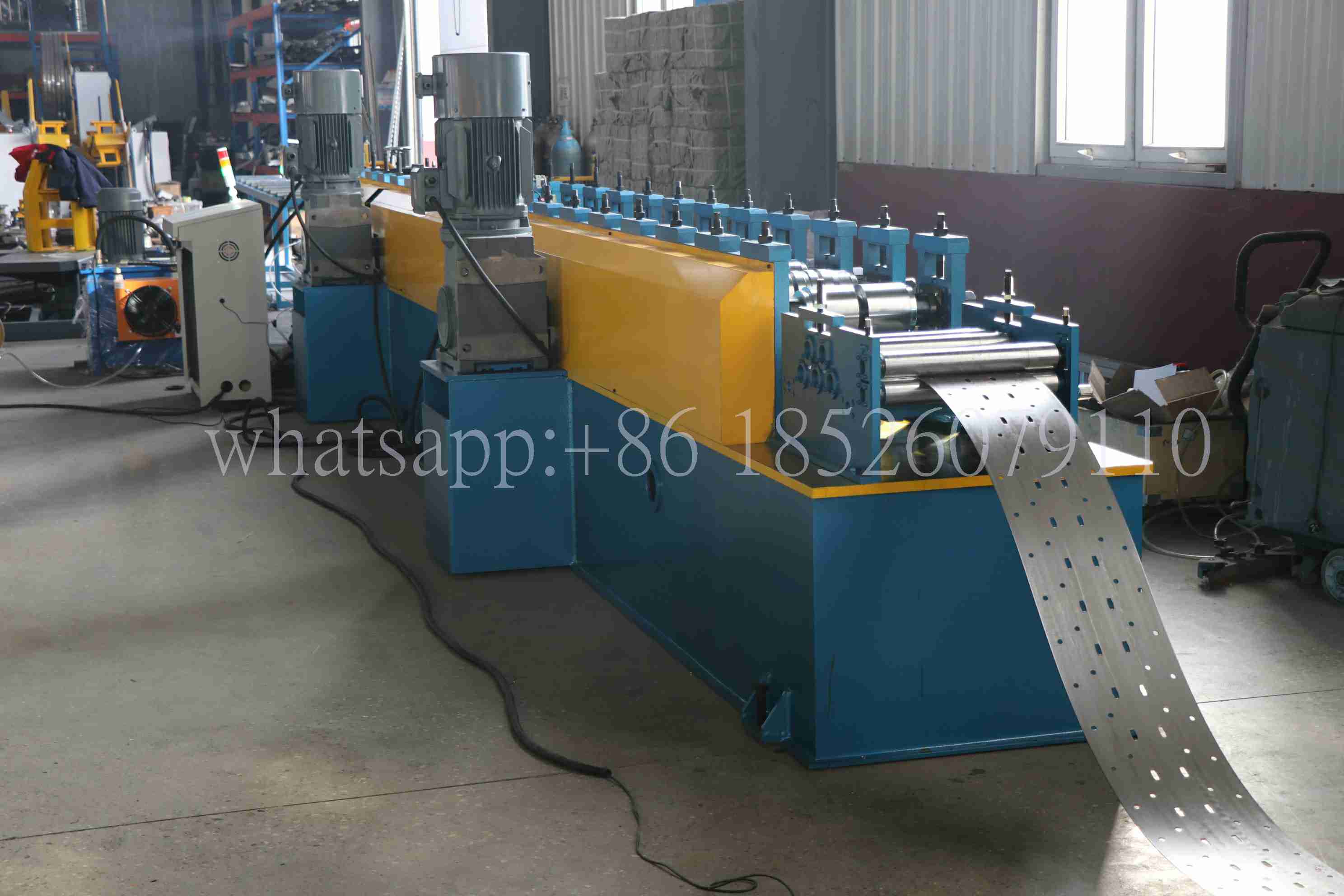

    Rack upright roll forming machine photos showing

Contat us to learn more

Whatsapp:0086 18526079110

E-mail:Kevin@hx-machinery.com

Our photos with our customers

About us

HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.

FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.

Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
