Shelf Rack Roll Forming Machine

In the competitive landscape of industrial warehousing and logistics, the demand for reliable, high-capacity storage systems is paramount. As a specialized manufacturer in cold roll forming technology, we present our advanced **Shelf Rack Roll Forming Machine** — a comprehensive production line engineered to manufacture the critical, high-strength cross beams that form the structural foundation of modern pallet racking and shelving systems. This integrated solution is designed to transform raw steel coil into precision-engineered, interlocking beams with exceptional efficiency and consistency.

Rack upright roll forming machine working flow

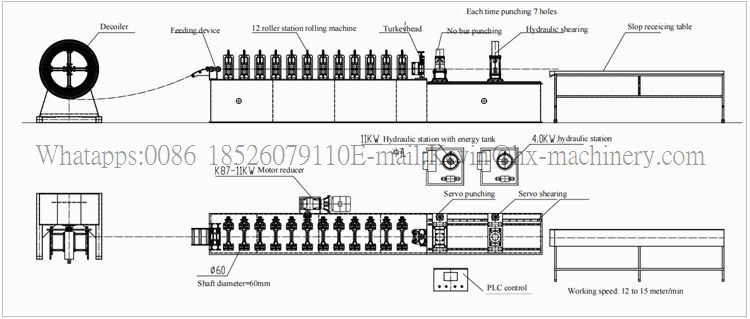

Uncoiling → Leveling → Roll forming system→ Punching system→ Cutting system → Products receiving table

 The core innovation of this production line lies in its unique capability to produce beams where two separate C-channel profiles are mechanically **interlocked** or "bite-fastened" together. This **shelf rack roll forming machine** facilitates a (interlocking) process that creates a single, unified structural member with significantly enhanced load-bearing capacity and torsional rigidity compared to conventional single-piece beams. This design is crucial for meeting the rigorous demands of heavy-duty industrial storage. The entire manufacturing sequence is seamlessly automated, ensuring high throughput and repeatable quality from coil to finished product.

**Complete and Optimized Production Workflow:**

1.  **Coil Loading & Decoiling:** The process begins with a robust decoiling system that ensures smooth, controlled, and consistent feeding of the steel coil, providing a stable start to the forming line.

2.  **Precision Roll Forming:** The material is then guided through the multi-station **Shelf Rack Roll Forming Machine**. Utilizing a customized set of high-grade, hardened roller dies, the machine progressively and accurately shapes the flat strip into the precise C-channel profile.

3.  **Servo/Hydraulic Cut-Off:** A precision cutting unit, typically servo-electric or hydraulic, provides clean, square, and burr-free cuts at pre-programmed lengths. This accuracy is essential for the perfect alignment and fit in the subsequent interlocking stage.

4.  **Dual-Profile Interlocking (Core Process):** This is the defining stage. Two of the pre-formed C-channels are fed into the specialized **Semi-Finished Interlocking Roll Forming Unit**. Through an engineered sequence of rolling and crimping, their flanges are permanently joined, forming an exceptionally strong, double-walled beam. The **shelf rack roll forming machine** ensures this process is precise and robust.

5.  **Automatic Discharge & Stacking:** The finished interlocked beams are automatically conveyed to a receiving table or stacking rack, ready for subsequent processes like welding, powder coating, or direct packaging, minimizing manual handling.

Designed for adaptability, our **Shelf Rack Roll Forming Machine** offers extensive customization. Key operational parameters, including **incoming material width**, **roll forming thickness**, **line speed**, and **electrical voltage**, can be tailored to your specific production requirements and regional standards.

Beyond the machinery, we provide committed technical partnership. Our support includes access to **real-time video online guidance** from our engineering team for prompt troubleshooting and operational optimization, ensuring your production remains efficient.

Investing in our **Shelf Rack Roll Forming Machine** production line equips your manufacturing with the capability to produce superior-strength storage beams reliably, enhancing your product offering and competitive edge in the market.

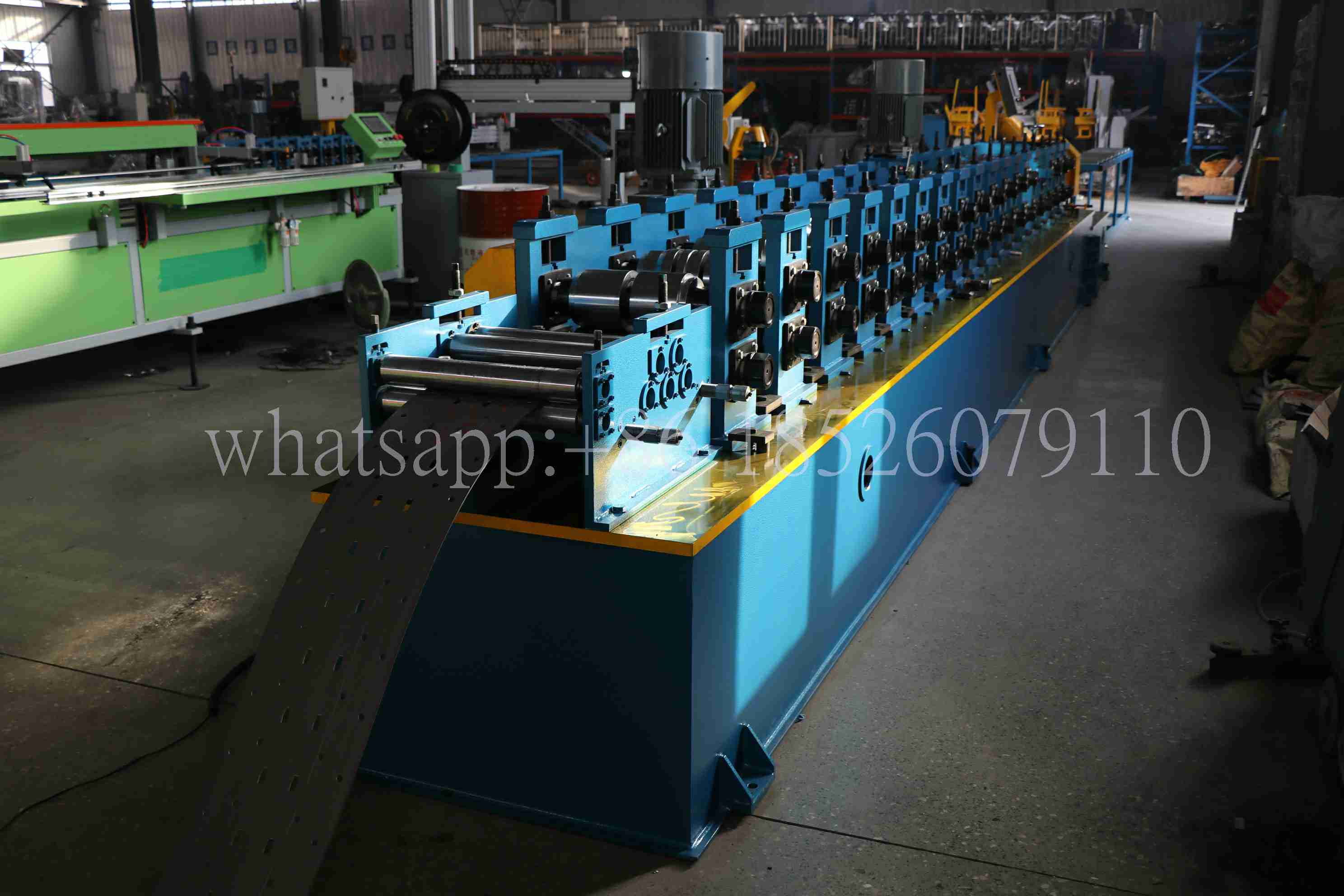

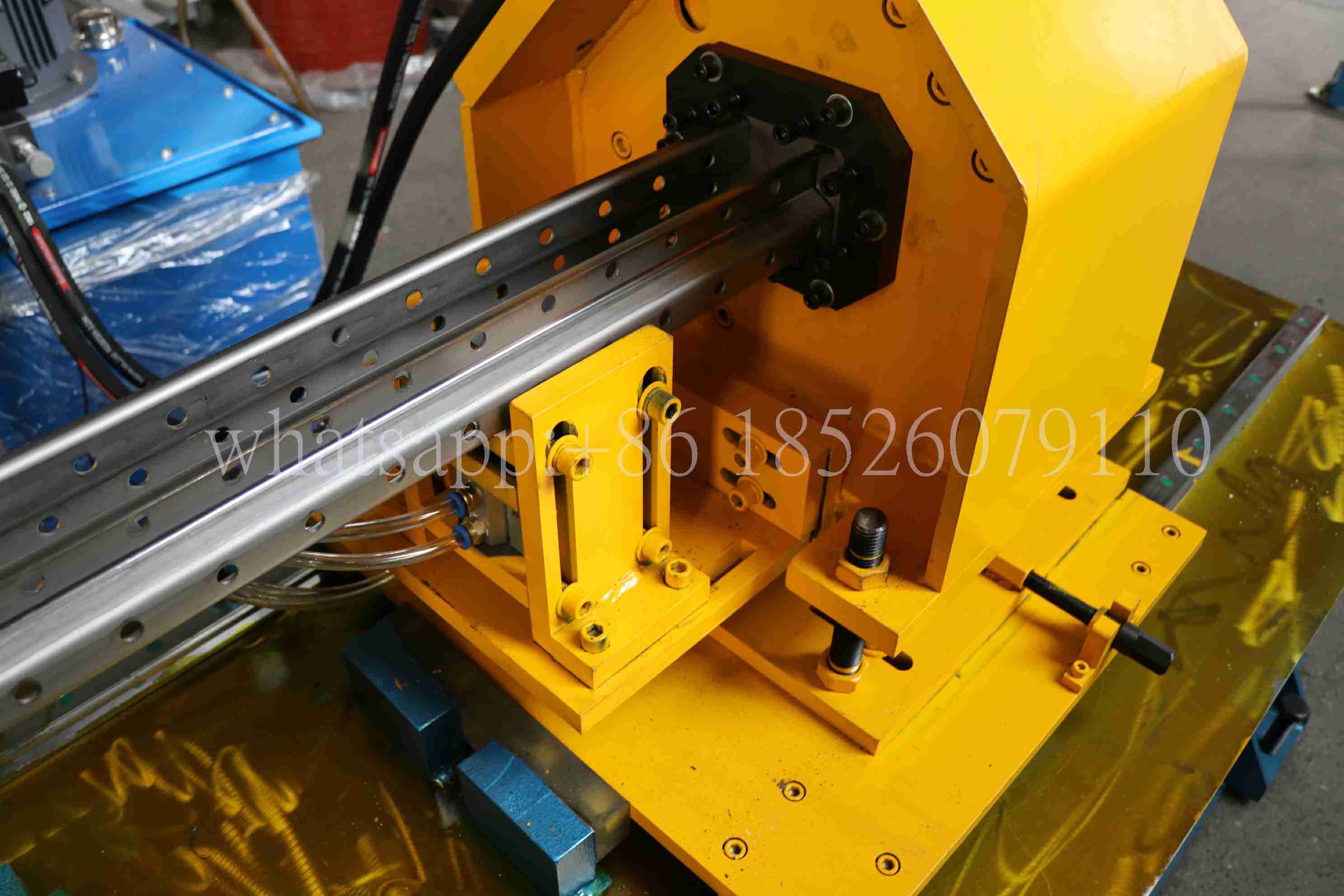

  Rack upright roll forming machine photos showing
