Slotted Angle Making Machine
As a specialized manufacturer of cold roll forming machinery, we present our high-performance **Slotted Angle Making Machine** — a versatile and integrated production line engineered for the efficient fabrication of slotted steel angles, a fundamental component in modular storage, light construction, and industrial shelving systems. While traditionally used for producing slotted angle irons, this advanced system is expertly configured with an additional, innovative module to manufacture high-strength, interlocking beams for heavy-duty racking applications. Our **Slotted Angle Making Machine** is designed to deliver precision, flexibility, and reliability, transforming raw steel coil into ready-to-assemble structural components with exceptional efficiency.
Rack upright roll forming machine working flow

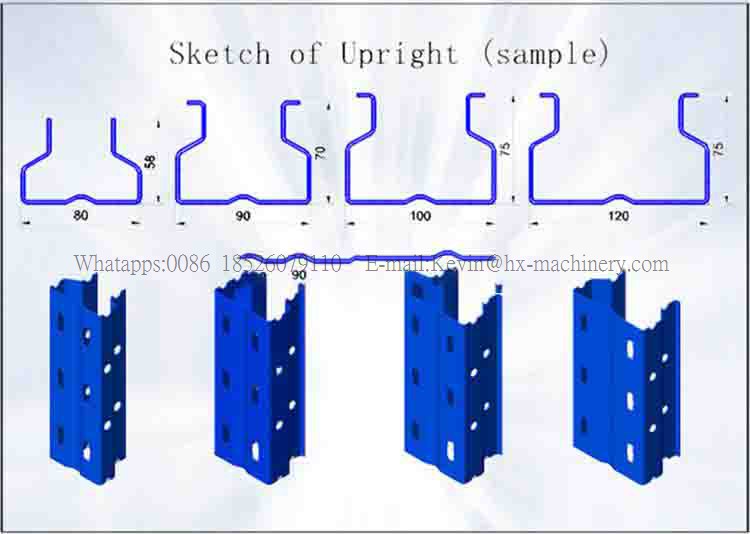

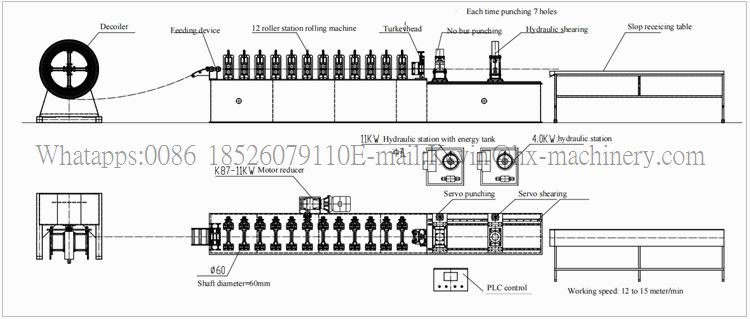

Uncoiling → Leveling → Roll forming system→ Punching system→ Cutting system → Products receiving table
| Rack Roll Forming Machine main parameters | ||
| Forming Rollers | 19rollers | |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 | |
| Main Shaft Diameter | Finished diameter Ø90 mm | |
| Main Shaft Material | 45# steel with quenching and tempering treatment | |
| Motor Power | 11 kW *2 motors, K97 series hard-tooth gearbox | |
| Transmission | Gearbox drive, coupled with universal couplings | |
| Machine Frame | Cast iron archway 48 | |
| Servo Punching | Non-stop servo punching,dual-module reverse punching | |
| Cutting Method | Flying tracking saw cutting (with scrap) | |
| Discharge Table | 3 m × 2 Pieces, roller-type support | |
| Forming Thickness | 1.5-2.5mm | |
| Forming Speed | 10-15m/min | |
| Inverter | Delta brand | |
| LCD Screen | Display Control Electric | |
| Low-Voltage Electrical Components | Delixi or Chint | |
| Hydraulic System | 5.5Kw | |
| Bearings | Harbin Bearings | |
| Reducer | Ruibofeng Reducer Co., Ltd. | |
| Decoiler | Motorized decoiler with hydraulic expanding mandrel, load capacity 5 tons Inner diameter: 480–520 mm Max. outer diameter: 1600 mm | |
| Leveling Section | 1.5 rollers | |
| 2. Leveling shaft diameter 70 mm | ||
| 3. Material 40Cr high frequency quenching | ||

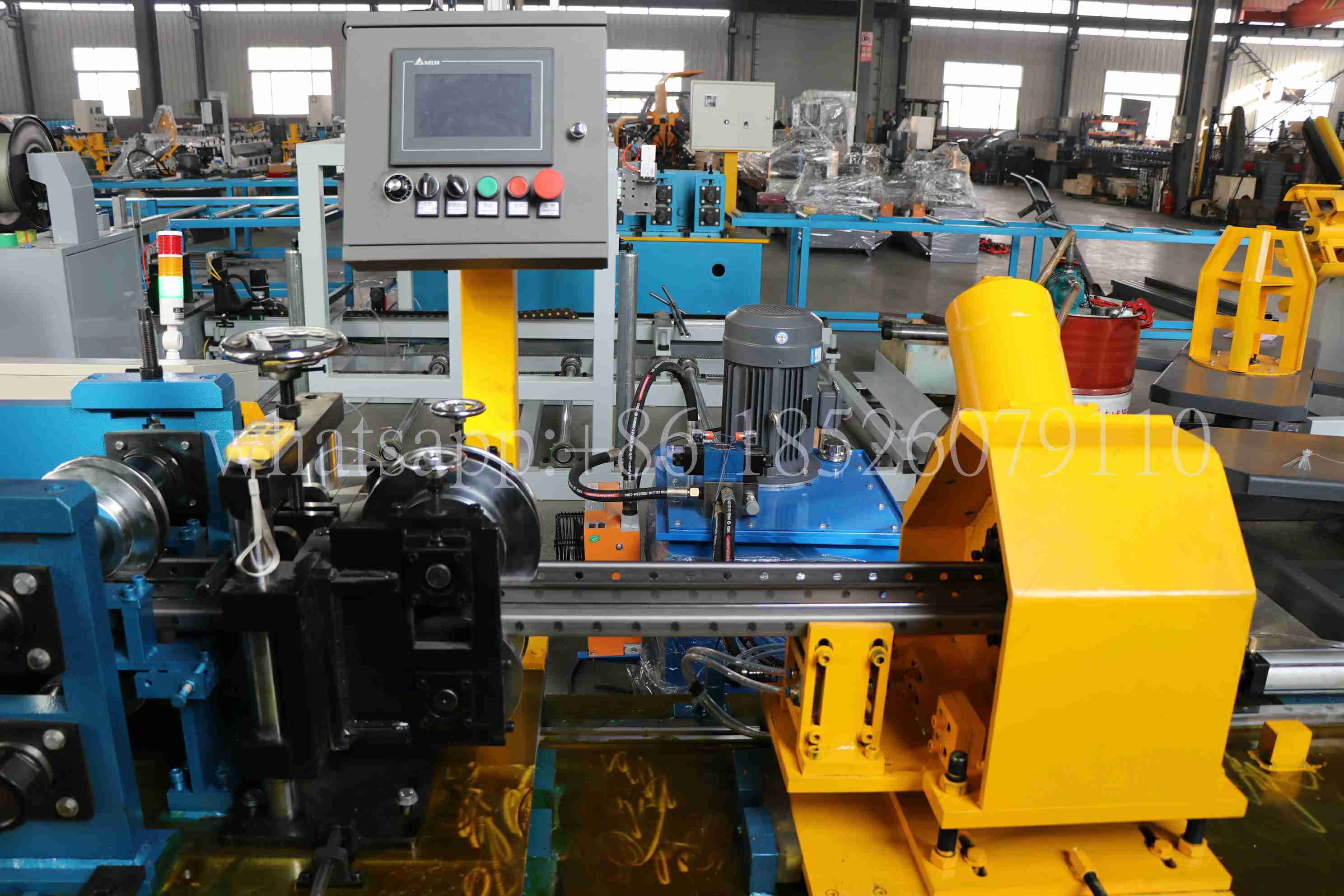

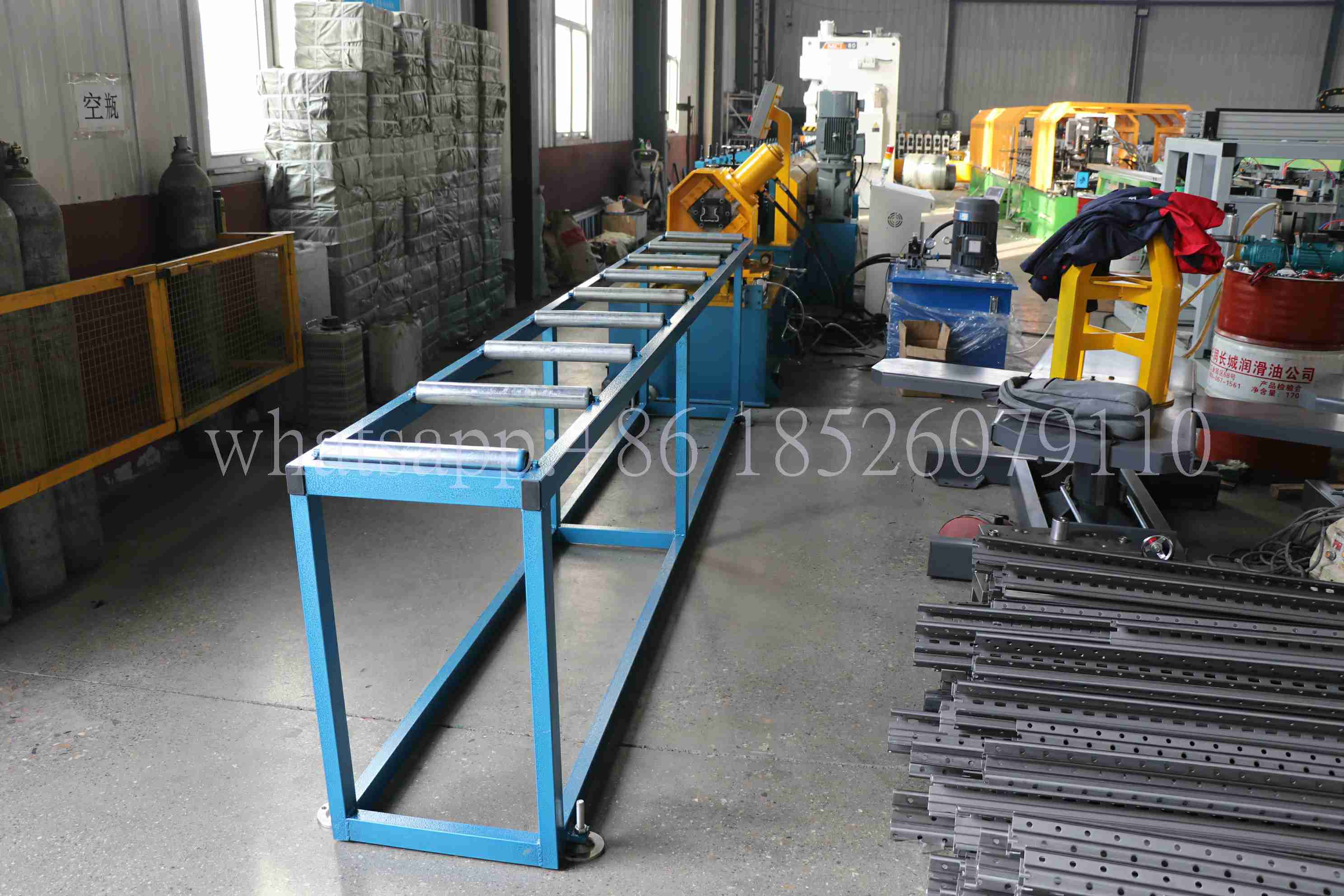

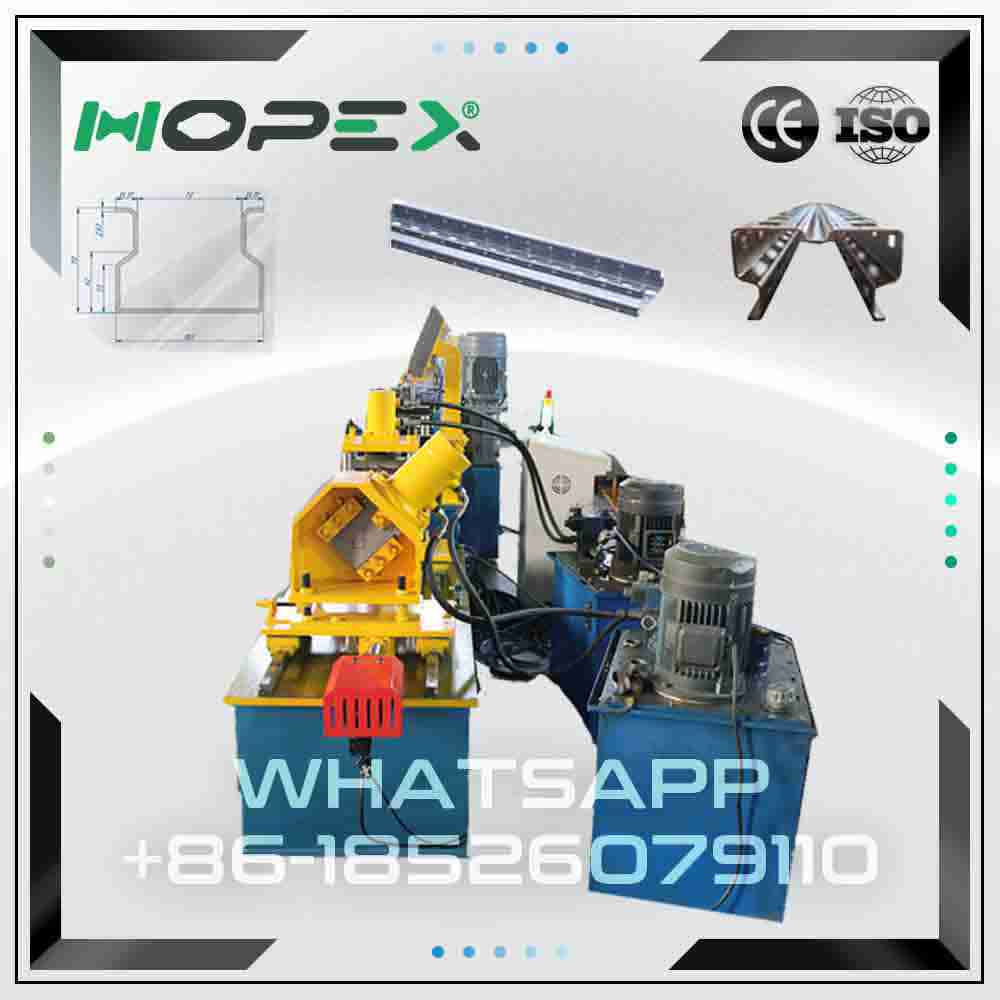

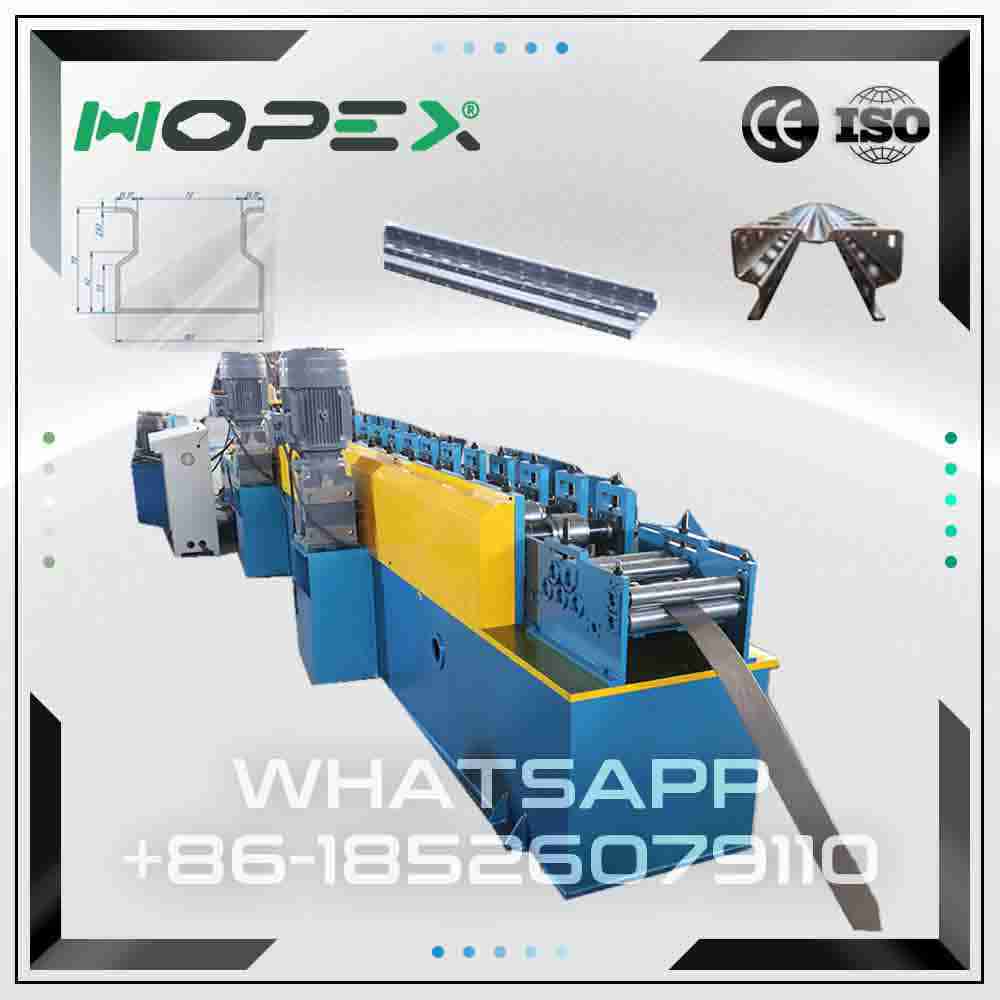

Rack upright roll forming machine photos showing
