 Step Beam Machine

As a specialized manufacturer in cold roll forming technology, we are proud to introduce our high-precision **Step Beam Machine** — a dedicated and fully integrated production line engineered for the efficient fabrication of step beams, the critical horizontal components in modern adjustable pallet racking systems. This system is meticulously designed to transform raw steel coil into robust, ready-to-use beams with the distinctive stepped profile that allows for secure and easy placement of wire decking or plywood. Our **Step Beam Machine** ensures exceptional dimensional accuracy, structural integrity, and high-volume output to meet the demands of the global logistics and warehousing industry.

Rack upright roll forming machine working flow

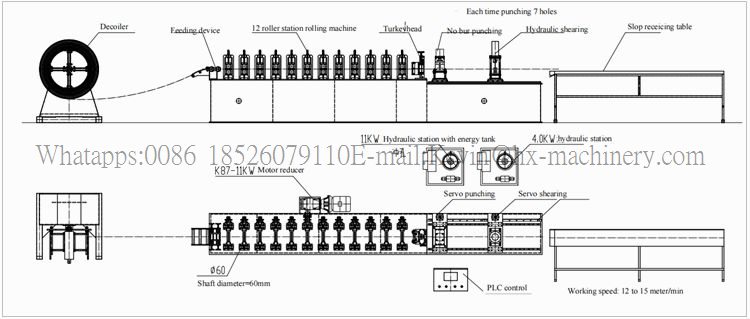

Uncoiling → Leveling → Roll forming system→ Punching system→ Cutting system → Products receiving table

The defining output of this **Step Beam Machine** is the creation of the characteristic step beam profile. This design features a stepped or notched configuration along the top flange, providing a positive locking surface for decking materials and enhancing overall load distribution. For applications requiring maximum strength, our advanced line configuration includes an innovative module to produce **interlocked step beams**. In this enhanced process, two pre-formed C-channel profiles are mechanically joined in a咬扣 (interlocking) operation, forming a single, unified beam with a closed-box or reinforced double-wall section at the step. This interlocking design, facilitated by the **Step Beam Machine**, offers dramatically increased load-bearing capacity and torsional rigidity compared to standard single-profile step beams, making it ideal for high-bay storage and seismic zones.

**Complete and Automated Production Workflow:**

Our **Step Beam Machine** orchestrates a seamless, automated manufacturing sequence:

1.  **Precision Decoiling & Feeding:** The process begins with a heavy-duty decoiler that ensures smooth, controlled, and consistent feeding of the steel coil, providing a stable start to the forming line.

2.  **Progressive Roll Forming:** The steel strip is guided through a multi-station forming mill. Equipped with a custom-engineered set of hardened roller dies, the **Step Beam Machine** progressively shapes the metal into the precise stepped C-channel profile. For interlocked beams, two identical profiles are formed.

3.  **Notching/Punching (Optional):** Depending on design, an in-line notching or punching station can create the necessary holes or features in the beam's web for safety clips or connector locks.

4.  **Accurate Hydraulic Cutting:** A computer-controlled hydraulic shear provides clean, square, and burr-free cuts to exact programmed lengths.

5.  **Interlocking Forming (For Enhanced Beams):** In configurations for maximum strength, two profiles are fed into a dedicated interlocking unit. This subsystem precisely joins them at the step region, creating a superior reinforced beam. The precision of the **Step Beam Machine** in the initial forming is critical for this operation.

6.  **Automated Discharge and Stacking:** The finished step beams are automatically conveyed to a receiving rack, organized for bundling and direct shipment to rack assemblers.

Engineered for versatility, our **Step Beam Machine** offers extensive customization. Key parameters, including **material width/thickness**, **step dimensions**, **punching pattern**, **line speed**, and **voltage**, are fully adaptable.

We provide comprehensive support with **real-time video online guidance** from our engineers, ensuring your **Step Beam Machine** investment delivers peak productivity and superior beams for the competitive storage market.

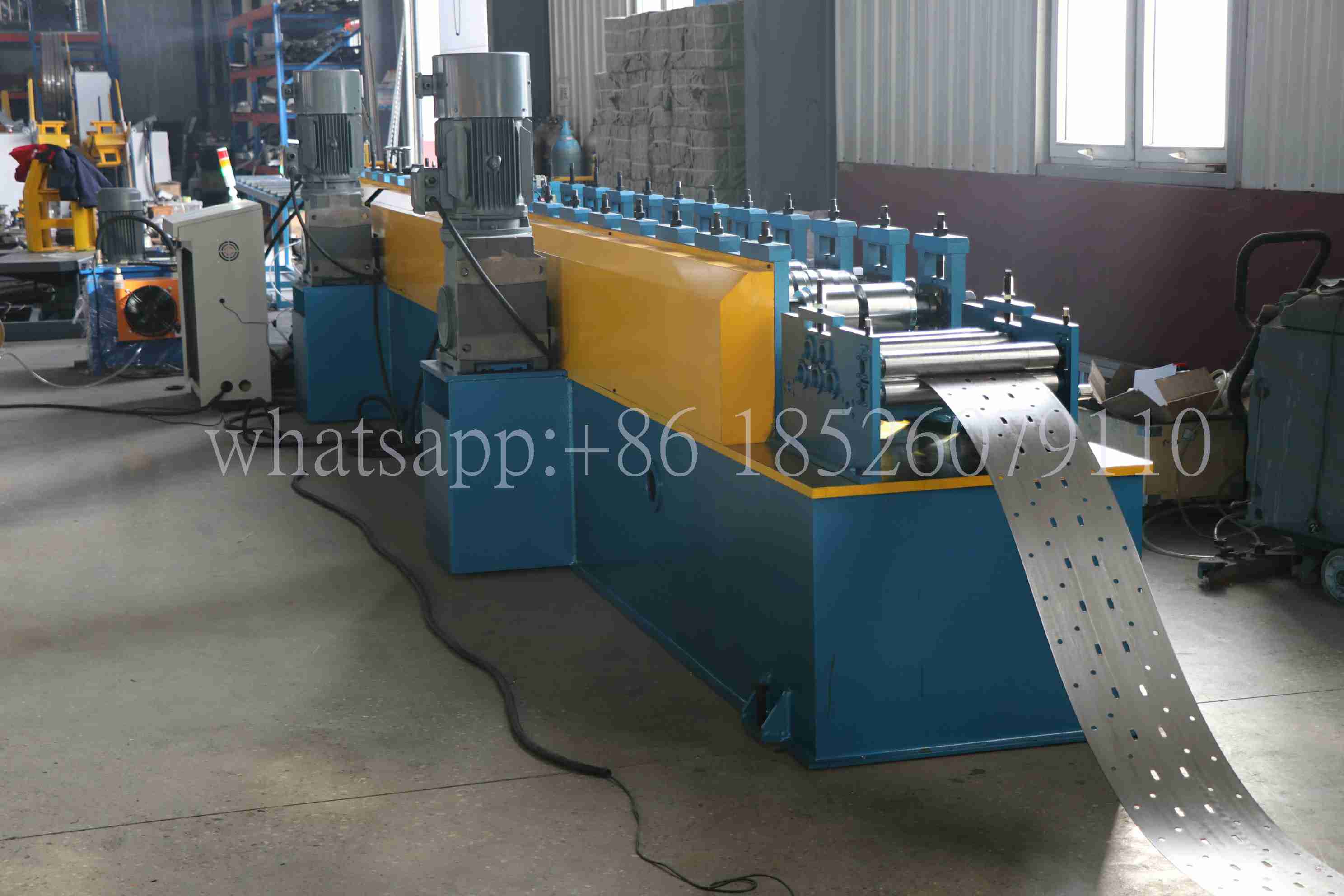

  Rack upright roll forming machine photos showing
