Post Roll Forming Machine

As a specialized manufacturer in cold roll forming technology, we are proud to introduce our advanced **Post Roll Forming Machine** — a fully integrated production line engineered for the high-volume fabrication of structural posts, uprights, and columns, with a unique capability to also produce innovative interlocking components. This system is designed to transform raw steel coil into robust, precision-formed structural elements with exceptional efficiency, dimensional accuracy, and consistency, meeting the critical demands of the construction, storage system, and industrial framework markets.

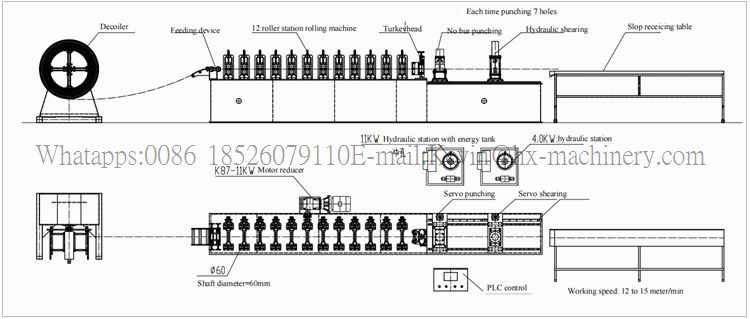

Rack upright roll forming machine working flow

Uncoiling → Leveling → Roll forming system→ Punching system→ Cutting system → Products receiving table

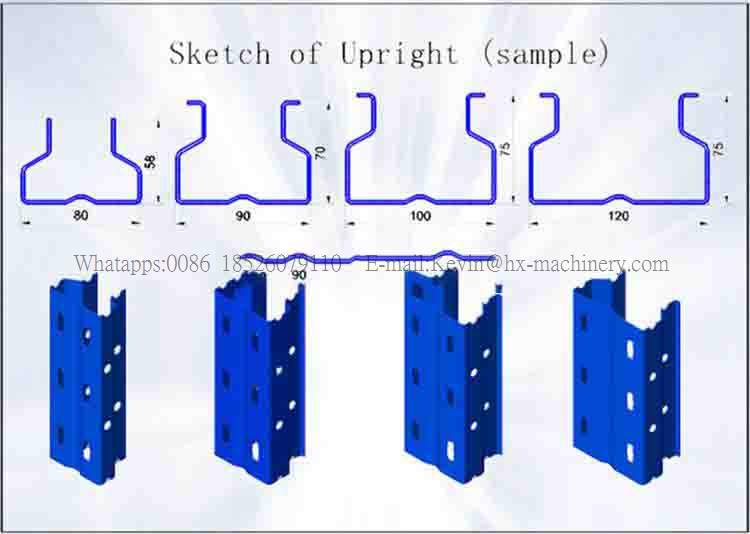

While the primary function of a **Post Roll Forming Machine** is to produce the vertical load-bearing members for structures such as pallet racking, mezzanine floors, and building frameworks, our advanced line configuration incorporates innovative versatility. A key technological feature allows for the production of **interlocking horizontal beams**. This process involves forming two complementary C-channel profiles that are mechanically joined in a precise (interlocking) operation within the continuous workflow. The **Post Roll Forming Machine** facilitates this, resulting in a single, unified beam with a closed or reinforced section. This design offers dramatically enhanced load-bearing capacity and torsional rigidity compared to standard open-section beams, making it ideal for the horizontal members in heavy-duty storage applications. This dual capability for both vertical posts and interlocking beams makes our **Post Roll Forming Machine** an exceptionally versatile investment.

**Complete and Automated Production Workflow:**

Our **Post Roll Forming Machine** orchestrates a seamless and efficient manufacturing sequence:

1.  **Precision Decoiling & Leveling:** The process begins with a heavy-duty decoiler and leveling system that ensures smooth feeding and flattens the steel coil, eliminating internal stresses for precise forming.

2.  **Progressive Roll Forming:** The leveled strip is guided through a multi-station forming mill. Utilizing custom-engineered, hardened roller dies, the **Post Roll Forming Machine** progressively shapes the metal into the desired profile—be it a complex column section or the C-channel for interlocking beams.

3.  **Punching/Notching (Optional):** An integrated punching station can accurately create connection holes, slots, or service penetrations at programmed locations in the post or beam profile.

4.  **Accurate Hydraulic Cutting:** A computer-controlled hydraulic shear provides clean, square, and burr-free cuts to exact programmed lengths, ensuring perfect fit during assembly.

5.  **Interlocking Forming (For Beam Production):** For manufacturing interlocking beams, two pre-formed C-channels are fed into a dedicated unit. Through a specialized rolling sequence, they are permanently joined. The precision of the initial forming by the **Post Roll Forming Machine** is critical here.

6.  **Automated Discharge and Stacking:** The finished structural components are automatically conveyed to a receiving system for bundling and shipment.

Engineered for maximum flexibility, our **Post Roll Forming Machine** offers extensive customization. Key parameters, including **material width/thickness**, **profile design**, **hole pattern**, **line speed**, and **control voltage**, are fully adaptable.

We provide comprehensive support with **real-time video online guidance** from our engineers, ensuring your **Post Roll Forming Machine** operates at peak efficiency, delivering the superior structural components needed for modern industrial projects.

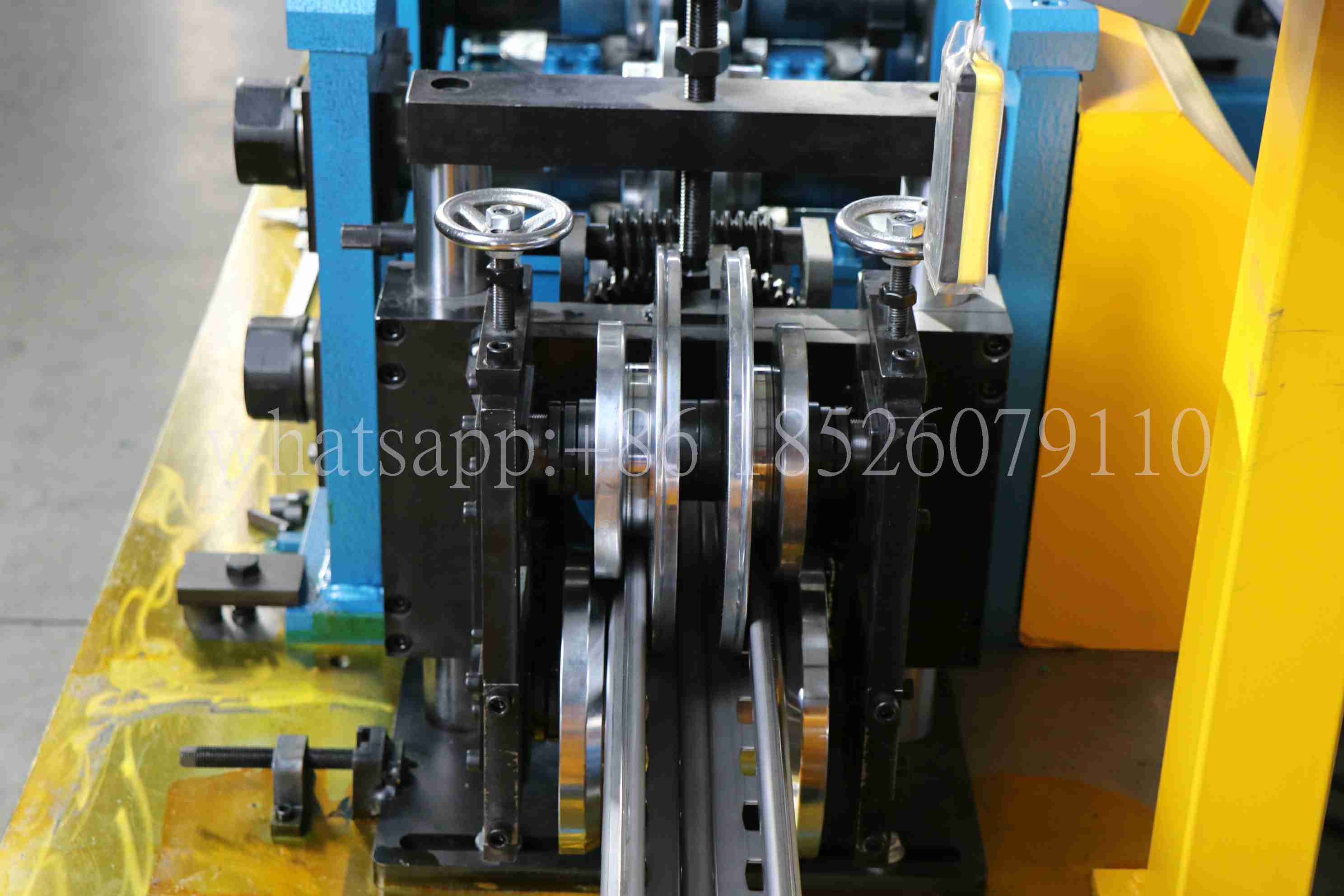

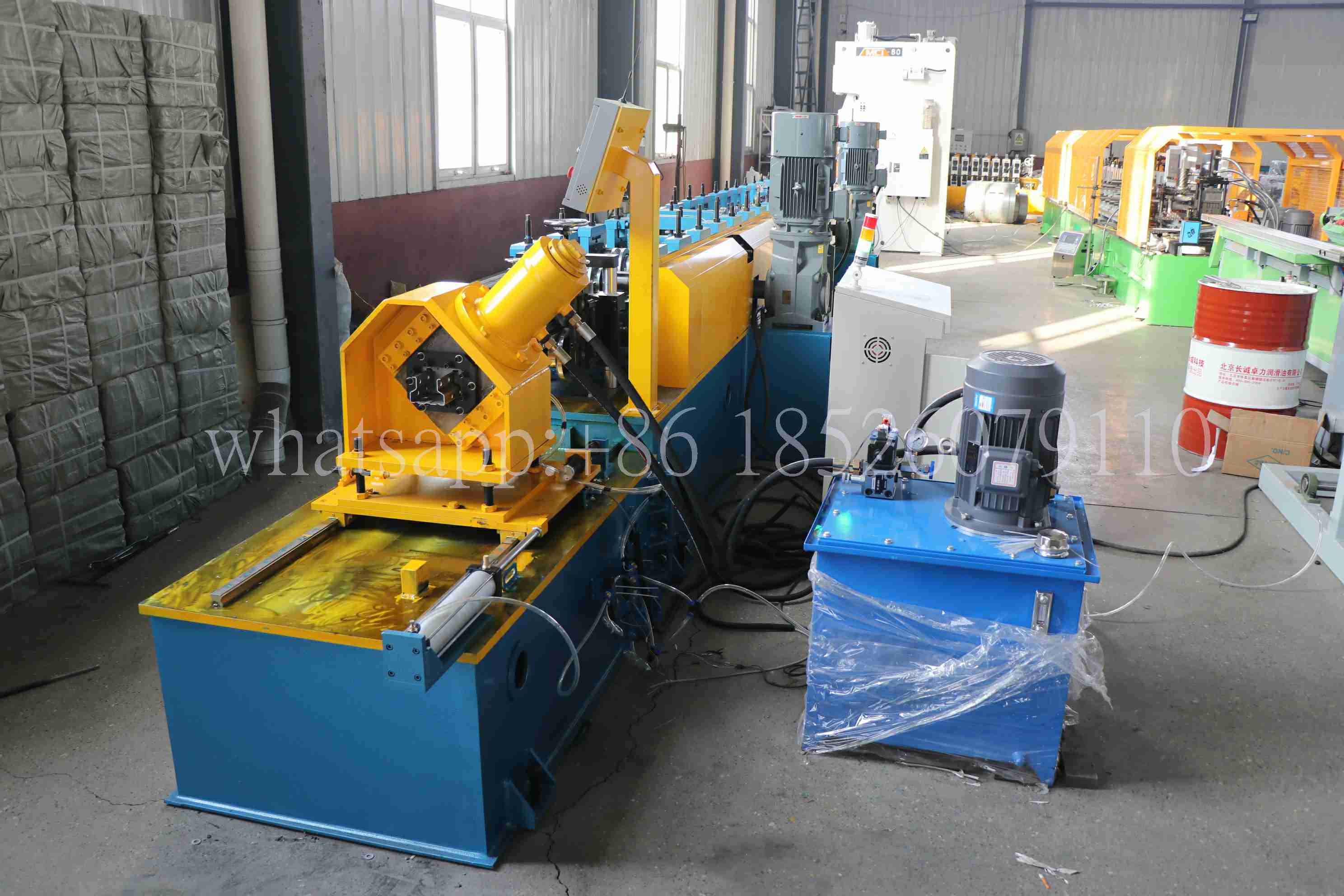

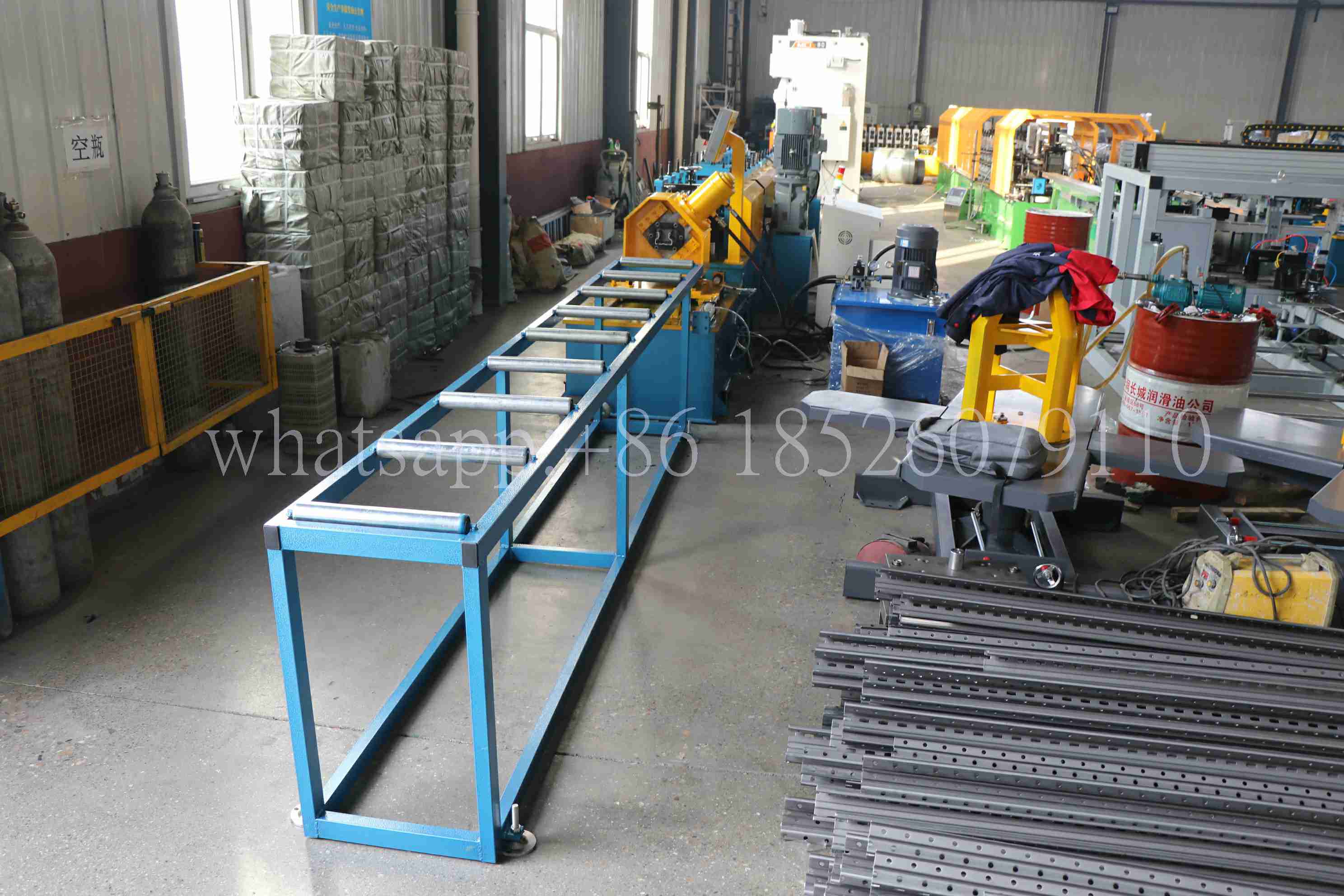

  Rack upright roll forming machine photos showing

Contat us to learn more

Whatsapp:0086 18526079110

E-mail:Kevin@hx-machinery.com

Our photos with our customers

About us

HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.

FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.

Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
