Upright Roll Forming Machine

As a leading manufacturer specializing in cold roll forming technology, we are proud to introduce our advanced **Upright Roll Forming Machine** — an integrated production line engineered to manufacture high-strength, precision-formed structural components, including those used in complex assemblies like storage system uprights and interlocking beams. This state-of-the-art system exemplifies our commitment to delivering robust solutions that enhance manufacturing efficiency and product integrity for the industrial and construction sectors.

Rack upright roll forming machine working flow

Uncoiling → Leveling → Roll forming system→ Punching system→ Cutting system → Products receiving table

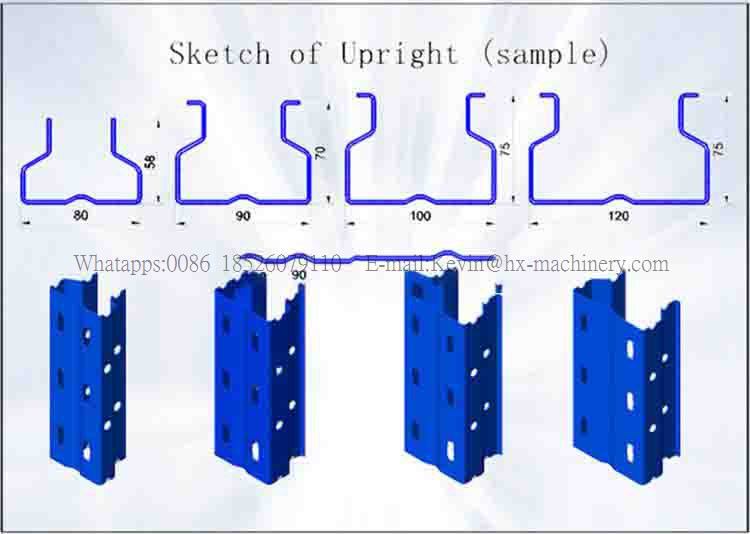

 While the term **"upright roll forming machine"** precisely describes its core capability of producing the vertical columns or uprights for storage racks, this versatile line is also expertly configured to fabricate the critical horizontal beams. A key application involves producing beams where two formed channels are mechanically **interlocked**—a咬扣 (interlocking) process that creates a single, unified structural member with exceptional load-bearing capacity and torsional stability. This dual functionality makes it a comprehensive solution for complete rack system manufacturing.

**Engineered for Precision and Durability:**

Our **Upright Roll Forming Machine** is built with heavy-duty construction to ensure long-term reliability and consistent performance under continuous operation. It features a multi-station forming mill equipped with high-grade alloy steel rollers, designed for precise, progressive shaping of high-tensile steel strips into complex profiles with tight tolerances.

**Complete, Automated Production Workflow:**

The line operates as a seamless, automated sequence:

1.  **Coil Loading & Decoiling:** A powered decoiler ensures smooth, controlled feeding of the steel coil.

2.  **Precision Roll Forming:** The strip passes through the **Upright Roll Forming Machine** stations, where it is gradually cold-formed into the desired profile—whether a standard C-channel, a customized upright section, or the specific profile destined for interlocking.

3.  **Precision Cutting:** A servo-electric or hydraulic cutting system delivers clean, burr-free cuts with exact length accuracy, which is crucial for subsequent assembly and interlocking.

4.  **Interlocking Forming (For Beam Production):** For beam manufacturing, two pre-formed profiles are fed into a dedicated interlocking unit. This subsystem precisely crimps and joins them, creating a strong, double-walled beam. The **upright roll forming machine** platform ensures the initial profiles are formed with the consistency required for this precise joining process.

5.  **Automated Discharge:** Finished products, whether uprights or interlocked beams, are automatically stacked or conveyed for further processing or packaging.

**Customization and Support:**

We understand that each project has unique requirements. Therefore, our **Upright Roll Forming Machine** is highly customizable. Critical parameters such as **material thickness**, **forming width**, **line speed**, and **control voltage** can be tailored to your specific production needs. To maximize your uptime and operational efficiency, we provide comprehensive support, including **real-time video online guidance** from our engineering team for immediate troubleshooting and process optimization.

Investing in our **Upright Roll Forming Machine** production line provides a versatile and powerful foundation for manufacturing high-quality structural components, enhancing your production capability and market competitiveness.

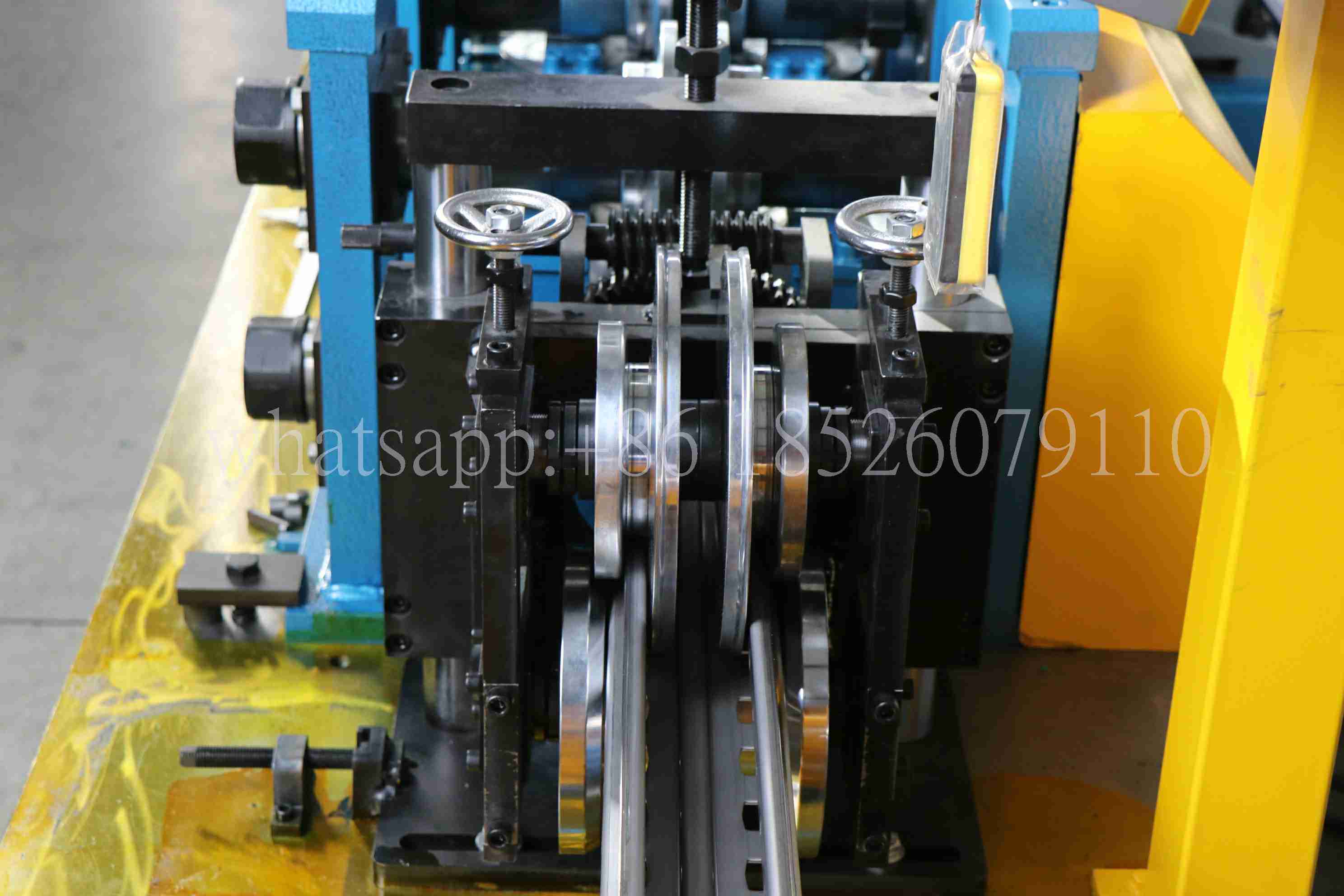

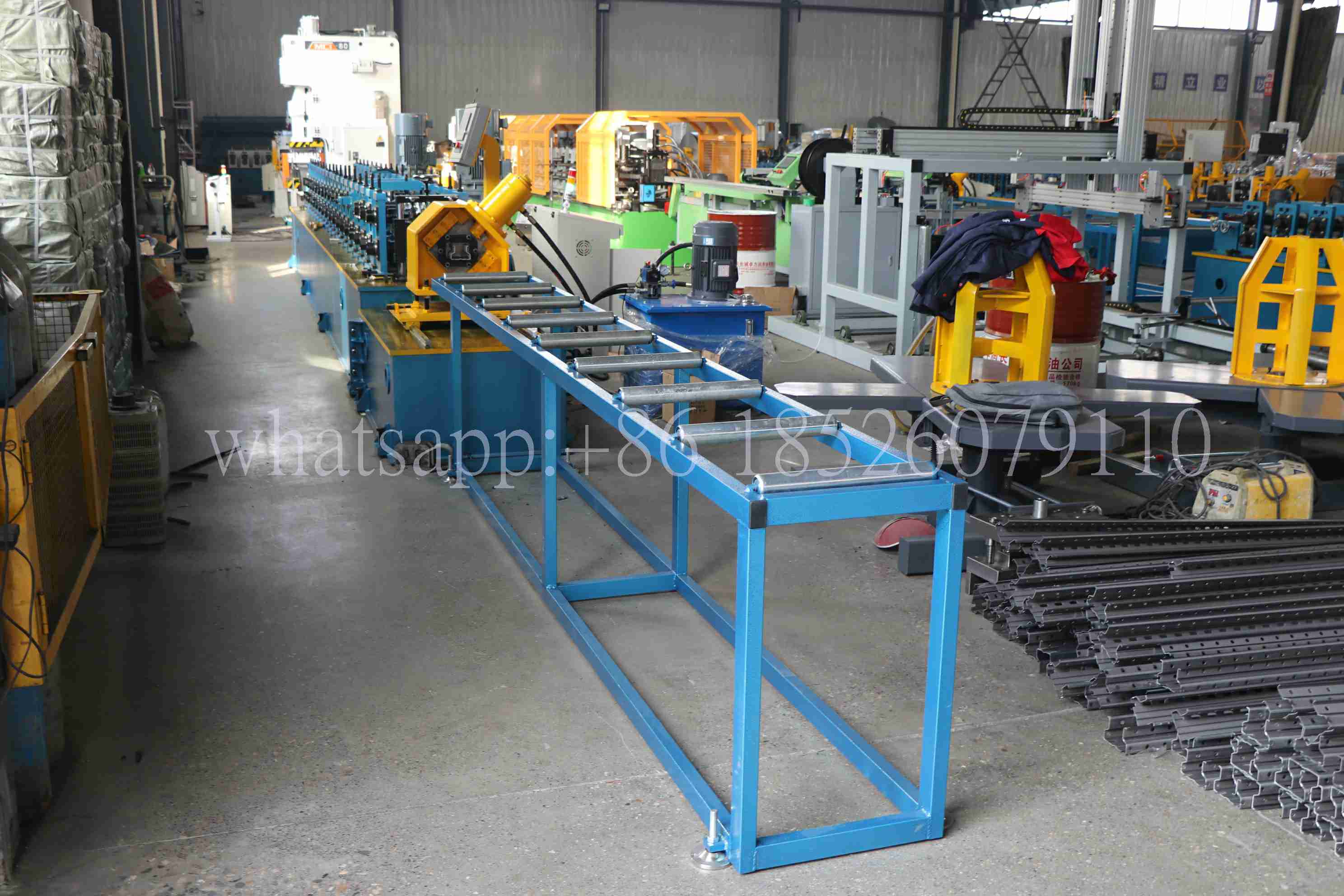

  Rack upright roll forming machine photos showing

Contat us to learn more

Whatsapp:0086 18526079110

E-mail:Kevin@hx-machinery.com

Our photos with our customers

About us

HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.

FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.

Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
