 Upright Rack Roll Forming Machine

As a specialized manufacturer in cold roll forming technology, we present our high-performance **Upright Rack Roll Forming Machine** – a fully integrated production system engineered to fabricate the essential structural components for modern industrial storage systems. This versatile line is expertly designed to manufacture not only the critical vertical upright columns but also the innovative interlocking beams, providing a comprehensive solution for high-quality rack production. Our **Upright Rack Roll Forming Machine** is built to transform raw steel coil into precision components with exceptional efficiency, consistency, and strength, meeting the rigorous demands of the logistics and warehousing industry.

Rack upright roll forming machine working flow

Uncoiling → Leveling → Roll forming system→ Punching system→ Cutting system → Products receiving table

  The standout feature of this system is its advanced capability for producing interlocking beams. The **Upright Rack Roll Forming Machine** facilitates a precise (interlocking) process where two pre-formed C-channel profiles are mechanically joined. This operation creates a single, unified beam with dramatically enhanced load-bearing capacity and torsional rigidity compared to standard single-profile beams. This design is fundamental for ensuring the safety and durability of pallet racking in high-density storage environments. The entire manufacturing sequence from coil to finished product is seamlessly automated within this **Upright Rack Roll Forming Machine** line, ensuring high throughput and repeatable quality essential for large-scale production.

**Complete and Automated Production Workflow:**

Our **Upright Rack Roll Forming Machine** orchestrates a continuous and optimized manufacturing process:

1.  **Precision Decoiling:** The process begins with a robust decoiling system that ensures smooth, controlled, and consistent feeding of the steel coil, establishing a stable foundation for the entire forming line.

2.  **Progressive Roll Forming:** The material is guided through a multi-station forming mill. Utilizing a custom-engineered set of high-grade, hardened roller dies, the **Upright Rack Roll Forming Machine** progressively shapes the flat strip into the exact C-channel profile required for both uprights and interlocking beam components.

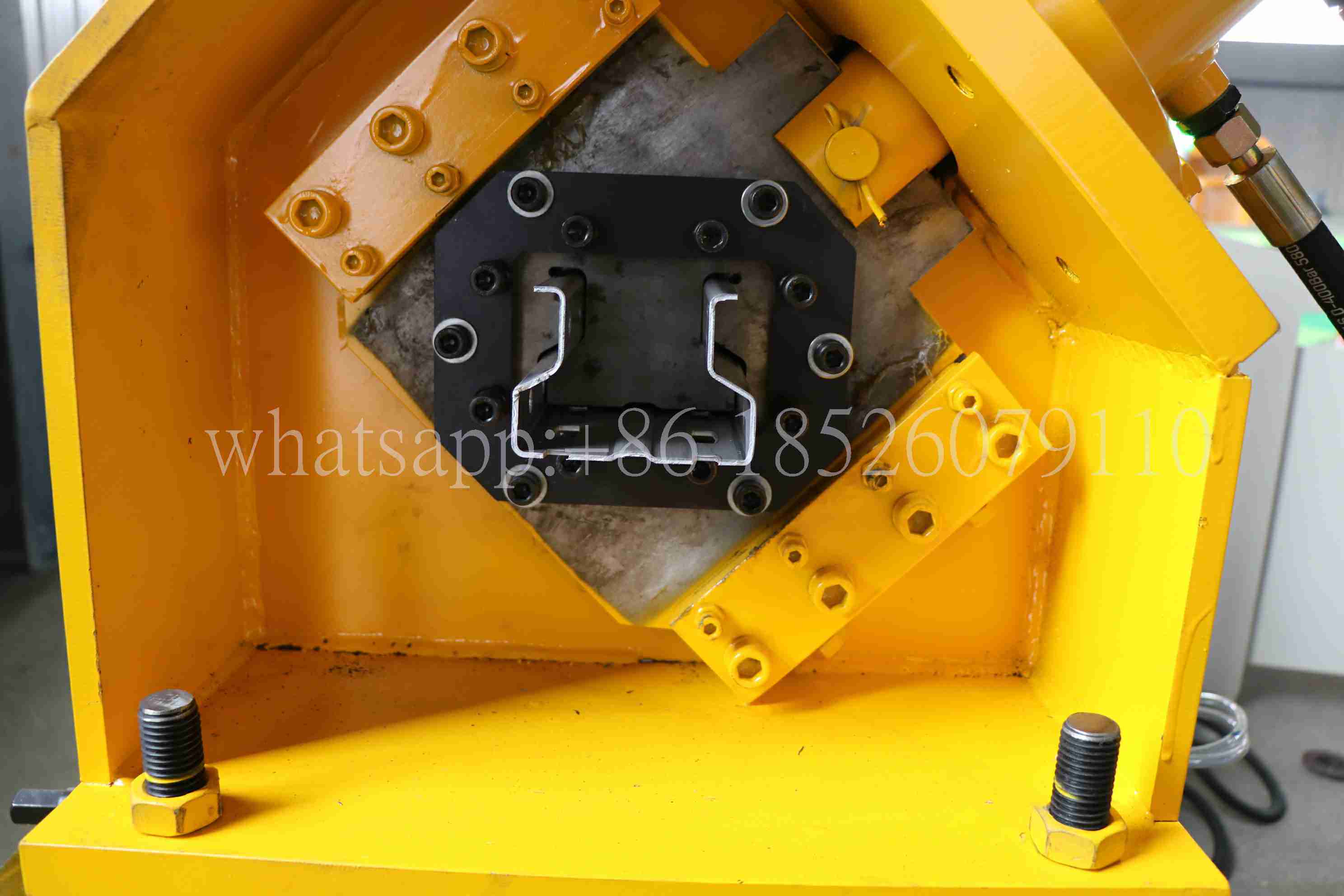

3.  **Accurate Hydraulic Cutting:** A computer-controlled hydraulic shear provides clean, square, and burr-free cuts to precise, programmed lengths. This accuracy is crucial for ensuring perfect alignment and structural integrity in the subsequent interlocking stage.

4.  **Interlocking Forming (Core Beam Process):** This is the defining phase for beam production. Two of the identically formed C-channels are fed into the dedicated **Semi-Finished Interlocking Roll Forming Unit**. Through a specialized rolling sequence, their flanges are permanently crimped and locked together, creating a single, exceptionally strong double-walled beam. The precision of the **Upright Rack Roll Forming Machine** in the initial profile forming is vital for the success of this interlocking operation.

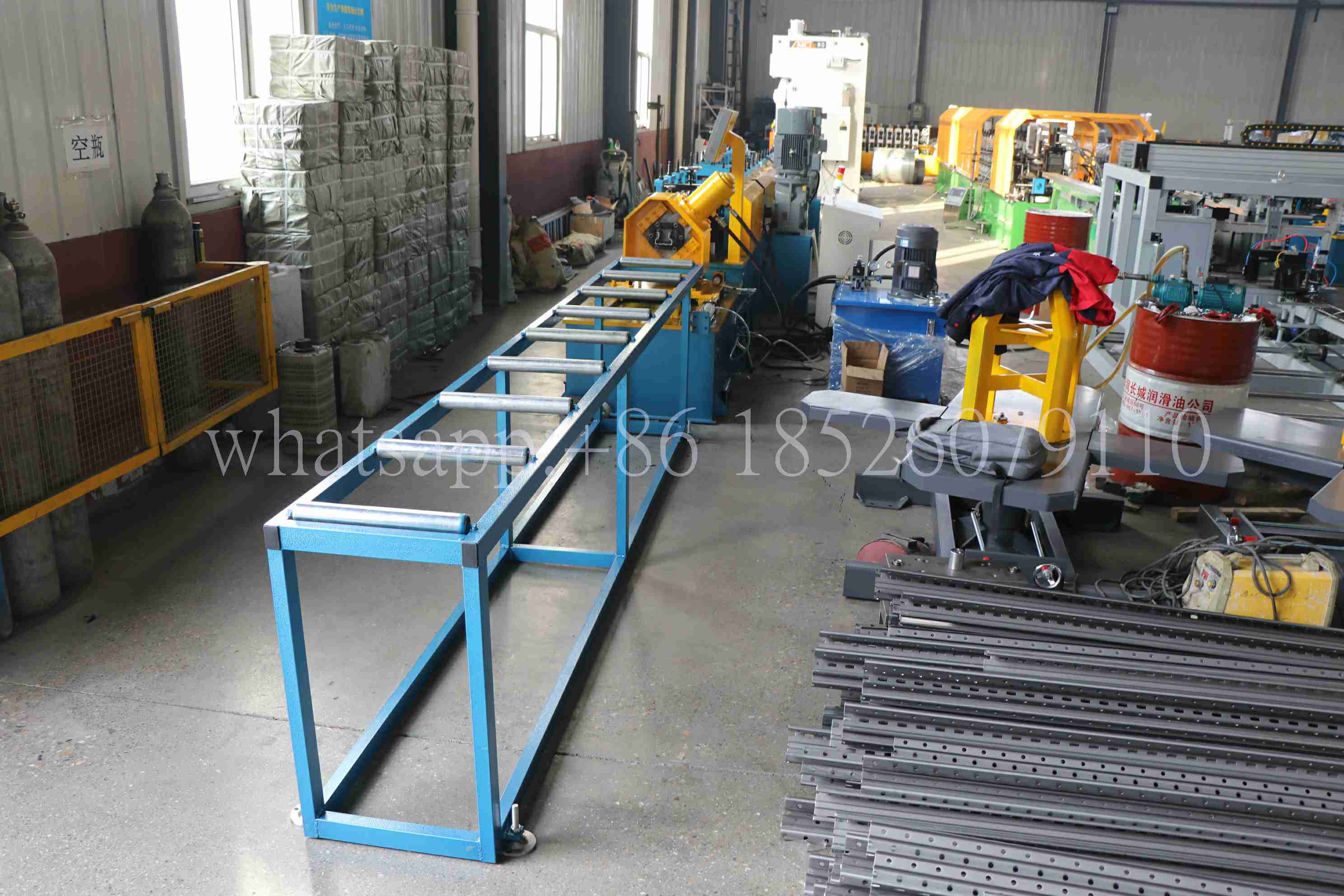

5.  **Automated Discharge and Stacking:** The finished components – whether structural uprights or interlocked beams – are automatically conveyed to a receiving rack or stacking table, organized for easy handling and ready for subsequent processes like welding or powder coating, thereby minimizing manual labor.

Engineered for maximum flexibility, our **Upright Rack Roll Forming Machine** offers extensive customization to meet diverse global standards and specific client needs. Key operational parameters, including **material entry width**, **roll forming thickness**, **production line speed**, and **control voltage**, can be fully tailored to your specific material specifications and factory environment.

Beyond delivering reliable and robust machinery, we are committed to a true partnership. Our comprehensive support package includes access to **real-time video online guidance** from our expert engineering team for immediate troubleshooting, operational training, and continuous process optimization, ensuring your production line maintains peak performance and maximum uptime.

Investing in our **Upright Rack Roll Forming Machine** production line empowers your business to manufacture top-tier storage system components with improved efficiency, reduced operational costs, and superior product quality. This investment strengthens your production capability and competitive edge in the dynamic material handling and storage solutions market.

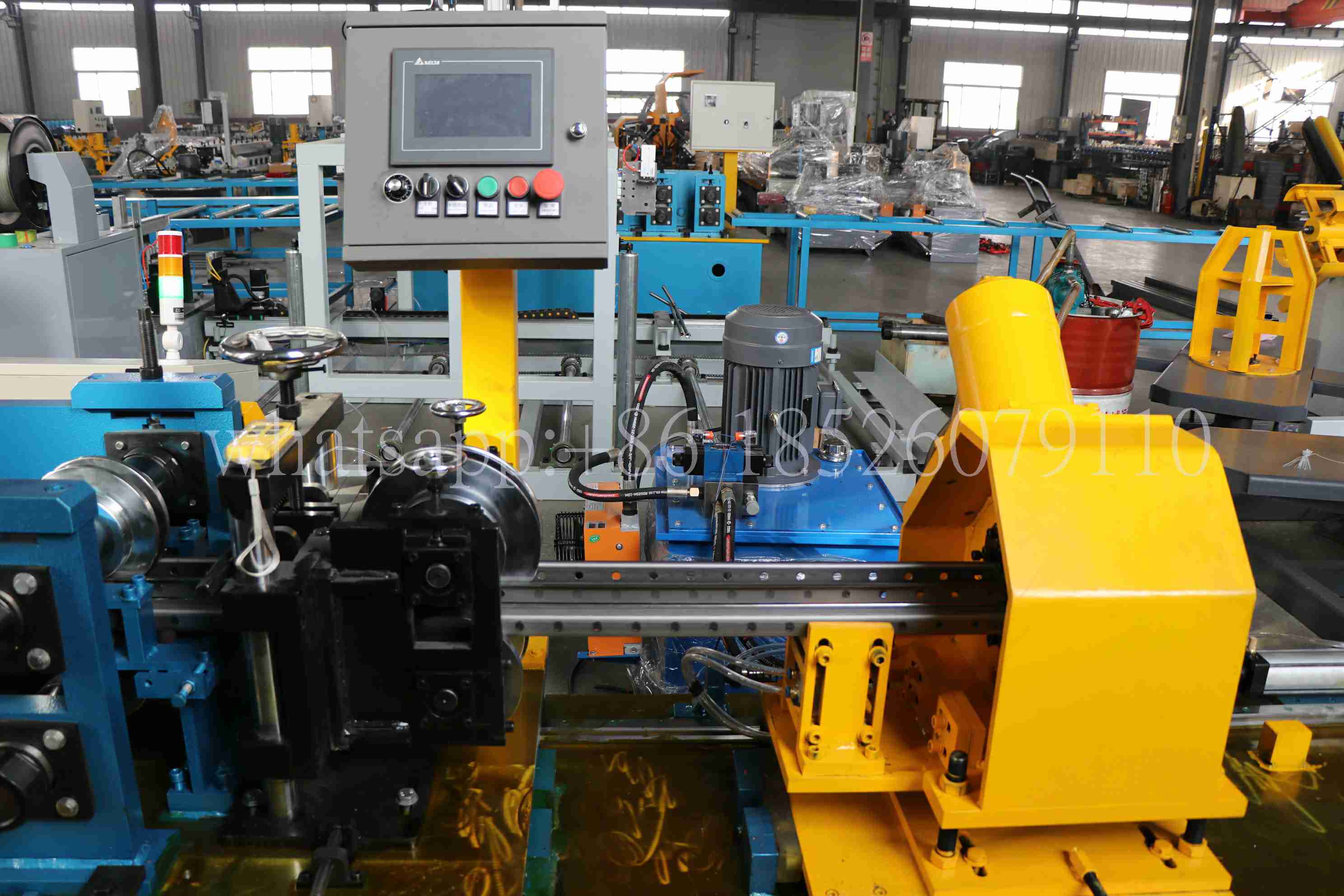

  Rack upright roll forming machine photos showing

Contat us to learn more

Whatsapp:0086 18526079110

E-mail:Kevin@hx-machinery.com

Our photos with our customers

About us

HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.

FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.

Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
