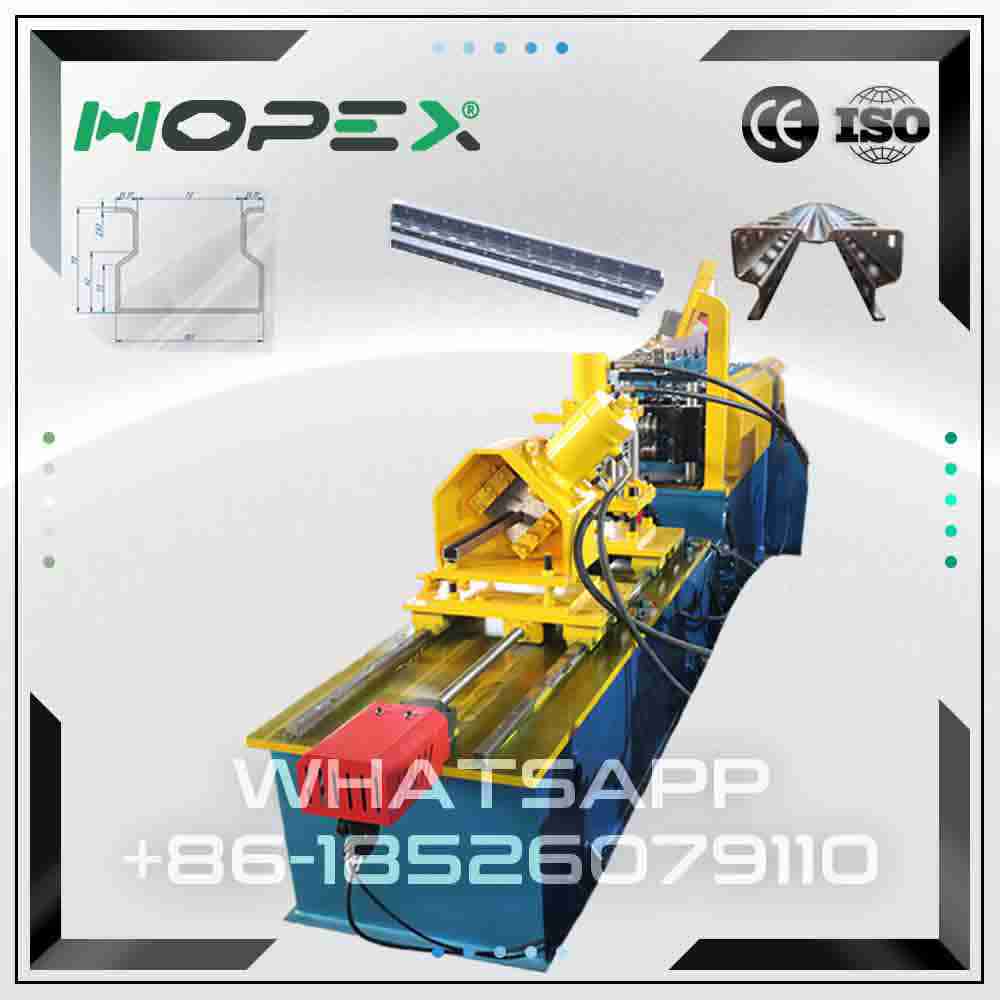

Bracing machine
As a specialized manufacturer in cold roll forming technology, we are proud to introduce our advanced **Bracing Machine** — a dedicated and fully integrated production line engineered specifically for the high-volume fabrication of structural braces, including innovative interlocking bracing components, for modern storage racking systems. While our expertise extends across various beam profiles, this **Bracing Machine** focuses on producing the critical diagonal and horizontal supports that are fundamental to ensuring the overall stability, seismic resistance, and safety of pallet racking in warehouses and distribution centers. Our system is designed to transform raw steel coil into precise, strong, and ready-to-install braces with exceptional efficiency and dimensional accuracy.

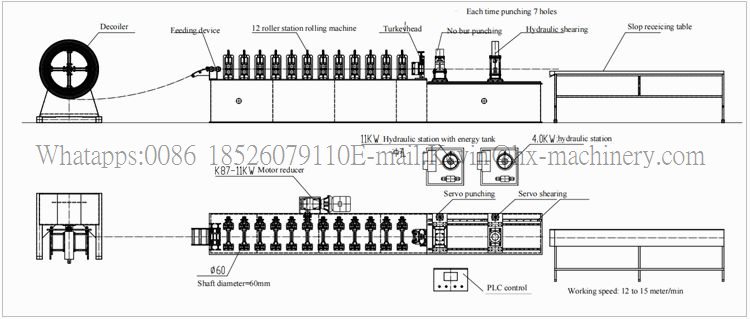

Rack upright roll forming machine working flow
Uncoiling → Leveling → Roll forming system→ Punching system→ Cutting system → Products receiving table
| Rack Roll Forming Machine main parameters | ||
| Forming Rollers | 19rollers | |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 | |
| Main Shaft Diameter | Finished diameter Ø90 mm | |
| Main Shaft Material | 45# steel with quenching and tempering treatment | |
| Motor Power | 11 kW *2 motors, K97 series hard-tooth gearbox | |
| Transmission | Gearbox drive, coupled with universal couplings | |
| Machine Frame | Cast iron archway 48 | |
| Servo Punching | Non-stop servo punching,dual-module reverse punching | |
| Cutting Method | Flying tracking saw cutting (with scrap) | |
| Discharge Table | 3 m × 2 Pieces, roller-type support | |
| Forming Thickness | 1.5-2.5mm | |
| Forming Speed | 10-15m/min | |
| Inverter | Delta brand | |
| LCD Screen | Display Control Electric | |
| Low-Voltage Electrical Components | Delixi or Chint | |
| Hydraulic System | 5.5Kw | |
| Bearings | Harbin Bearings | |
| Reducer | Ruibofeng Reducer Co., Ltd. | |
| Decoiler | Motorized decoiler with hydraulic expanding mandrel, load capacity 5 tons Inner diameter: 480–520 mm Max. outer diameter: 1600 mm | |
| Leveling Section | 1.5 rollers | |
| 2. Leveling shaft diameter 70 mm | ||
| 3. Material 40Cr high frequency quenching | ||
The core innovation of this **Bracing Machine** is its capability to manufacture interlocking bracing components. This advanced process involves forming two separate brace profiles that are mechanically joined or "bite-fastened" together. The **Bracing Machine** facilitates this precise (interlocking) operation within its continuous workflow, resulting in a single, unified structural support member. This design offers significantly enhanced load distribution, torsional rigidity, and connection strength compared to traditional single-piece braces, making it a superior choice for high-bay storage applications and regions with stringent seismic codes. The interlocking feature ensures a more robust connection to the rack uprights, directly contributing to the system's overall integrity.
**Complete and Automated Production Workflow:**
Our **Bracing Machine** orchestrates a seamless and efficient manufacturing sequence from coil to finished product:
1. **Precision Decoiling:** The process begins with a heavy-duty decoiler that ensures smooth, controlled, and consistent feeding of the steel coil, providing a stable foundation for the forming line.
2. **Progressive Roll Forming:** The steel strip is guided through a multi-station forming mill. Equipped with a custom-engineered set of hardened roller dies, the **Bracing Machine** progressively shapes the metal into the specific brace profile. For interlocking braces, two complementary profiles are formed.
3. **Punching/Notching (Optional):** An integrated punching station can accurately create connection holes, slots, or end-notches in the brace profile at programmed locations, facilitating swift and secure bolting to the rack frame.
4. **Accurate Hydraulic Cutting:** A computer-controlled hydraulic shear provides clean, burr-free cuts to exact, programmed lengths. This precision is crucial for ensuring perfect fit and alignment within the rack structure.
5. **Interlocking Forming (For Enhanced Braces):** For manufacturing interlocking braces, the two pre-formed profiles are fed into a dedicated unit. Through a specialized sequence, they are joined to create a single, reinforced component. The accuracy of the initial forming by the **Bracing Machine** is vital for this operation.
6. **Automated Discharge:** The finished braces are automatically conveyed to a receiving table or stacking system, ready for packaging and shipment to rack assemblers.
Engineered for maximum adaptability, our **Bracing Machine** offers extensive customization. Key operational parameters, including **material width and thickness**, **brace profile design**, **hole pattern**, **production speed**, and **control voltage**, can be fully tailored to your specific rack system design and factory requirements.
We are committed to a comprehensive partnership. Beyond delivering robust machinery, we provide access to **real-time video online guidance** from our expert engineering team for immediate troubleshooting and process optimization, ensuring your **Bracing Machine** production line maintains peak performance and contributes to the manufacture of safer, more reliable storage systems.

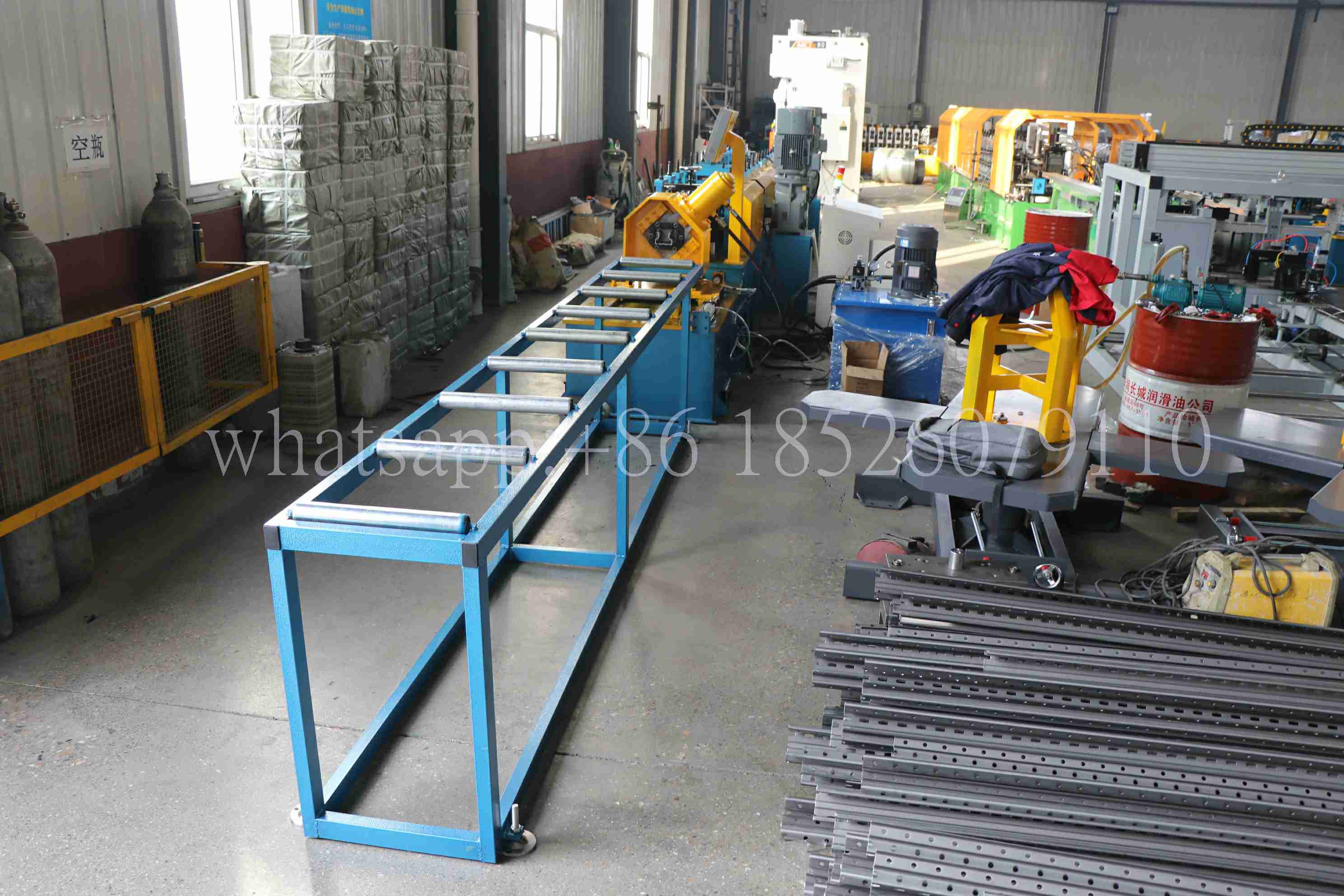

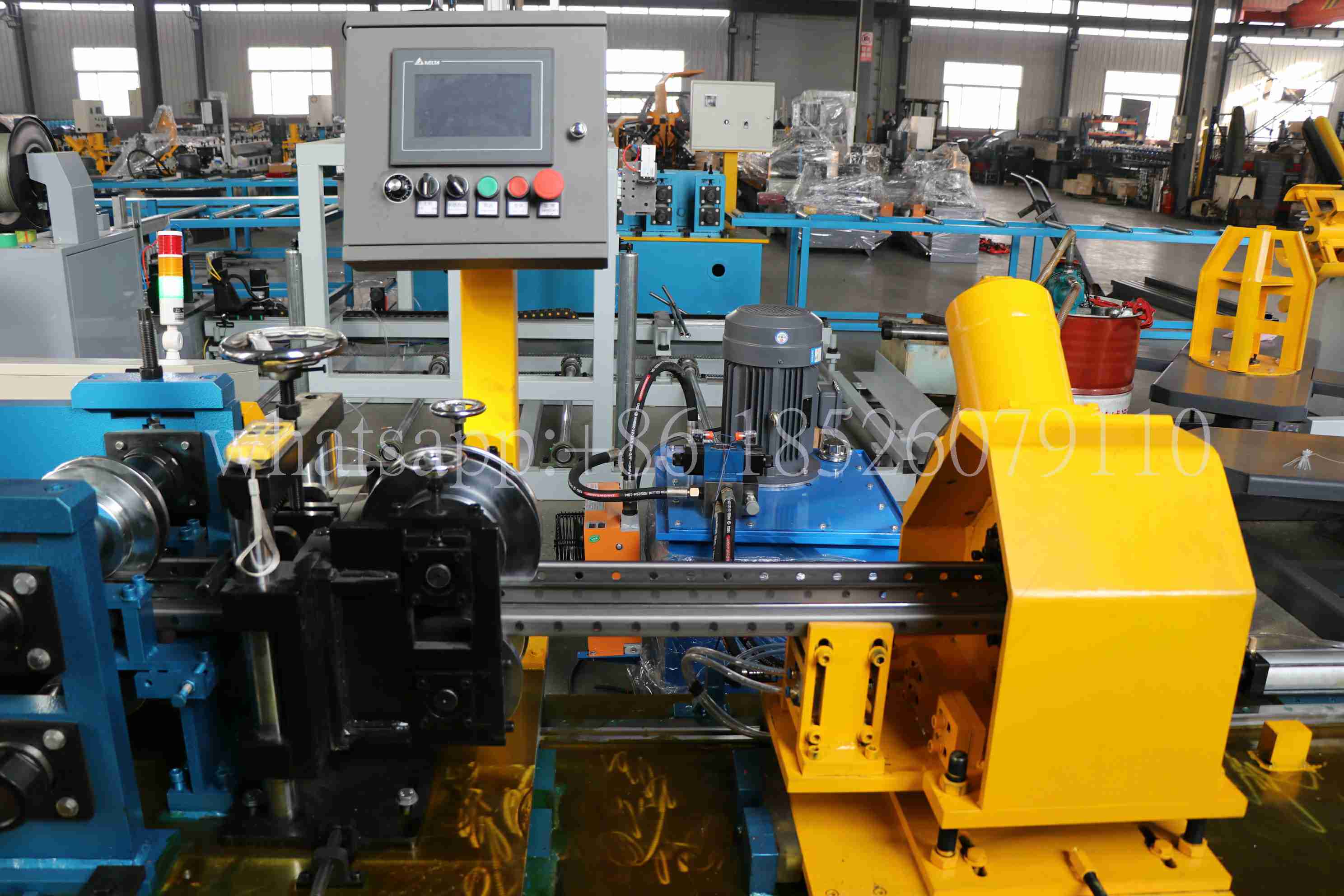

Rack upright roll forming machine photos showing
