 Box Beam Machine

As a leading manufacturer of cold roll forming technology, we proudly present our high-capacity **Box Beam Machine** – a sophisticated and fully integrated production line engineered specifically for the fabrication of closed-section, box-type structural beams, including the high-strength, interlocking beams essential for modern pallet racking systems. This system represents the pinnacle of precision engineering, designed to transform raw steel coil into robust, ready-to-assemble beams with exceptional dimensional accuracy, structural integrity, and production efficiency, meeting the rigorous demands of the logistics, industrial storage, and construction sectors.

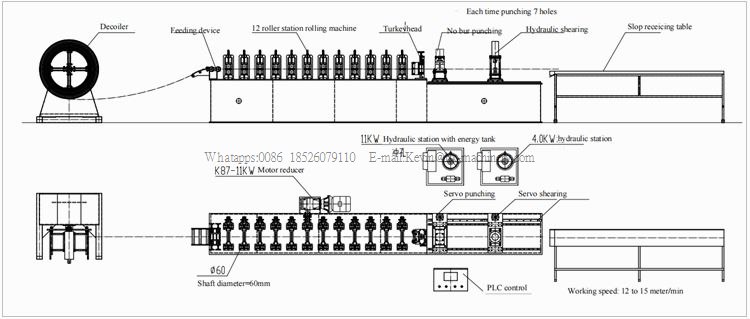

Rack upright roll forming machine working flow

Uncoiling → Leveling → Roll forming system→ Punching system→ Cutting system → Products receiving table

The core capability of this **Box Beam Machine** is its dedicated design to produce beams where two pre-formed C-channel profiles are mechanically joined to form a closed, box-like section. This (interlocking) process is integral to the machine's operation, resulting in a single, unified structural member with a hollow rectangular or square cross-section. This design offers superior load-bearing capacity, exceptional torsional rigidity, and enhanced stability under dynamic loads compared to open-section beams, making it the optimal choice for the critical horizontal members in heavy-duty storage and mezzanine flooring applications. The entire manufacturing sequence, from coil feeding to the final interlocking, is seamlessly automated within this **Box Beam Machine** line.

Complete and Automated Production Workflow:

Our **Box Beam Machine** orchestrates a continuous and optimized manufacturing process:

1.  **Precision Decoiling & Leveling:** The process begins with a heavy-duty decoiler coupled with a precision leveling unit. This ensures the steel coil is fed smoothly and flattened, eliminating internal stresses and providing a perfectly flat material start for accurate forming.

2.  **Progressive Roll Forming:** The leveled strip is guided through a multi-station forming mill. Utilizing a custom-engineered set of hardened roller dies, the **Box Beam Machine** progressively shapes the metal into two identical, precise C-channel profiles with the exact dimensions required for the final box section.

3.  **Accurate Pre-Cut (Optional) or Final Cut:** Depending on the line configuration, a servo-hydraulic cutting unit can provide a clean, pre-cut of the C-channels before interlocking or perform the final cut after the box beam is formed, ensuring perfect square ends and precise lengths.

4.  **Core Interlocking & Seam Forming:** This is the defining phase. The two C-channel profiles are aligned and fed into the specialized interlocking and closing unit of the **Box Beam Machine**. Through a precise sequence of rolling, the flanges are interlocked and the seam is closed, forming a continuous, strong, and sealed box section beam. The precision of the initial profile forming is critical for a flawless closure.

5.  **Automated Discharge and Stacking:** The finished box beams are automatically conveyed to a receiving rack or stacking table, ready for immediate use or subsequent finishing processes.

Engineered for maximum versatility, our **Box Beam Machine** offers extensive customization. Key parameters like **material width and thickness**, **final beam dimensions**, **production speed**, and **control voltage** can be tailored to your specifications.

We provide comprehensive support, including **real-time video online guidance** from our engineers, ensuring your **Box Beam Machine** operates at peak efficiency, delivering the superior structural components needed to strengthen your market position.

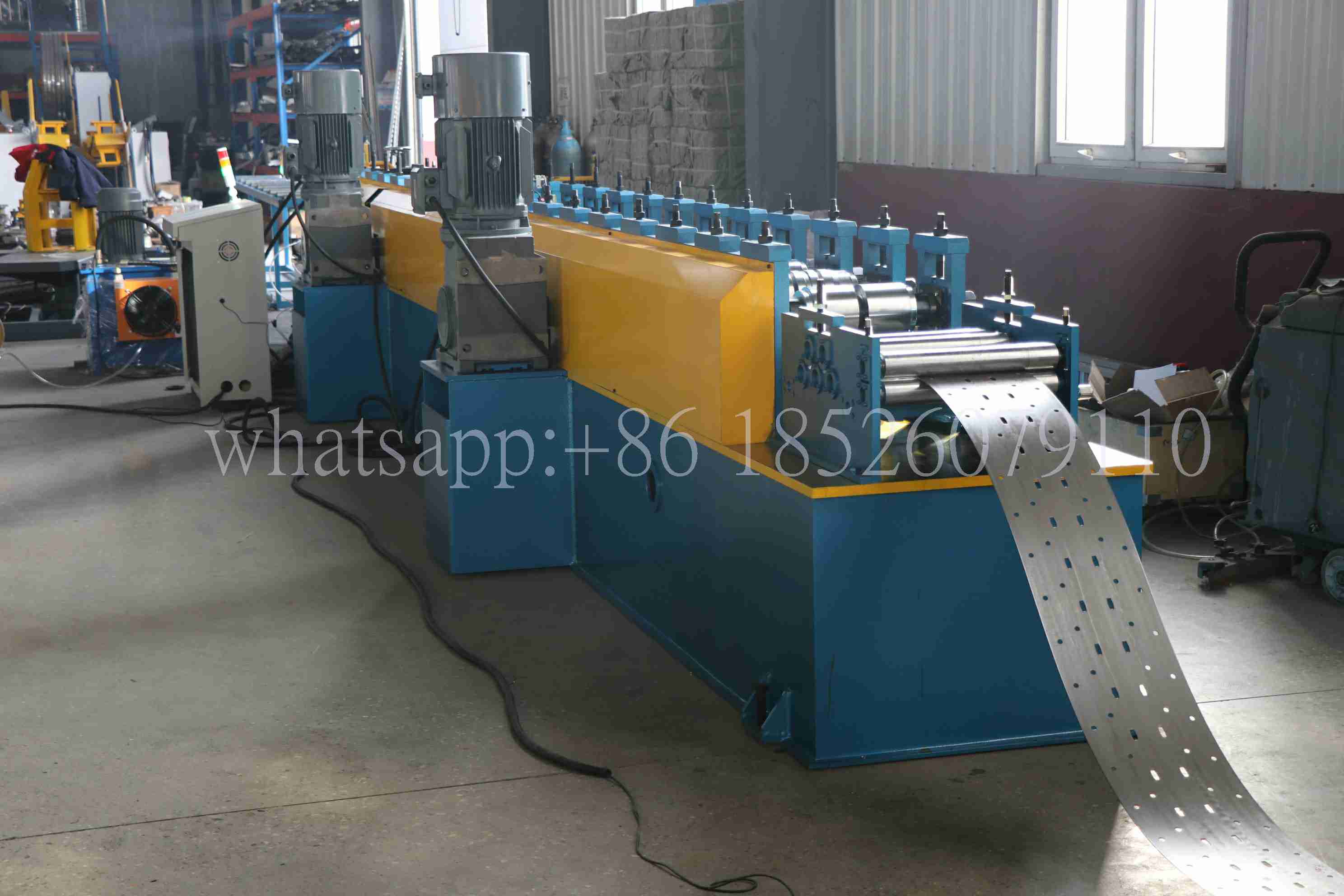

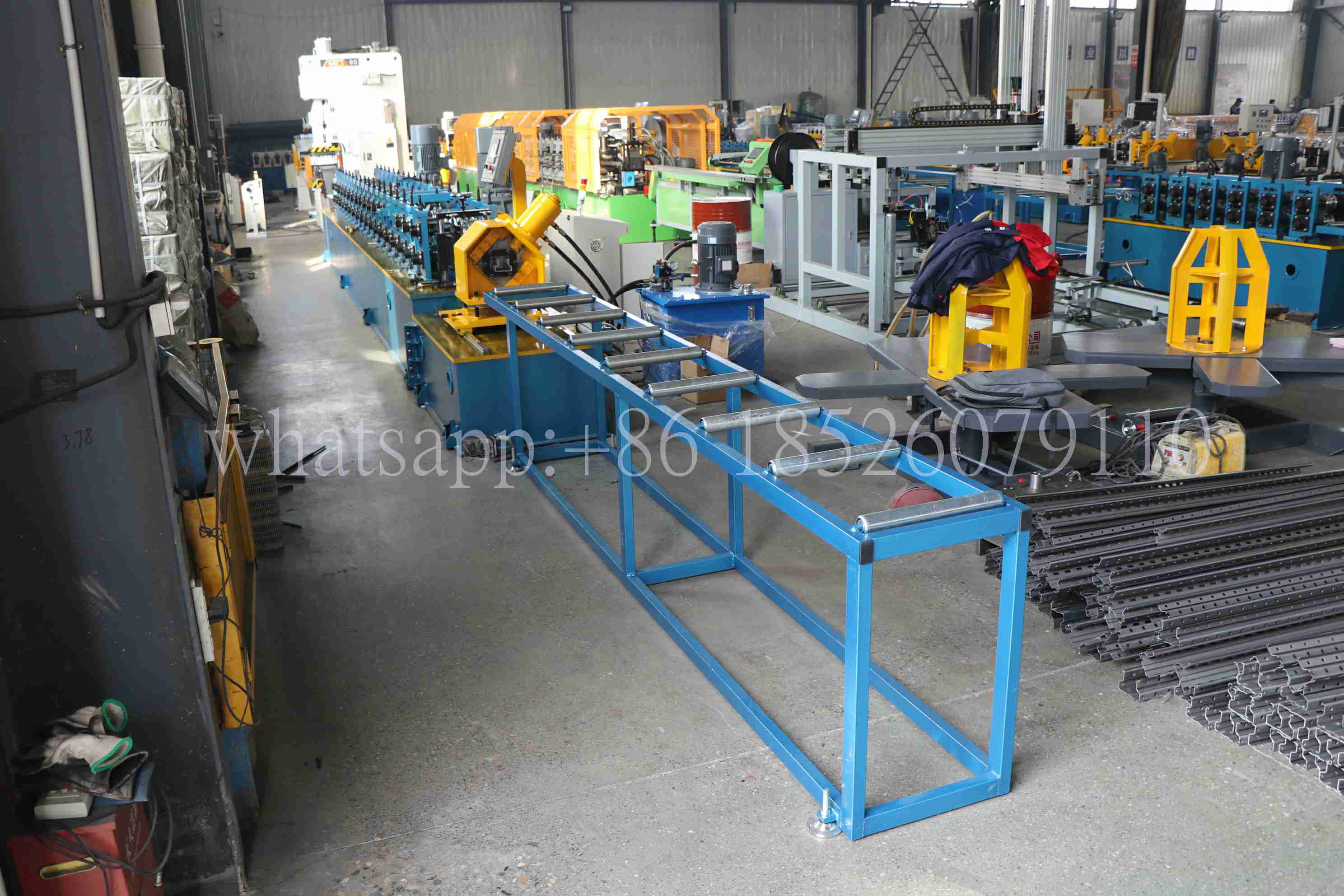

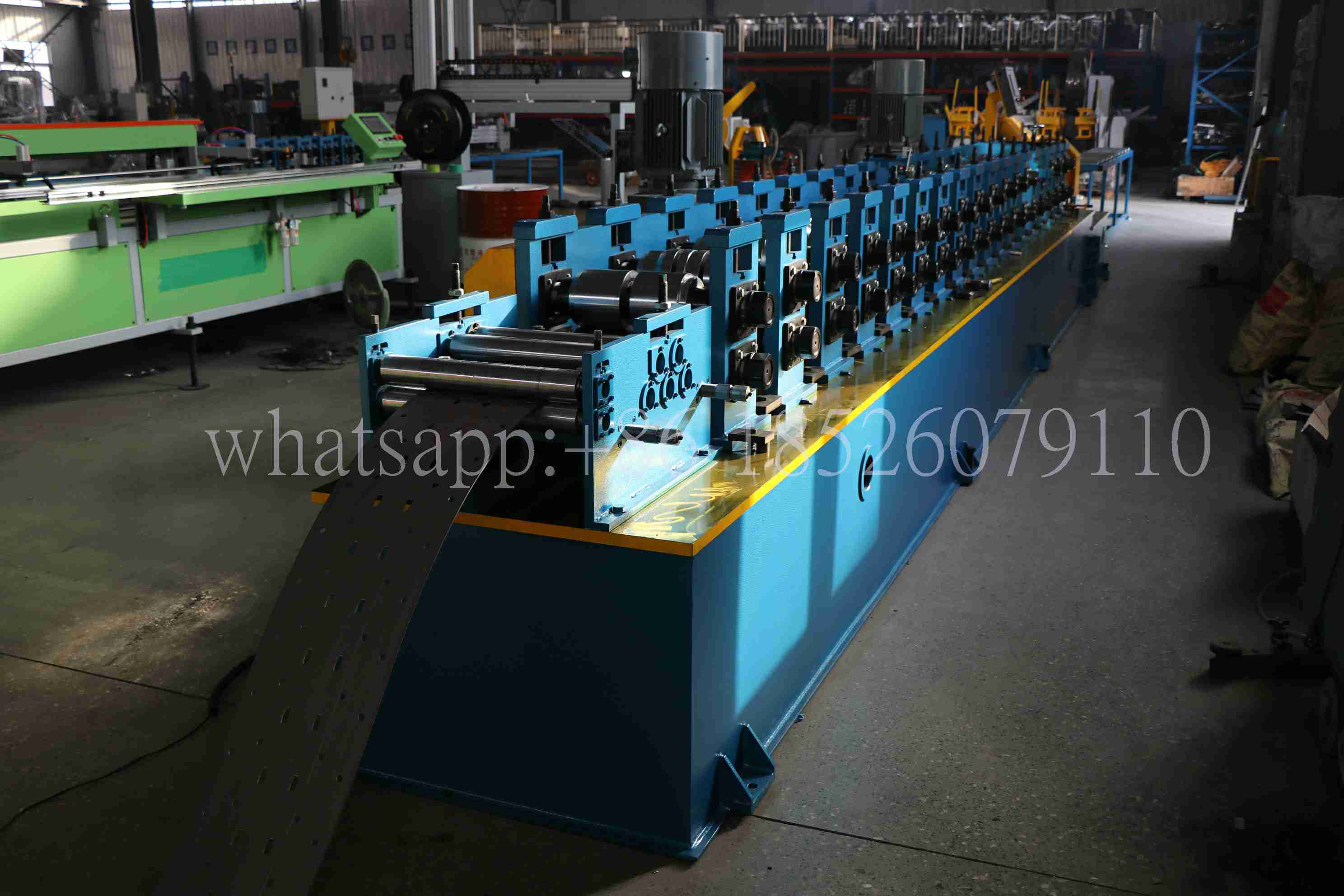

  Rack upright roll forming machine photos showing
