 Rack Shelf Roll Forming Machine

In the demanding world of industrial storage and material handling, the strength and precision of your rack shelving components are non-negotiable. As a specialized manufacturer of cold roll forming technology, we present our engineered **Rack Shelf Roll Forming Machine** production line. This integrated system is purpose-built to fabricate the robust, interlocking cross beams that serve as the critical load-bearing backbone of industrial shelving units. Our solution transforms raw steel coil into finished, ready-to-assemble beams with superior efficiency and unmatched dimensional accuracy.

Rack upright roll forming machine working flow

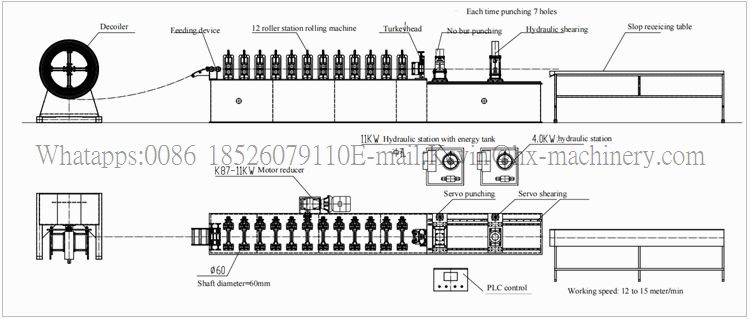

Uncoiling → Leveling → Roll forming system→ Punching system→ Cutting system → Products receiving table

 The defining feature of this production line is its ability to manufacture beams where two C-channel profiles are mechanically **interlocked**—or "bite-fastened"—to form a single, unified structural member. This unique  (interlocking) design dramatically enhances the beam's torsional rigidity and load capacity compared to conventional single-profile beams, making it ideal for heavy-duty storage applications. The entire process is seamlessly automated within the **Rack Shelf Roll Forming Machine** system, ensuring consistent quality and high throughput.

**Complete and Streamlined Production Workflow:**

1.  **Precision Decoiling & Feeding:** The process begins with a precision decoiler that ensures smooth, consistent, and controlled feeding of the steel coil, eliminating material flare and ensuring a stable start to the forming process.

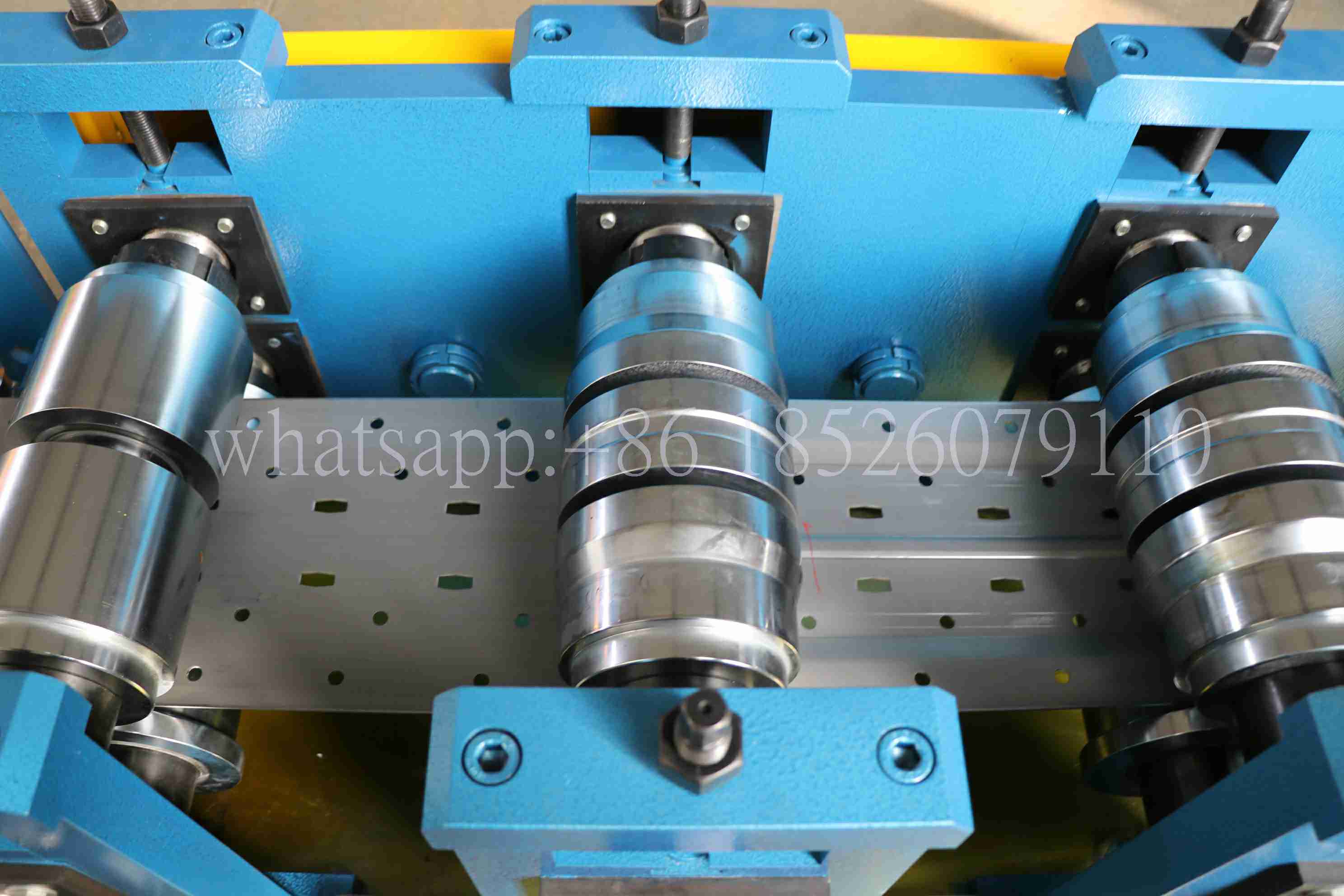

2.  **High-Speed Roll Forming:** The steel strip then progresses through the multi-station **Rack Shelf Roll Forming Machine**. Equipped with a custom-designed set of hardened alloy steel rollers, it progressively and accurately forms the metal into the precise C-channel profile required for the final beam assembly.

3.  **Computerized Hydraulic Cutting:** A servo-driven or hydraulic cutting station provides clean, burr-free, and perfectly square cuts at programmed lengths. This precision is crucial for ensuring the seamless interlocking of the two components in the subsequent stage.

4.  **Core Interlocking Forming Unit:** This is the heart of the line. The two pre-formed C-channels are fed into the dedicated **Semi-Finished Interlocking Roll Forming Unit**. Here, they are aligned and passed through a specialized set of rollers that mechanically crimp and lock their flanges together, creating a single, exceptionally strong beam.

5.  **Automated Output & Stacking:** The finished interlocked beams are automatically conveyed to a receiving rack or stacking table, organized for easy handling, packaging, or direct transfer to the next stage of your production, such as welding or powder coating.

We understand that production needs vary. Therefore, our **Rack Shelf Roll Forming Machine** is designed for maximum flexibility. Critical parameters, including **material entry width**, **roll forming thickness**, **production speed**, and **electrical system voltage**, can be fully customized to match your specific raw material specifications and local factory requirements.

Our commitment extends beyond the machine. To ensure optimal performance and minimal downtime, we provide comprehensive support, including **real-time video online guidance** from our experienced engineers for instant troubleshooting and operational assistance.

Investing in our **Rack Shelf Roll Forming Machine** production line means investing in superior product quality, reduced labor costs, and a significant boost in manufacturing capacity for the competitive storage solutions market.

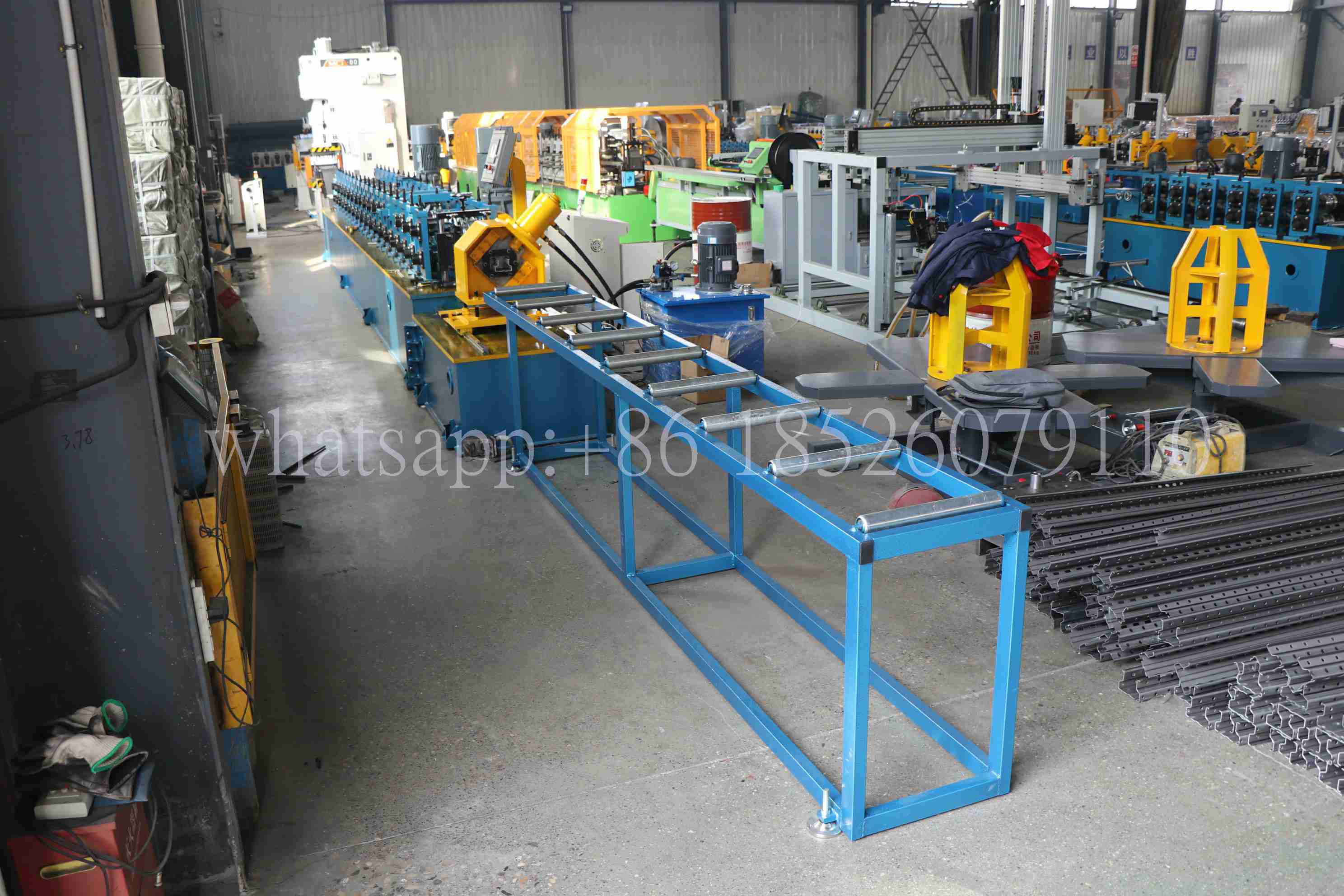

  Rack upright roll forming machine photos showing
