   Pallet Rack Roll Forming Machine

In the demanding world of logistics and industrial storage, the integrity of pallet racking systems is foundational to operational safety and efficiency. As a specialized manufacturer of cold roll forming machinery, we introduce our advanced **Pallet Rack Roll Forming Machine** – a fully integrated production line engineered specifically to fabricate the high-strength, interlocking cross beams that are critical to modern storage solutions. This system is designed to transform raw steel coil into robust, ready-to-assemble beams with exceptional precision, repeatability, and speed.

Rack upright roll forming machine working flow

Uncoiling → Leveling → Roll forming system→ Punching system→ Cutting system → Products receiving table

   The core innovation of this production line is its dedicated capability to manufacture interlocking beams. This process involves two separate C-channel profiles being mechanically joined or "bite-fastened" together. The **Pallet Rack Roll Forming Machine** facilitates this precise interlocking) operation, resulting in a single, unified structural member. This design offers dramatically enhanced load-bearing capacity and torsional rigidity compared to conventional single-profile beams, making it the ideal choice for high-density warehouse storage. The entire workflow is seamlessly automated, ensuring consistent quality and high-volume output.

**Complete and Streamlined Production Process:**

Our **Pallet Rack Roll Forming Machine** line orchestrates a continuous and efficient manufacturing sequence:

1.  **Precision Decoiling:** The process begins with a heavy-duty decoiler that ensures smooth, controlled, and consistent feeding of the steel coil, providing a stable start to the forming line.

2.  **Progressive Roll Forming:** The steel strip is then guided through a multi-station forming mill. Equipped with a custom-designed set of high-grade, hardened roller dies, the **Pallet Rack Roll Forming Machine** progressively shapes the metal into the exact C-channel profile required for the interlocking beam.

3.  **Accurate Hydraulic Cutting:** A computer-controlled hydraulic shear provides clean, square, and burr-free cuts to precise, programmed lengths. This accuracy is crucial for ensuring perfect alignment in the subsequent interlocking stage.

4.  **Interlocking Forming (The Key Stage):** This is the defining phase. Two of the pre-formed C-channels are fed into the dedicated **Semi-Finished Interlocking Roll Forming Unit**. Through a specialized rolling sequence, their flanges are permanently crimped and locked together, creating a single, exceptionally strong double-walled beam. The precision of the initial forming stages directly ensures the success of this interlocking process.

5.  **Automated Discharge and Stacking:** The finished interlocked beams are automatically conveyed to a receiving rack or stacking table, organized for easy handling and subsequent processes like welding or powder coating, minimizing manual labor.

Understanding diverse manufacturing needs, our **Pallet Rack Roll Forming Machine** is built for flexibility. Key operational parameters, including **material entry width**, **roll forming thickness**, **line speed**, and **control voltage**, can be fully customized to match your specific raw material specifications and production environment.

We are committed to a true partnership. Beyond delivering reliable machinery, we provide comprehensive support, including access to **real-time video online guidance** from our engineering team for immediate troubleshooting and operational optimization, ensuring your production line maintains peak performance.

Investing in our **Pallet Rack Roll Forming Machine** production line empowers your business to manufacture top-tier storage beams with improved efficiency, reduced operational costs, and superior product quality, strengthening your position in the competitive material handling market.

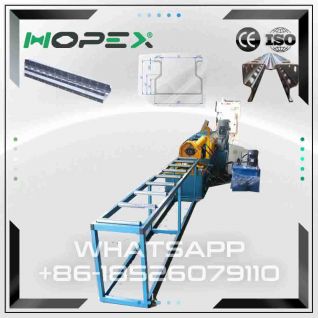

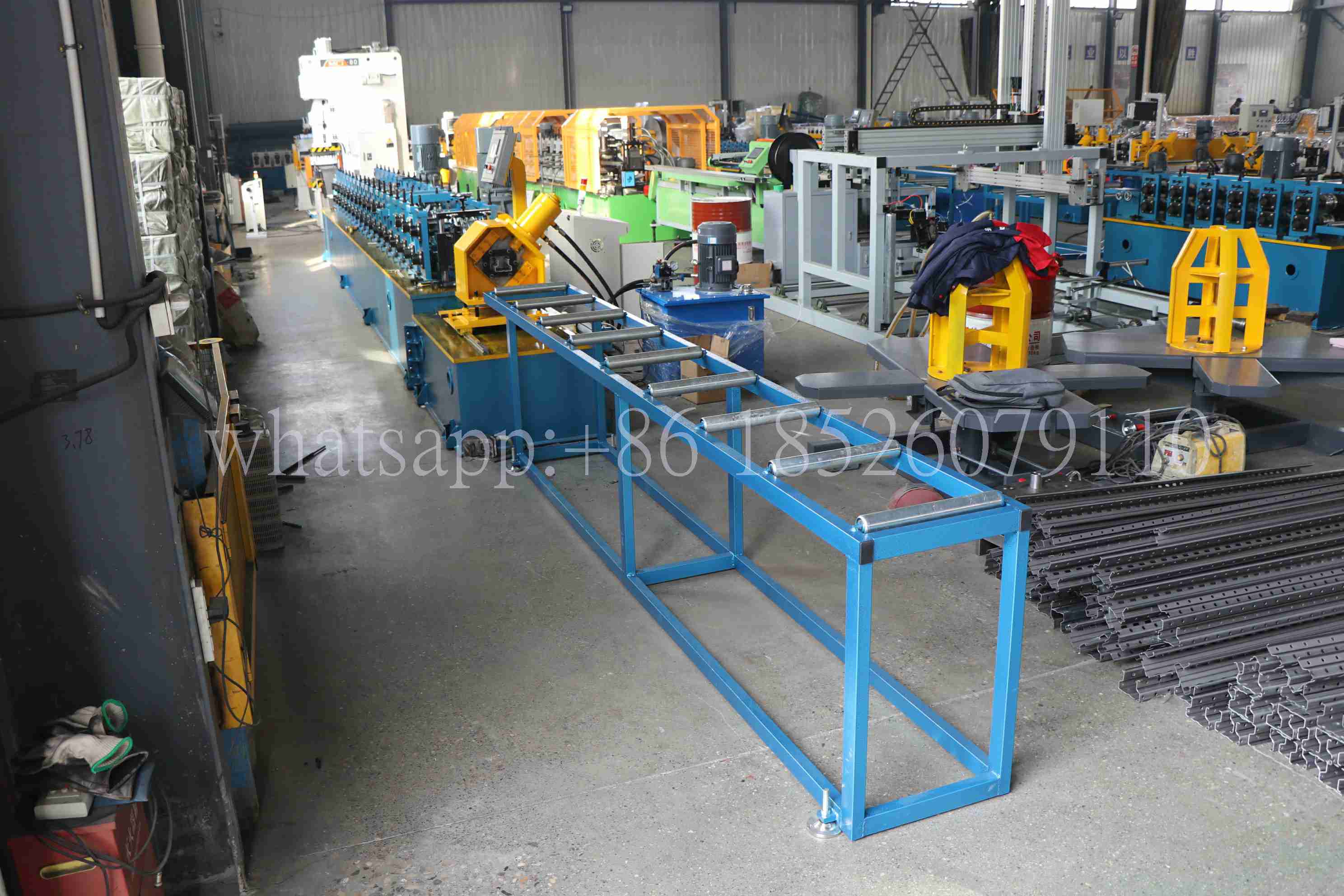

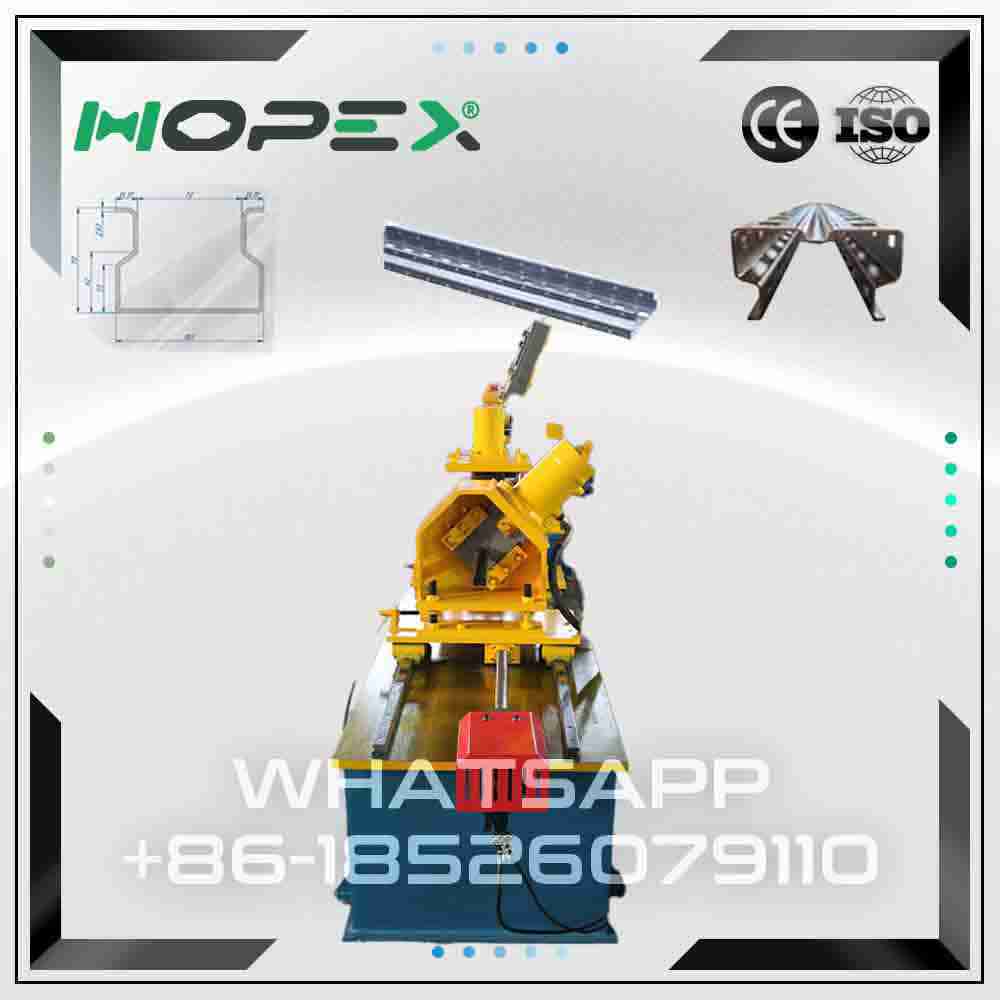

  Rack upright roll forming machine photos showing

Contat us to learn more

Whatsapp:0086 18526079110

E-mail:Kevin@hx-machinery.com

Our photos with our customers

About us

HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.

FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a highway guardrail forming machine. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the highway guardrail forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.

Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
