Model：HOPEX-rack roll forming machine
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
Warranty :2 years for machinery warranty
Whatapps:0086 18526079110
E-mail:Kevin@hx-machinery.com
Rack Roll Forming Machine
In the competitive landscape of warehouse storage and industrial shelving, the integrity and efficiency of your production line are paramount. As a specialized manufacturer of cold roll forming machinery, we present our advanced **Rack Roll Forming Machine** — a complete, automated production line engineered to fabricate the high-strength, interlocking beams that form the backbone of modern pallet racking and shelving systems.

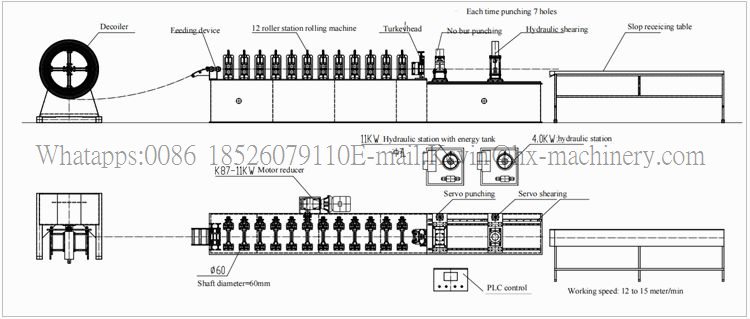

Rack upright roll forming machine working flow
Uncoiling → Leveling → Roll forming system→ Punching system→ Cutting system → Products receiving table
| Rack Roll Forming Machine main parameters | ||
| Forming Rollers | 19rollers | |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 | |
| Main Shaft Diameter | Finished diameter Ø90 mm | |
| Main Shaft Material | 45# steel with quenching and tempering treatment | |
| Motor Power | 11 kW *2 motors, K97 series hard-tooth gearbox | |
| Transmission | Gearbox drive, coupled with universal couplings | |
| Machine Frame | Cast iron archway 48 | |
| Servo Punching | Non-stop servo punching,dual-module reverse punching | |
| Cutting Method | Flying tracking saw cutting (with scrap) | |
| Discharge Table | 3 m × 2 Pieces, roller-type support | |
| Forming Thickness | 1.5-2.5mm | |
| Forming Speed | 10-15m/min | |
| Inverter | Delta brand | |
| LCD Screen | Display Control Electric | |
| Low-Voltage Electrical Components | Delixi or Chint | |
| Hydraulic System | 5.5Kw | |
| Bearings | Harbin Bearings | |
| Reducer | Ruibofeng Reducer Co., Ltd. | |
| Decoiler | Motorized decoiler with hydraulic expanding mandrel, load capacity 5 tons Inner diameter: 480–520 mm Max. outer diameter: 1600 mm | |
| Leveling Section | 1.5 rollers | |
| 2. Leveling shaft diameter 70 mm | ||
| 3. Material 40Cr high frequency quenching | ||
This integrated system is designed for seamless operation, transforming raw steel coil into finished, ready-to-assemble beams with precision and reliability. The process begins with a precision **Decoiling Unit**, ensuring smooth and consistent material feeding. The steel strip then proceeds to the core of the line: our robust **Roll Forming Machine**. Equipped with a customized set of hardened roller dies, it progressively shapes the metal into a precise, uniform profile with exceptional accuracy.
A key differentiator of this line is the subsequent **Hydraulic Cutting Station**. It provides clean, burr-free, and square cuts to the exact required length without deformation, ensuring perfect fit during assembly. Following this, the semi-finished profiles enter the innovative **Interlocking Roll Forming Unit**. This specialized station is the heart of our design, where two pre-formed C-channels or profiles are mechanically joined and **interlocked** together, creating a single, incredibly rigid, and complete load-bearing beam. This咬扣 (interlocking) technology is crucial for achieving the superior structural strength and stability demanded in heavy-duty storage applications. Finally, the finished beams are automatically conveyed to a **Finished Product Receiving Rack** for orderly collection, preventing any surface damage.
Understanding that one size does not fit all, we build exceptional flexibility into our **Rack Roll Forming Machine**. Critical operational parameters—including material feed width, roll forming thickness, and electrical voltage—can be fully customized to meet your specific raw material specifications and local power standards.
Beyond providing state-of-the-art equipment, we offer a partnership supported by proactive service. To minimize potential downtime and ensure your operations run smoothly, our technical engineers are available for **real-time video online guidance**, providing instant troubleshooting and operational support whenever you need it.
Choosing our **Rack Roll Forming Machine** production line means investing in more than just machinery; it means securing a turnkey solution for productivity, quality, and growth. It empowers you to produce superior, consistent shelving beams with reduced labor costs and enhanced manufacturing efficiency, solidifying your competitive edge in the market.

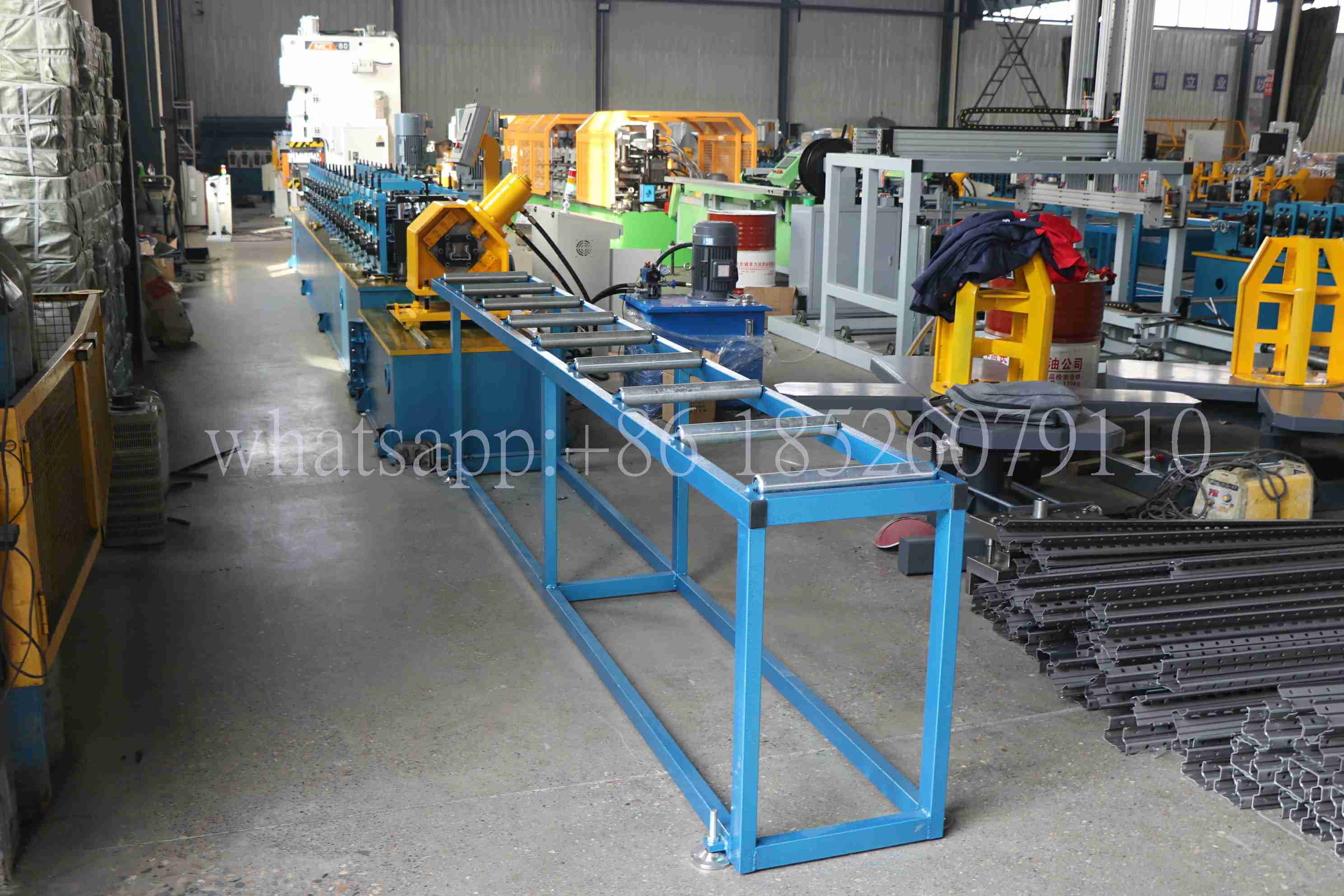

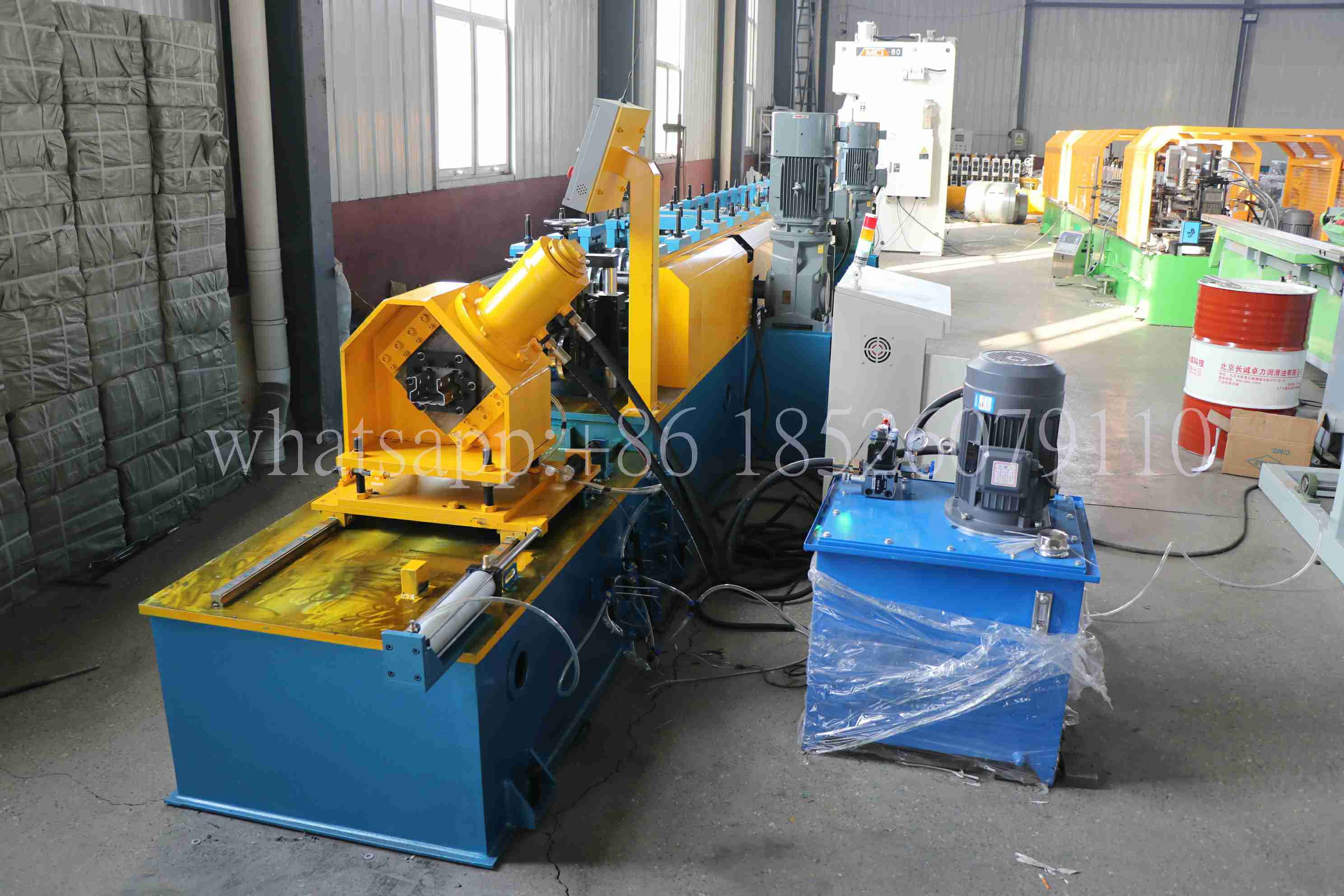

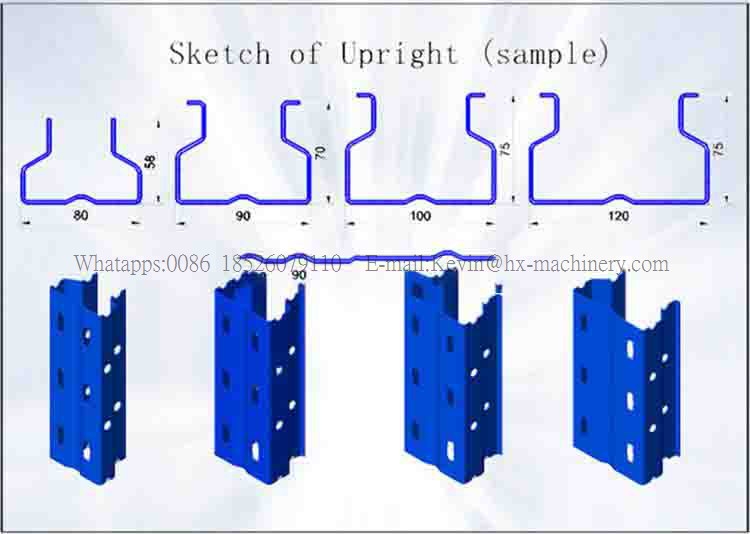

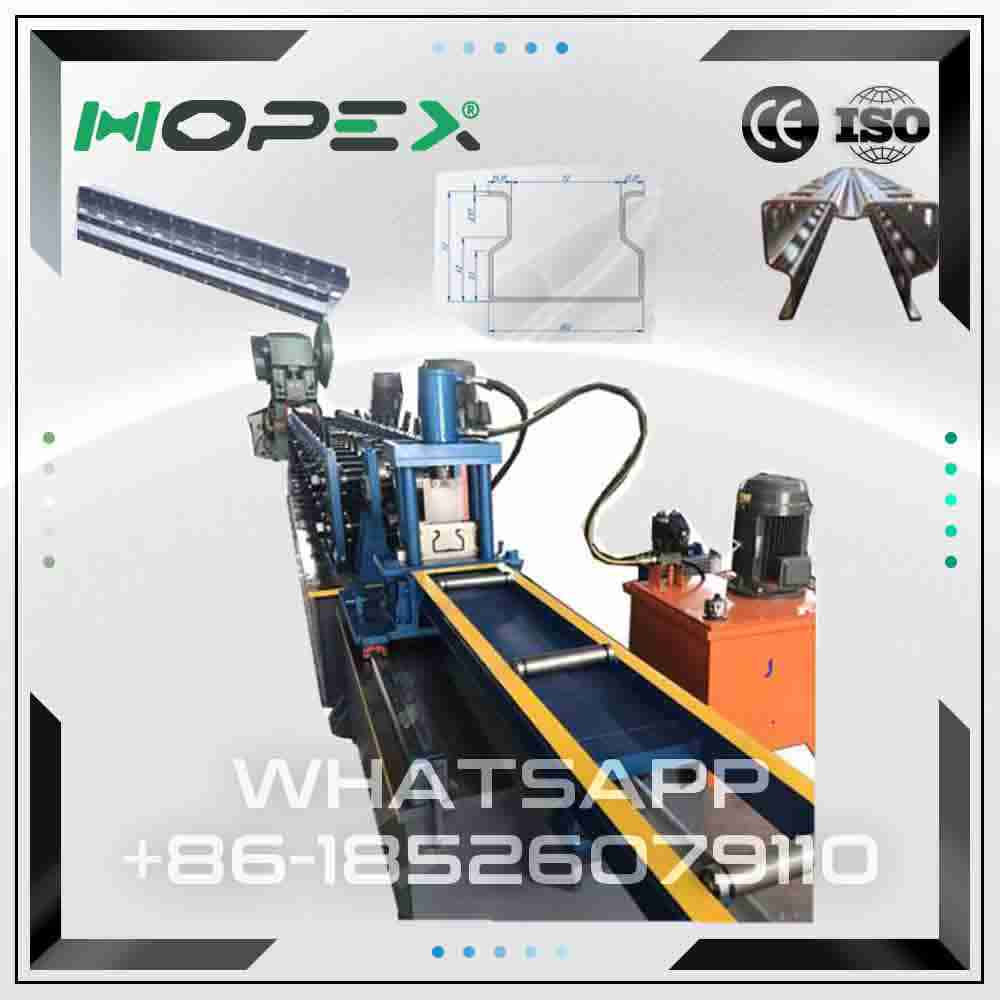

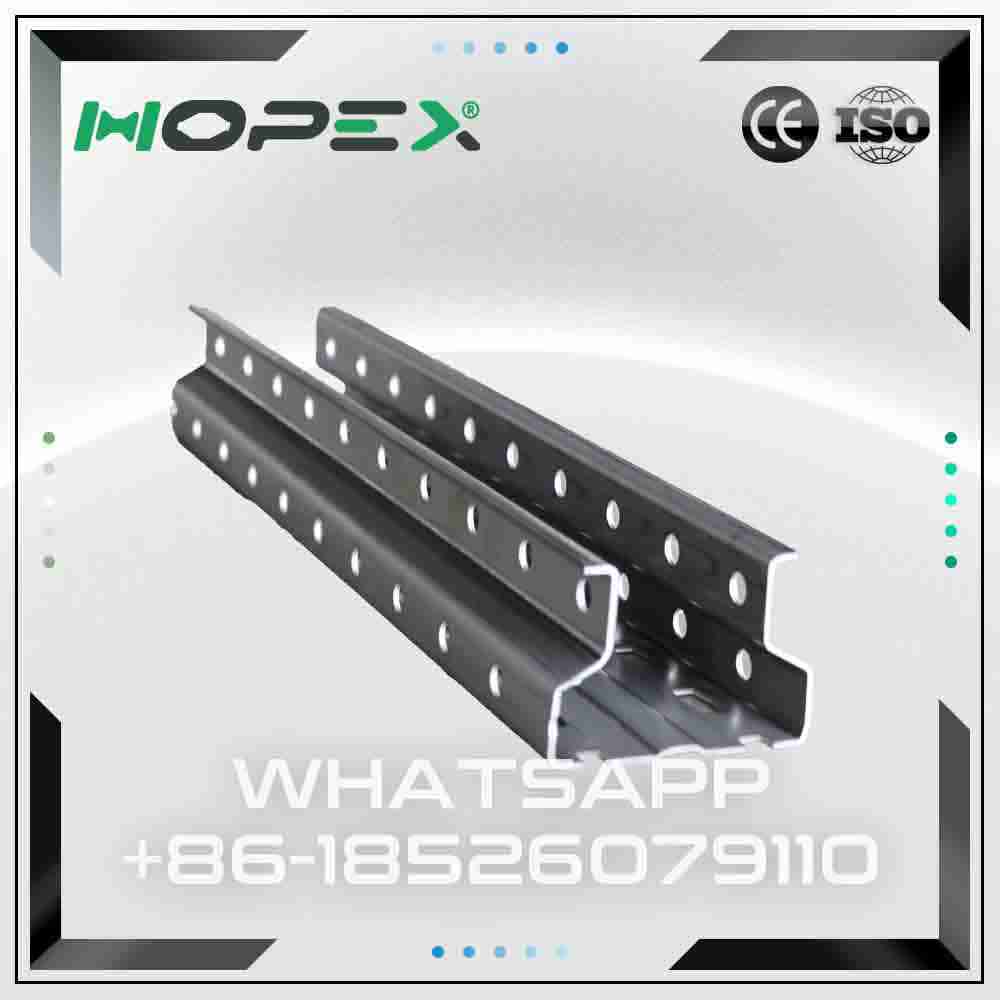

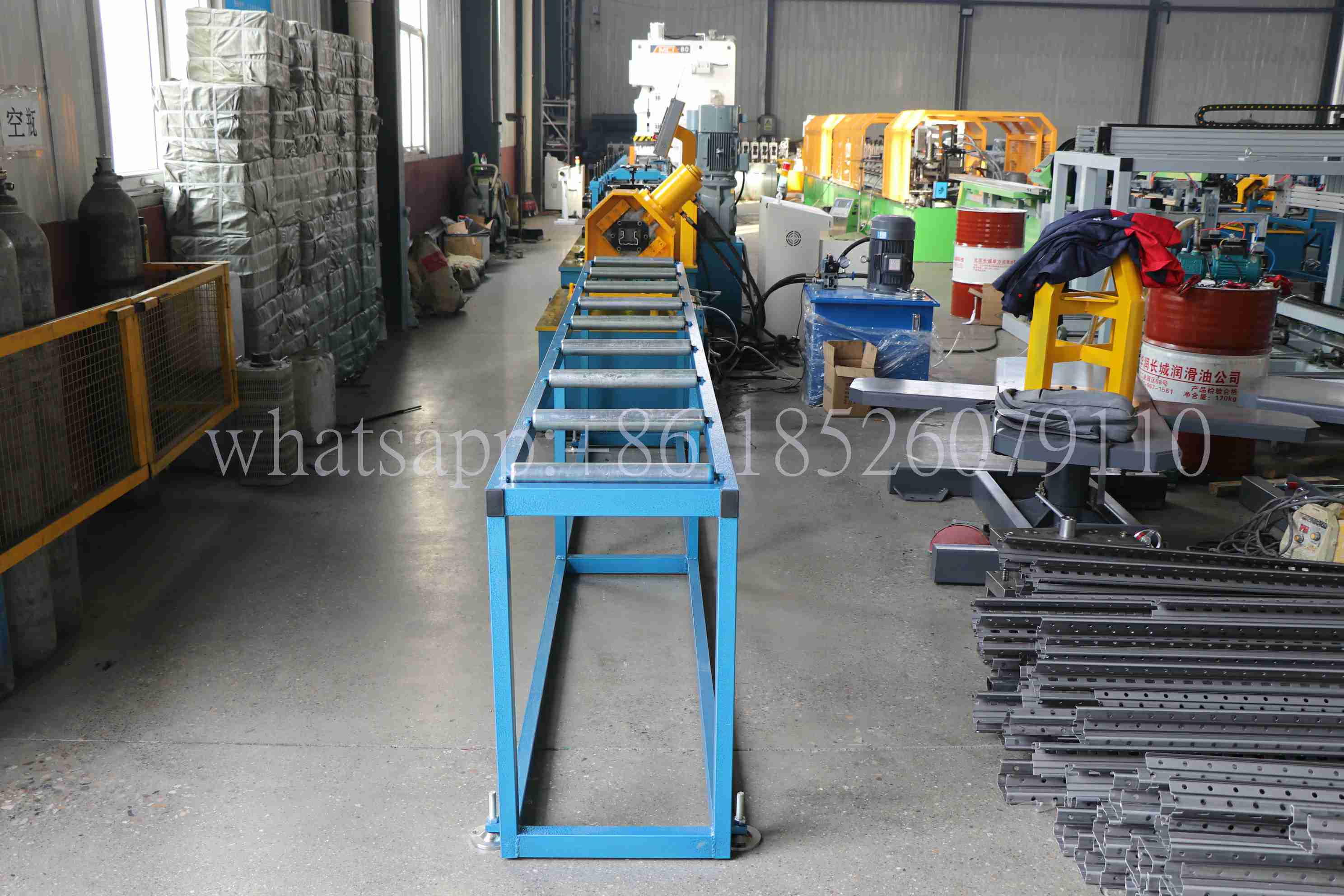

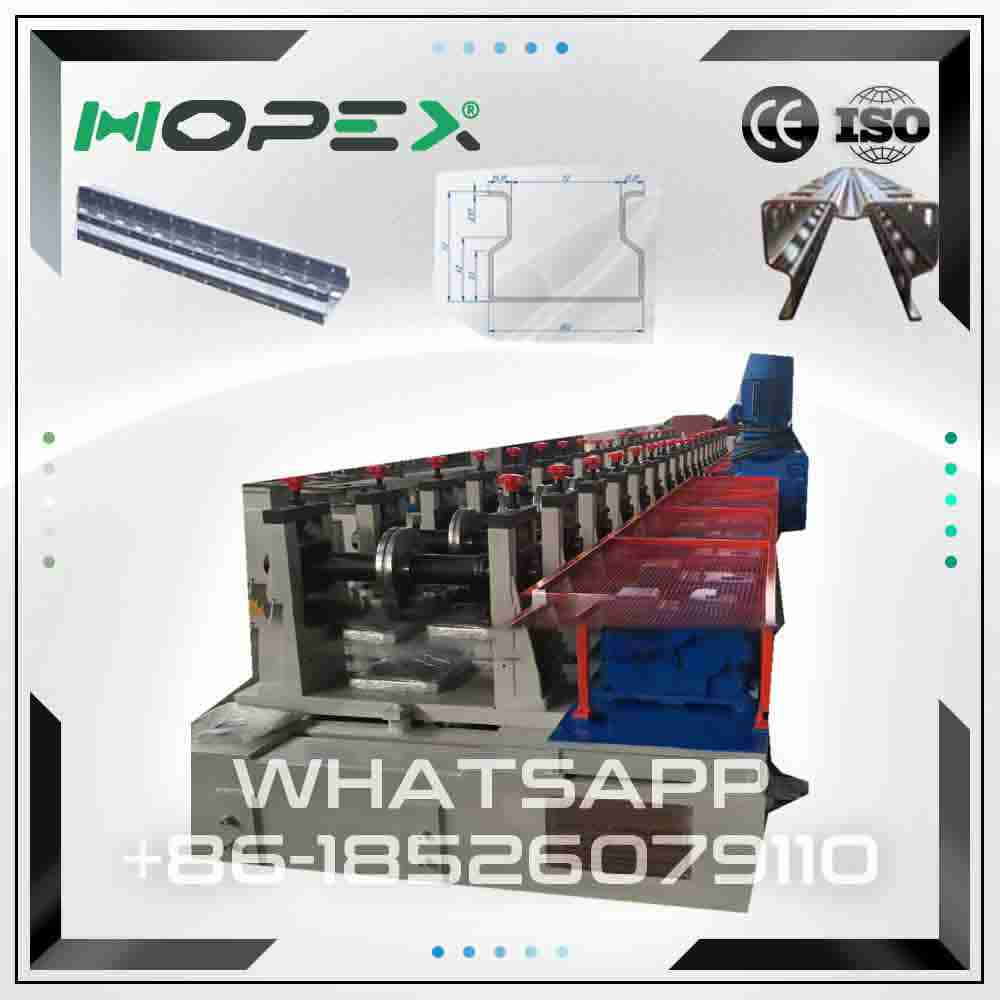

Rack upright roll forming machine photos showing
